HC-Cargo Laturi

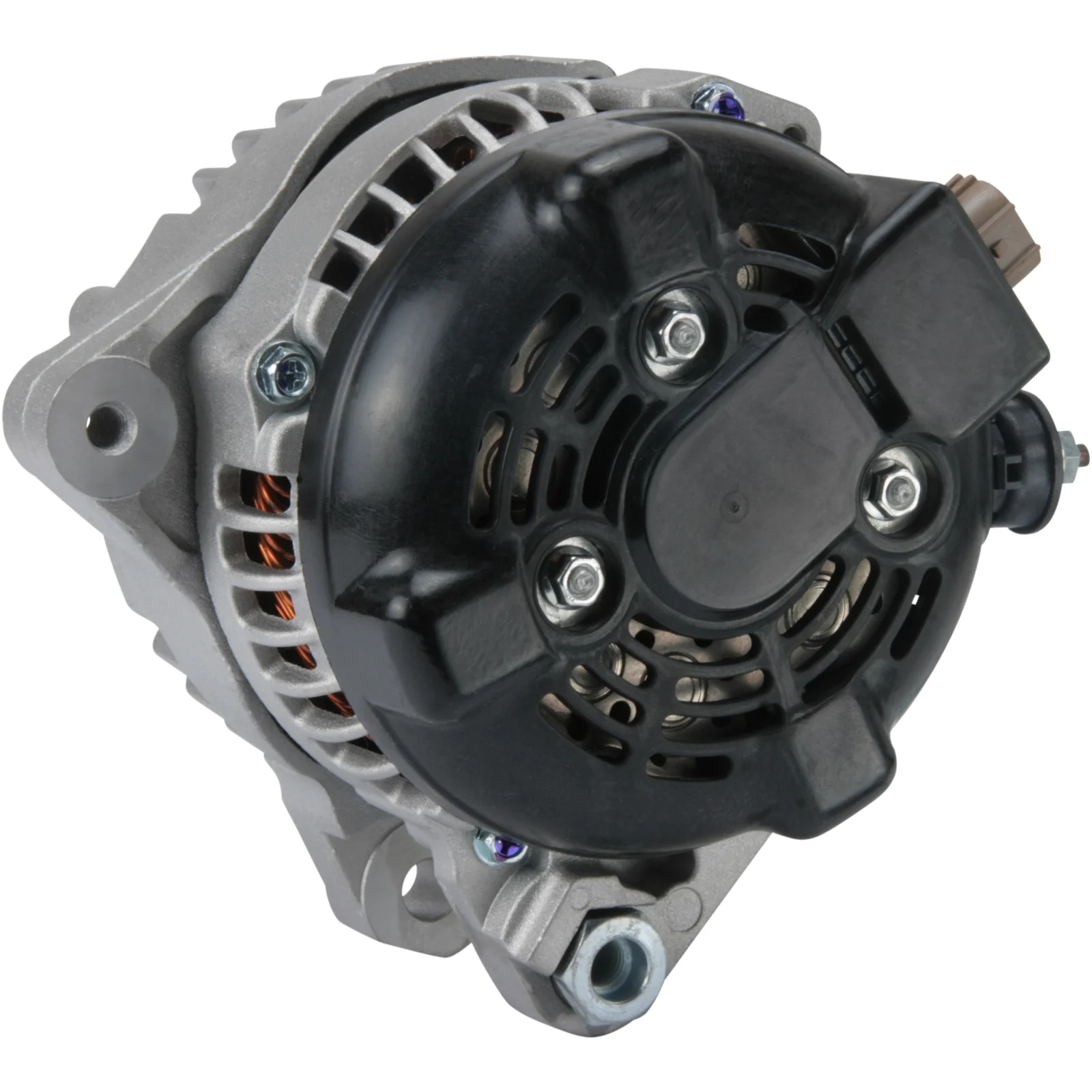

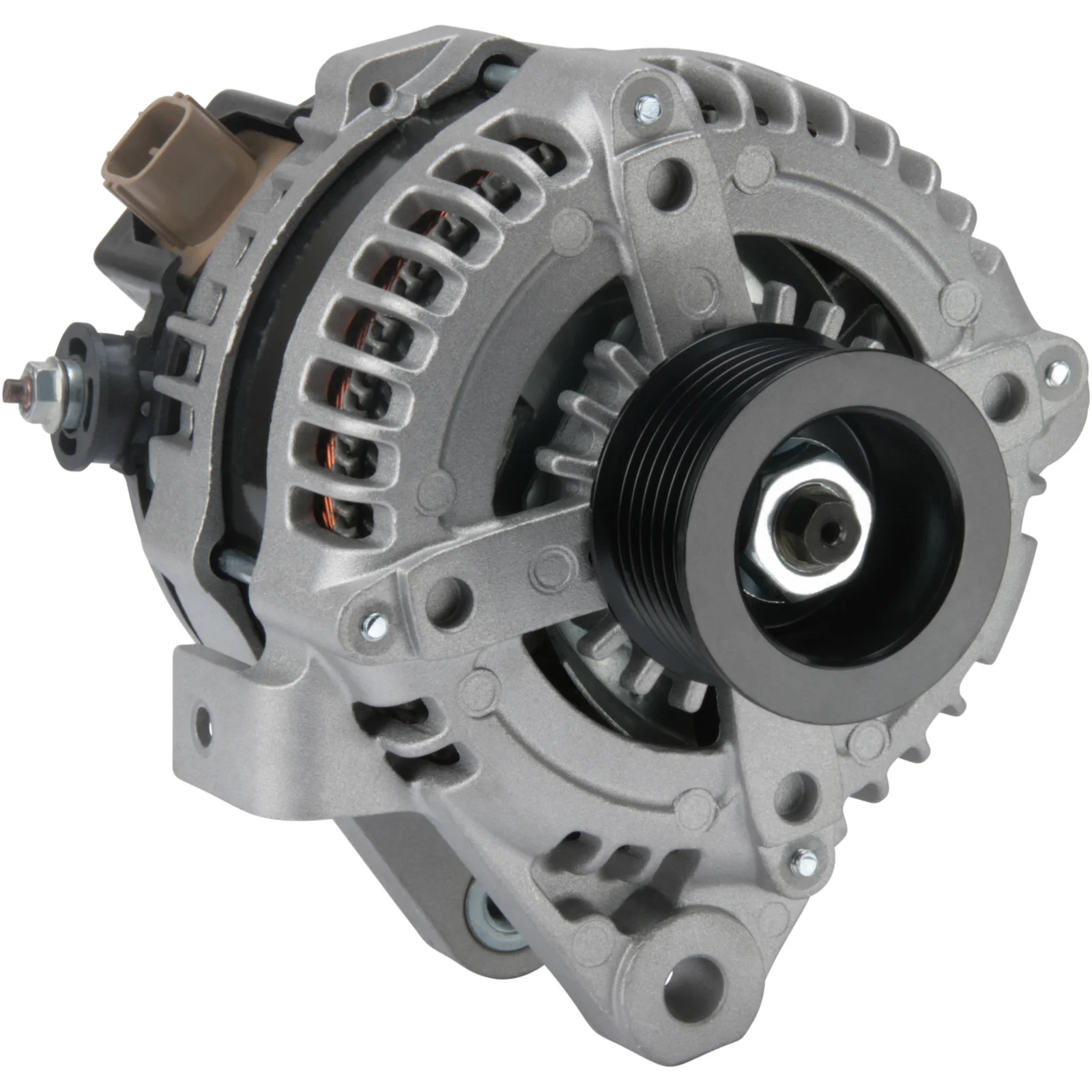

HC-Cargo Laturi
Tuotenro.: F032114273

HC-Cargo Laturi

Tekniset tiedot:

jännite: 14, Ampeerit: 100, pyörimislaite: myötäpäivään, asennuskiinnike etäisyys: 46,50

Kuvaus

Toyota Laturi 12V-100A 12V - 100A, 7r. (S, IG, L, M/DF) 7r. (S-IG-L-M) Yourex tuotteen tilaukseen 90-555-2826

Jännite: 14
Virta: 100
Holkki etäisyys: 36.00
Leveys/kannattimen varsi: 17.50
Asennuspidikkeen etäisyys: 46.50
Pidikkeen reikä: 11.00
Hihnan säätö pidike reikäpos.: 15
Hihnan säätö pidike reikä 1: M8
Holkin halkaisija: 60.00
Uurteet/holkki: 7
Säde: 83.00
Säde 2: 86.00
B+: M6
Sijainti/B+ min.: 15
D+ koko: Pistoke
Pyöriminen: myötävuorossa
Pistokkeen numero: PL78
Kokonaispituus mm: 161.00
Holkki: SP
Regulaattorityyppi: IR

Tiedostot

Määrittely

B+ M6
Mount. bracket dist. 46.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 15
Plug no. PL78
Bracket hole 11.00
Position/B+ in min. 15
Pulley SP
Pulley dia. 60.00
Pulley dist. 36.00
Radius 83.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 161.00 mm
Width/holder arm 17.50
Amp 100

  • OEM
    F032114273, ja1613ir, 1986A01687, 27060-0H070, 27060-0H080, 27060-28070, 27060-28160, 27060-28260, 102211-0750, 104210-3780, 114273

  • Konkurrentreferens
    A6055, A6603S, DAN952, DENDAN952, DRA0468, F042205237, J5112149, 8EL738051-001, 11088, 209421, 209421A, 401613RI, 440518, 12060826, 063377435, 0986082060, 063377435010

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    a6055, a6603s, dan952, dendan952, dra0468, f032114273, f042205237, j5112149, ja1613ir, 8el738051001, 1986a01687, 11088, 114273, 209421, 209421a, 270600h070, 270600h080, 401613ri, 440518, 12060826, 063377435, 0986082060, 1022110750, 1042103780, 2706028070, 2706028160, 2706028260, 063377435010

  • Passar modeller
    Toyota Model: Avensis Model series: Avensis Model type: Verso GLS Type of engine: VVTi Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Model type: Verso Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
    Toyota Model: Camry Model series: Camry Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _V3_ Body: Saloon From date: 01-03-2002 To date: 01-11-2006 Fuel: Petrol Approved: Yes
    Toyota Model: Previa Model series: Previa Type of engine: 16V Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: ACR3 Body: MPV From date: 01-02-2000 To date: 01-02-2006 Fuel: Gasoline Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: i 16V Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: XA2 From date: 01-05-2000 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: ACA_, ACE_ From date: 01-02-2006 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
    Toyota Series: Avensis Verso Model: 2.0 VVT-i Engine volume: 2.0 Engine type: 1AZ-FE Year: 08.01-
    Toyota Series: Previa II (ACR3_) Model: 2.4 16V Engine volume: 2.4 Engine type: 2AZ-FE Year: 08.00-01.06
    Toyota Series: RAV 4 II Model: 2.0 VVT-i 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 07.03-11.05
    Toyota Series: RAV 4 III (ACA_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 11.05-11.12
    1 / 2
  • Kuvaus
    Toyota Laturi 12V-100A 12V - 100A, 7r. (S, IG, L, M/DF) 7r. (S-IG-L-M) Yourex tuotteen tilaukseen 90-555-2826

    Jännite: 14
    Virta: 100
    Holkki etäisyys: 36.00
    Leveys/kannattimen varsi: 17.50
    Asennuspidikkeen etäisyys: 46.50
    Pidikkeen reikä: 11.00
    Hihnan säätö pidike reikäpos.: 15
    Hihnan säätö pidike reikä 1: M8
    Holkin halkaisija: 60.00
    Uurteet/holkki: 7
    Säde: 83.00
    Säde 2: 86.00
    B+: M6
    Sijainti/B+ min.: 15
    D+ koko: Pistoke
    Pyöriminen: myötävuorossa
    Pistokkeen numero: PL78
    Kokonaispituus mm: 161.00
    Holkki: SP
    Regulaattorityyppi: IR

    Tiedostot

  • Määrittely
    B+ M6
    Mount. bracket dist. 46.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 15
    Plug no. PL78
    Bracket hole 11.00
    Position/B+ in min. 15
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 36.00
    Radius 83.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 161.00 mm
    Width/holder arm 17.50
    Amp 100
  • Nämä ajoneuvot sopivat

    • OEM
      F032114273, ja1613ir, 1986A01687, 27060-0H070, 27060-0H080, 27060-28070, 27060-28160, 27060-28260, 102211-0750, 104210-3780, 114273

    • Konkurrentreferens
      A6055, A6603S, DAN952, DENDAN952, DRA0468, F042205237, J5112149, 8EL738051-001, 11088, 209421, 209421A, 401613RI, 440518, 12060826, 063377435, 0986082060, 063377435010

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      a6055, a6603s, dan952, dendan952, dra0468, f032114273, f042205237, j5112149, ja1613ir, 8el738051001, 1986a01687, 11088, 114273, 209421, 209421a, 270600h070, 270600h080, 401613ri, 440518, 12060826, 063377435, 0986082060, 1022110750, 1042103780, 2706028070, 2706028160, 2706028260, 063377435010

    • Passar modeller
      Toyota Model: Avensis Model series: Avensis Model type: Verso GLS Type of engine: VVTi Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-08-2007 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Model type: Verso Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: AC_ Body: MPV From date: 01-08-2001 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
      Toyota Model: Camry Model series: Camry Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: _V3_ Body: Saloon From date: 01-03-2002 To date: 01-11-2006 Fuel: Petrol Approved: Yes
      Toyota Model: Previa Model series: Previa Type of engine: 16V Size of motor: 2.4 Brand of engine: 2AZ-FE Type description: ACR3 Body: MPV From date: 01-02-2000 To date: 01-02-2006 Fuel: Gasoline Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Model type: 4WD Type of engine: i 16V Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: XA2 From date: 01-05-2000 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Type of engine: VVTi Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: ACA_, ACE_ From date: 01-02-2006 To date: 01-06-2013 Fuel: Gasoline Approved: Yes
      Toyota Series: Avensis Verso Model: 2.0 VVT-i Engine volume: 2.0 Engine type: 1AZ-FE Year: 08.01-
      Toyota Series: Previa II (ACR3_) Model: 2.4 16V Engine volume: 2.4 Engine type: 2AZ-FE Year: 08.00-01.06
      Toyota Series: RAV 4 II Model: 2.0 VVT-i 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 07.03-11.05
      Toyota Series: RAV 4 III (ACA_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 1AZ-FE Year: 11.05-11.12
