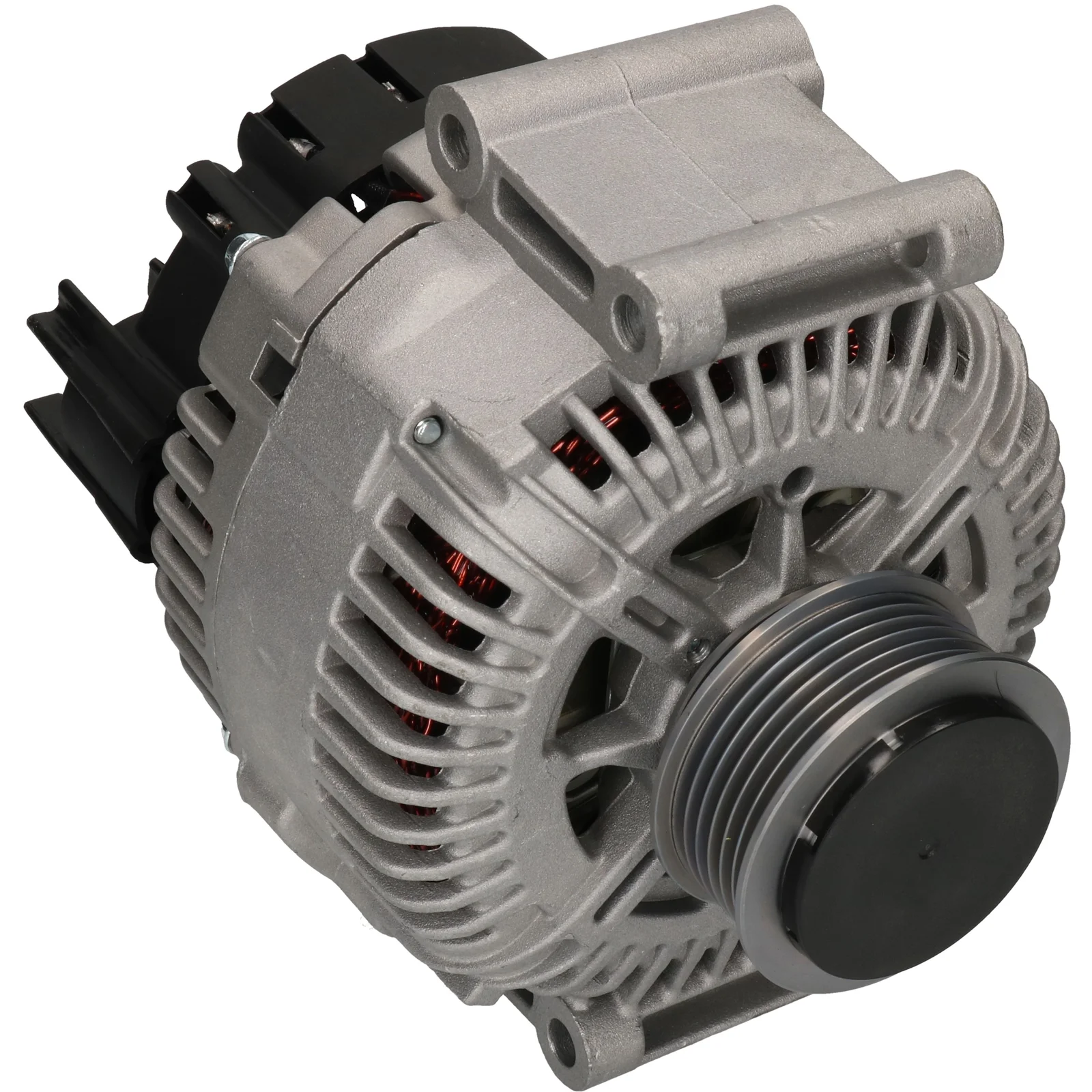

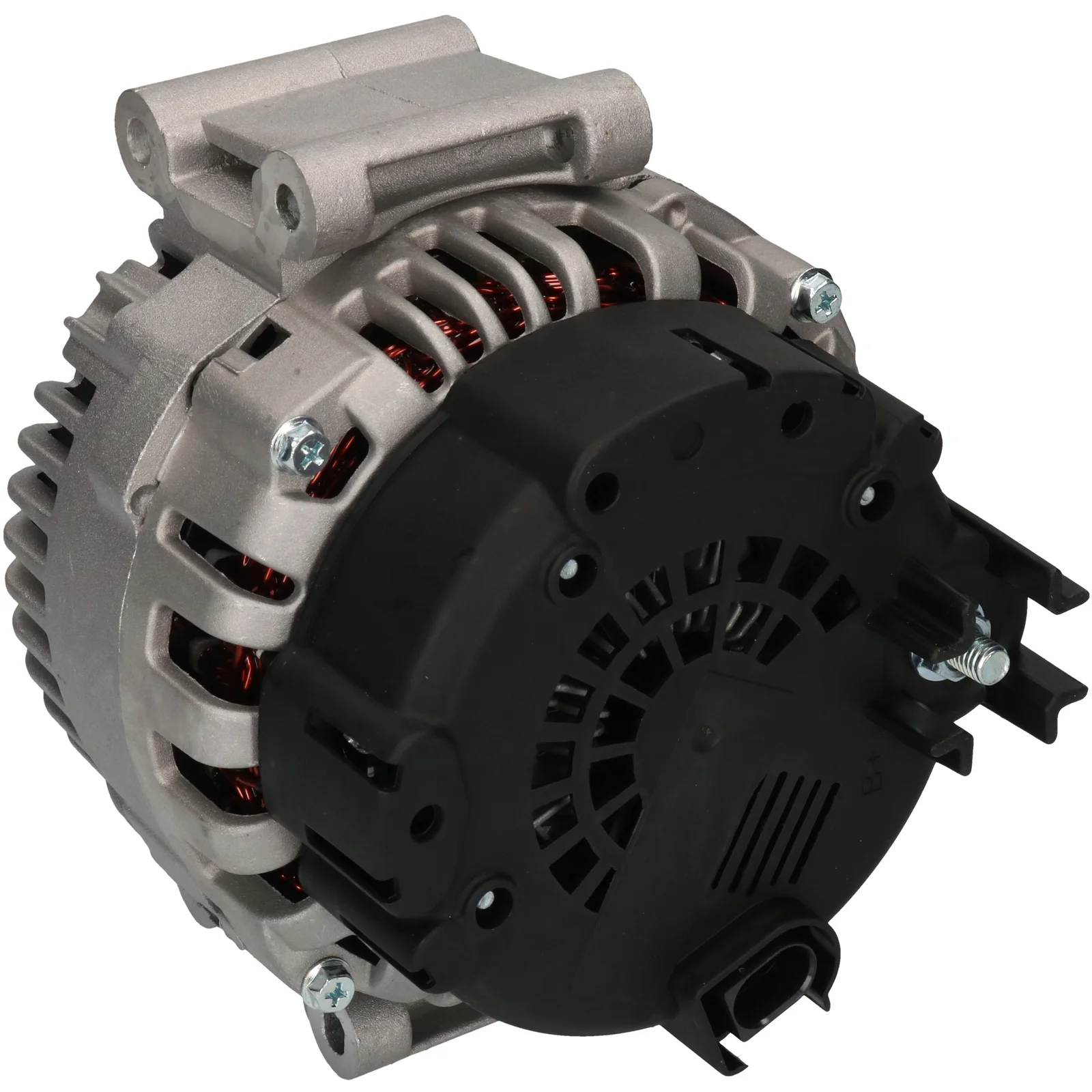

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032115414

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Amp: 180, Pyörimissuunta: myötäpäivään, Asennuskoteloen etäisyys: 56.00

Kuvaus

Jännite: 14
Am peer: 180
Puolapyörän etäisyys: 29,50
Leveys/kiinnikevarsi: 70,00
Kiinnikkeen etäisyys: 56,00
Kiinnikkeen reikä: 9,00
Hihnan säätökiinnikkeen reikä 1: 9,00
Hihnan säätökiinnikkeen reikä 2: 8,00x9,50
Puolapyörän halkaisa: 64,50
Uomat/puolapyörä: 6
Säde: 80,50
Säde 2: 82,50
B+: M8
Sijainti/B+ min.: 45
Kääntö: Myötäpäivään
Kytkentänumero: PL86
Kokonaispituus mm: 198,00
Terminaalityyppi: COM
Puolapyörä: SP/FW
Säätimen tyyppi: IR
Huomiot: Tämä generaattori on varustettu COM-terminalla säädinssä. Suositellaan, että OEM-numeroa käytetään tarkistamaan yhteensopivuus ennen tilausta.

Tiedostot

Määrittely

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 8.00x9.50
Plug no. PL86
Bracket hole 9.00
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 64.50
Pulley dist. 29.50
Radius 80.50
Radius 2 82.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 198.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    F032115414, TG17C023, tg17c044, 06E903016G, 06e903016k, 06e903016m, 06E903016MX, 2542798, 0121715022, 0121715122

  • Konkurrentreferens
    A0723S, A3257, A3265, CAL10A13, CAL15366, DRA0053, DRA0358, F042205124, LRA02365, 8EL015637-051, 28-4871, 11162n, 11162R, 437528, 439536, 439554, 553122RI, 12090219, 32437528

  • NormaliseratArtNr
    a0723s, a3257, a3265, cal10a13, cal15366, dra0053, dra0358, f032115414, f042205124, lra02365, tg17c023, tg17c044, 06e903016g, 06e903016k, 06e903016m, 06e903016mx, 8el015637051, 11162n, 11162r, 284871, 437528, 439536, 439554, 553122ri, 2542798, 12090219, 32437528, 0121715022, 0121715122

  • Passar modeller
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 2.4 Brand of engine: BDW From date: 01-01-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 2.4 Brand of engine: BDW Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F2 From date: 01-05-2004 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: BKH Type description: 4F2 From date: 01-05-2004 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: BYU Type description: 4F2 From date: 01-09-2006 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Size of motor: 2.4 Brand of engine: BDW Type description: 4F2 From date: 01-05-2004 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Size of motor: 2.4 Brand of engine: BDW Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F2 From date: 01-05-2004 To date: 01-05-2009 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: FSi Size of motor: 3.2 Brand of engine: BKH Type description: 4F2 From date: 01-05-2004 To date: 01-05-2009 Fuel: Gasoline Approved: Yes
    1 / 3
  • Kuvaus
    Jännite: 14
    Am peer: 180
    Puolapyörän etäisyys: 29,50
    Leveys/kiinnikevarsi: 70,00
    Kiinnikkeen etäisyys: 56,00
    Kiinnikkeen reikä: 9,00
    Hihnan säätökiinnikkeen reikä 1: 9,00
    Hihnan säätökiinnikkeen reikä 2: 8,00x9,50
    Puolapyörän halkaisa: 64,50
    Uomat/puolapyörä: 6
    Säde: 80,50
    Säde 2: 82,50
    B+: M8
    Sijainti/B+ min.: 45
    Kääntö: Myötäpäivään
    Kytkentänumero: PL86
    Kokonaispituus mm: 198,00
    Terminaalityyppi: COM
    Puolapyörä: SP/FW
    Säätimen tyyppi: IR
    Huomiot: Tämä generaattori on varustettu COM-terminalla säädinssä. Suositellaan, että OEM-numeroa käytetään tarkistamaan yhteensopivuus ennen tilausta.

    Tiedostot

  • Määrittely
    B+ M8
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.00
    Belt. adj. bracket hole 2 8.00x9.50
    Plug no. PL86
    Bracket hole 9.00
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 64.50
    Pulley dist. 29.50
    Radius 80.50
    Radius 2 82.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 198.00 mm
    Width/holder arm 70.00
    Amp 180
  • Nämä ajoneuvot sopivat

    • OEM
      F032115414, TG17C023, tg17c044, 06E903016G, 06e903016k, 06e903016m, 06E903016MX, 2542798, 0121715022, 0121715122

    • Konkurrentreferens
      A0723S, A3257, A3265, CAL10A13, CAL15366, DRA0053, DRA0358, F042205124, LRA02365, 8EL015637-051, 28-4871, 11162n, 11162R, 437528, 439536, 439554, 553122RI, 12090219, 32437528

    • NormaliseratArtNr
      a0723s, a3257, a3265, cal10a13, cal15366, dra0053, dra0358, f032115414, f042205124, lra02365, tg17c023, tg17c044, 06e903016g, 06e903016k, 06e903016m, 06e903016mx, 8el015637051, 11162n, 11162r, 284871, 437528, 439536, 439554, 553122ri, 2542798, 12090219, 32437528, 0121715022, 0121715122

    • Passar modeller
      Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 2.4 Brand of engine: BDW From date: 01-01-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 2.4 Brand of engine: BDW Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F2 From date: 01-05-2004 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: BKH Type description: 4F2 From date: 01-05-2004 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: BYU Type description: 4F2 From date: 01-09-2006 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Size of motor: 2.4 Brand of engine: BDW Type description: 4F2 From date: 01-05-2004 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Size of motor: 2.4 Brand of engine: BDW Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F2 From date: 01-05-2004 To date: 01-05-2009 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: FSi Size of motor: 3.2 Brand of engine: BKH Type description: 4F2 From date: 01-05-2004 To date: 01-05-2009 Fuel: Gasoline Approved: Yes
