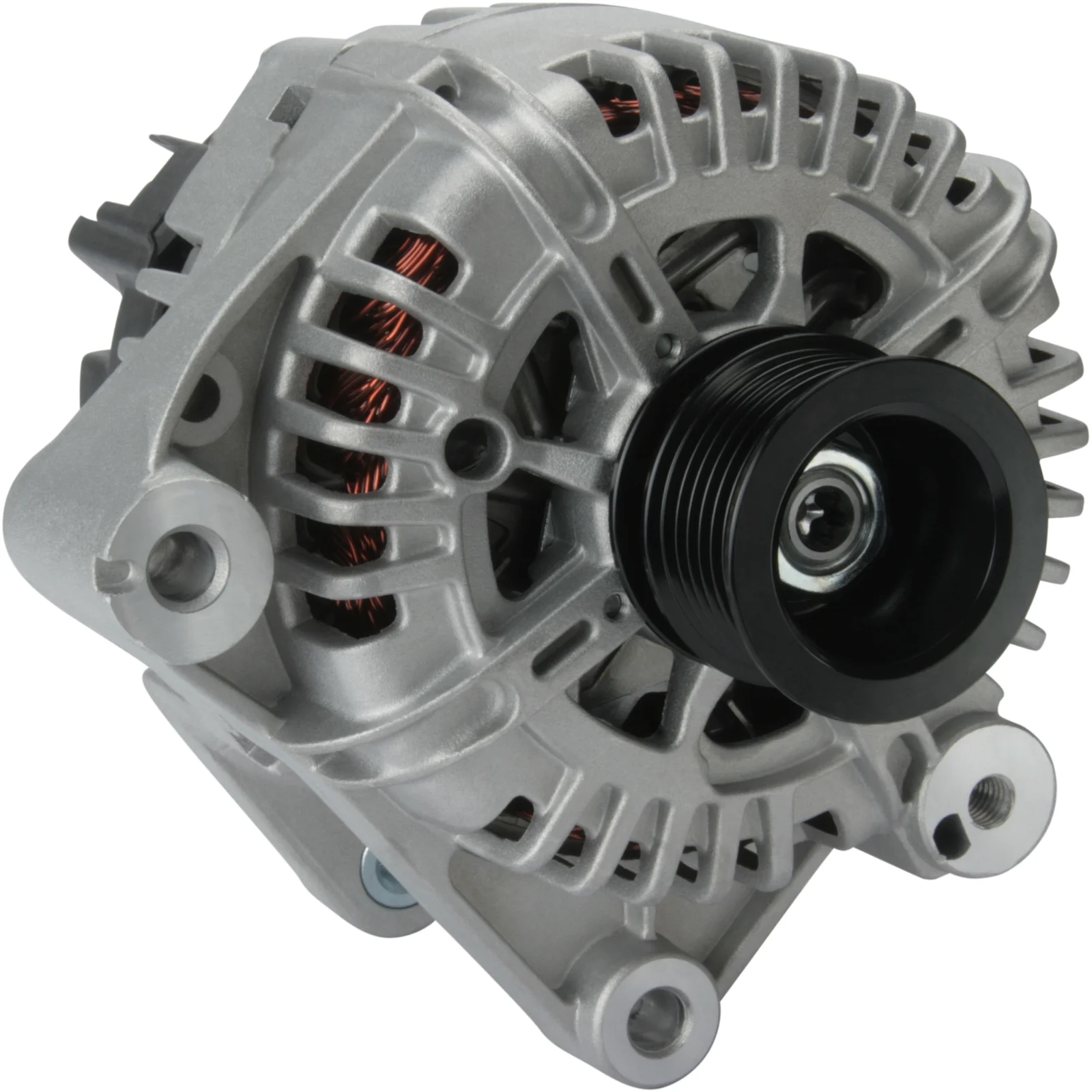

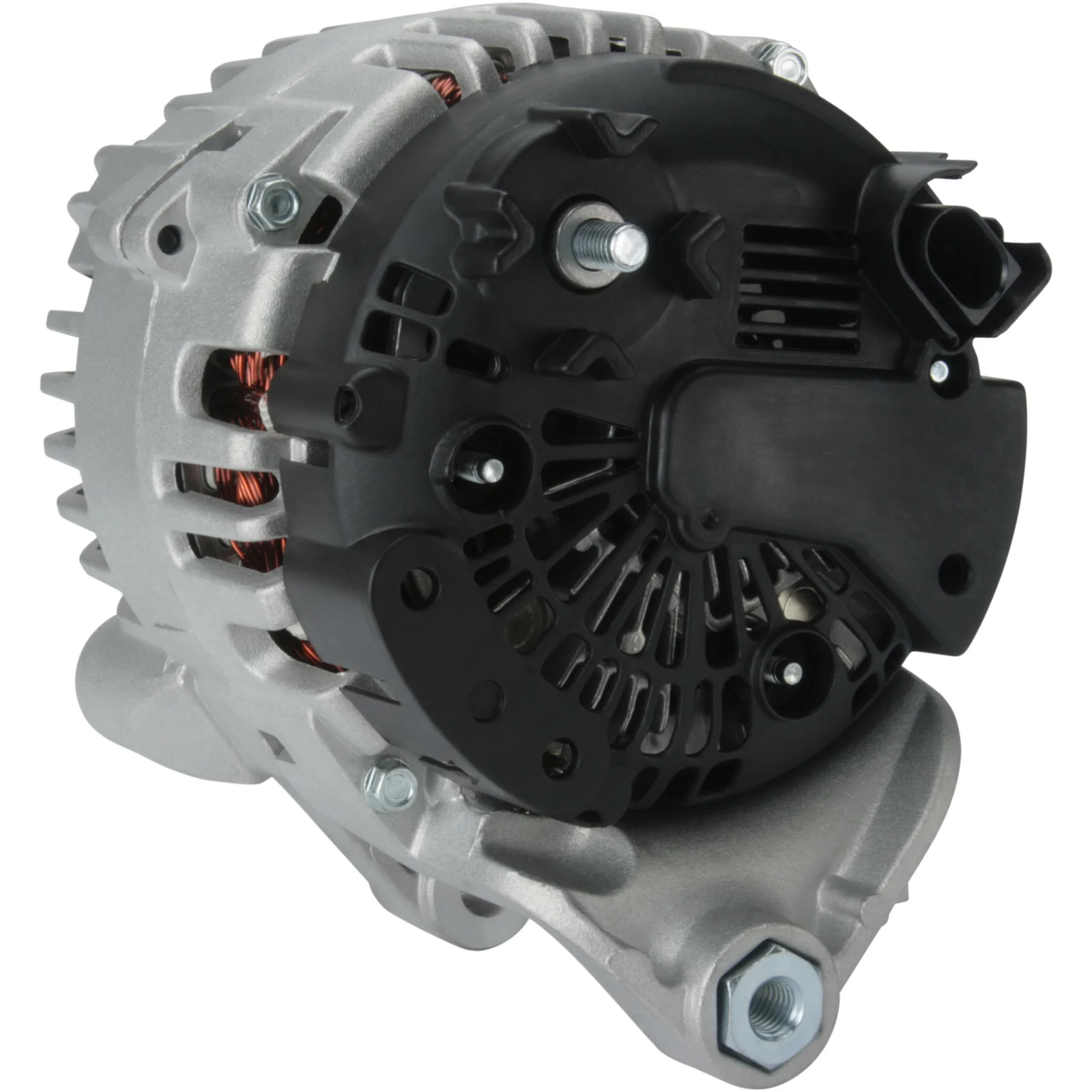

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032115976

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Ampeerit: 150, Pyörimissuunta: myötä, Kiinnityspalkin etäisyys: 75.00

Kuvaus

Jännite: 14
Amp: 150
Holkki etäisyys: 68.50
Leveys/kannatinvarren leveys: 28.00
Kiinnityskintin etäisyys: 75.00
Kehysreikä: 10.50
Vöiden säätökehyksen reiän sijainti: 45
Vöiden säätökehyksen reiän koko 1: 10.50
Holkkidi.: 50.00
Urien määrä/holkki: 6
Säde: 93.00
Säde 2: 93.00
B+: M8
Sijainti/B+ minuutteina: 57
Pyörimissuunta: myötäpäivään
Pistokkeen numero: PL86
Kokon Pituus mm: 176.00
terminaalityyppi: COM
Viestintä: BSS
Holkki: SP
Regulaattorityyppi: IR
Tuotetiedot: BN
Huomautukset: Tällä generaattorilla on COM-liitin regulaattorissa. On suositeltavaa käyttää OEM-numeroa soveltuvuuden tarkistamiseen ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication BSS
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL86
Bracket hole 10.50
Position/B+ in min. 57
Prod. info BN
Pulley SP
Pulley dia. 50.00
Pulley dist. 68.50
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 176.00 mm
Width/holder arm 28.00
Amp 150

  • OEM
    F032115976, TG15C016, 1825ir, 1986A00869, 1986A00891, 1986A01155, 2542685, 2542685B, 2542685C, 2543292, 2543413, 2543413A, 7519723, 7541694, 7541696, 7546284, 7546285, 0124525026, 0124525080, 0124525523, 12317519721, 12317519723, 12317521135, 12317521137, 12317521138, 12317541694, 12317541696, 12317546284, 12317546285, 12317836610, 12317837691

  • Konkurrentreferens
    A0221, A3086, A3353S, ALT-2408, CAL15126, DRA0199, DRB6220, LRA02347, LRA03743, 8EL011712-141, 8EL012241-141, 8EL738217-001, 28-4849, 28-5578, 28-6853, 215.146.1502, 215.533.155, 215.925.150, 11083N, 11083R, 111565, 111825, 210474, 210474A, 439486, 440064, 9046220, 9047400, 12046220, 12047400, 12090732, 32046220, 0986046220, 0986046224, 0986046227, 0986047400, 0986047403, 944390462200

  • NormaliseratArtNr
    a0221, a3086, a3353s, alt2408, cal15126, dra0199, drb6220, f032115976, lra02347, lra03743, tg15c016, 8el011712141, 8el012241141, 8el738217001, 1825ir, 1986a00869, 1986a00891, 1986a01155, 11083n, 11083r, 111565, 111825, 210474, 210474a, 284849, 285578, 286853, 439486, 440064, 2542685, 2542685b, 2542685c, 2543292, 2543413, 2543413a, 7519723, 7541694, 7541696, 7546284, 7546285, 9046220, 9047400, 12046220, 12047400, 12090732, 32046220, 0124525026, 0124525080, 0124525523, 215533155, 215925150, 0986046220, 0986046224, 0986046227, 0986047400, 0986047403, 2151461502, 12317519721, 12317519723, 12317521135, 12317521137, 12317521138, 12317541694, 12317541696, 12317546284, 12317546285, 12317836610, 12317837691, 944390462200

  • Passar modeller
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 (204D4) Type description: E46 From date: 01-03-2003 To date: 01-02-2005 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20(204D4) Type description: E46 Body: Estate From date: 01-03-2003 To date: 01-02-2005 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 3 Model series: 325 i Model type: 325 i Size of motor: 2.5 Brand of engine: M54B25 (256S5) Type description: E46 Body: Saloon From date: 01-09-2000 To date: 01-04-2005 Fuel: Petrol Approved: Yes
    BMW Model: 3 Model series: 330 Type of engine: Ci Size of motor: 3.0 Brand of engine: M54B30 (306S3) Type description: E46 Body: Coupe From date: 01-06-2000 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 520 Type of engine: i Size of motor: 2.0 Brand of engine: M54B22(226S1) Type description: E60 From date: 01-07-2003 To date: 01-03-2010 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 525 Type of engine: i Size of motor: 2.5 Brand of engine: M54B25 (256S5) Type description: E61 Body: Estate From date: 01-06-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 525 Type of engine: i Size of motor: 2.5 Brand of engine: M54B25256S5 Type description: E60 From date: 01-09-2003 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: i Size of motor: 3.0 Brand of engine: M54B30 (306S3) Type description: E60 From date: 01-12-2001 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 730 Type of engine: i Size of motor: 3.0 Brand of engine: M54B30 (306S3) Type description: E65, E66 From date: 01-03-2003 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    BMW Model: 7 Model series: 730 Type of engine: Li Size of motor: 3.0 Brand of engine: M54B30 (306S3) Type description: E65, E66 From date: 01-03-2003 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    BMW Model: X3 Model series: X3 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E83 Body: SUV From date: 01-09-2005 To date: 01-08-2008 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D2 Type description: E83 Body: SUV From date: 01-09-2005 To date: 01-08-2008 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Type of engine: i Size of motor: 2.5 Brand of engine: M54B25 (256S5) Type description: E83 Body: SUV From date: 01-03-2004 To date: 01-07-2006 Fuel: Gasoline Approved: Yes
    BMW Model: X3 Model series: X3 Type of engine: i Size of motor: 3.0 Brand of engine: M54B30 (306S3) Type description: E83 Body: SUV From date: 01-09-2003 To date: 01-07-2006 Fuel: Gasoline Approved: Yes
    BMW Model: Z Model series: Z4 Model type: M Size of motor: 3.2 Brand of engine: S54B32 (326S4) Type description: E85 Body: Convertible From date: 01-01-2006 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    BMW Model: Z Model series: Z4 Model type: M Size of motor: 3.2 Brand of engine: S54B32 (326S4) Type description: E86 Body: Coupe From date: 01-04-2006 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
    1 / 4
  • Kuvaus
    Jännite: 14
    Amp: 150
    Holkki etäisyys: 68.50
    Leveys/kannatinvarren leveys: 28.00
    Kiinnityskintin etäisyys: 75.00
    Kehysreikä: 10.50
    Vöiden säätökehyksen reiän sijainti: 45
    Vöiden säätökehyksen reiän koko 1: 10.50
    Holkkidi.: 50.00
    Urien määrä/holkki: 6
    Säde: 93.00
    Säde 2: 93.00
    B+: M8
    Sijainti/B+ minuutteina: 57
    Pyörimissuunta: myötäpäivään
    Pistokkeen numero: PL86
    Kokon Pituus mm: 176.00
    terminaalityyppi: COM
    Viestintä: BSS
    Holkki: SP
    Regulaattorityyppi: IR
    Tuotetiedot: BN
    Huomautukset: Tällä generaattorilla on COM-liitin regulaattorissa. On suositeltavaa käyttää OEM-numeroa soveltuvuuden tarkistamiseen ennen tilaamista.

    Tiedostot

  • Määrittely
    B+ M8
    Communication BSS
    Mount. bracket dist. 75.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 45
    Plug no. PL86
    Bracket hole 10.50
    Position/B+ in min. 57
    Prod. info BN
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 68.50
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 176.00 mm
    Width/holder arm 28.00
    Amp 150
  • Nämä ajoneuvot sopivat

    • OEM
      F032115976, TG15C016, 1825ir, 1986A00869, 1986A00891, 1986A01155, 2542685, 2542685B, 2542685C, 2543292, 2543413, 2543413A, 7519723, 7541694, 7541696, 7546284, 7546285, 0124525026, 0124525080, 0124525523, 12317519721, 12317519723, 12317521135, 12317521137, 12317521138, 12317541694, 12317541696, 12317546284, 12317546285, 12317836610, 12317837691

    • Konkurrentreferens
      A0221, A3086, A3353S, ALT-2408, CAL15126, DRA0199, DRB6220, LRA02347, LRA03743, 8EL011712-141, 8EL012241-141, 8EL738217-001, 28-4849, 28-5578, 28-6853, 215.146.1502, 215.533.155, 215.925.150, 11083N, 11083R, 111565, 111825, 210474, 210474A, 439486, 440064, 9046220, 9047400, 12046220, 12047400, 12090732, 32046220, 0986046220, 0986046224, 0986046227, 0986047400, 0986047403, 944390462200

    • NormaliseratArtNr
      a0221, a3086, a3353s, alt2408, cal15126, dra0199, drb6220, f032115976, lra02347, lra03743, tg15c016, 8el011712141, 8el012241141, 8el738217001, 1825ir, 1986a00869, 1986a00891, 1986a01155, 11083n, 11083r, 111565, 111825, 210474, 210474a, 284849, 285578, 286853, 439486, 440064, 2542685, 2542685b, 2542685c, 2543292, 2543413, 2543413a, 7519723, 7541694, 7541696, 7546284, 7546285, 9046220, 9047400, 12046220, 12047400, 12090732, 32046220, 0124525026, 0124525080, 0124525523, 215533155, 215925150, 0986046220, 0986046224, 0986046227, 0986047400, 0986047403, 2151461502, 12317519721, 12317519723, 12317521135, 12317521137, 12317521138, 12317541694, 12317541696, 12317546284, 12317546285, 12317836610, 12317837691, 944390462200

    • Passar modeller
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 (204D4) Type description: E46 From date: 01-03-2003 To date: 01-02-2005 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 318 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20(204D4) Type description: E46 Body: Estate From date: 01-03-2003 To date: 01-02-2005 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 3 Model series: 325 i Model type: 325 i Size of motor: 2.5 Brand of engine: M54B25 (256S5) Type description: E46 Body: Saloon From date: 01-09-2000 To date: 01-04-2005 Fuel: Petrol Approved: Yes
      BMW Model: 3 Model series: 330 Type of engine: Ci Size of motor: 3.0 Brand of engine: M54B30 (306S3) Type description: E46 Body: Coupe From date: 01-06-2000 To date: 01-05-2006 Fuel: Gasoline Approved: Yes
      BMW Model: 5 Model series: 520 Type of engine: i Size of motor: 2.0 Brand of engine: M54B22(226S1) Type description: E60 From date: 01-07-2003 To date: 01-03-2010 Fuel: Gasoline Approved: Yes
      BMW Model: 5 Model series: 525 Type of engine: i Size of motor: 2.5 Brand of engine: M54B25 (256S5) Type description: E61 Body: Estate From date: 01-06-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes Manufacture type: touring
      BMW Model: 5 Model series: 525 Type of engine: i Size of motor: 2.5 Brand of engine: M54B25256S5 Type description: E60 From date: 01-09-2003 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
      BMW Model: 5 Model series: 530 Type of engine: i Size of motor: 3.0 Brand of engine: M54B30 (306S3) Type description: E60 From date: 01-12-2001 To date: 01-02-2005 Fuel: Gasoline Approved: Yes
      BMW Model: 7 Model series: 730 Type of engine: i Size of motor: 3.0 Brand of engine: M54B30 (306S3) Type description: E65, E66 From date: 01-03-2003 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
      BMW Model: 7 Model series: 730 Type of engine: Li Size of motor: 3.0 Brand of engine: M54B30 (306S3) Type description: E65, E66 From date: 01-03-2003 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
      BMW Model: X3 Model series: X3 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E83 Body: SUV From date: 01-09-2005 To date: 01-08-2008 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57N2306D2 Type description: E83 Body: SUV From date: 01-09-2005 To date: 01-08-2008 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Type of engine: i Size of motor: 2.5 Brand of engine: M54B25 (256S5) Type description: E83 Body: SUV From date: 01-03-2004 To date: 01-07-2006 Fuel: Gasoline Approved: Yes
      BMW Model: X3 Model series: X3 Type of engine: i Size of motor: 3.0 Brand of engine: M54B30 (306S3) Type description: E83 Body: SUV From date: 01-09-2003 To date: 01-07-2006 Fuel: Gasoline Approved: Yes
      BMW Model: Z Model series: Z4 Model type: M Size of motor: 3.2 Brand of engine: S54B32 (326S4) Type description: E85 Body: Convertible From date: 01-01-2006 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
      BMW Model: Z Model series: Z4 Model type: M Size of motor: 3.2 Brand of engine: S54B32 (326S4) Type description: E86 Body: Coupe From date: 01-04-2006 To date: 01-08-2008 Fuel: Gasoline Approved: Yes
