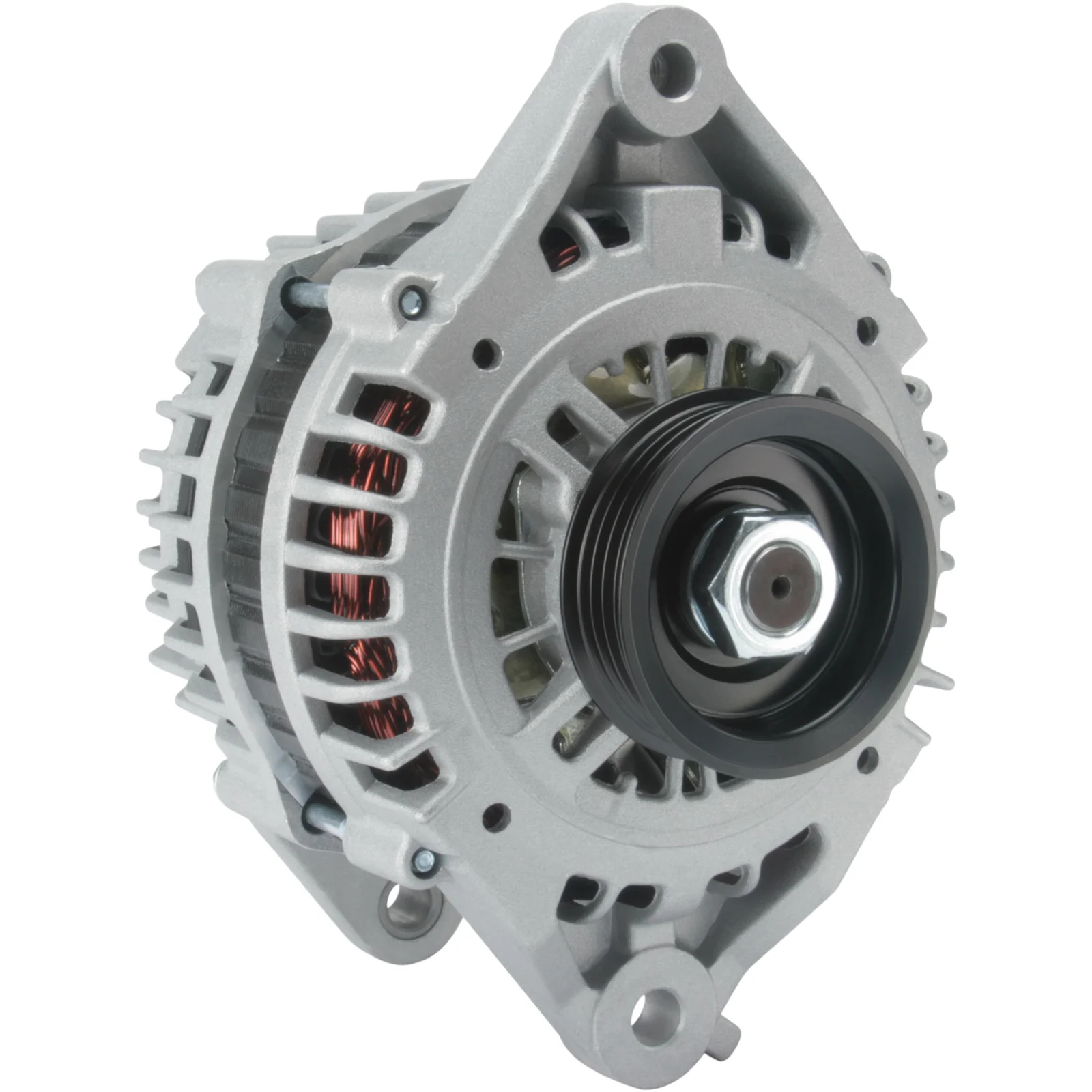

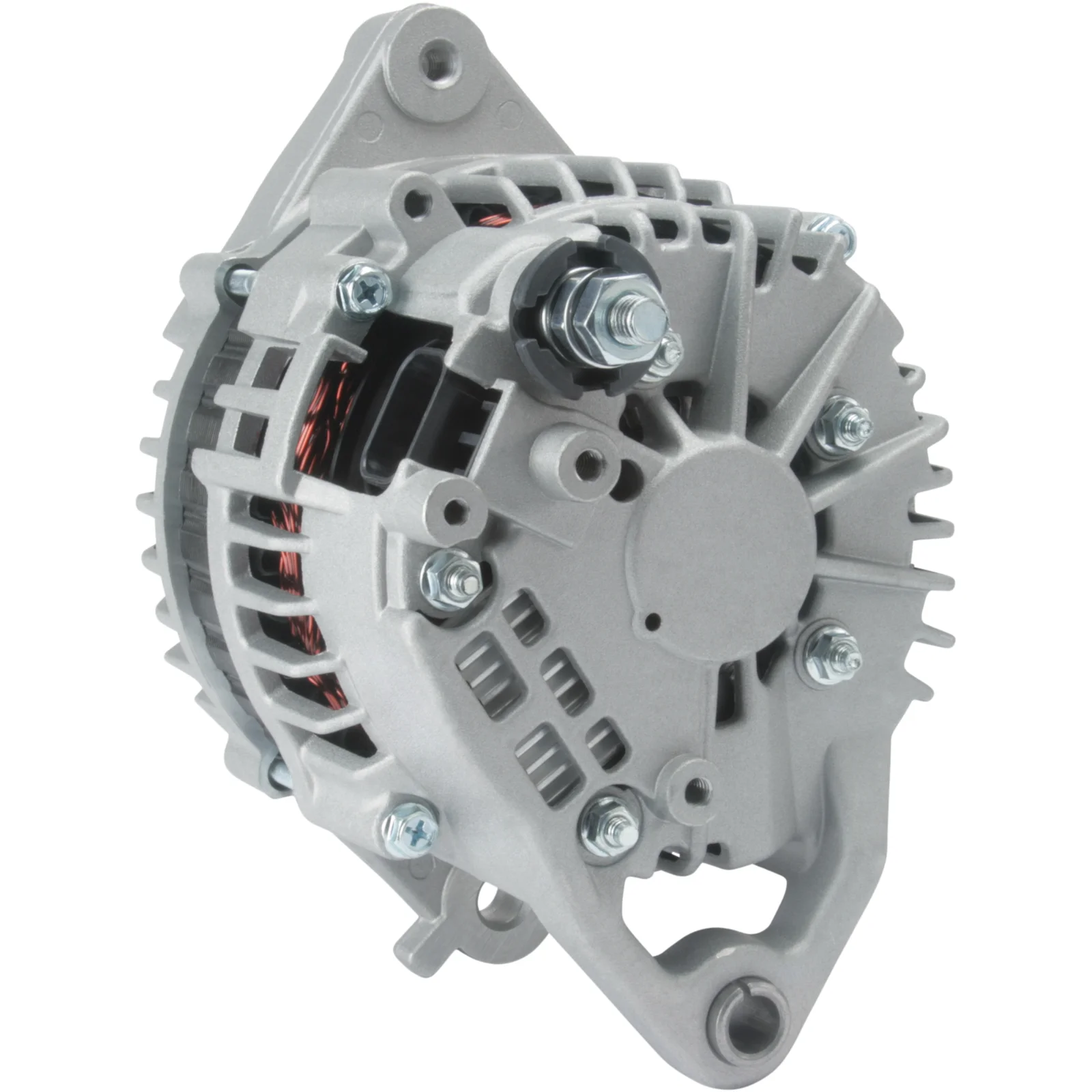

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032111704

HC-Cargo Laturi

Tekniset tiedot:

Virkkaus: 14, Amppi: 70, Kääntö: Myötäilee, Kiinnitysase: 81,00

Kuvaus

Volyymi: 14
Amp. | Amp. → Ampeeri: 70
Holkki etäisyys: 38.00
Leveys/pidinranneke: 13.00
Kiinnityskannatietäisyys: 81.00
Kannattimen reikä: 10.40
Vetojuoksulenksin säädettävän kannattimen reiän positio: 60
Vetojuoksulenksin säädettävän kannattimen reiän 1 koko: M8
Holkin halkaisija: 59.80
Uurlu uuri: 4
Säde: 81.50
Säde 2: 85.50
B+: M8
Sijainti/B+ minuutti: 53
D+ koko: Pistoke
Kääntösuunta: Kello myötä
Pistokkeen numero: PL07
Kokonaispituus mm: 175.00
terminaalityyppi: L-S
Holkki: SP
Regulaattorin tyyppi: IR
Valmistustiedot: BN
Huolto: Nissan

Tiedostot

Määrittely

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.40
Position/B+ in min. 53
Prod. info BN
Pulley SP
Pulley dia. 59.80
Pulley dist. 38.00
Radius 81.50
D+ Size Plug
Radius 2 85.50
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 4
Terminal type L-S
Voltage 14
Total length 175.00 mm
Width/holder arm 13.00
Amp 70

  • OEM
    A005T06891, A005T06891A, A005T06891B, A005T06891C, A005T06891D, a5t06891, a5t06891a, a5t06891b, a5t06891c, a5t06891d, F032111704, ja1182ir, lr165-711, lr165-711b, lr170-746, lr170-746b, lr170-746c, lr170-746e, lr170-746f, lr170-746g, LR170-746H, lr170-746j, lr170-746k, lr170-746m, LR170-748, lr170-748b, lr170-750, lr170-750b, lr170-750c, 23100-0m003, 23100-0m005, 23100-0m006, 23100-0m007, 23100-0m008, 23100-0m009, 23100-0m010, 23100-0M012, 23100-4M400, 23100-86a00, 23100-86r00, 23100-95R10

  • Konkurrentreferens
    A2007, AL2361X, ALT-3078, ALT32089, BAO3250, CAL20133, dra3697, F042205070, F042305012, F042A05012, J5111062, lrb00266, QA1904, 1-2001-01HI, 8EL012426-481, 8el737327-001, 28-2654, 227.153.702, 227.166.702, 5670, 9205, 13637, 13637N, 13637R, 119598, 119603, 401182RI, 600380, 746943, 9212689, 12060292, 12060301, 0986042951, 943354039010, 944390511620

  • NormaliseratArtNr
    a005t06891, a005t06891a, a005t06891b, a005t06891c, a005t06891d, a2007, a5t06891, a5t06891a, a5t06891b, a5t06891c, a5t06891d, al2361x, alt3078, alt32089, bao3250, cal20133, dra3697, f032111704, f042205070, f042305012, f042a05012, j5111062, ja1182ir, lr165711, lr165711b, lr170746, lr170746b, lr170746c, lr170746e, lr170746f, lr170746g, lr170746h, lr170746j, lr170746k, lr170746m, lr170748, lr170748b, lr170750, lr170750b, lr170750c, lrb00266, qa1904, 8el012426481, 8el737327001, 5670, 9205, 13637, 13637n, 13637r, 119598, 119603, 231000m003, 231000m005, 231000m006, 231000m007, 231000m008, 231000m009, 231000m010, 231000m012, 231004m400, 282654, 401182ri, 600380, 746943, 1200101hi, 2310086a00, 2310086r00, 2310095r10, 9212689, 12060292, 12060301, 227153702, 227166702, 0986042951, 943354039010, 944390511620

  • Passar modeller
    Nissan Model: Almera Model series: Almera Model type: SLX Size of motor: 1.6 Brand of engine: GA16DE Type description: N15 From date: 01-09-1995 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Almera Model series: Almera Size of motor: 1.4 Brand of engine: GA14DE Type description: N15 Body: Hatchback From date: 01-09-1995 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Almera Model series: Almera Size of motor: 1.4 Brand of engine: GA14DE Type description: N15 From date: 01-09-1995 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Almera Model series: Almera Size of motor: 1.6 Brand of engine: GA16DE Type description: N15 Body: Hatchback From date: 01-09-1995 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Almera Model series: Almera Size of motor: 1.6 Brand of engine: GA16DE Type description: N15 From date: 01-09-1995 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: i Size of motor: 1.6 Brand of engine: GA16DE Type description: W10 Body: Estate From date: 01-02-1991 To date: 01-03-1998 Fuel: Gasoline Approved: Yes Manufacture type: Traveller
    Nissan Model: Sunny Model series: Sunny Type of engine: 16V Size of motor: 1.6 Brand of engine: GA16DS Type description: Y10 Body: Estate From date: 01-11-1990 To date: 01-05-1995 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: i 16V Size of motor: 1.6 Brand of engine: GA16DE Type description: 10 Body: Van From date: 01-10-1992 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: i 16V Size of motor: 1.6 Brand of engine: GA16DE Type description: Y10L Body: Estate From date: 01-10-1992 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: i Size of motor: 1.6 Brand of engine: GA16DE Type description: Y10 Body: Estate From date: 01-06-1991 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: i Size of motor: 1.6 Brand of engine: GA16DS Type description: Y10 Body: Estate From date: 01-06-1991 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    1 / 3
  • Kuvaus
    Volyymi: 14
    Amp. | Amp. → Ampeeri: 70
    Holkki etäisyys: 38.00
    Leveys/pidinranneke: 13.00
    Kiinnityskannatietäisyys: 81.00
    Kannattimen reikä: 10.40
    Vetojuoksulenksin säädettävän kannattimen reiän positio: 60
    Vetojuoksulenksin säädettävän kannattimen reiän 1 koko: M8
    Holkin halkaisija: 59.80
    Uurlu uuri: 4
    Säde: 81.50
    Säde 2: 85.50
    B+: M8
    Sijainti/B+ minuutti: 53
    D+ koko: Pistoke
    Kääntösuunta: Kello myötä
    Pistokkeen numero: PL07
    Kokonaispituus mm: 175.00
    terminaalityyppi: L-S
    Holkki: SP
    Regulaattorin tyyppi: IR
    Valmistustiedot: BN
    Huolto: Nissan

    Tiedostot

  • Määrittely
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.40
    Position/B+ in min. 53
    Prod. info BN
    Pulley SP
    Pulley dia. 59.80
    Pulley dist. 38.00
    Radius 81.50
    D+ Size Plug
    Radius 2 85.50
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 4
    Terminal type L-S
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 13.00
    Amp 70
  • Nämä ajoneuvot sopivat

    • OEM
      A005T06891, A005T06891A, A005T06891B, A005T06891C, A005T06891D, a5t06891, a5t06891a, a5t06891b, a5t06891c, a5t06891d, F032111704, ja1182ir, lr165-711, lr165-711b, lr170-746, lr170-746b, lr170-746c, lr170-746e, lr170-746f, lr170-746g, LR170-746H, lr170-746j, lr170-746k, lr170-746m, LR170-748, lr170-748b, lr170-750, lr170-750b, lr170-750c, 23100-0m003, 23100-0m005, 23100-0m006, 23100-0m007, 23100-0m008, 23100-0m009, 23100-0m010, 23100-0M012, 23100-4M400, 23100-86a00, 23100-86r00, 23100-95R10

    • Konkurrentreferens
      A2007, AL2361X, ALT-3078, ALT32089, BAO3250, CAL20133, dra3697, F042205070, F042305012, F042A05012, J5111062, lrb00266, QA1904, 1-2001-01HI, 8EL012426-481, 8el737327-001, 28-2654, 227.153.702, 227.166.702, 5670, 9205, 13637, 13637N, 13637R, 119598, 119603, 401182RI, 600380, 746943, 9212689, 12060292, 12060301, 0986042951, 943354039010, 944390511620

    • NormaliseratArtNr
      a005t06891, a005t06891a, a005t06891b, a005t06891c, a005t06891d, a2007, a5t06891, a5t06891a, a5t06891b, a5t06891c, a5t06891d, al2361x, alt3078, alt32089, bao3250, cal20133, dra3697, f032111704, f042205070, f042305012, f042a05012, j5111062, ja1182ir, lr165711, lr165711b, lr170746, lr170746b, lr170746c, lr170746e, lr170746f, lr170746g, lr170746h, lr170746j, lr170746k, lr170746m, lr170748, lr170748b, lr170750, lr170750b, lr170750c, lrb00266, qa1904, 8el012426481, 8el737327001, 5670, 9205, 13637, 13637n, 13637r, 119598, 119603, 231000m003, 231000m005, 231000m006, 231000m007, 231000m008, 231000m009, 231000m010, 231000m012, 231004m400, 282654, 401182ri, 600380, 746943, 1200101hi, 2310086a00, 2310086r00, 2310095r10, 9212689, 12060292, 12060301, 227153702, 227166702, 0986042951, 943354039010, 944390511620

    • Passar modeller
      Nissan Model: Almera Model series: Almera Model type: SLX Size of motor: 1.6 Brand of engine: GA16DE Type description: N15 From date: 01-09-1995 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Almera Model series: Almera Size of motor: 1.4 Brand of engine: GA14DE Type description: N15 Body: Hatchback From date: 01-09-1995 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Almera Model series: Almera Size of motor: 1.4 Brand of engine: GA14DE Type description: N15 From date: 01-09-1995 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Almera Model series: Almera Size of motor: 1.6 Brand of engine: GA16DE Type description: N15 Body: Hatchback From date: 01-09-1995 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Almera Model series: Almera Size of motor: 1.6 Brand of engine: GA16DE Type description: N15 From date: 01-09-1995 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: i Size of motor: 1.6 Brand of engine: GA16DE Type description: W10 Body: Estate From date: 01-02-1991 To date: 01-03-1998 Fuel: Gasoline Approved: Yes Manufacture type: Traveller
      Nissan Model: Sunny Model series: Sunny Type of engine: 16V Size of motor: 1.6 Brand of engine: GA16DS Type description: Y10 Body: Estate From date: 01-11-1990 To date: 01-05-1995 Fuel: Gasoline Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: i 16V Size of motor: 1.6 Brand of engine: GA16DE Type description: 10 Body: Van From date: 01-10-1992 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: i 16V Size of motor: 1.6 Brand of engine: GA16DE Type description: Y10L Body: Estate From date: 01-10-1992 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: i Size of motor: 1.6 Brand of engine: GA16DE Type description: Y10 Body: Estate From date: 01-06-1991 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: i Size of motor: 1.6 Brand of engine: GA16DS Type description: Y10 Body: Estate From date: 01-06-1991 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      1 / 3
