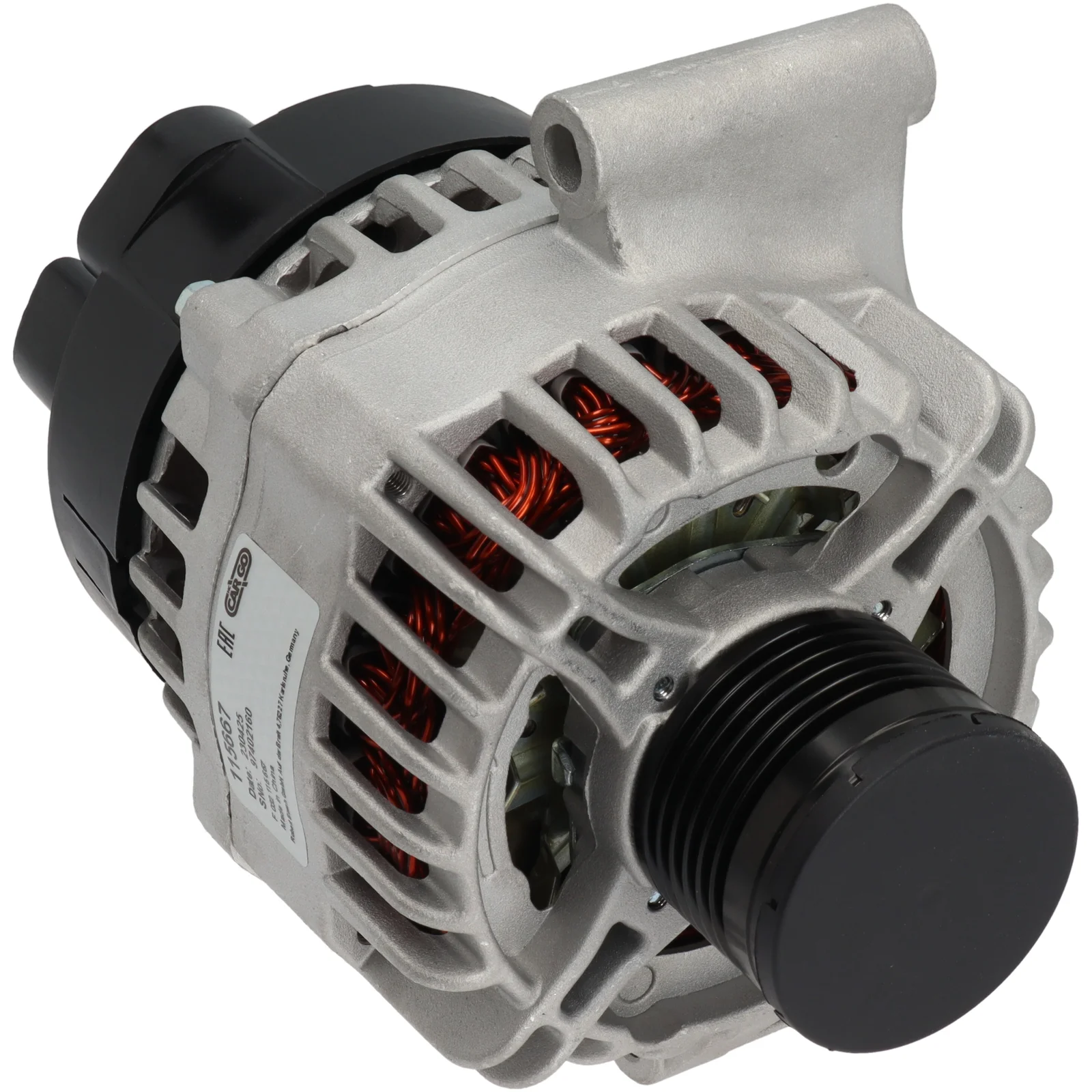

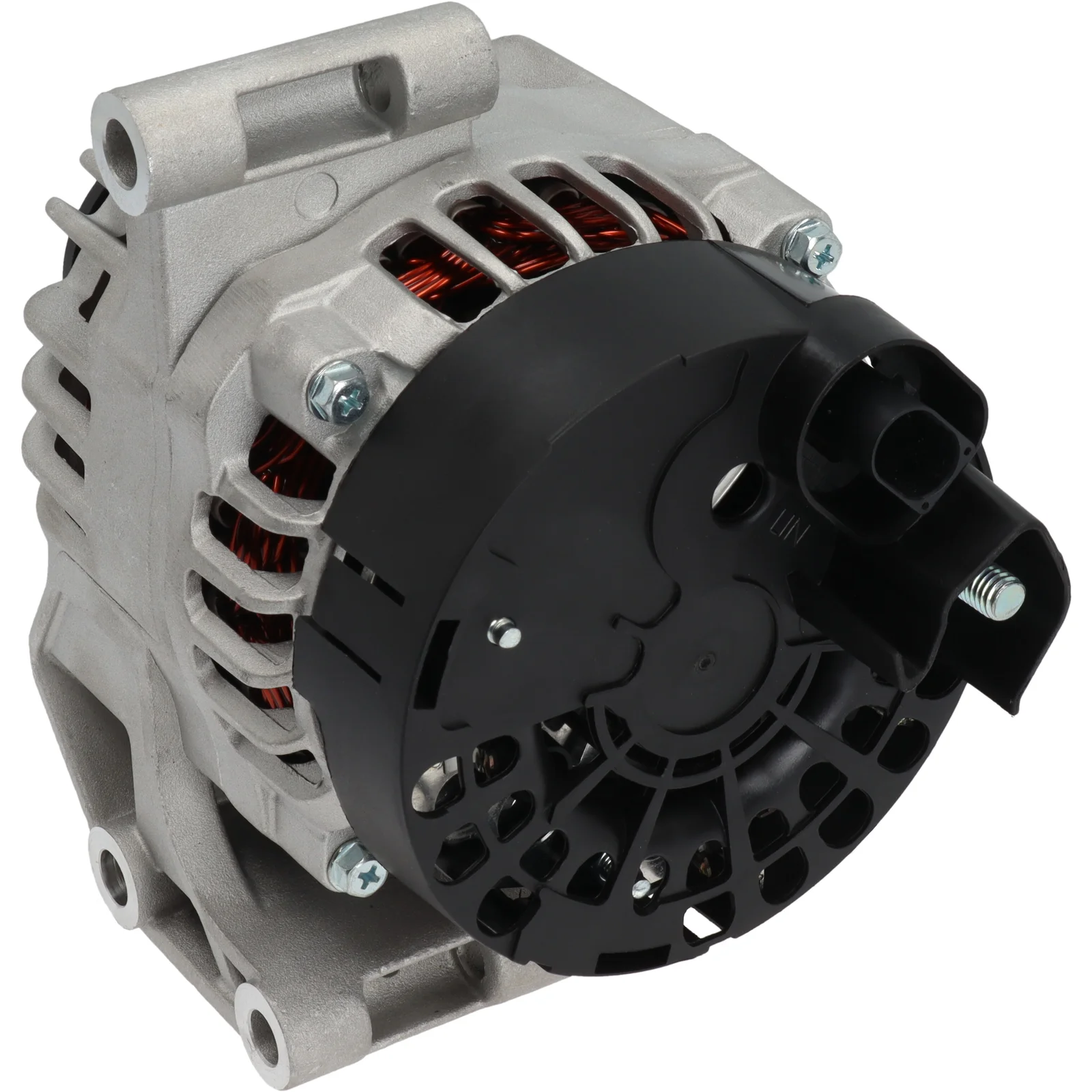

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032115667

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, A: 120, Kääntö: myötävahti, Asennuskotelon välys.: 55,00

Kuvaus

Volyymi: 14
Akun teho: 120
Mekaanisen bannattoman kierremäen etäisyys: 42.00
Leveys/kiinnikkeen varren etäisyys: 64.00
Kiinnike kannattaa etäisyys: 55.00
Kiinnikekerteen reikä: 9.20
Kiinnikkeen reikä 2: 9.20
Hihnan säätömekaanisen varren reikäpositio: 60
Hihnan säätömekaanisen varren reikä 1: 9.20
Kierremäen halkaisija: 54.00
Uomakärjet/kierremäessä: 6
B+: M8
Sijainti/B+ minuuttia: 14
Kiertoliike: myötäpäivään
Pistokkeen numero: PL174
Kokonaispituus mm: 185.00
Terminaalityyppi: COM
Viestintä: LIN
Kierremäen: SP/FW
Regulaattorityyppi: IR
Tuotetieto: BN
Huomautukset: Tässä generaattorissa on COM-terminaali regulaattorissa. Suositellaan, että OEM-numeroa käytetään soveltuvuuden tarkistamiseen ennen tilausta.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 9.20
Belt. adj. brackethole pos. 60
Plug no. PL174
Bracket hole 9.20
Bracket hole 2 9.20
Position/B+ in min. 14
Prod. info BN
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 42.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 64.00
Amp 120

  • OEM
    F032115667, TG12S111, TG12S221, TG12S247, 1986A00633, 101210-1690, 101210-1700, 2623616a, 51880172, 51880173, 51880175, 51984058, 51993603, 63377558, 1608858180

  • Konkurrentreferens
    A3178, A6106, A6106(DENSO), CAL15395, DAN1086, DRA0671, LRA03362, 8EL011713-701, 28-5974, 218.316.1202, 505.570.120, 505.940.120, 20495N, 210691, 210691A, 439780, 440412, 553605RI, 12090401, 0986085010, 0986086940, 063377558010, 63377558010

  • NormaliseratArtNr
    a3178, a6106, a6106denso, cal15395, dan1086, dra0671, f032115667, lra03362, tg12s111, tg12s221, tg12s247, 8el011713701, 1986a00633, 20495n, 210691, 210691a, 285974, 439780, 440412, 553605ri, 2623616a, 12090401, 51880172, 51880173, 51880175, 51984058, 51993603, 63377558, 505570120, 505940120, 0986085010, 0986086940, 1012101690, 1012101700, 1608858180, 2183161202, 063377558010, 63377558010

  • Passar modeller
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.2 Brand of engine: 199B4.000 Type description: 955 Body: Hatchback From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.2 Brand of engine: 199B8.000 Type description: 955 Body: Hatchback From date: 01-12-2013 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500 Type of engine: Multijet Size of motor: 1.3 Brand of engine: 312B5.000 Body: Hatchback From date: 01-06-2016 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500L Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Body: Hatchback From date: 01-09-2012 Fuel: Diesel Approved: Yes
    Fiat Model: 500L Model series: 500L Type of engine: Multijet Size of motor: 1.2 Brand of engine: 330A1.000 Body: Hatchback From date: 01-06-2014 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.2 Brand of engine: 263A6.000 Type description: 263 Body: Platform / Chassis From date: 01-11-2013 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.2 Brand of engine: 263A6.000 Type description: 263 Body: Twin Cab From date: 01-11-2013 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Model type: QUBO Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 300 Body: MPV From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199A2.000,199A9.000 Type description: 225_ Body: MPV From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199B1.000 Type description: 225_ Body: MPV From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: MultiJet Size of motor: 1.3 Brand of engine: 225A2.000 Type description: 225_ Body: MPV From date: 01-03-2016 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A9.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 223A9.000 Type description: 199 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Evo Type of engine: 16V Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Evo Type of engine: 16V Multijet Size of motor: 1.3 Brand of engine: 223A9.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Evo Van Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Van From date: 01-03-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Diesel Approved: Yes
    Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 955B2.000 Type description: 199_ Body: Hatchback From date: 01-05-2018 Fuel: Diesel Approved: Yes
    1 / 4
  • Kuvaus
    Volyymi: 14
    Akun teho: 120
    Mekaanisen bannattoman kierremäen etäisyys: 42.00
    Leveys/kiinnikkeen varren etäisyys: 64.00
    Kiinnike kannattaa etäisyys: 55.00
    Kiinnikekerteen reikä: 9.20
    Kiinnikkeen reikä 2: 9.20
    Hihnan säätömekaanisen varren reikäpositio: 60
    Hihnan säätömekaanisen varren reikä 1: 9.20
    Kierremäen halkaisija: 54.00
    Uomakärjet/kierremäessä: 6
    B+: M8
    Sijainti/B+ minuuttia: 14
    Kiertoliike: myötäpäivään
    Pistokkeen numero: PL174
    Kokonaispituus mm: 185.00
    Terminaalityyppi: COM
    Viestintä: LIN
    Kierremäen: SP/FW
    Regulaattorityyppi: IR
    Tuotetieto: BN
    Huomautukset: Tässä generaattorissa on COM-terminaali regulaattorissa. Suositellaan, että OEM-numeroa käytetään soveltuvuuden tarkistamiseen ennen tilausta.

    Tiedostot

  • Määrittely
    B+ M8
    Communication LIN
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 9.20
    Belt. adj. brackethole pos. 60
    Plug no. PL174
    Bracket hole 9.20
    Bracket hole 2 9.20
    Position/B+ in min. 14
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 42.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 64.00
    Amp 120
  • Nämä ajoneuvot sopivat

    • OEM
      F032115667, TG12S111, TG12S221, TG12S247, 1986A00633, 101210-1690, 101210-1700, 2623616a, 51880172, 51880173, 51880175, 51984058, 51993603, 63377558, 1608858180

    • Konkurrentreferens
      A3178, A6106, A6106(DENSO), CAL15395, DAN1086, DRA0671, LRA03362, 8EL011713-701, 28-5974, 218.316.1202, 505.570.120, 505.940.120, 20495N, 210691, 210691A, 439780, 440412, 553605RI, 12090401, 0986085010, 0986086940, 063377558010, 63377558010

    • NormaliseratArtNr
      a3178, a6106, a6106denso, cal15395, dan1086, dra0671, f032115667, lra03362, tg12s111, tg12s221, tg12s247, 8el011713701, 1986a00633, 20495n, 210691, 210691a, 285974, 439780, 440412, 553605ri, 2623616a, 12090401, 51880172, 51880173, 51880175, 51984058, 51993603, 63377558, 505570120, 505940120, 0986085010, 0986086940, 1012101690, 1012101700, 1608858180, 2183161202, 063377558010, 63377558010

    • Passar modeller
      Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.2 Brand of engine: 199B4.000 Type description: 955 Body: Hatchback From date: 01-01-2011 Fuel: Diesel Approved: Yes
      Alfa Romeo Model: Mito Model series: Mito Type of engine: JTDM Size of motor: 1.2 Brand of engine: 199B8.000 Type description: 955 Body: Hatchback From date: 01-12-2013 Fuel: Diesel Approved: Yes
      Fiat Model: 500 Model series: 500 Type of engine: Multijet Size of motor: 1.3 Brand of engine: 312B5.000 Body: Hatchback From date: 01-06-2016 Fuel: Diesel Approved: Yes
      Fiat Model: 500 Model series: 500L Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Body: Hatchback From date: 01-09-2012 Fuel: Diesel Approved: Yes
      Fiat Model: 500L Model series: 500L Type of engine: Multijet Size of motor: 1.2 Brand of engine: 330A1.000 Body: Hatchback From date: 01-06-2014 Fuel: Diesel Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.2 Brand of engine: 263A6.000 Type description: 263 Body: Platform / Chassis From date: 01-11-2013 Fuel: Diesel Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.2 Brand of engine: 263A6.000 Type description: 263 Body: Twin Cab From date: 01-11-2013 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino Model type: QUBO Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 300 Body: MPV From date: 01-02-2008 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199A2.000,199A9.000 Type description: 225_ Body: MPV From date: 01-11-2007 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: Multijet Size of motor: 1.2 Brand of engine: 199B1.000 Type description: 225_ Body: MPV From date: 01-01-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino MPV Type of engine: MultiJet Size of motor: 1.3 Brand of engine: 225A2.000 Type description: 225_ Body: MPV From date: 01-03-2016 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A2.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
      Fiat Model: Fiorino Model series: Fiorino Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199A9.000 Type description: 225 Body: Van From date: 01-11-2007 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Grande Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 223A9.000 Type description: 199 Body: Hatchback From date: 01-04-2010 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Evo Type of engine: 16V Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Evo Type of engine: 16V Multijet Size of motor: 1.3 Brand of engine: 223A9.000 Type description: 199 Body: Hatchback From date: 01-10-2009 To date: 01-02-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Evo Van Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Van From date: 01-03-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 199B4.000 Type description: 199 Body: Hatchback From date: 01-03-2012 Fuel: Diesel Approved: Yes
      Fiat Model: Punto Model series: Punto Type of engine: Multijet Size of motor: 1.3 Brand of engine: 955B2.000 Type description: 199_ Body: Hatchback From date: 01-05-2018 Fuel: Diesel Approved: Yes
      1 / 4
