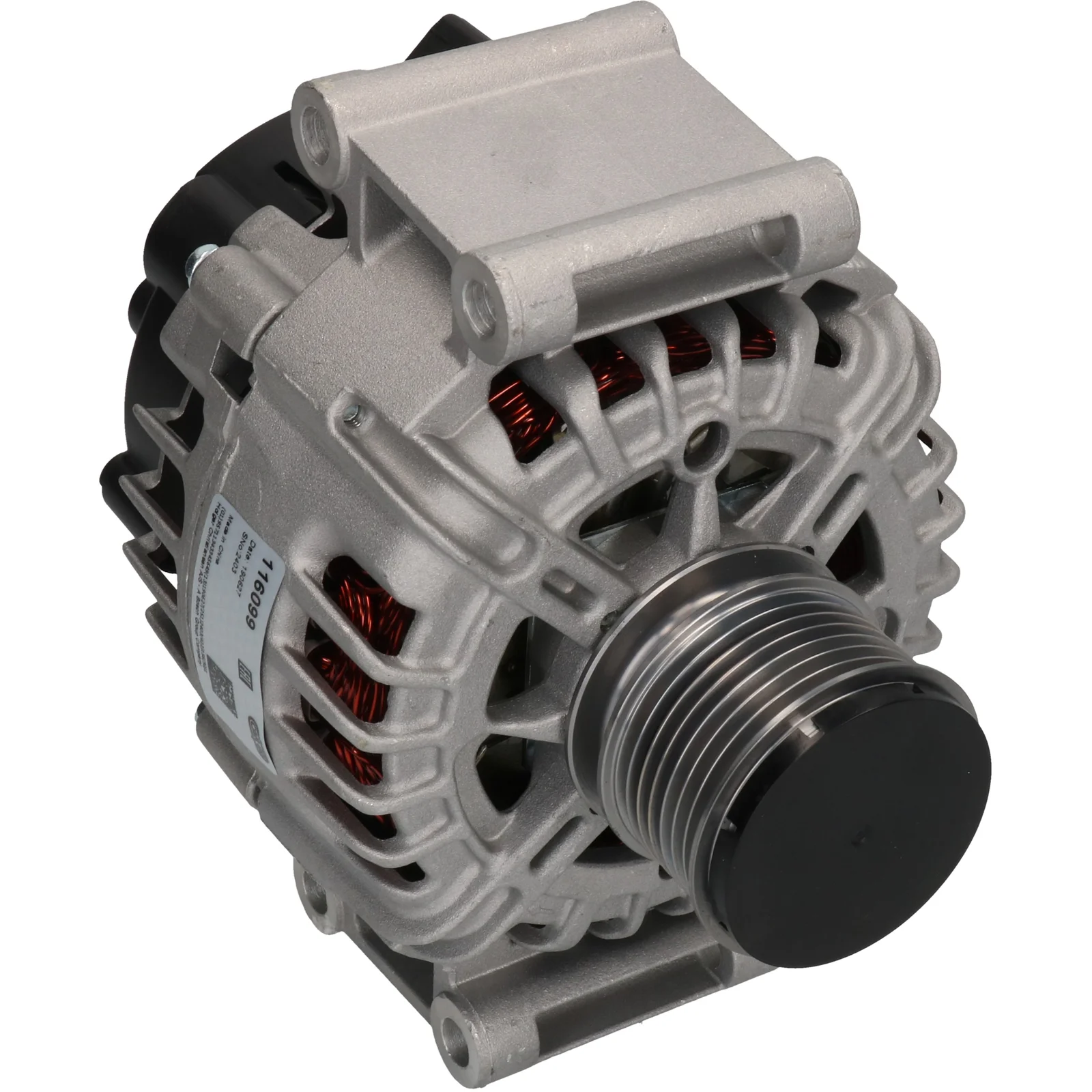

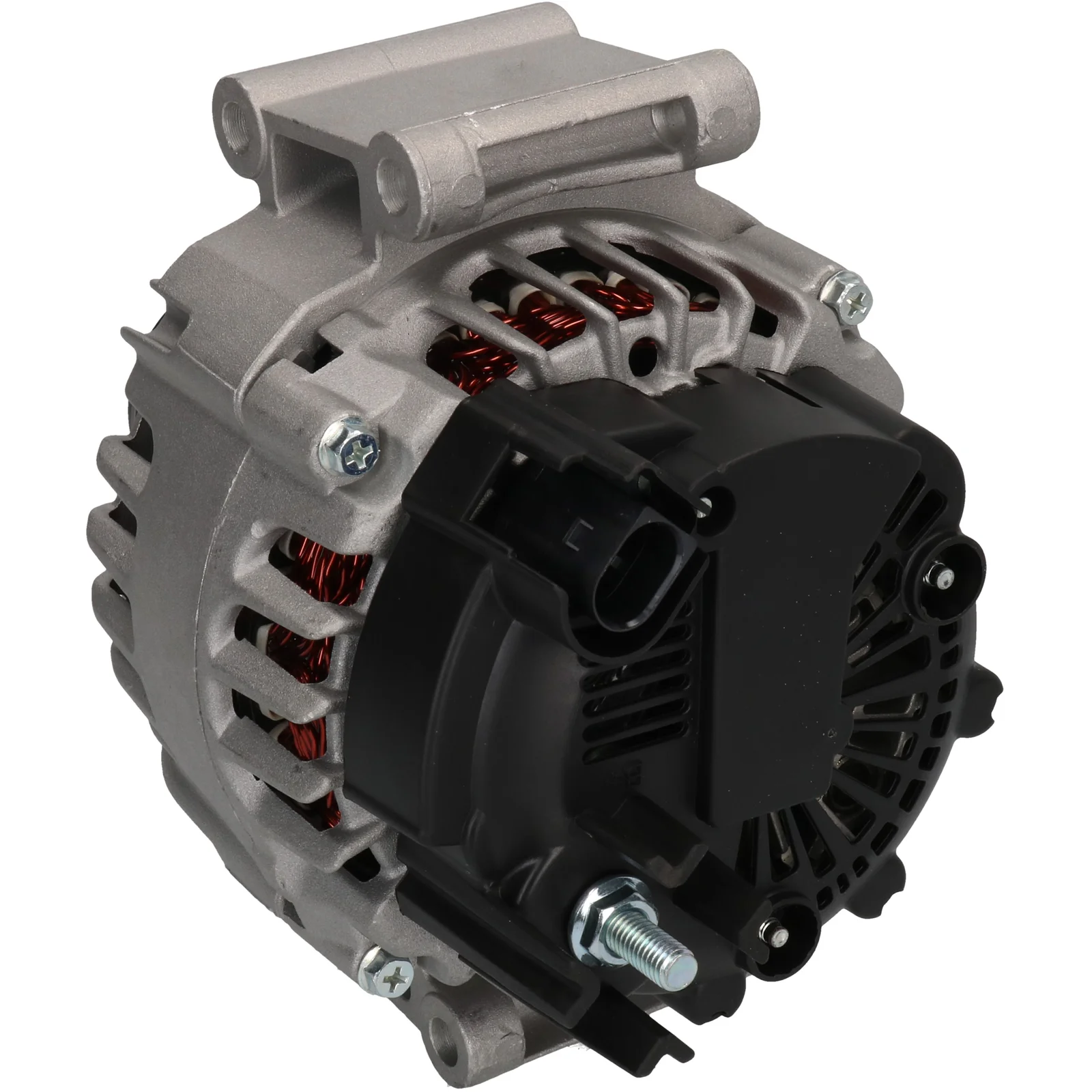

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116099

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Amp.: 120, Kiertokulma: myötäpäivään, Asennustelineen etäisyys: 56,00

Kuvaus

Laturi 12V-120A 12V - 120A, 7r.frg., (LIN) Yourex-tuotteeseen tilausnumero 90-365-2711

Jännite: 14
Ampere: 120
Holkin halkaisija: 32.00
Leveys/kiinnitysokokaari: 70.00
Kiinnitystukikourun etäisyys: 56.00
Holkin reikä: 9.50
Holkin reikä 2: 9.50
Völyn säätökaari reikä 1: 9.50
Holkin halkaisija: 56.00
Uomat/holkki: 7
Säde: 79.00
Säde 2: 82.00
B+: M8
Sijainti/B+ minuuteissa: 8
Pyörimissuunta: Kelloa vastaan
Pistokkeen numero: PL181
Kokonaispituus mm: 240.00
Laitteen tyyppi: COM
Holkki: SP/FW
Regulaattorin tyyppi: IR
Huomautukset: Tässä generaattorissa on COM-pistoke regulaattorissa. Suositellaan, että OEM-numeroa käytetään oikean soveltuvuuden tarkistamiseen ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.50
Plug no. PL181
Bracket hole 9.50
Bracket hole 2 9.50
Position/B+ in min. 8
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 32.00
Radius 79.00
Radius 2 82.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 240.00 mm
Width/holder arm 70.00
Amp 120

  • OEM
    A271 1541402, a2711541402, F032116099, TG12C 026, tg12c026, 271 154 1402, 116099, 439611, 440128, 2543296, 2543296A, 2543296B, 2711541402

  • Konkurrentreferens
    A3352S, CAL15453, DRA0782, LRA03453, 28-6561, 225.302.1202, 555.581.120, 23285N, 24101N, 24101R, 112847, 209220, 209220A, 439611, 440128, 554006RI, 9090804, 12090469

  • Bilmärken
    Mercedes Benz

  • NormaliseratArtNr
    a2711541402, a3352s, cal15453, dra0782, f032116099, lra03453, tg12c026, 23285n, 24101n, 24101r, 112847, 116099, 209220, 209220a, 286561, 439611, 440128, 554006ri, 2543296, 2543296a, 2543296b, 9090804, 12090469, 555581120, 2253021202, 2711541402

  • Passar modeller
    Mercedes Benz Series: C (S204) Model: 180 T Kompressor Engine volume: 1.6 Engine type: M 271.910 Year: 09.08-04.10
    Mercedes Benz Series: C (S204) Model: 180 T Kompressor Engine volume: 1.8 Engine type: M 271.952 Year: 08.07-
    Mercedes Benz Series: C (S204) Model: 200 T Kompressor Engine volume: 1.8 Engine type: M 271.950 Year: 08.07-05.10
    Mercedes Benz Series: C (W204) Model: 180 Kompressor Engine volume: 1.6 Engine type: M 271.910 Year: 04.08-04.10
    Mercedes Benz Series: C (W204) Model: 180 Kompressor Engine volume: 1.8 Engine type: M 271.950 Year: 03.07-04.10
    Mercedes Benz Series: C (W204) Model: 180 Kompressor Engine volume: 1.8 Engine type: M 271.952 Year: 01.07-
    Mercedes Benz Series: C (W204) Model: 250 CGI Engine volume: 1.8 Engine type: M 271.860 Year: 07.09-
    Mercedes-Benz Model: 180 Model series: C 180 Model type: Kompressor Size of motor: 1.6 Brand of engine: M271.910 Type description: W204 From date: 01-01-2008 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 180 Model series: C 180 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.952 Type description: 204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 180 Model series: C 180 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.952 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 180 Model series: C 180 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 180 Model series: C180 Model type: Kompressor T-Model Size of motor: 1.6 Brand of engine: M271.910 Type description: S204 Body: Estate From date: 01-01-2008 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: C 200 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.950 Type description: 204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: C 200 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.950 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Size of motor: 1.8 Brand of engine: M271.958 Type description: W212 From date: 01-03-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 250 Model series: C 250 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: S204 Body: Estate From date: 01-07-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 250 Model series: C 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: W204 From date: 01-07-2009 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 LGT Model type: LGT Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Bus From date: 01-09-2008 Fuel: Bi-Fuel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Platform / Chassis From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Van From date: 01-09-2008 Fuel: Gas Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Van From date: 01-09-2008 Fuel: Gasoline Approved: Yes
