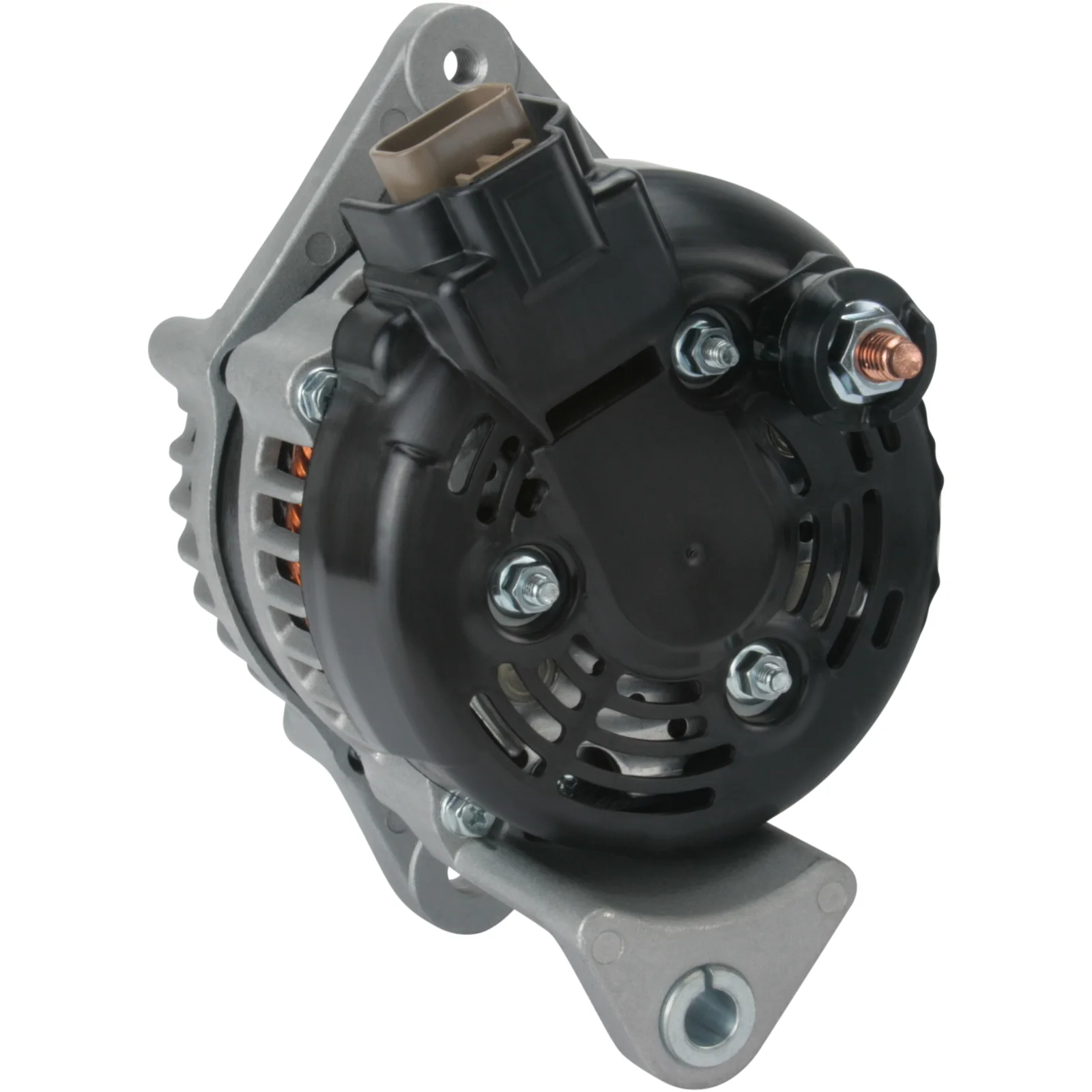

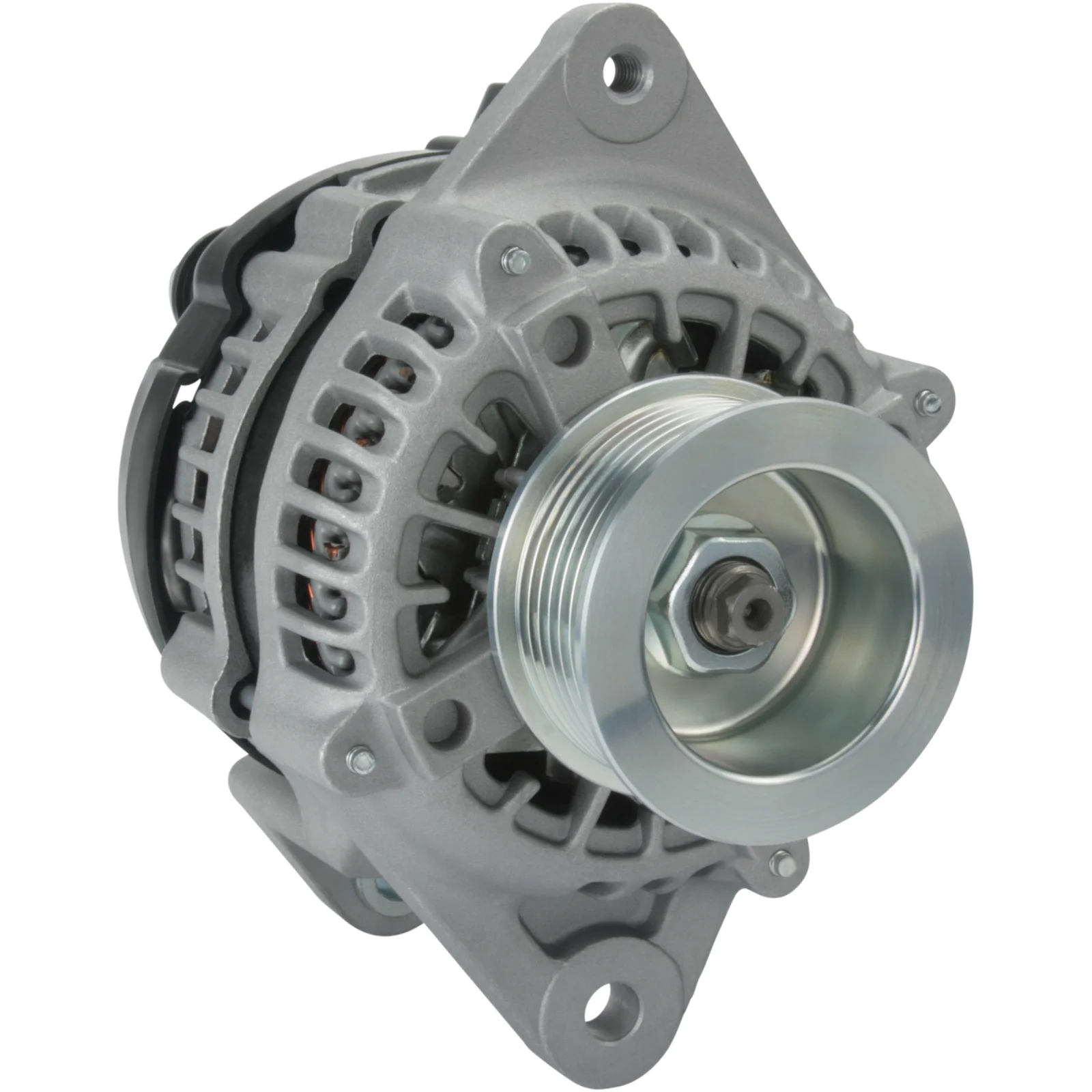

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032115683

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Ampeerit: 85, Pyörimissuunta: myötätaivutus, Asennuskiinnikkeen etäisyys: 80.00

Kuvaus

Isuzu D-MAX 2.5D Gen. 12V-90A 12V - 90A, 7r, ( - , L) For Yourex tuote tilaus 90-250-4903

Jännite: 14
Ampeerit: 85
Holkin etäisyys: 43.00
Leveys/pidikkeenvarsi: 13.00
Asennuskiinnikkeen etäisyys: 80.00
Kiinnityslovanreikä: 10.20
Liinan säätö kiinnikkeenreiän positiossa: 60
Liinan säätökiinnikkeen reiän koko 1: M8
Holkin halkaisija: 62.50
urien määrä/holkki: 7
Säde: 80.50
Säde 2: 80.50
B+: M8
Sijainti/B+ minuutissa: 5
D+ koko: Pistoke
Kääntö: myötäpäivään
Pistokkeen numero: PL100
Kokonaispituus mm: 185.00
Holkki: SP
Regulaattorin tyyppi: IR
Tuotetieto: BN

Tiedostot

Määrittely

B+ M8
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL100
Bracket hole 10.20
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 62.50
Pulley dist. 43.00
Radius 80.50
D+ Size Plug
Radius 2 80.50
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 185.00 mm
Width/holder arm 13.00
Amp 85

  • OEM
    F032115683, TG1042109033, TG1042109840, 8-98196-5850, 8-98229-0710, 104210-9030, 104210-9031, 104210-9032, 104210-9033, 104210-9840, 104210-9841, 104210-9960, 115683, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

  • Konkurrentreferens
    A6152, A6611S, CAL40313, CAL40584, DAN1487, DRA1314, F042205224, LRA03597, 8EL015630-551, 28-6707, 28-7628, 28-7641, 135.573.080, 135.573.090, 135.928.090, 243.130.802, 20212N, 554321RI, 12060997

  • Bilmärken
    Isuzu

  • NormaliseratArtNr
    a6152, a6611s, cal40313, cal40584, dan1487, dra1314, f032115683, f042205224, lra03597, tg1042109033, tg1042109840, 8el015630551, 20212n, 115683, 286707, 287628, 287641, 554321ri, 12060997, 135573080, 135573090, 135928090, 243130802, 1042109030, 1042109031, 1042109032, 1042109033, 1042109840, 1042109841, 1042109960, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

  • Passar modeller
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Series: D-MAX I Model: 2.5 DiTD 4x4 Engine volume: 2.5 Engine type: 4JK1-TC Year: 01.07-06.12
    Isuzu Series: D-MAX II Model: 2.5 CRDi 4x4 Engine volume: 2.5 Engine type: 4JK1... Year: 06.12-
    1 / 3
  • Kuvaus
    Isuzu D-MAX 2.5D Gen. 12V-90A 12V - 90A, 7r, ( - , L) For Yourex tuote tilaus 90-250-4903

    Jännite: 14
    Ampeerit: 85
    Holkin etäisyys: 43.00
    Leveys/pidikkeenvarsi: 13.00
    Asennuskiinnikkeen etäisyys: 80.00
    Kiinnityslovanreikä: 10.20
    Liinan säätö kiinnikkeenreiän positiossa: 60
    Liinan säätökiinnikkeen reiän koko 1: M8
    Holkin halkaisija: 62.50
    urien määrä/holkki: 7
    Säde: 80.50
    Säde 2: 80.50
    B+: M8
    Sijainti/B+ minuutissa: 5
    D+ koko: Pistoke
    Kääntö: myötäpäivään
    Pistokkeen numero: PL100
    Kokonaispituus mm: 185.00
    Holkki: SP
    Regulaattorin tyyppi: IR
    Tuotetieto: BN

    Tiedostot

  • Määrittely
    B+ M8
    Mount. bracket dist. 80.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL100
    Bracket hole 10.20
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 62.50
    Pulley dist. 43.00
    Radius 80.50
    D+ Size Plug
    Radius 2 80.50
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 13.00
    Amp 85
  • Nämä ajoneuvot sopivat

    • OEM
      F032115683, TG1042109033, TG1042109840, 8-98196-5850, 8-98229-0710, 104210-9030, 104210-9031, 104210-9032, 104210-9033, 104210-9840, 104210-9841, 104210-9960, 115683, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

    • Konkurrentreferens
      A6152, A6611S, CAL40313, CAL40584, DAN1487, DRA1314, F042205224, LRA03597, 8EL015630-551, 28-6707, 28-7628, 28-7641, 135.573.080, 135.573.090, 135.928.090, 243.130.802, 20212N, 554321RI, 12060997

    • Bilmärken
      Isuzu

    • NormaliseratArtNr
      a6152, a6611s, cal40313, cal40584, dan1487, dra1314, f032115683, f042205224, lra03597, tg1042109033, tg1042109840, 8el015630551, 20212n, 115683, 286707, 287628, 287641, 554321ri, 12060997, 135573080, 135573090, 135928090, 243130802, 1042109030, 1042109031, 1042109032, 1042109033, 1042109840, 1042109841, 1042109960, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

    • Passar modeller
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Series: D-MAX I Model: 2.5 DiTD 4x4 Engine volume: 2.5 Engine type: 4JK1-TC Year: 01.07-06.12
      Isuzu Series: D-MAX II Model: 2.5 CRDi 4x4 Engine volume: 2.5 Engine type: 4JK1... Year: 06.12-
