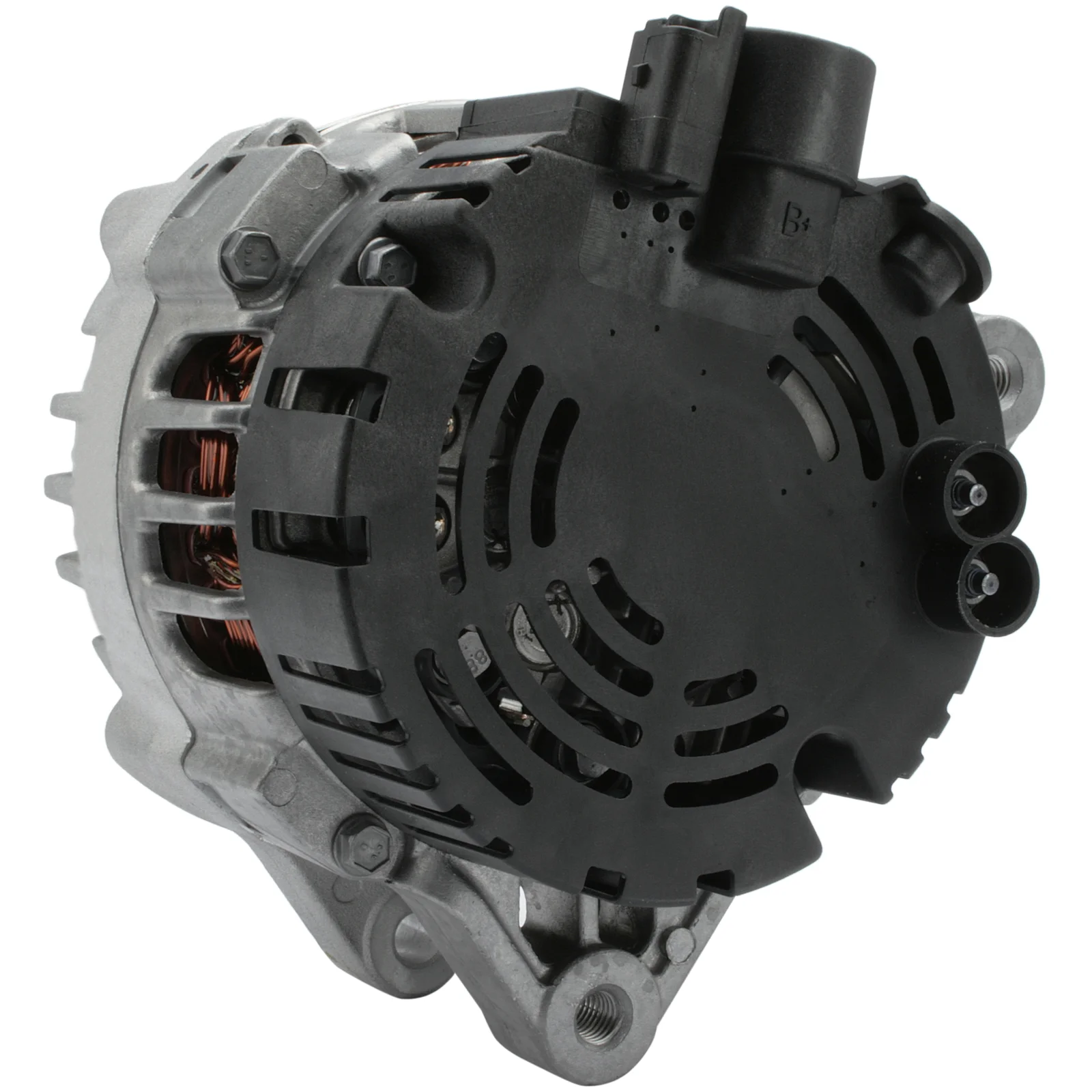

Tuotenro.: F032112469

HC-Cargo Laturi

Tekniset tiedot:

jännite: 14, Amp: 90, Pyörimissuunta: myötäpäivään, Kiinnityskehikon etäisyys: 45.60

Kuvaus

jännite: 14
Amp: 90
holkin etäisyys: 42.50
Leveys/kiinnikevarsi: 22.20
Asennustukien etäisyys: 45.60
Tukipisteen reikä: 10.00
Hihnan säätöhoidokkeen reiän sijainti: 45
Hihnan säätöhoidokkeen reikä 1: 10.50
Holkin halkaisija: 54.50
urien määrä/holkki: 6
säde: 90.00
sade 2: 90.00
B+: M8
Sijainti/B+: min.: 1
D+ koko: Pistorasia
Kääntö: Ristiin
Pistorasian nro.: PL72
Kokonaispituus mm: 180.00
Holkki: SP/FW
Regulatorityyppi: IR
Tuotetiedot: BN
Huolto: Citroen

Tiedostot

Määrittely

B+ M8
Mount. bracket dist. 45.60
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL72
Bracket hole 10.00
Position/B+ in min. 1
Prod. info BN
Pulley SP/FW
Pulley dia. 54.50
Pulley dist. 42.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Citroen
Grooves/pulley 6
Voltage 14
Total length 180.00 mm
Width/holder arm 22.20
Amp 90

  • OEM
    A3256, A3621S, AAK5741, ALT-H112, ALT10070, ALT10076, CAL15241, DRA0181, DRA1316, DRA3907, DRA3907N, F032112469, F042A0H112, GA10091, GA13063, GA15691, IA1341, J5112136, K9638275480, LEA0675, LRB00494, QA2733, TG9B028, TG9B050, 8EL012427-061, 11.203.710, 28-3949, 225.547.080, 229.120.902, 1986A01818, 5705JZ, 5705NC, 21493N, 27060-YV010, 57054K, 57055C, 57057E, 57057F, 111115, 112906, 200019, 200157, 200167, 200206, 210347, 210347A, 301589RI, 437193, 437357, 439573, 440017, 746092, 746119, 746892, 746919, 747012, 839084, 2542297, 2542297A, 2542297B, 2542397, 2542397B, 2542490, 2542490A, 2543215, 2543215A, 12090065, 32437357, 32439573, 0986049700, 9636204680, 9638275480, 9638275780, 9642880180, 9656003780

  • Konkurrentreferens
    A3256, A3621S, ALT-H112, ALT10070, ALT10076, BAO3253, CAL15241, DRA0181, DRA1316, DRA3907, DRA3907N, F042A0H112, GA10091, GA13063, GA15691, IA1341, J5112136, LEA0675, LRB00494, QA2733, 8EL012427-061, 28-3949, 225.547.080, 229.120.902, 5705cq, 5705gq, 5705JZ, 5705NC, 21493N, 57054K, 57055C, 57055v, 57057E, 57057F, 111115, 112906, 200019, 200157, 200167, 200206, 210347, 210347A, 301589RI, 437193, 437357, 439573, 440017, 746092, 746119, 746892, 746919, 747012, 839084, 12090065, 32437357, 32439573, 0986049700

  • Bilmärken
    CITROËN, FIAT, PEUGEOT, TOYOTA

  • NormaliseratArtNr
    a3256, a3621s, aak5741, alt10070, alt10076, alth112, cal15241, dra0181, dra1316, dra3907, dra3907n, f032112469, f042a0h112, ga10091, ga13063, ga15691, ia1341, j5112136, k9638275480, lea0675, lrb00494, qa2733, tg9b028, tg9b050, 8el012427061, 1986a01818, 5705jz, 5705nc, 21493n, 27060yv010, 57054k, 57055c, 57057e, 57057f, 111115, 112906, 200019, 200157, 200167, 200206, 210347, 210347a, 283949, 301589ri, 437193, 437357, 439573, 440017, 746092, 746119, 746892, 746919, 747012, 839084, 2542297, 2542297a, 2542297b, 2542397, 2542397b, 2542490, 2542490a, 2543215, 2543215a, 11203710, 12090065, 32437357, 32439573, 225547080, 229120902, 0986049700, 9636204680, 9638275480, 9638275780, 9642880180, 9656003780

  • Passar modeller
    CITROËN BERLINGO / BERLINGO FIRST Minivan (MF_, GJK_, GFK_) 1.4 i bivalent (MFKFW) Engine volume: 1.4 Engine type: KFW (TU3JP) Year: 04.03-10.08
    CITROËN C5 I (DC_) 1.8 16V (DC6FZB, DC6FZE) Engine volume: 1.8 Engine type: 6FZ (EW7J4) Year: 03.01-08.04
    CITROËN C5 I (DC_) 2.0 16V (DCRFNC, DCRFNF) Engine volume: 2.0 Engine type: RFN (EW10J4) Year: 03.01-08.04
    CITROËN C5 I (DC_) 2.0 16V HPi (DCRLZB) Engine volume: 2.0 Engine type: RLZ (EW10D) Year: 03.01-08.04
    CITROËN C5 I Break (DE_) 1.8 16V (DE6FZB, DE6FZE) Engine volume: 1.8 Engine type: 6FZ (EW7J4) Year: 06.01-08.04
    CITROËN C5 I Break (DE_) 2.0 16V (DERFNF, DERFNC, RERFNC) Engine volume: 2.0 Engine type: RFN (EW10J4) Year: 06.01-08.04
    CITROËN C5 I Break (DE_) 2.0 16V HPi (DERLZB) Engine volume: 2.0 Engine type: RLZ (EW10D) Year: 06.01-08.04
    CITROËN C8 (EA_, EB_) 2.0 Engine volume: 2.0 Engine type: RFN (EW10J4) Year: 07.02-
    CITROËN C8 (EA_, EB_) 2.2 Engine volume: 2.2 Engine type: 3FZ (EW12J4) Year: 07.02-
    CITROËN XSARA (N1) 1.4 i Engine volume: 1.4 Engine type: KFX (TU3JP), KFW (TU3JP) Year: 04.97-03.05
    CITROËN XSARA Break (N2) 1.4 i Engine volume: 1.4 Engine type: KFX (TU3JP), KFW (TU3JP) Year: 10.97-08.05
    CITROËN XSARA PICASSO (N68) 1.6 Engine volume: 1.6 Engine type: NFV (TU5JP) Year: 12.99-12.10
    CITROËN XSARA PICASSO (N68) 1.6 Engine volume: 1.6 Engine type: NFZ (TU5JP) Year: 12.99-09.01
    CITROËN XSARA PICASSO (N68) 1.8 16V Engine volume: 1.8 Engine type: 6FZ (EW7J4) Year: 02.00-08.05
    CITROËN XSARA PICASSO (N68) 2.0 16V Engine volume: 2.0 Engine type: RFN (EW10J4) Year: 01.03-06.12
    FIAT ULYSSE (179_) 2.0 (179BXA11, 179BXA1A) Engine volume: 2.0 Engine type: RFN (EW10J4) Year: 08.02-06.11
    PEUGEOT 206 CC (2D) 1.6 16V (2DNFUF, 2DNFUR) Engine volume: 1.6 Engine type: NFU (TU5JP4) Year: 09.00-12.07
    PEUGEOT 206 Halvkombi (2A/C) 1.1 i Engine volume: 1.1 Engine type: HFZ (TU1JP), HFX (TU1JP) Year: 09.98-02.07
    PEUGEOT 206 Halvkombi (2A/C) 1.4 i Engine volume: 1.4 Engine type: KFX (TU3JP), KFW (TU3JP), KFW (TU3A) Year: 09.98-12.12
    PEUGEOT 206 Halvkombi (2A/C) 1.6 16V Engine volume: 1.6 Engine type: NFU (TU5JP4) Year: 07.00-04.09
    PEUGEOT 206 Halvkombi (2A/C) 1.6 i Engine volume: 1.6 Engine type: NFZ (TU5JP) Year: 09.98-12.00
    PEUGEOT 206 SW (2E/K) 1.1 Engine volume: 1.1 Engine type: HFX (TU1JP) Year: 07.02-02.07
    PEUGEOT 206 SW (2E/K) 1.4 16V Engine volume: 1.4 Engine type: KFU (ET3J4) Year: 10.03-
    PEUGEOT 206 SW (2E/K) 1.4 Engine volume: 1.4 Engine type: KFV (TU3A), KFW (TU3JP) Year: 07.02-02.07
    PEUGEOT 206 SW (2E/K) 1.6 16V Engine volume: 1.6 Engine type: NFU (TU5JP4) Year: 07.02-
    PEUGEOT 206 Van 1.1 Engine volume: 1.1 Engine type: HFZ (TU1JP) Year: 09.02-02.07
    PEUGEOT 206+ (2L_, 2M_) 1.4 i (2LKFWA, 2MKFWA) Engine volume: 1.4 Engine type: KFW (TU3A) Year: 01.09-08.13
    PEUGEOT 307 (3A/C) 2.0 16V Engine volume: 2.0 Engine type: RFN (EW10J4) Year: 08.00-06.05
    PEUGEOT 307 Break (3E) 2.0 Engine volume: 2.0 Engine type: RFN (EW10J4) Year: 03.02-06.05
    PEUGEOT 307 CC (3B) 2.0 16V Engine volume: 2.0 Engine type: RFK (EW10J4S) Year: 10.03-04.09
    PEUGEOT 307 SW (3H) 2.0 16V Engine volume: 2.0 Engine type: RFN (EW10J4) Year: 03.02-06.05
    PEUGEOT 407 (6D_) 1.8 (6D6FZB) Engine volume: 1.8 Engine type: 6FZ (EW7J4) Year: 03.04-07.05
    PEUGEOT 407 (6D_) 2.2 (6D3FZE, 6D3FZH) Engine volume: 2.2 Engine type: 3FZ (EW12J4) Year: 03.04-10.06
    PEUGEOT 407 SW (6E_, 6D_) 1.8 Engine volume: 1.8 Engine type: 6FZ (EW7J4) Year: 05.04-07.05
    PEUGEOT 407 SW (6E_, 6D_) 2.2 Engine volume: 2.2 Engine type: 3FZ (EW12J4) Year: 05.04-07.05
    PEUGEOT 607 (9D, 9U) 2.0 Engine volume: 2.0 Engine type: RFN (EW10J4) Year: 02.00-08.05
    PEUGEOT 807 (EB_) 2.0 Engine volume: 2.0 Engine type: RFN (EW10J4) Year: 06.02-
    PEUGEOT 807 (EB_) 2.2 Engine volume: 2.2 Engine type: 3FZ (EW12J4) Year: 06.02-
    PEUGEOT BIPPER TEPEE 1.4 Engine volume: 1.4 Engine type: KFV (TU3A), KFT (TU3AE5) Year: 04.08-
    PEUGEOT PARTNER Flak/chassi (5_, G_) 1.6 Engine volume: 1.6 Year: 09.00-05.08
    PEUGEOT PARTNER Flak/chassi (5_, G_) 1.9 D Engine volume: 1.9 Engine type: WJZ (DW8), WJY (DW8B) Year: 01.99-07.08
    PEUGEOT PARTNER Skåpbil/minivan (5_, G_) 1.4 CNG Engine volume: 1.4 Engine type: KFW (TU3JP) Year: 04.03-10.06
    TOYOTA AYGO (_B1_) 1.4 D-4D (WNB10_, WNB10R) Engine volume: 1.4 Engine type: 2W-ZTV Year: 07.05-08.10
    1 / 9
