HC-Cargo Laturi

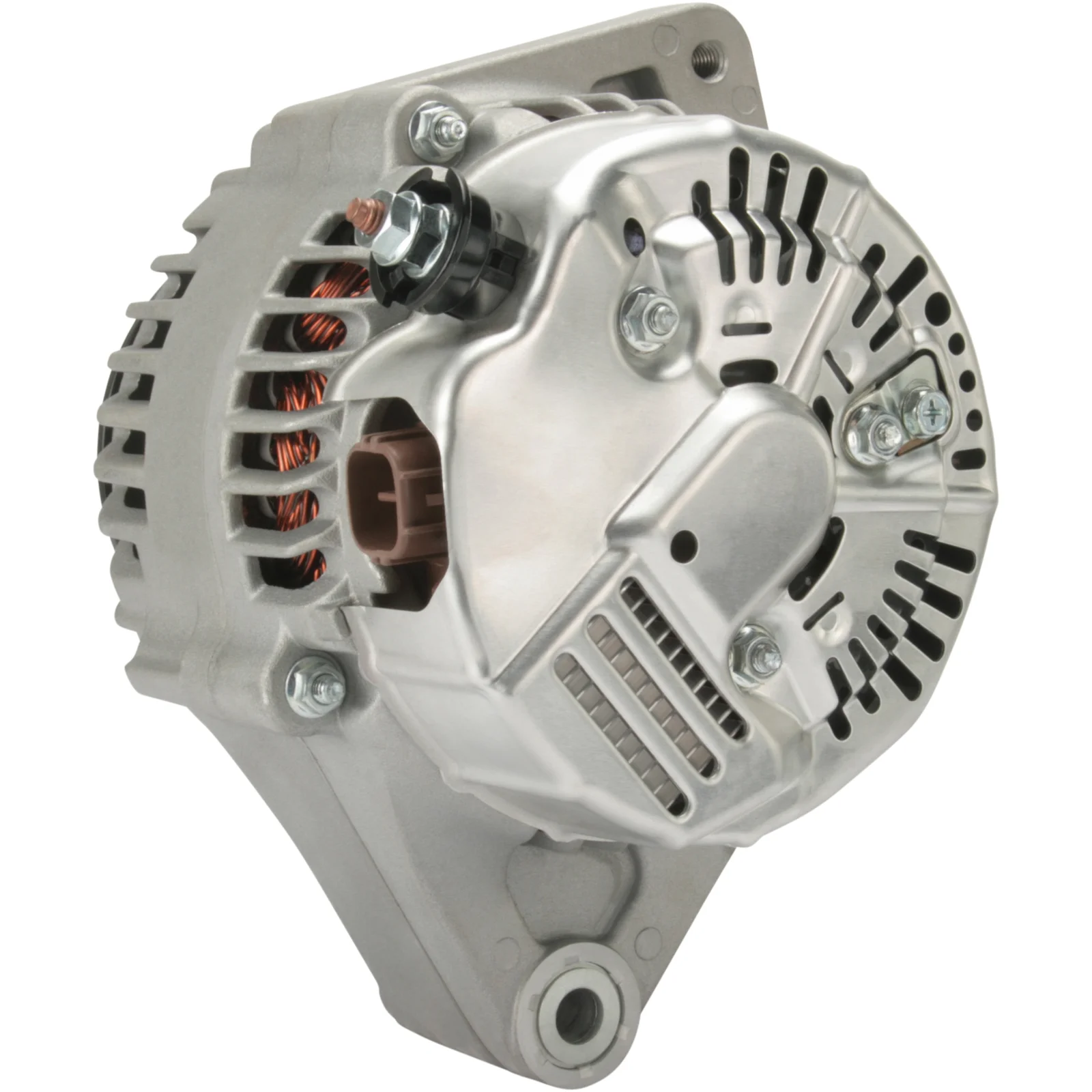

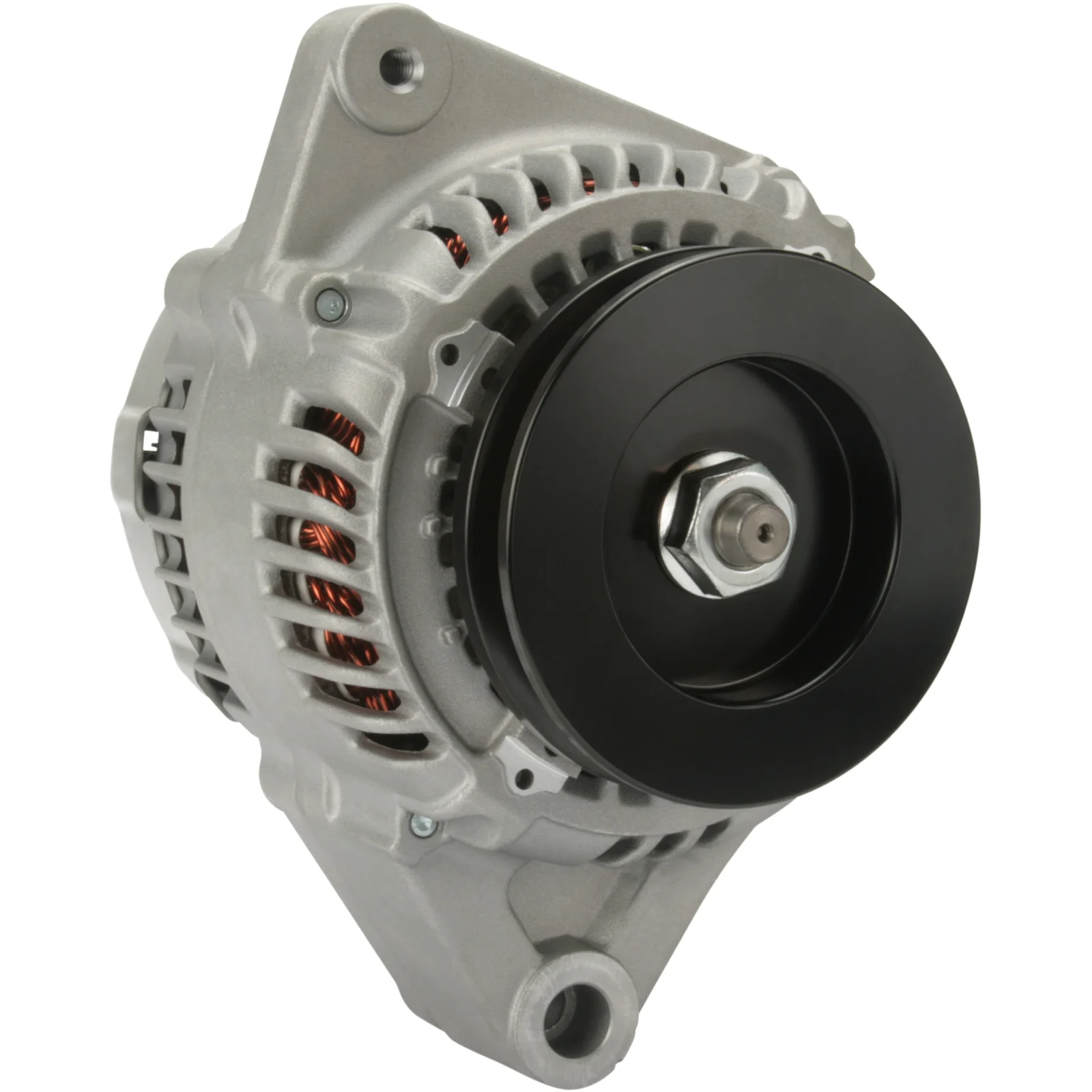

HC-Cargo Laturi
Tuotenro.: F032114227

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, A: 120, Kääntö: myötäultainen, Hihnapyörän halkaisija: 99.00

Kuvaus

Jännitteen: 14
Amm: 120
Välitystanko etäisyys: 96.00
Leveys/kiinnikevarsi: 53.20
Tukivälin reikä: 10.50
Hihnan säädettävän tukivälin reiän sijainti: 55
Hihnan säädettävän tukivälin reiän 1: M8
Välitystangon dia.: 99.00
Ujat / holkit / holkki: 1
Säde: 100.00
Säde 2: 90.00
B+: M6
Sijainti / B+ min.: 50
D+ koko: Tulppa
Pyörimissuunta: Kelloa myötä
Tulpan numero: PL78
Kokona antaa mitta mm: 168.00
Terminaalityyppi: S-IG-L-DF/DFM
Lamputyyppi: Aktiivinen
Välitystanko: P
Jännitteensäädin tyyppi: IR
Tuotetiedot: BN
Huolto: Toyota

Tiedostot

Määrittely

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 55
Plug no. PL78
Bracket hole 10.50
Position/B+ in min. 50
Prod. info BN
Pulley P
Pulley dia. 99.00
Pulley dist. 96.00
Radius 100.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 1
Lamp type Active
Terminal type S-IG-L-DF/DFM
Voltage 14
Total length 168.00 mm
Width/holder arm 53.20
Amp 120

  • OEM
    F032114227, ja1783ir, 27060-27030, 102211-0670, 102211-4120, 102211-4121

  • Konkurrentreferens
    A6053, A6053(DENSO), CAL40127, dan939, DENDAN939, DRA0073, 8EL011711-291, 28-4528, 235.195.1202, 9295, 23089R, 112175, 210846, 210846A, 401783RI, 440520, 9213023, 12060814, 063377427, 0986084380, 063377427010

  • NormaliseratArtNr
    a6053, a6053denso, cal40127, dan939, dendan939, dra0073, f032114227, ja1783ir, 8el011711291, 9295, 23089r, 112175, 210846, 210846a, 284528, 401783ri, 440520, 9213023, 12060814, 063377427, 0986084380, 1022110670, 1022114120, 1022114121, 2351951202, 2706027030, 063377427010

  • Passar modeller
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T22 Body: Estate From date: 01-10-1999 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T22 Body: Hatchback From date: 01-10-1999 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T22 From date: 01-10-1999 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _T22_ From date: 01-09-2002 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _T22_ Body: Estate From date: 01-09-2002 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _T22_ Body: Liftback From date: 01-09-2002 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: GS Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Estate From date: 01-08-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes Manufacture type: wagon
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Box From date: 01-09-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Estate From date: 01-09-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Hatchback From date: 01-09-2000 To date: 01-01-2002 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ From date: 01-09-2000 To date: 01-11-2001 Fuel: Diesel Approved: Yes
    1 / 3
  • Kuvaus
    Jännitteen: 14
    Amm: 120
    Välitystanko etäisyys: 96.00
    Leveys/kiinnikevarsi: 53.20
    Tukivälin reikä: 10.50
    Hihnan säädettävän tukivälin reiän sijainti: 55
    Hihnan säädettävän tukivälin reiän 1: M8
    Välitystangon dia.: 99.00
    Ujat / holkit / holkki: 1
    Säde: 100.00
    Säde 2: 90.00
    B+: M6
    Sijainti / B+ min.: 50
    D+ koko: Tulppa
    Pyörimissuunta: Kelloa myötä
    Tulpan numero: PL78
    Kokona antaa mitta mm: 168.00
    Terminaalityyppi: S-IG-L-DF/DFM
    Lamputyyppi: Aktiivinen
    Välitystanko: P
    Jännitteensäädin tyyppi: IR
    Tuotetiedot: BN
    Huolto: Toyota

    Tiedostot

  • Määrittely
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 55
    Plug no. PL78
    Bracket hole 10.50
    Position/B+ in min. 50
    Prod. info BN
    Pulley P
    Pulley dia. 99.00
    Pulley dist. 96.00
    Radius 100.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 1
    Lamp type Active
    Terminal type S-IG-L-DF/DFM
    Voltage 14
    Total length 168.00 mm
    Width/holder arm 53.20
    Amp 120
  • Nämä ajoneuvot sopivat

    • OEM
      F032114227, ja1783ir, 27060-27030, 102211-0670, 102211-4120, 102211-4121

    • Konkurrentreferens
      A6053, A6053(DENSO), CAL40127, dan939, DENDAN939, DRA0073, 8EL011711-291, 28-4528, 235.195.1202, 9295, 23089R, 112175, 210846, 210846A, 401783RI, 440520, 9213023, 12060814, 063377427, 0986084380, 063377427010

    • NormaliseratArtNr
      a6053, a6053denso, cal40127, dan939, dendan939, dra0073, f032114227, ja1783ir, 8el011711291, 9295, 23089r, 112175, 210846, 210846a, 284528, 401783ri, 440520, 9213023, 12060814, 063377427, 0986084380, 1022110670, 1022114120, 1022114121, 2351951202, 2706027030, 063377427010

    • Passar modeller
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T22 Body: Estate From date: 01-10-1999 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T22 Body: Hatchback From date: 01-10-1999 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T22 From date: 01-10-1999 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _T22_ From date: 01-09-2002 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _T22_ Body: Estate From date: 01-09-2002 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: Diesel Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _T22_ Body: Liftback From date: 01-09-2002 To date: 01-02-2003 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: GS Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Estate From date: 01-08-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes Manufacture type: wagon
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Box From date: 01-09-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Estate From date: 01-09-2000 To date: 01-10-2001 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ Body: Hatchback From date: 01-09-2000 To date: 01-01-2002 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E11_ From date: 01-09-2000 To date: 01-11-2001 Fuel: Diesel Approved: Yes
