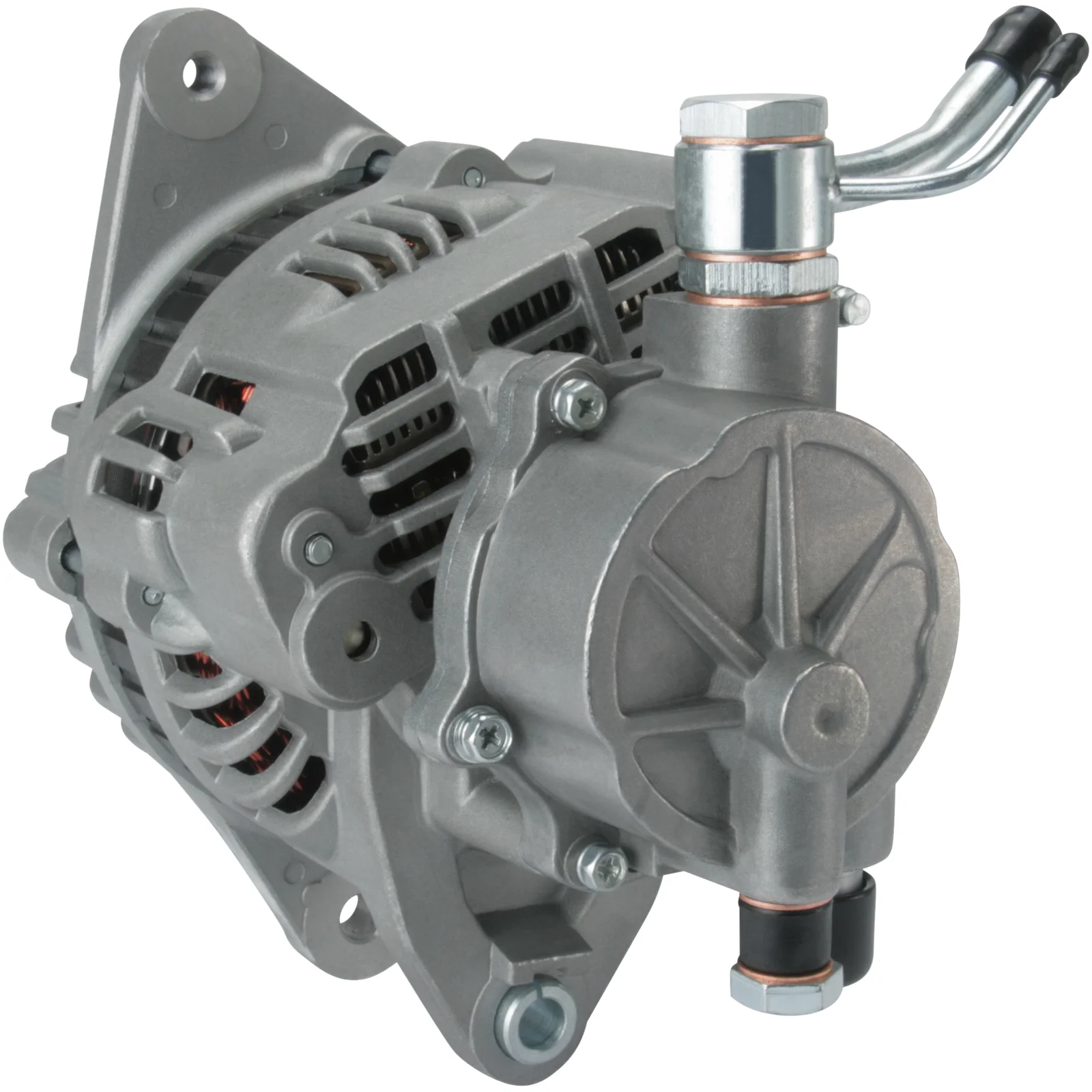

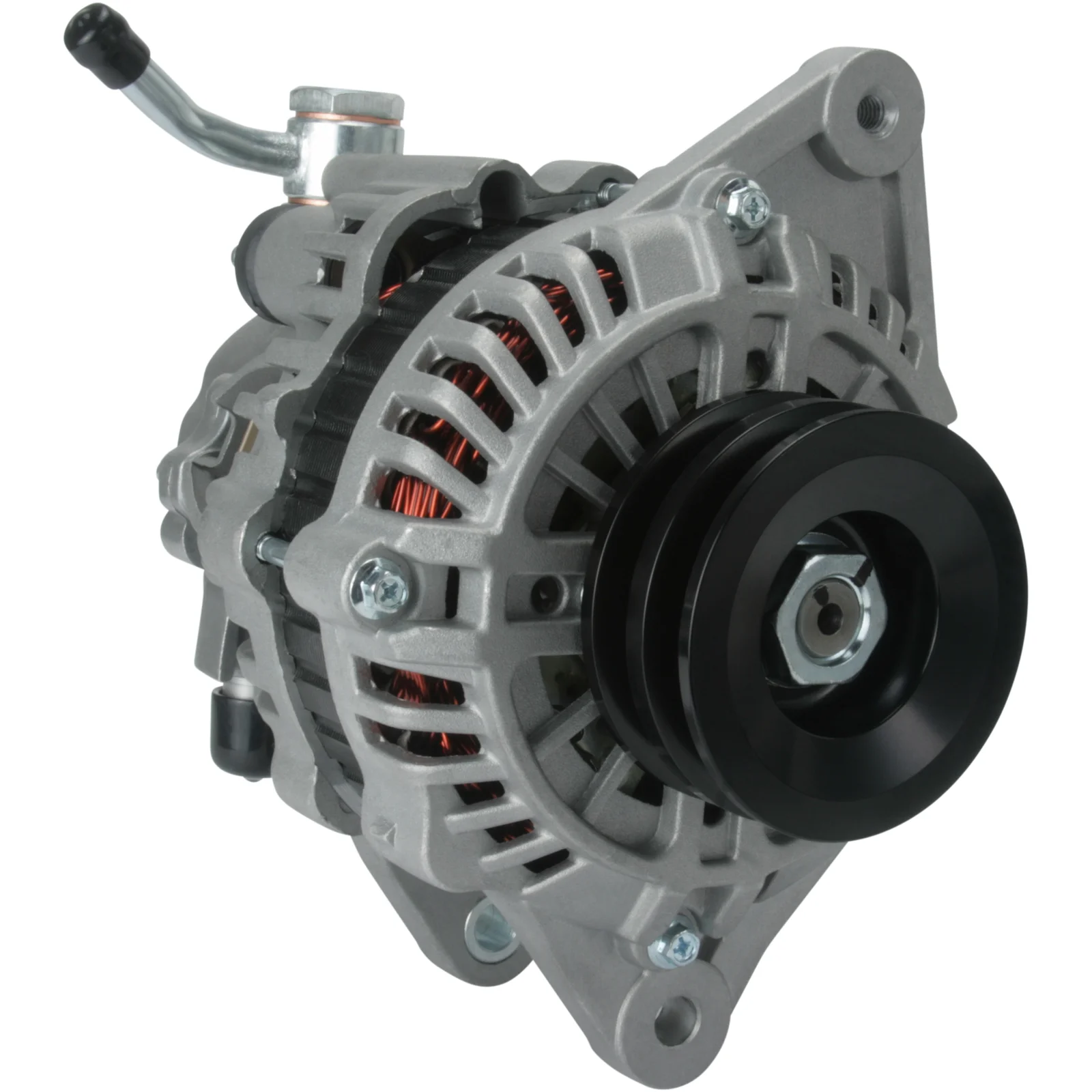

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032112205

HC-Cargo Laturi

Tekniset tiedot:

Voltti: 14, Ahdi: 90, Kierto: myötäpäivään, Asennuskehyksen etäisyys: 55.00

Kuvaus

Umpotenssi: 14
Ampeerit: 90
Vanneväli: 42.00
Levy/pidike varsi: 13.00
Asennuskiinnikkeen väli: 55.00
Kiinnikkeen reikä: 10.60
Vantaraon korjauskiinnikkeen reikä sijainti: 5
Vantaraon korjauskiinnikkeen reikä 1: M8
Vannen halkaisija: 77.00
urahdoitukset/vanne: 2
Säde: 90.00
Säde 2: 97.00
B+: M8
Sijaisti/B+ minuutteina: 5
D+ koko: Pistoke
Käännös: myötä käteen
Pistokkeen numero: PL07
Kokonaispituus mm: 251.00
Vanne: DP
Regulaattorin tyyppi: IR
Imupumppu: Kyllä
Tuotetiedot: BN
Huolto: Hyundai

Tiedostot

Määrittely

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL07
Bracket hole 10.60
Position/B+ in min. 5
Prod. info BN
Pulley DP
Pulley dia. 77.00
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 97.00
Regulator type IR
Rotation CW
Servicing Hyundai
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 251.00 mm
Width/holder arm 13.00
Amp 90

  • OEM
    A003TN0699, A003TN0699A, A003TN0899, A003TN1199, a3tn0699, A3TN0699A, a3tn0899, a3tn1199, F032112205, ja1419ir, md320354, md334176, md335227, MN137866, 61920335, 61920402

  • Konkurrentreferens
    A3526S, A5003, A5072, A9164, ALT-H086, ALT-V057, ALT31054, CAL35110, DRA0752, DRA3869, F042303112, F042A03112, F042A0H086, LEA0108, LRA01648, LRA03151, 8EL011711-121, 8el737675-001, 28-2848, 28-5763, 155.604.105, 526.119.1052, 526.119.902, 526.129.752, 526.134.1052, 5777, 12667, 12667N, 12667R, 12667RW, 210114, 210114A, 401419RI, 401802RI, 9060501, 12060755, 12060780, 20110236, 0986045571, 0986049930

  • NormaliseratArtNr
    a003tn0699, a003tn0699a, a003tn0899, a003tn1199, a3526s, a3tn0699, a3tn0699a, a3tn0899, a3tn1199, a5003, a5072, a9164, alt31054, alth086, altv057, cal35110, dra0752, dra3869, f032112205, f042303112, f042a03112, f042a0h086, ja1419ir, lea0108, lra01648, lra03151, md320354, md334176, md335227, mn137866, 8el011711121, 8el737675001, 5777, 12667, 12667n, 12667r, 12667rw, 210114, 210114a, 282848, 285763, 401419ri, 401802ri, 9060501, 12060755, 12060780, 20110236, 61920335, 61920402, 155604105, 526119902, 526129752, 0986045571, 0986049930, 5261191052, 5261341052

  • Passar modeller
    Hyundai Model: H-1 Model series: H-1 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Body: Van From date: 01-03-2000 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BH Body: Van From date: 01-03-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BH Body: Van From date: 01-10-2001 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Hyundai Model: Starex Model series: Starex Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Body: MPV From date: 01-02-1998 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Hyundai Model: Starex Model series: Starex Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Type description: H1 Body: MPV From date: 01-06-1997 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Body: Pick Up From date: 01-06-1996 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Body: Pick Up From date: 01-06-1996 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Space Gear Model series: Space Gear Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: PA5W Body: MPV From date: 01-05-1995 To date: 01-05-2000 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Space Gear Model series: Space Gear Type of engine: Diesel Size of motor: 2.5 Body: MPV From date: 01-05-1995 To date: 01-05-2000 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Space Gear Model series: Space Gear Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56-TD Type description: PD5W Body: MPV From date: 01-05-1995 To date: 01-05-2000 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Space Gear Model series: Space Gear Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: PA5W Body: MPV From date: 01-05-1995 To date: 01-05-2000 Fuel: Diesel Approved: Yes
    1 / 3
  • Kuvaus
    Umpotenssi: 14
    Ampeerit: 90
    Vanneväli: 42.00
    Levy/pidike varsi: 13.00
    Asennuskiinnikkeen väli: 55.00
    Kiinnikkeen reikä: 10.60
    Vantaraon korjauskiinnikkeen reikä sijainti: 5
    Vantaraon korjauskiinnikkeen reikä 1: M8
    Vannen halkaisija: 77.00
    urahdoitukset/vanne: 2
    Säde: 90.00
    Säde 2: 97.00
    B+: M8
    Sijaisti/B+ minuutteina: 5
    D+ koko: Pistoke
    Käännös: myötä käteen
    Pistokkeen numero: PL07
    Kokonaispituus mm: 251.00
    Vanne: DP
    Regulaattorin tyyppi: IR
    Imupumppu: Kyllä
    Tuotetiedot: BN
    Huolto: Hyundai

    Tiedostot

  • Määrittely
    B+ M8
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL07
    Bracket hole 10.60
    Position/B+ in min. 5
    Prod. info BN
    Pulley DP
    Pulley dia. 77.00
    Pulley dist. 42.00
    Radius 90.00
    D+ Size Plug
    Radius 2 97.00
    Regulator type IR
    Rotation CW
    Servicing Hyundai
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 251.00 mm
    Width/holder arm 13.00
    Amp 90
  • Nämä ajoneuvot sopivat

    • OEM
      A003TN0699, A003TN0699A, A003TN0899, A003TN1199, a3tn0699, A3TN0699A, a3tn0899, a3tn1199, F032112205, ja1419ir, md320354, md334176, md335227, MN137866, 61920335, 61920402

    • Konkurrentreferens
      A3526S, A5003, A5072, A9164, ALT-H086, ALT-V057, ALT31054, CAL35110, DRA0752, DRA3869, F042303112, F042A03112, F042A0H086, LEA0108, LRA01648, LRA03151, 8EL011711-121, 8el737675-001, 28-2848, 28-5763, 155.604.105, 526.119.1052, 526.119.902, 526.129.752, 526.134.1052, 5777, 12667, 12667N, 12667R, 12667RW, 210114, 210114A, 401419RI, 401802RI, 9060501, 12060755, 12060780, 20110236, 0986045571, 0986049930

    • NormaliseratArtNr
      a003tn0699, a003tn0699a, a003tn0899, a003tn1199, a3526s, a3tn0699, a3tn0699a, a3tn0899, a3tn1199, a5003, a5072, a9164, alt31054, alth086, altv057, cal35110, dra0752, dra3869, f032112205, f042303112, f042a03112, f042a0h086, ja1419ir, lea0108, lra01648, lra03151, md320354, md334176, md335227, mn137866, 8el011711121, 8el737675001, 5777, 12667, 12667n, 12667r, 12667rw, 210114, 210114a, 282848, 285763, 401419ri, 401802ri, 9060501, 12060755, 12060780, 20110236, 61920335, 61920402, 155604105, 526119902, 526129752, 0986045571, 0986049930, 5261191052, 5261341052

    • Passar modeller
      Hyundai Model: H-1 Model series: H-1 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Body: Van From date: 01-03-2000 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BH Body: Van From date: 01-03-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
      Hyundai Model: H-1 Model series: H-1 Type of engine: TD Size of motor: 2.5 Brand of engine: D4BH Body: Van From date: 01-10-2001 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Hyundai Model: Starex Model series: Starex Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Body: MPV From date: 01-02-1998 To date: 01-04-2004 Fuel: Diesel Approved: Yes
      Hyundai Model: Starex Model series: Starex Type of engine: TD Size of motor: 2.5 Brand of engine: D4BF Type description: H1 Body: MPV From date: 01-06-1997 To date: 01-04-2004 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Body: Pick Up From date: 01-06-1996 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Mitsubishi Model: L 200 Model series: L 200 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Body: Pick Up From date: 01-06-1996 To date: 01-12-2007 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Space Gear Model series: Space Gear Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: PA5W Body: MPV From date: 01-05-1995 To date: 01-05-2000 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Space Gear Model series: Space Gear Type of engine: Diesel Size of motor: 2.5 Body: MPV From date: 01-05-1995 To date: 01-05-2000 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Space Gear Model series: Space Gear Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56-TD Type description: PD5W Body: MPV From date: 01-05-1995 To date: 01-05-2000 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Space Gear Model series: Space Gear Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: PA5W Body: MPV From date: 01-05-1995 To date: 01-05-2000 Fuel: Diesel Approved: Yes
