Tuotenro.: F032116671

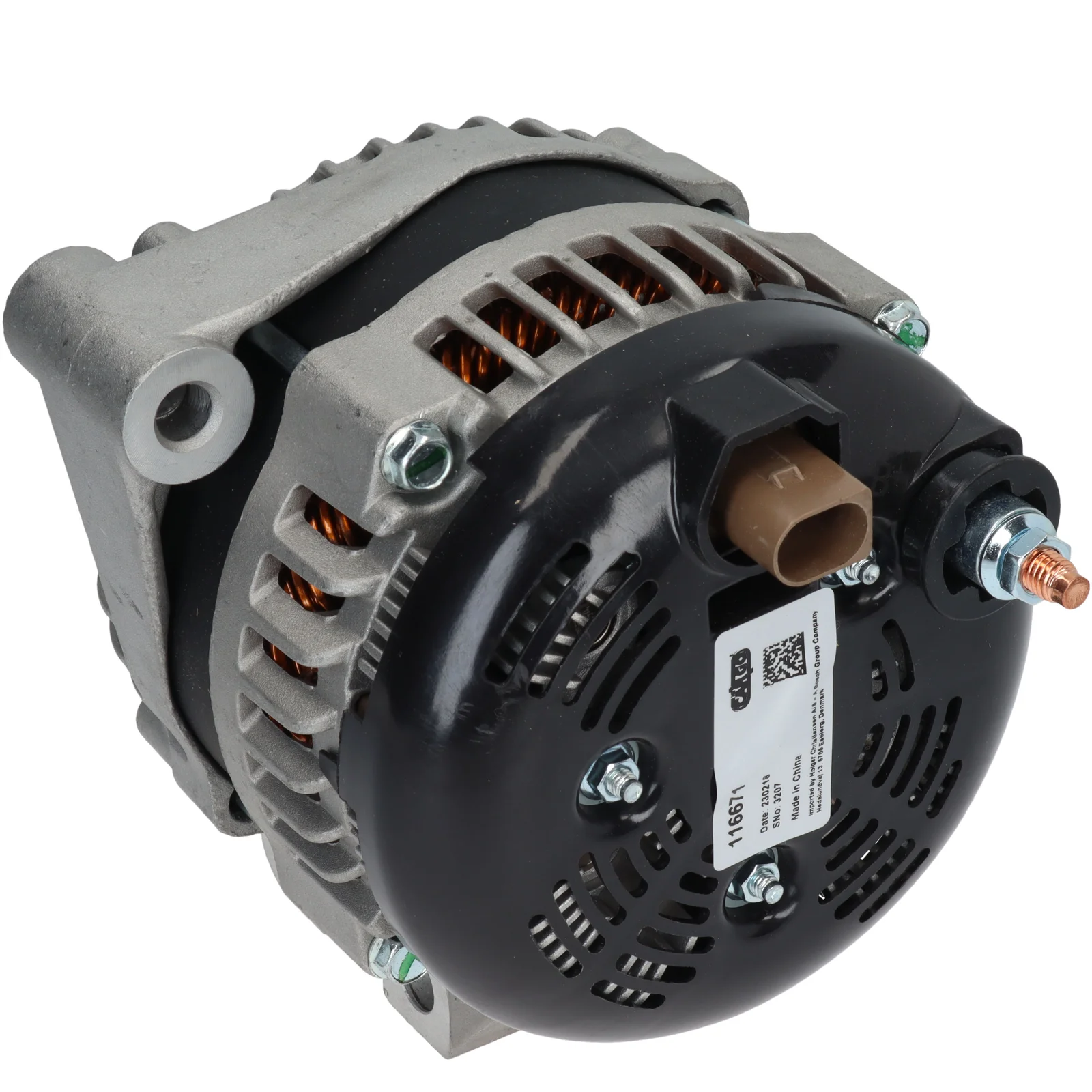

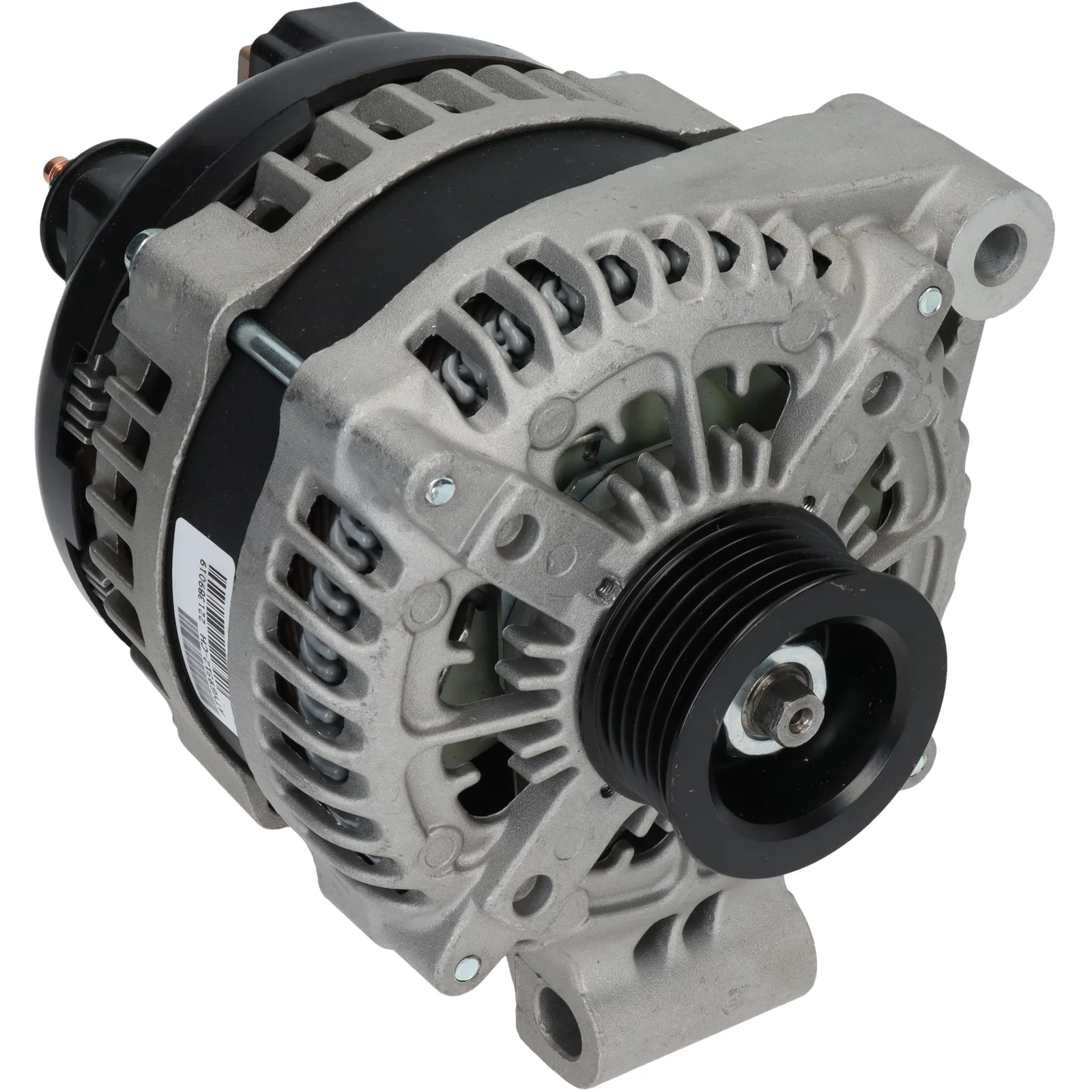

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Amp: 220, Kääntö: myötä, Kiinnitystuki etäisyys: 47.00

Kuvaus

Volyymi: 14
Amp: 220
Vetoringin etäisyys: 22.00
Leveys/kiinnikkeen varren pituus: 50.00
Telineen kiinnityskohdan etäisyys: 47.00
Telineen reiän koko: 11.50x14.00
Hihnan säätö telineen reiän sijainti: 50
Hihnan säätö telineen reiän koko: 10.30
Vetimen halkaisija: 52.50
Urien määrä/vetimessä: 6
Säteen pituus: 84.00
Säteen toinen: 87.00
B+ pituus mm: 13.50
B+: M8
Sijainti/B+ minuuteissa: 10
Pyörimissuunta: myötäpäivään
Sovitin numero: PL174
Kokonaispituus mm: 194.00
Terminaalityyppi: COM
Viestintä: LIN
Vetolaite: SP
Tuuletin: IF
Regulatorin tyyppi: IR
Huomautuksia: Tämä generaattori sisältää COM-liittimen regulatorissa. On suositeltavaa käyttää OEM-koodia soveltuvuuden tarkistamiseen ennen tilaamista.

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 47.00
Belt. adj. bracket hole 1 10.30
Belt. adj. brackethole pos. 50
Plug no. PL174
Bracket hole 11.50x14.00
Position/B+ in min. 10
Pulley SP
Pulley dia. 52.50
Pulley dist. 22.00
Radius 84.00
Radius 2 87.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 194.00 mm
Width/holder arm 50.00
Amp 220
B+ Length 13.50 mm
  • OEM

    BH4210300AC, F032116671, LR022528, LR055316, LR072762, 021080-0250, 104210-6280, 104210-6281
  • Konkurrentreferens

    A6403S, CAL40398, DAN1110, DRA1655, LRA03886, 8EL015637-601, 28-6996, 214.184.2202, 455.533.220, 21023OS, 40446, 209430, 209430A, 444259, 553742RI, 12090754, 32118826
  • NormaliseratArtNr

    a6403s, bh4210300ac, cal40398, dan1110, dra1655, f032116671, lr022528, lr055316, lr072762, lra03886, 8el015637601, 21023os, 40446, 209430, 209430a, 286996, 444259, 553742ri, 12090754, 32118826, 0210800250, 455533220, 1042106280, 1042106281, 2141842202
  • Passar modeller

    Land Rover Model: Range Rover Model series: Range Rover Model type: SDV8 4x4 Type of engine: Diesel Size of motor: 4.4 Brand of engine: 448DT Type description: L405 Body: SUV From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD V8 Size of motor: 4.4 Brand of engine: 448DT Type description: LM From date: 01-07-2010 To date: 01-08-2012 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD V8 Size of motor: 4.4 Brand of engine: 448DT Type description: LM From date: 01-08-2012 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Sport Model series: Range Rover Sport Model type: SDV8 4x4 Type of engine: TD Size of motor: 4.4 Brand of engine: 448DT Type description: LW Body: SUV From date: 01-10-2013 Fuel: Diesel Approved: Yes
  • Kuvaus
    Volyymi: 14
    Amp: 220
    Vetoringin etäisyys: 22.00
    Leveys/kiinnikkeen varren pituus: 50.00
    Telineen kiinnityskohdan etäisyys: 47.00
    Telineen reiän koko: 11.50x14.00
    Hihnan säätö telineen reiän sijainti: 50
    Hihnan säätö telineen reiän koko: 10.30
    Vetimen halkaisija: 52.50
    Urien määrä/vetimessä: 6
    Säteen pituus: 84.00
    Säteen toinen: 87.00
    B+ pituus mm: 13.50
    B+: M8
    Sijainti/B+ minuuteissa: 10
    Pyörimissuunta: myötäpäivään
    Sovitin numero: PL174
    Kokonaispituus mm: 194.00
    Terminaalityyppi: COM
    Viestintä: LIN
    Vetolaite: SP
    Tuuletin: IF
    Regulatorin tyyppi: IR
    Huomautuksia: Tämä generaattori sisältää COM-liittimen regulatorissa. On suositeltavaa käyttää OEM-koodia soveltuvuuden tarkistamiseen ennen tilaamista.
  • Määrittely
    B+ M8
    Communication LIN
    Mount. bracket dist. 47.00
    Belt. adj. bracket hole 1 10.30
    Belt. adj. brackethole pos. 50
    Plug no. PL174
    Bracket hole 11.50x14.00
    Position/B+ in min. 10
    Pulley SP
    Pulley dia. 52.50
    Pulley dist. 22.00
    Radius 84.00
    Radius 2 87.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 194.00 mm
    Width/holder arm 50.00
    Amp 220
    B+ Length 13.50 mm
  • Nämä ajoneuvot sopivat
    • OEM

      BH4210300AC, F032116671, LR022528, LR055316, LR072762, 021080-0250, 104210-6280, 104210-6281
    • Konkurrentreferens

      A6403S, CAL40398, DAN1110, DRA1655, LRA03886, 8EL015637-601, 28-6996, 214.184.2202, 455.533.220, 21023OS, 40446, 209430, 209430A, 444259, 553742RI, 12090754, 32118826
    • NormaliseratArtNr

      a6403s, bh4210300ac, cal40398, dan1110, dra1655, f032116671, lr022528, lr055316, lr072762, lra03886, 8el015637601, 21023os, 40446, 209430, 209430a, 286996, 444259, 553742ri, 12090754, 32118826, 0210800250, 455533220, 1042106280, 1042106281, 2141842202
    • Passar modeller

      Land Rover Model: Range Rover Model series: Range Rover Model type: SDV8 4x4 Type of engine: Diesel Size of motor: 4.4 Brand of engine: 448DT Type description: L405 Body: SUV From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD V8 Size of motor: 4.4 Brand of engine: 448DT Type description: LM From date: 01-07-2010 To date: 01-08-2012 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Type of engine: TD V8 Size of motor: 4.4 Brand of engine: 448DT Type description: LM From date: 01-08-2012 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Sport Model series: Range Rover Sport Model type: SDV8 4x4 Type of engine: TD Size of motor: 4.4 Brand of engine: 448DT Type description: LW Body: SUV From date: 01-10-2013 Fuel: Diesel Approved: Yes
