Tuotenro.: F032112360

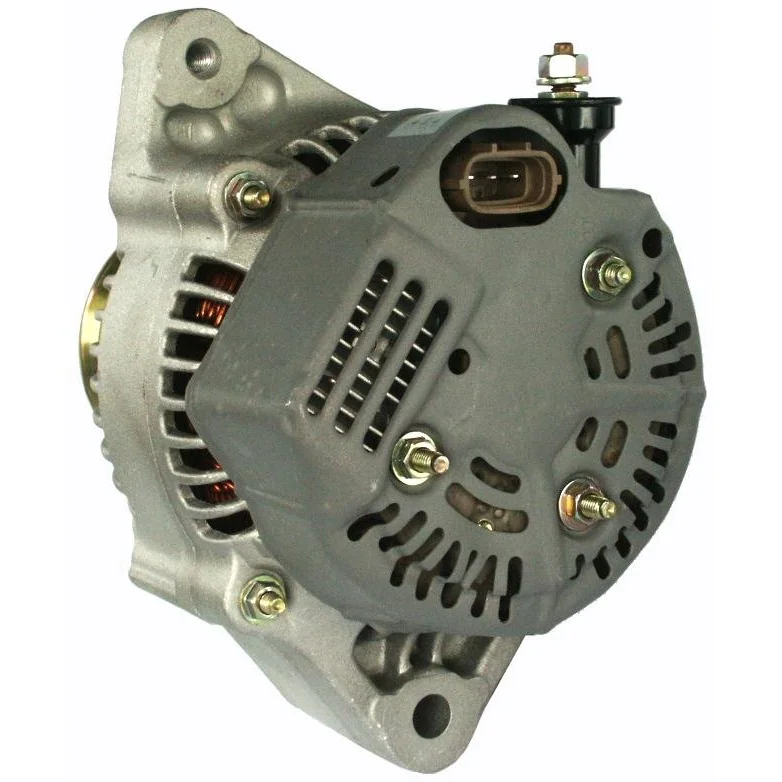

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Ampeeri: 60, Kierre: myötä, Kiekon halkaisija: 71,40

Kuvaus

Volyymi: 14
Amm.: 60
Käynnistysratas etäisyys: 93.50
Leveys/kiinnikevarren korkeus: 58.30
Kaarenreiän kiinnike: 10.30
Kisko. säädettävä kiinnikkeen reiän poistokohta: 4
Kisko. säädettävä kiinnikkeen reiän poiston paikka 1: M8
Käynnistysratas dia.: 71.40
Uu-urat/käynnistysratas: 2
Säde: 79.50
Säde 2: 83.00
B+: M6
Sijainti/B+ min.: 4
D+ koko: Pistorasia
Pyörimisliike: Myötäpäivä(CW)
Pistorasian numero: PL42
Kokonaispituus mm: 164.50
Käynnistysratas: DP
Regulator-tyyppi: IR
Tuotetiedot: Reman
Huolto: Toyota

Määrittely

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 4
Plug no. PL42
Bracket hole 10.30
Position/B+ in min. 4
Prod. info Reman
Pulley DP
Pulley dia. 71.40
Pulley dist. 93.50
Radius 79.50
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 2
Voltage 14
Total length 164.50 mm
Width/holder arm 58.30
Amp 60
  • OEM

    F032112360, 27060-17160, 27060-17210, 101211-0270, 101211-0271, 101211-0272, 102211-5110, 102211-5111
  • Konkurrentreferens

    A6694S, DRA0335, J5112110, LRA02134, 28-4580, 535.121.602, 119952, 401597RI, 12060871
  • NormaliseratArtNr

    a6694s, dra0335, f032112360, j5112110, lra02134, 119952, 284580, 401597ri, 12060871, 535121602, 1012110270, 1012110271, 1012110272, 1022115110, 1022115111, 2706017160, 2706017210
  • Passar modeller

    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ80_ From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-10-1992 To date: 01-12-1997 Fuel: Diesel Approved: Yes
  • Kuvaus
    Volyymi: 14
    Amm.: 60
    Käynnistysratas etäisyys: 93.50
    Leveys/kiinnikevarren korkeus: 58.30
    Kaarenreiän kiinnike: 10.30
    Kisko. säädettävä kiinnikkeen reiän poistokohta: 4
    Kisko. säädettävä kiinnikkeen reiän poiston paikka 1: M8
    Käynnistysratas dia.: 71.40
    Uu-urat/käynnistysratas: 2
    Säde: 79.50
    Säde 2: 83.00
    B+: M6
    Sijainti/B+ min.: 4
    D+ koko: Pistorasia
    Pyörimisliike: Myötäpäivä(CW)
    Pistorasian numero: PL42
    Kokonaispituus mm: 164.50
    Käynnistysratas: DP
    Regulator-tyyppi: IR
    Tuotetiedot: Reman
    Huolto: Toyota
  • Määrittely
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 4
    Plug no. PL42
    Bracket hole 10.30
    Position/B+ in min. 4
    Prod. info Reman
    Pulley DP
    Pulley dia. 71.40
    Pulley dist. 93.50
    Radius 79.50
    D+ Size Plug
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 2
    Voltage 14
    Total length 164.50 mm
    Width/holder arm 58.30
    Amp 60
  • Nämä ajoneuvot sopivat
    • OEM

      F032112360, 27060-17160, 27060-17210, 101211-0270, 101211-0271, 101211-0272, 102211-5110, 102211-5111
    • Konkurrentreferens

      A6694S, DRA0335, J5112110, LRA02134, 28-4580, 535.121.602, 119952, 401597RI, 12060871
    • NormaliseratArtNr

      a6694s, dra0335, f032112360, j5112110, lra02134, 119952, 284580, 401597ri, 12060871, 535121602, 1012110270, 1012110271, 1012110272, 1022115110, 1022115111, 2706017160, 2706017210
    • Passar modeller

      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ80_ From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-10-1992 To date: 01-12-1997 Fuel: Diesel Approved: Yes
