HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032110611

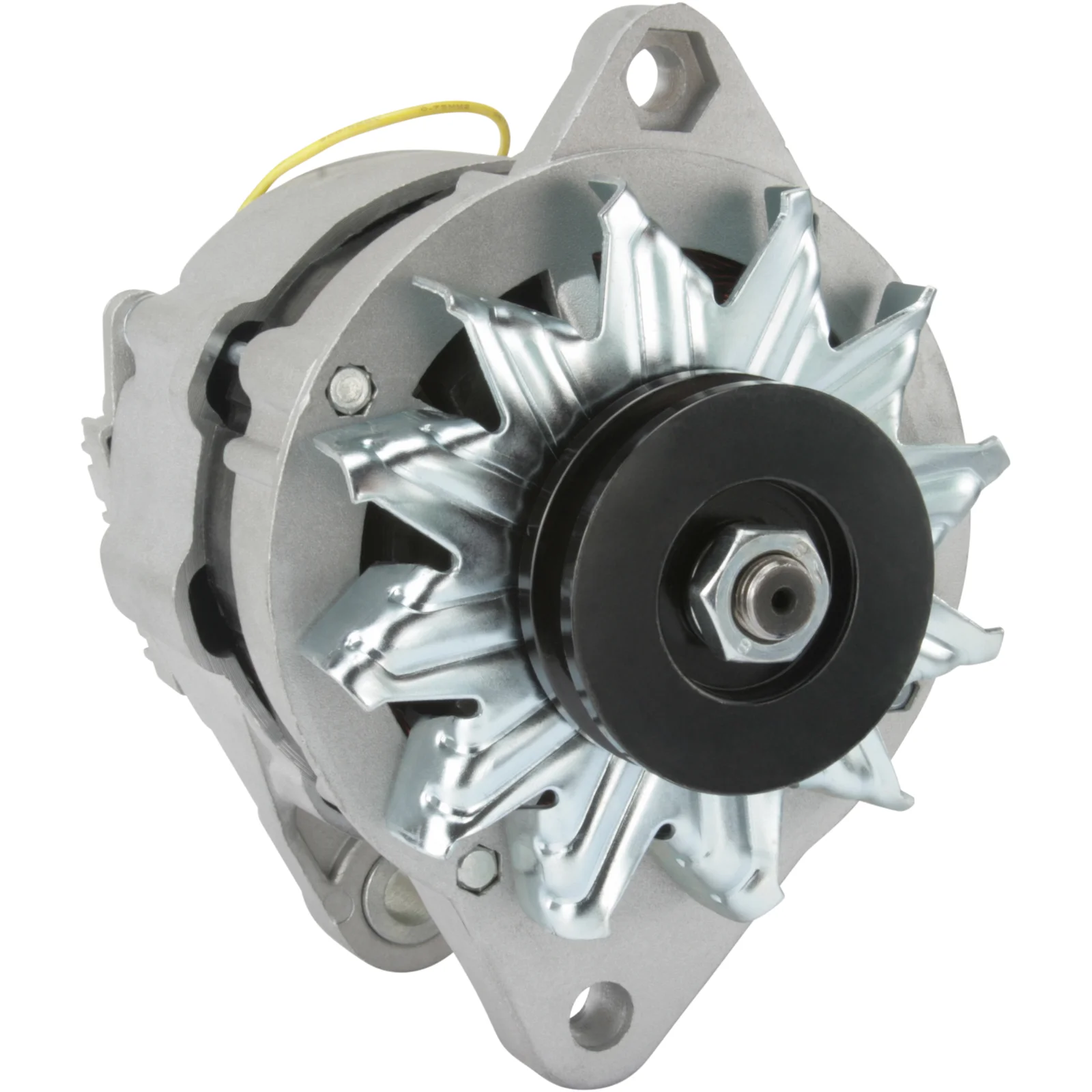

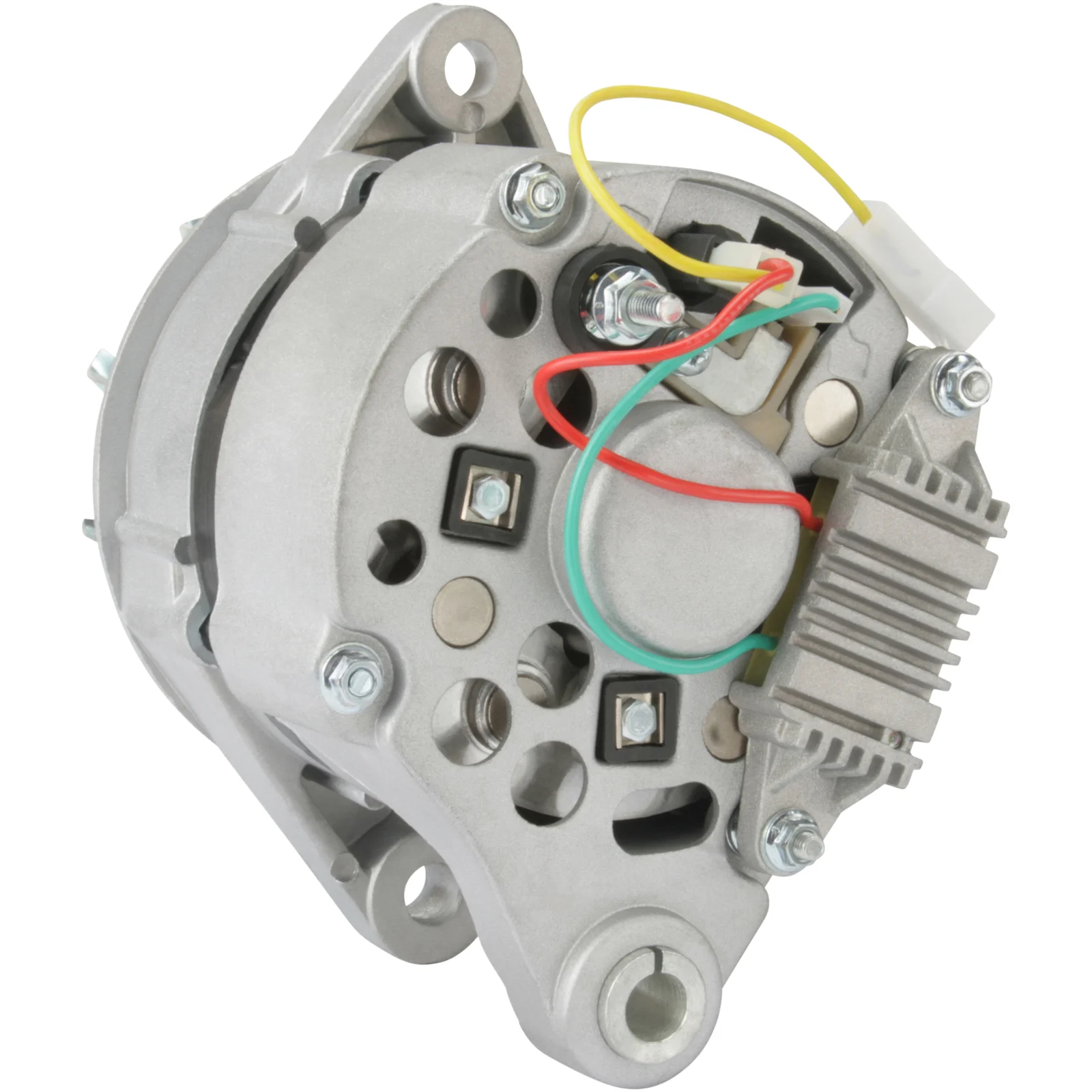

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Ampere: 55, Kääntö: myötäpäivään, Asennuskehyksen etäisyys: 65,00

Kuvaus

jännite: 14
Amp: 55
Holkki etäisyys: 48.00
Leveys/kiinnityskärjen varsi: 17.00
Asennuskonsolin etäisyys: 65.00
Konsolin reikä: 12.20
Hihnan säätöholkin asennusasento: 60
Hihnan säätöholkin reikä 1: 11.00
Holkin halkaisija: 69.00
urien määrä/holkki: 1
Säde: 85.00
Säde 2: 81.00
B+: M6
Asema/B+ min.: 58
D+ koko: 6.30
Kierto: myötäpäivään
Kokonaispituus mm: 175.00
Holkki: P
Säädin tyyppi: IR
Huolto: Fiat

Tiedostot

Määrittely

B+ M6
Mount. bracket dist. 65.00
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 60
Bracket hole 12.20
Position/B+ in min. 58
Pulley P
Pulley dia. 69.00
Pulley dist. 48.00
Radius 85.00
D+ Size 6.30
Radius 2 81.00
Regulator type IR
Rotation CW
Servicing Fiat
Grooves/pulley 1
Voltage 14
Total length 175.00 mm
Width/holder arm 17.00
Amp 55

  • OEM
    a124n, alb40-68, alb40-86, F032110611, 3370000, 4152101, 4166213, 4174626, 4242498, 4329019, 4474903, 4474904, 4475303, 19025037, 63303100, 63303110, 63303120, 63303130, 63303140, 63303150, 63303191, 63303192, 63303500, 63304800, 63304830, 77138410, 0120300550, 0120300551

  • Konkurrentreferens
    ALT3058, CAL30240, dra2101, DRA2161, ia0112, ia0571, lra00137, lra00146, lra00190, lra00841, va301, 1-1337-01MM, 8el725574-001, 19-31.410, 19-32.101, 19-32.161, 27-0535, 27-0538, 27-0721, 105.016.053, 218.002.532, 218.011.532, 5081, 13075, 30120, 55606, 75603, 75776, 118567, 210637, 210637A, 436112, 436113, 943303100, 943304800, 943357772, 0986031410, 0986032100, 0986032141, 0986032161, 0986121171, 0986121190

  • NormaliseratArtNr
    a124n, alb4068, alb4086, alt3058, cal30240, dra2101, dra2161, f032110611, ia0112, ia0571, lra00137, lra00146, lra00190, lra00841, va301, 8el725574001, 5081, 13075, 30120, 55606, 75603, 75776, 118567, 210637, 210637a, 270535, 270538, 270721, 436112, 436113, 1133701mm, 1931410, 1932101, 1932161, 3370000, 4152101, 4166213, 4174626, 4242498, 4329019, 4474903, 4474904, 4475303, 19025037, 63303100, 63303110, 63303120, 63303130, 63303140, 63303150, 63303191, 63303192, 63303500, 63304800, 63304830, 77138410, 105016053, 0120300550, 0120300551, 218002532, 218011532, 943303100, 943304800, 943357772, 0986031410, 0986032100, 0986032141, 0986032161, 0986121171, 0986121190

  • Passar modeller
    Allis Chalmers Model: FL Model series: Various Models Model type: FL 4,7,8,9,10,14,20 Approved: Yes
    Fiat Model: 124 Model series: 124 Model type: 1400 Special Size of motor: 1.4 Brand of engine: 124B2.000 From date: 01-01-1971 To date: 01-07-1975 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Model type: 1400 Special Size of motor: 1.4 Brand of engine: 124B2.000 From date: 01-12-1968 To date: 01-12-1972 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Model type: 1400 Special T Size of motor: 1.4 Brand of engine: 132A.000 From date: 01-01-1971 To date: 01-07-1975 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Model type: 1600 Spider Sport Size of motor: 1.6 Brand of engine: 132AC.000 Body: Convertible From date: 01-11-1969 To date: 01-08-1973 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Model type: 1600 Sport Size of motor: 1.6 Brand of engine: 132AC.000 Body: Convertible From date: 01-01-1969 To date: 01-12-1974 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Model type: 1600 Sport Size of motor: 1.6 Brand of engine: 132AC.000 Body: Convertible From date: 01-11-1969 To date: 01-08-1973 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Model type: 1600 Sport Size of motor: 1.6 Brand of engine: 132AC.000 Type description: BS1 Body: Convertible From date: 01-01-1969 To date: 01-12-1974 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Model type: Spider Size of motor: 1.4 From date: 01-01-1968 To date: 01-01-1968 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Model type: Spider Size of motor: 1.4 From date: 01-01-1969 To date: 01-01-1970 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Model type: Spider Size of motor: 1.6 From date: 01-01-1971 To date: 01-01-1973 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Model type: Spider Size of motor: 1.8 From date: 01-01-1974 To date: 01-01-1978 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Size of motor: 1.2 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Size of motor: 1.4 From date: 01-01-1968 To date: 01-01-1968 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Size of motor: 1.4 From date: 01-01-1969 To date: 01-01-1973 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Size of motor: 1.6 From date: 01-01-1971 To date: 01-01-1973 Fuel: Gasoline Approved: Yes
    Fiat Model: 124 Model series: 124 Size of motor: 1.8 From date: 01-01-1974 To date: 01-01-1975 Fuel: Gasoline Approved: Yes
    Fiat Model: 130 Model series: 130 Model type: 3200 Size of motor: 3.2 Brand of engine: 130B.000 Body: Coupe From date: 01-10-1971 To date: 01-03-1978 Fuel: Gasoline Approved: Yes
    Fiat Model: 130 Model series: 130 Model type: 3200 Size of motor: 3.2 Brand of engine: 130B.000 From date: 01-12-1971 To date: 01-03-1978 Fuel: Gasoline Approved: Yes
    Fiat Model: 230 Model series: 238-Series Size of motor: 1.4 Brand of engine: 131AZ000 Body: Bus From date: 01-10-1967 To date: 01-06-1982 Fuel: Gasoline Approved: Yes
    Seat Model: 127 Model series: 127 Size of motor: 0.9 Body: Hatchback From date: 01-04-1972 To date: 01-12-1982 Fuel: Gasoline Approved: Yes
    1 / 5
  • Kuvaus
    jännite: 14
    Amp: 55
    Holkki etäisyys: 48.00
    Leveys/kiinnityskärjen varsi: 17.00
    Asennuskonsolin etäisyys: 65.00
    Konsolin reikä: 12.20
    Hihnan säätöholkin asennusasento: 60
    Hihnan säätöholkin reikä 1: 11.00
    Holkin halkaisija: 69.00
    urien määrä/holkki: 1
    Säde: 85.00
    Säde 2: 81.00
    B+: M6
    Asema/B+ min.: 58
    D+ koko: 6.30
    Kierto: myötäpäivään
    Kokonaispituus mm: 175.00
    Holkki: P
    Säädin tyyppi: IR
    Huolto: Fiat

    Tiedostot

  • Määrittely
    B+ M6
    Mount. bracket dist. 65.00
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 60
    Bracket hole 12.20
    Position/B+ in min. 58
    Pulley P
    Pulley dia. 69.00
    Pulley dist. 48.00
    Radius 85.00
    D+ Size 6.30
    Radius 2 81.00
    Regulator type IR
    Rotation CW
    Servicing Fiat
    Grooves/pulley 1
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 17.00
    Amp 55
  • Nämä ajoneuvot sopivat

    • OEM
      a124n, alb40-68, alb40-86, F032110611, 3370000, 4152101, 4166213, 4174626, 4242498, 4329019, 4474903, 4474904, 4475303, 19025037, 63303100, 63303110, 63303120, 63303130, 63303140, 63303150, 63303191, 63303192, 63303500, 63304800, 63304830, 77138410, 0120300550, 0120300551

    • Konkurrentreferens
      ALT3058, CAL30240, dra2101, DRA2161, ia0112, ia0571, lra00137, lra00146, lra00190, lra00841, va301, 1-1337-01MM, 8el725574-001, 19-31.410, 19-32.101, 19-32.161, 27-0535, 27-0538, 27-0721, 105.016.053, 218.002.532, 218.011.532, 5081, 13075, 30120, 55606, 75603, 75776, 118567, 210637, 210637A, 436112, 436113, 943303100, 943304800, 943357772, 0986031410, 0986032100, 0986032141, 0986032161, 0986121171, 0986121190

    • NormaliseratArtNr
      a124n, alb4068, alb4086, alt3058, cal30240, dra2101, dra2161, f032110611, ia0112, ia0571, lra00137, lra00146, lra00190, lra00841, va301, 8el725574001, 5081, 13075, 30120, 55606, 75603, 75776, 118567, 210637, 210637a, 270535, 270538, 270721, 436112, 436113, 1133701mm, 1931410, 1932101, 1932161, 3370000, 4152101, 4166213, 4174626, 4242498, 4329019, 4474903, 4474904, 4475303, 19025037, 63303100, 63303110, 63303120, 63303130, 63303140, 63303150, 63303191, 63303192, 63303500, 63304800, 63304830, 77138410, 105016053, 0120300550, 0120300551, 218002532, 218011532, 943303100, 943304800, 943357772, 0986031410, 0986032100, 0986032141, 0986032161, 0986121171, 0986121190

    • Passar modeller
      Allis Chalmers Model: FL Model series: Various Models Model type: FL 4,7,8,9,10,14,20 Approved: Yes
      Fiat Model: 124 Model series: 124 Model type: 1400 Special Size of motor: 1.4 Brand of engine: 124B2.000 From date: 01-01-1971 To date: 01-07-1975 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Model type: 1400 Special Size of motor: 1.4 Brand of engine: 124B2.000 From date: 01-12-1968 To date: 01-12-1972 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Model type: 1400 Special T Size of motor: 1.4 Brand of engine: 132A.000 From date: 01-01-1971 To date: 01-07-1975 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Model type: 1600 Spider Sport Size of motor: 1.6 Brand of engine: 132AC.000 Body: Convertible From date: 01-11-1969 To date: 01-08-1973 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Model type: 1600 Sport Size of motor: 1.6 Brand of engine: 132AC.000 Body: Convertible From date: 01-01-1969 To date: 01-12-1974 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Model type: 1600 Sport Size of motor: 1.6 Brand of engine: 132AC.000 Body: Convertible From date: 01-11-1969 To date: 01-08-1973 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Model type: 1600 Sport Size of motor: 1.6 Brand of engine: 132AC.000 Type description: BS1 Body: Convertible From date: 01-01-1969 To date: 01-12-1974 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Model type: Spider Size of motor: 1.4 From date: 01-01-1968 To date: 01-01-1968 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Model type: Spider Size of motor: 1.4 From date: 01-01-1969 To date: 01-01-1970 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Model type: Spider Size of motor: 1.6 From date: 01-01-1971 To date: 01-01-1973 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Model type: Spider Size of motor: 1.8 From date: 01-01-1974 To date: 01-01-1978 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Size of motor: 1.2 From date: 01-01-1969 To date: 01-01-1969 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Size of motor: 1.4 From date: 01-01-1968 To date: 01-01-1968 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Size of motor: 1.4 From date: 01-01-1969 To date: 01-01-1973 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Size of motor: 1.6 From date: 01-01-1971 To date: 01-01-1973 Fuel: Gasoline Approved: Yes
      Fiat Model: 124 Model series: 124 Size of motor: 1.8 From date: 01-01-1974 To date: 01-01-1975 Fuel: Gasoline Approved: Yes
      Fiat Model: 130 Model series: 130 Model type: 3200 Size of motor: 3.2 Brand of engine: 130B.000 Body: Coupe From date: 01-10-1971 To date: 01-03-1978 Fuel: Gasoline Approved: Yes
      Fiat Model: 130 Model series: 130 Model type: 3200 Size of motor: 3.2 Brand of engine: 130B.000 From date: 01-12-1971 To date: 01-03-1978 Fuel: Gasoline Approved: Yes
      Fiat Model: 230 Model series: 238-Series Size of motor: 1.4 Brand of engine: 131AZ000 Body: Bus From date: 01-10-1967 To date: 01-06-1982 Fuel: Gasoline Approved: Yes
      Seat Model: 127 Model series: 127 Size of motor: 0.9 Body: Hatchback From date: 01-04-1972 To date: 01-12-1982 Fuel: Gasoline Approved: Yes
