Tuotenro.: F032112880

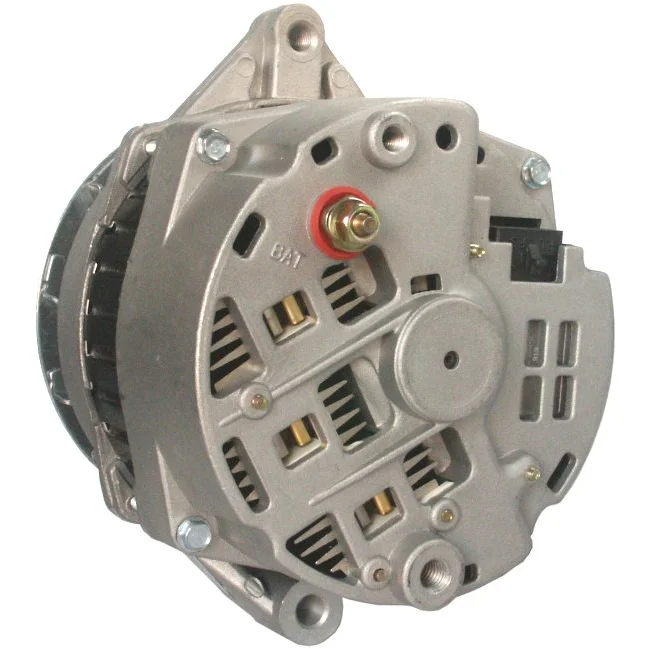

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Amm.: 120, Hihnan kiinnityssov.: 56.70, Säde: 88.00

Kuvaus

Volyymi: 14
Amp: 120
Holkin etäisyys: 79.00
Leveys/kiinnityskahvan: 51.00
Holkin reikä: 10.20
Holkkiregulaattorin säätöreiän positio: 60
Holkkiregulaattorin säätöreiän 1 sijainti: M10
Holkin halkaisija: 56.70
Uurteet/holkki: 6
Länsi: 88.00
Länsi 2: 94.00
B+: M6
Sijainti/B+ minuutteina: 53
D+ koko: Pistoke
Pistokkeen numero: PL44
Kokonaispituus mm: 186.00
Holkki: SP
Regulaattorin tyyppi: IR
Huolto: Cadillac
Huomautukset: Vaihto: CS144.

Tiedostot

Määrittely

B+ M6
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 60
Plug no. PL44
Bracket hole 10.20
Position/B+ in min. 53
Pulley SP
Pulley dia. 56.70
Pulley dist. 79.00
Radius 88.00
D+ Size Plug
Radius 2 94.00
Regulator type IR
Remarks Replacing: CS144.
Servicing Cadillac
Grooves/pulley 6
Voltage 14
Total length 186.00 mm
Width/holder arm 51.00
Amp 120

  • OEM
    F032112880, 321-275, 321-367, 1101239, 1101296, 1101329, 1101518, 1105657, 10463069, 10497111

  • Konkurrentreferens
    a1752-2, adr0070, al623x, da00124-2, drz0155, 1-1681-12dr, 1-1683-11DR, 13-4603h, 20-176-11, 29-1275, 90-01-3192, 835.054.120, 3524, 7150, 7806-2, 7806N, 7806R, 20399

  • NormaliseratArtNr
    a17522, adr0070, al623x, da001242, drz0155, f032112880, 3524, 7150, 7806n, 7806r, 20399, 78062, 134603h, 291275, 321275, 321367, 1101239, 1101296, 1101329, 1101518, 1105657, 1168112dr, 1168311dr, 2017611, 10463069, 10497111, 90013192, 835054120

  • Passar modeller
    Cadillac Model: Deville Coupe Model series: Deville Coupe Size of motor: 4.1 Brand of engine: LT8 Body: Coupe Fuel: Petrol Approved: Yes
    Cadillac Model: Deville Model series: Deville Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Cadillac Model: Deville Saloon Model series: Deville Saloon Size of motor: 4.1 Brand of engine: LT8 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Cadillac Model: Eldorado Coupe Model series: Eldorado Coupe Size of motor: 4.1 Brand of engine: LT8 Body: Coupe Fuel: Petrol Approved: Yes
    Cadillac Model: Eldorado Model series: Eldorado Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
    Cadillac Model: Eldorado Model series: Eldorado Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Cadillac Model: Eldorado Model series: Eldorado Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Model type: 60 Special Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Model type: 60 Special Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Model type: 75 Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Model type: D'Elegance Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Model type: D'Elegance Size of motor: 4.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Model series: Fleetwood Size of motor: 4.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
    Cadillac Model: Fleetwood Saloon Model series: Fleetwood Saloon Size of motor: 4.5 Brand of engine: LR6 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Cadillac Model: Seville Model series: Seville Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
    Cadillac Model: Seville Model series: Seville Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Cadillac Model: Seville Model series: Seville Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
    1 / 4
  • Kuvaus
    Volyymi: 14
    Amp: 120
    Holkin etäisyys: 79.00
    Leveys/kiinnityskahvan: 51.00
    Holkin reikä: 10.20
    Holkkiregulaattorin säätöreiän positio: 60
    Holkkiregulaattorin säätöreiän 1 sijainti: M10
    Holkin halkaisija: 56.70
    Uurteet/holkki: 6
    Länsi: 88.00
    Länsi 2: 94.00
    B+: M6
    Sijainti/B+ minuutteina: 53
    D+ koko: Pistoke
    Pistokkeen numero: PL44
    Kokonaispituus mm: 186.00
    Holkki: SP
    Regulaattorin tyyppi: IR
    Huolto: Cadillac
    Huomautukset: Vaihto: CS144.

    Tiedostot

  • Määrittely
    B+ M6
    Belt. adj. bracket hole 1 M10
    Belt. adj. brackethole pos. 60
    Plug no. PL44
    Bracket hole 10.20
    Position/B+ in min. 53
    Pulley SP
    Pulley dia. 56.70
    Pulley dist. 79.00
    Radius 88.00
    D+ Size Plug
    Radius 2 94.00
    Regulator type IR
    Remarks Replacing: CS144.
    Servicing Cadillac
    Grooves/pulley 6
    Voltage 14
    Total length 186.00 mm
    Width/holder arm 51.00
    Amp 120
  • Nämä ajoneuvot sopivat

    • OEM
      F032112880, 321-275, 321-367, 1101239, 1101296, 1101329, 1101518, 1105657, 10463069, 10497111

    • Konkurrentreferens
      a1752-2, adr0070, al623x, da00124-2, drz0155, 1-1681-12dr, 1-1683-11DR, 13-4603h, 20-176-11, 29-1275, 90-01-3192, 835.054.120, 3524, 7150, 7806-2, 7806N, 7806R, 20399

    • NormaliseratArtNr
      a17522, adr0070, al623x, da001242, drz0155, f032112880, 3524, 7150, 7806n, 7806r, 20399, 78062, 134603h, 291275, 321275, 321367, 1101239, 1101296, 1101329, 1101518, 1105657, 1168112dr, 1168311dr, 2017611, 10463069, 10497111, 90013192, 835054120

    • Passar modeller
      Cadillac Model: Deville Coupe Model series: Deville Coupe Size of motor: 4.1 Brand of engine: LT8 Body: Coupe Fuel: Petrol Approved: Yes
      Cadillac Model: Deville Model series: Deville Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
      Cadillac Model: Deville Saloon Model series: Deville Saloon Size of motor: 4.1 Brand of engine: LT8 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Cadillac Model: Eldorado Coupe Model series: Eldorado Coupe Size of motor: 4.1 Brand of engine: LT8 Body: Coupe Fuel: Petrol Approved: Yes
      Cadillac Model: Eldorado Model series: Eldorado Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
      Cadillac Model: Eldorado Model series: Eldorado Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Cadillac Model: Eldorado Model series: Eldorado Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Model type: 60 Special Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Model type: 60 Special Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Model type: 75 Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Model type: D'Elegance Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Model type: D'Elegance Size of motor: 4.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Model series: Fleetwood Size of motor: 4.5 From date: 01-01-1988 Fuel: Gasoline Approved: Yes
      Cadillac Model: Fleetwood Saloon Model series: Fleetwood Saloon Size of motor: 4.5 Brand of engine: LR6 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Cadillac Model: Seville Model series: Seville Size of motor: 4.1 From date: 01-01-1986 Fuel: Gasoline Approved: Yes
      Cadillac Model: Seville Model series: Seville Size of motor: 4.1 From date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Cadillac Model: Seville Model series: Seville Size of motor: 4.5 From date: 01-01-1988 To date: 01-01-1989 Fuel: Gasoline Approved: Yes
      1 / 4
