Tuotenro.: F032112958

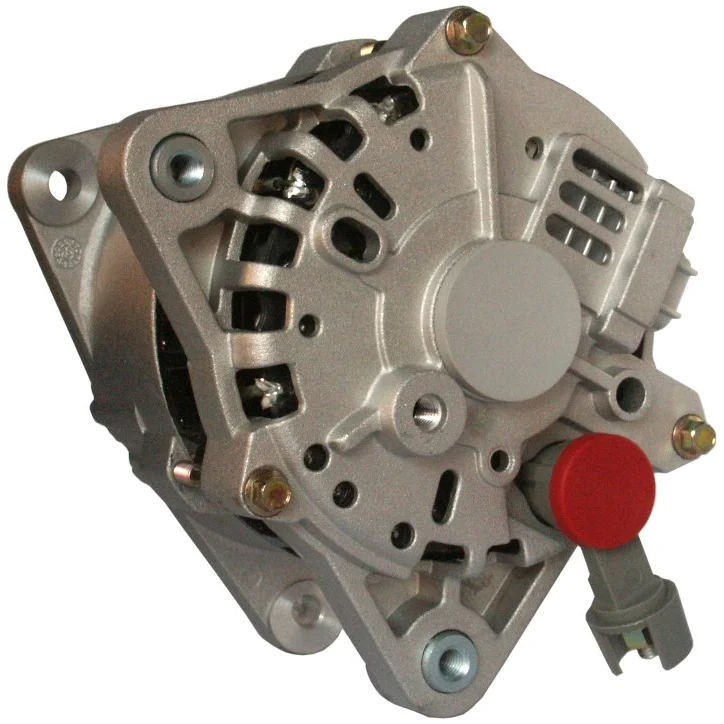

HC-Cargo Laturi

Tekniset tiedot:

jännite: 14, ampeeri: 110, pyörimissuunta: myötäpäivään, kiinnitysraamin etäisyys: 63.00

Kuvaus

Jännite: 14
Amp.: 110
Vannevälin etäisyys: 34,50
Leveys/pidinvarren etäisyys: 14,50
Laitteen kiinnitystukien etäisyys: 63,00
Tukilehtiön reikä: 9,00
Vannevälin säätökiinnikeen reikäpos.: 50
Vannevälin säätökiinnikeen reiät 1: 9,00
Vannen halkaisija: 48,30
Uurteet/vanne: 6
Säde: 83,50
Säde 2: 85,00
B+: M6
Sijainti/B+ min.: 6
D+ koko: Pistotulppa
Kääntö: myötäpäivään
Pistotulppa nro.: PL57
Kokonaispituus mm: 165,00
Vanne: SP
Säätötyyppi: IR
Tuotetieto: BN
Huolto: Ford
Huomautukset: Korvaaminen: 6G-sarja

Tiedostot

Määrittely

B+ M6
Mount. bracket dist. 63.00
Belt. adj. bracket hole 1 9.00
Belt. adj. brackethole pos. 50
Plug no. PL57
Bracket hole 9.00
Position/B+ in min. 6
Prod. info BN
Pulley SP
Pulley dia. 48.30
Pulley dist. 34.50
Radius 83.50
D+ Size Plug
Radius 2 85.00
Regulator type IR
Remarks Replacing: 6G series
Rotation CW
Servicing Ford
Grooves/pulley 6
Voltage 14
Total length 165.00 mm
Width/holder arm 14.50
Amp 110

  • OEM
    F032112958, gl456, GL456RM, gl462, GL462RM, yf09-18-300, YF09-18-300A, 1l8u10300ab, 1L8U10300AC, 1L8U10300BB, 1L8UAC, 1L8Z10346AB, 1s4110300aa, 1S41AA, 98ab10300eb, 98az10346ea, 98AZ10346EARM, 98az10346en, 1125620

  • Konkurrentreferens
    A9354S, ALT-1616, CAL14117, DRA0066, F042304011, F042A04011, LEA0595, LRA02555, 1-2349-01fd, 1-2349-01FD-2, 27-4899, 224.168.1102, 8260, 8260N, 8260R, 8264, 23725, 210413, 210413A, 553414RI, 12060886

  • NormaliseratArtNr
    a9354s, alt1616, cal14117, dra0066, f032112958, f042304011, f042a04011, gl456, gl456rm, gl462, gl462rm, lea0595, lra02555, yf0918300, yf0918300a, 1l8u10300ab, 1l8u10300ac, 1l8u10300bb, 1l8uac, 1l8z10346ab, 1s4110300aa, 1s41aa, 98ab10300eb, 98az10346ea, 98az10346earm, 98az10346en, 8260, 8260n, 8260r, 8264, 23725, 210413, 210413a, 274899, 553414ri, 1125620, 1234901fd, 1234901fd2, 12060886, 2241681102

  • Passar modeller
    Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Escape Model series: Escape Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: S2 Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: Street Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: SVT Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTS Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTW Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZTW Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX3 Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: ZX5 Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Model type: DX Size of motor: 2.0 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Mazda Model: Tribute Model series: Tribute Size of motor: 2.0 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
