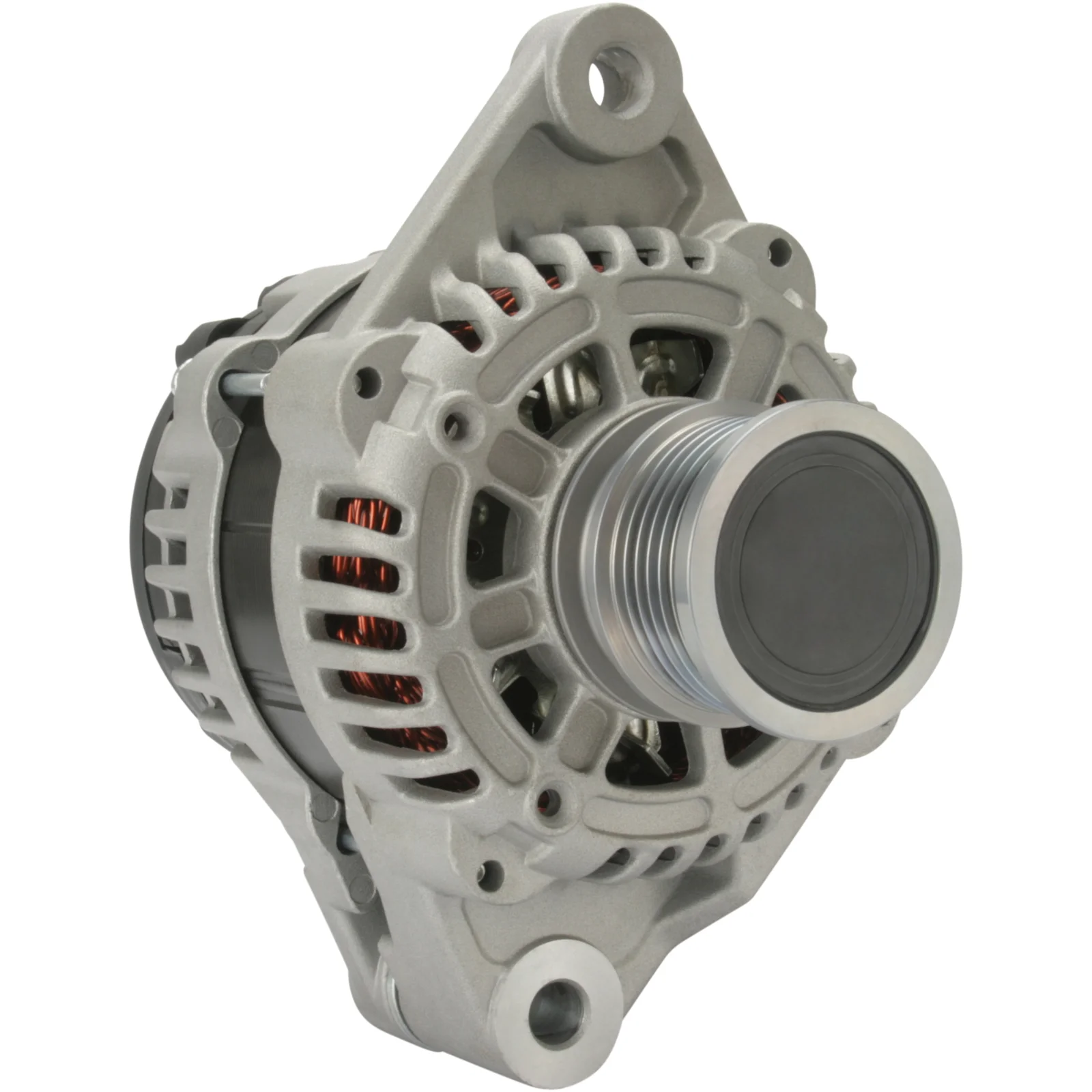

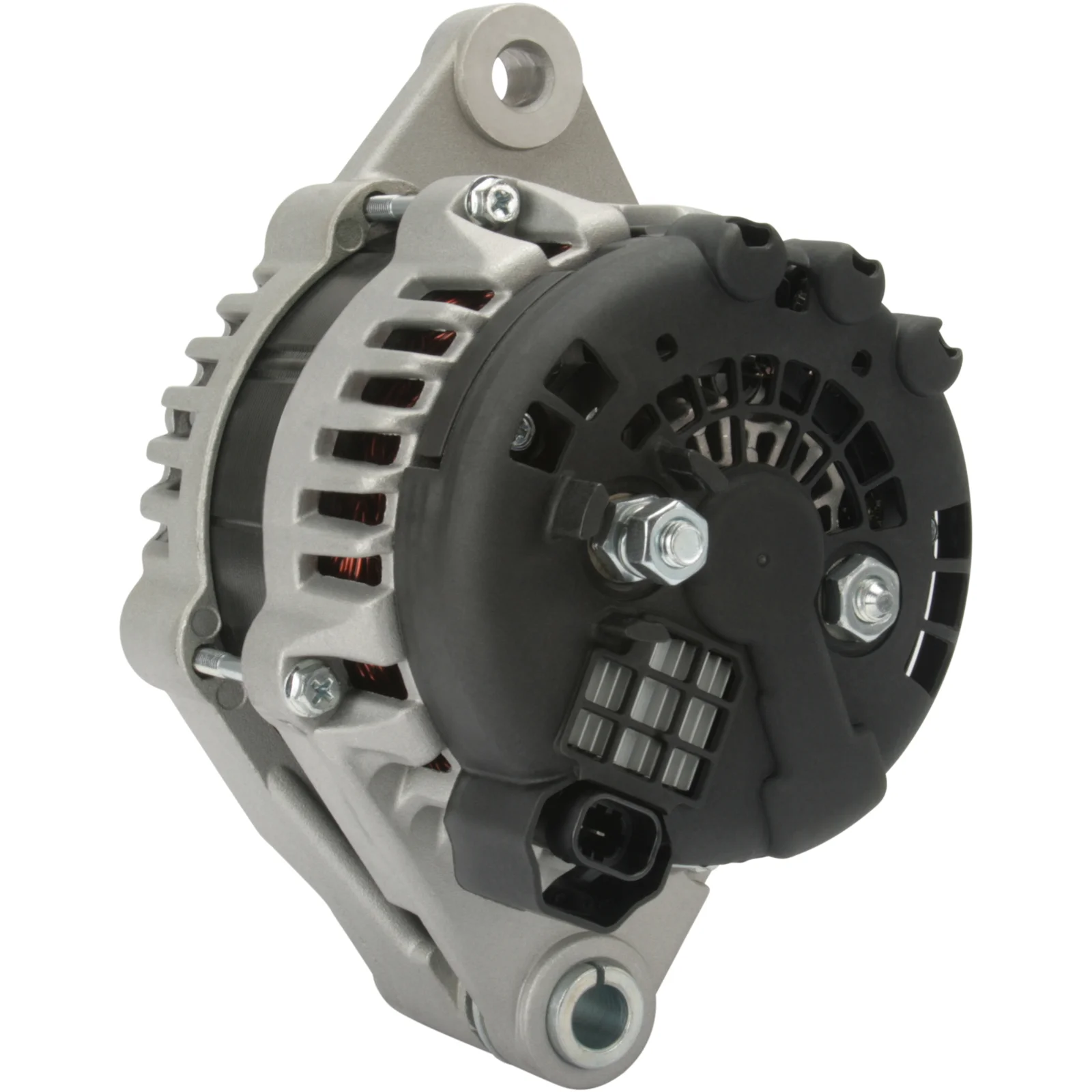

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032115526

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Ampeeri: 100, Kääntösuunta: myötäpoikki, Rullan halkaisija: 53,00

Kuvaus

Jännite: 14
Ampeeri: 100
Holkin etäisyys: 57,00
Leveys/pidikevarren leveys: 18,00
Palkin reikä: 12,00
Hihnan säätöholkin positio: 60
Hihnan säätöholkin reikä 1: 12,00
Holkin halkaisija: 53,00
urien määrä/holkki: 6
Säde: 83,00
Säde 2: 81,00
B+: M8
Sijainti/B+ väh. : 40
Kääntö: myötäpäivään
Pistokkeen numero: PL180
Kokonaispituus mm: 196,00
Terminaalityyppi: L-F
Viestintä: PWM
Holkki: SP/FW
Regulatorityyppi: IR
Tuotetiedot: BN
Huomautukset: Tämä generaattoriin on PWM-terminaali regulaattorissa. On suositeltavaa käyttää OEM-numeroa soveltuvuuden tarkistamiseen ennen tilausta.

Tiedostot

Määrittely

B+ M8
Communication PWM
Belt. adj. bracket hole 1 12.00
Belt. adj. brackethole pos. 60
Plug no. PL180
Bracket hole 12.00
Position/B+ in min. 40
Prod. info BN
Pulley SP/FW
Pulley dia. 53.00
Pulley dist. 57.00
Radius 83.00
Radius 2 81.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 196.00 mm
Width/holder arm 18.00
Amp 100

  • OEM
    F032115526, 1202236, 1204643, 13502583, 13579668, 95519835

  • Konkurrentreferens
    A1029PR, CAL42110, DRA1373, LRA03357, 8EL012430-581, 28-5969, 135.593.100, 228.183.1002, 228.192.1002, 4746, 112891, 113299, 302005RI, 440989, 443068, 443144, 12090720, 32004024, 0986083450, 0986086710

  • NormaliseratArtNr
    a1029pr, cal42110, dra1373, f032115526, lra03357, 8el012430581, 4746, 112891, 113299, 285969, 302005ri, 440989, 443068, 443144, 1202236, 1204643, 12090720, 13502583, 13579668, 32004024, 95519835, 135593100, 0986083450, 0986086710, 2281831002, 2281921002

  • Passar modeller
    Opel Model: Astra Gtc J Model series: Astra J GTC Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J GTC Model type: CDTI (08) Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: CDTi Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Hatchback Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Ecotec Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Estate From date: 01-09-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Astra Model series: Astra J Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-09-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-06-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-09-2009 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Box Body / Estate From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Country Tourer Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: G09 Body: Estate From date: 01-09-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: G09 Body: Estate From date: 01-09-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DT Type description: G09 Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: G09 Body: Estate From date: 01-07-2014 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTJ Type description: G09 Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-01-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-06-2010 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-06-2010 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-06-2010 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: SportsTour
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-05-2009 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Estate From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-01-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
    Opel Model: Insignia Model series: Insignia Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: P12 Body: MPV From date: 01-01-2013 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT,Z20DTJ,Y20DTJ Type description: P12 Body: Van From date: 01-01-2012 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
    Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra J GTC Model type: BiTurbo Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Hatchback From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Hatchback From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Sports Tourer Body: Estate From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-10-2010 To date: 01-06-2011 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-12-2009 To date: 01-06-2011 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia MK I Model type: 4x4 Type of engine: Biturbo Size of motor: 2.0 Brand of engine: A20DTR Type description: A G09 Body: Estate From date: 01-09-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Vauxhall Model: Insignia Model series: Insignia MK I Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: A G09 Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Vauxhall Model: Insignia Model series: Insignia MK I Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: A G09 Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sportstour
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Model type: Estate Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: estate
    Vauxhall Model: Insignia Model series: Insignia Model type: Estate Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Estate From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: estate
    Vauxhall Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Model type: Sports tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sportstour
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Hatchback From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-10-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira Mk III Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: P12 Body: MPV From date: 01-11-2012 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: Z20DTJ Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
    1 / 19
  • Kuvaus
    Jännite: 14
    Ampeeri: 100
    Holkin etäisyys: 57,00
    Leveys/pidikevarren leveys: 18,00
    Palkin reikä: 12,00
    Hihnan säätöholkin positio: 60
    Hihnan säätöholkin reikä 1: 12,00
    Holkin halkaisija: 53,00
    urien määrä/holkki: 6
    Säde: 83,00
    Säde 2: 81,00
    B+: M8
    Sijainti/B+ väh. : 40
    Kääntö: myötäpäivään
    Pistokkeen numero: PL180
    Kokonaispituus mm: 196,00
    Terminaalityyppi: L-F
    Viestintä: PWM
    Holkki: SP/FW
    Regulatorityyppi: IR
    Tuotetiedot: BN
    Huomautukset: Tämä generaattoriin on PWM-terminaali regulaattorissa. On suositeltavaa käyttää OEM-numeroa soveltuvuuden tarkistamiseen ennen tilausta.

    Tiedostot

  • Määrittely
    B+ M8
    Communication PWM
    Belt. adj. bracket hole 1 12.00
    Belt. adj. brackethole pos. 60
    Plug no. PL180
    Bracket hole 12.00
    Position/B+ in min. 40
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 53.00
    Pulley dist. 57.00
    Radius 83.00
    Radius 2 81.00
    Regulator type IR
    Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type L-F
    Voltage 14
    Total length 196.00 mm
    Width/holder arm 18.00
    Amp 100
  • Nämä ajoneuvot sopivat

    • OEM
      F032115526, 1202236, 1204643, 13502583, 13579668, 95519835

    • Konkurrentreferens
      A1029PR, CAL42110, DRA1373, LRA03357, 8EL012430-581, 28-5969, 135.593.100, 228.183.1002, 228.192.1002, 4746, 112891, 113299, 302005RI, 440989, 443068, 443144, 12090720, 32004024, 0986083450, 0986086710

    • NormaliseratArtNr
      a1029pr, cal42110, dra1373, f032115526, lra03357, 8el012430581, 4746, 112891, 113299, 285969, 302005ri, 440989, 443068, 443144, 1202236, 1204643, 12090720, 13502583, 13579668, 32004024, 95519835, 135593100, 0986083450, 0986086710, 2281831002, 2281921002

    • Passar modeller
      Opel Model: Astra Gtc J Model series: Astra J GTC Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J GTC Model type: CDTI (08) Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: CDTi Type of engine: Diesel Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Hatchback Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: Ecotec Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
      Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Estate From date: 01-09-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Astra Model series: Astra J Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-09-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-06-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-09-2009 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Astra Model series: Astra J Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P10 Body: Box Body / Estate From date: 01-10-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Country Tourer Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: G09 Body: Estate From date: 01-09-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Opel Model: Insignia Model series: Insignia Country Tourer Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: G09 Body: Estate From date: 01-09-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DT Type description: G09 Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: G09 Body: Estate From date: 01-07-2014 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Opel Model: Insignia Model series: Insignia Country Tourer Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTJ Type description: G09 Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-01-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-06-2010 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-06-2010 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-06-2010 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: SportsTour
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-05-2009 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
      Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
      Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Estate From date: 01-07-2008 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
      Opel Model: Insignia Model series: Insignia Model type: Caravan Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes Manufacture type: CARAVAN
      Opel Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-01-2012 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Opel Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
      Opel Model: Insignia Model series: Insignia Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-01-2012 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2013 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ From date: 01-07-2008 To date: 01-03-2017 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Opel Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-07-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Model series: Zafira C Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: P12 Body: MPV From date: 01-01-2013 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Model series: Zafira C Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DT,Z20DTJ,Y20DTJ Type description: P12 Body: Van From date: 01-01-2012 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
      Opel Model: Zafira Tourer C Van Model series: Zafira Tourer C Van Model type: 75 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra J GTC Model type: BiTurbo Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Hatchback From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK V Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Astra Model series: Astra MK V Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-08-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Hatchback From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Sports Tourer Body: Estate From date: 01-12-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-10-2010 To date: 01-06-2011 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Vauxhall Model: Astra Model series: Astra MK VI Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-12-2009 To date: 01-06-2011 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia MK I Model type: 4x4 Type of engine: Biturbo Size of motor: 2.0 Brand of engine: A20DTR Type description: A G09 Body: Estate From date: 01-09-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Vauxhall Model: Insignia Model series: Insignia MK I Model type: 4x4 Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: A G09 Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Vauxhall Model: Insignia Model series: Insignia MK I Type of engine: CDTI Size of motor: 2.0 Brand of engine: A20DTH Type description: A G09 Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Country To
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sportstour
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: SPORTS TOU
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi 16V Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: 4x4 Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-05-2009 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Model type: Estate Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: estate
      Vauxhall Model: Insignia Model series: Insignia Model type: Estate Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Estate From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: estate
      Vauxhall Model: Insignia Model series: Insignia Model type: Sports Tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Estate From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Insignia Model series: Insignia Model type: Sports tourer Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Estate From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports tou
      Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sportstour
      Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: Biturbo CDTI Size of motor: 2.0 Brand of engine: A20DTR From date: 01-03-2012 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTC Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Body: Hatchback From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH From date: 01-07-2013 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ Body: Hatchback From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTJ From date: 01-07-2008 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Estate From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-10-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Insignia Model series: Insignia Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTR From date: 01-11-2008 To date: 01-05-2017 Fuel: Diesel Approved: Yes
      Vauxhall Model: Zafira Model series: Zafira Mk III Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: P12 Body: MPV From date: 01-11-2012 To date: 01-08-2018 Fuel: Diesel Approved: Yes
      Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTH Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
      Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: A20DTL Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
      Vauxhall Model: Zafira Model series: Zafira MK III Type of engine: CDTi Size of motor: 2.0 Brand of engine: Z20DTJ Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Diesel Approved: Yes
      1 / 19

Käytämme evästeitä tarjotaksemme sinulle parhaan mahdollisen käyttökokemuksen verkkosivustollamme. Hyväksyt evästeiden käytön painamalla OK ja jatkamalla verkkosivuston selaamista.
