HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032115693

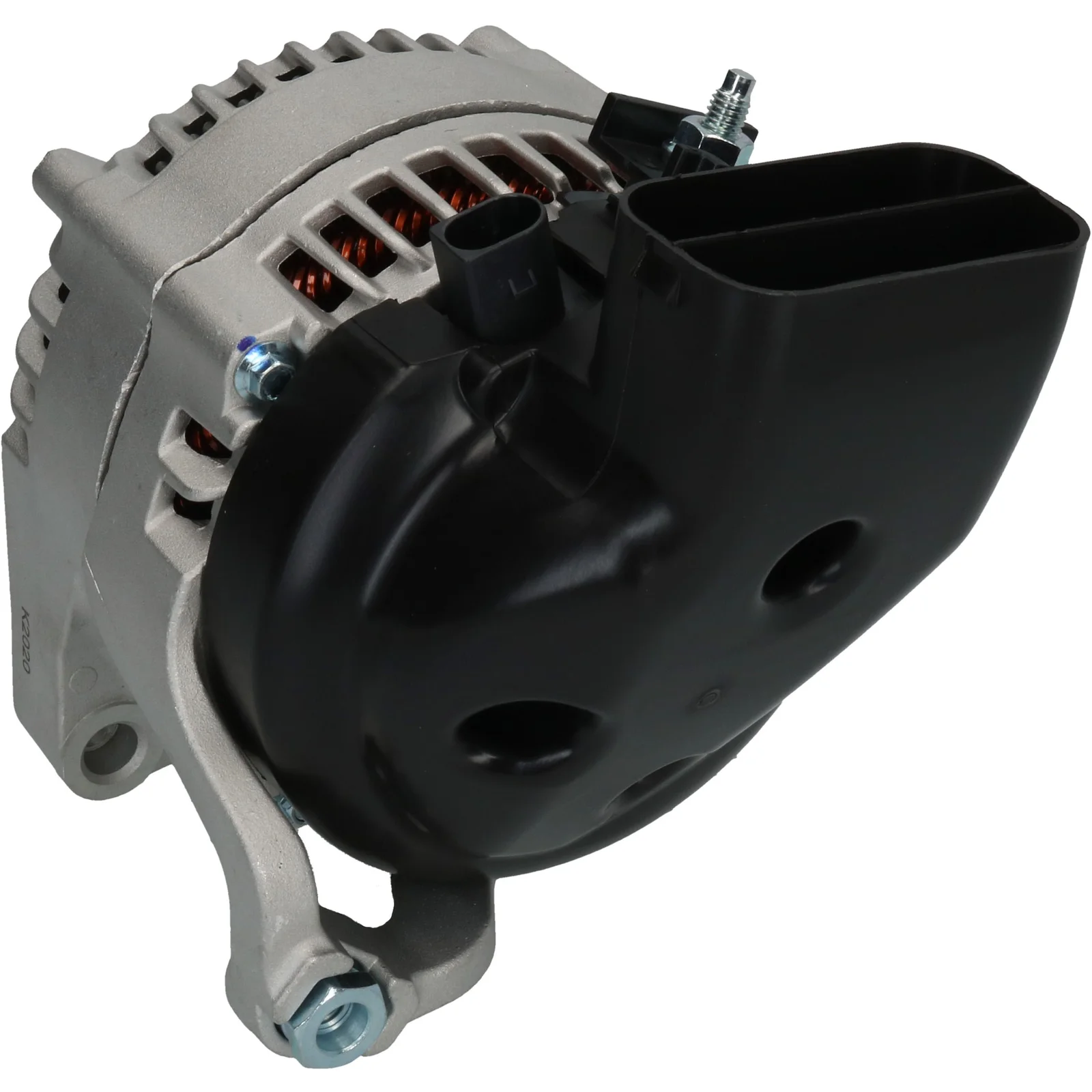

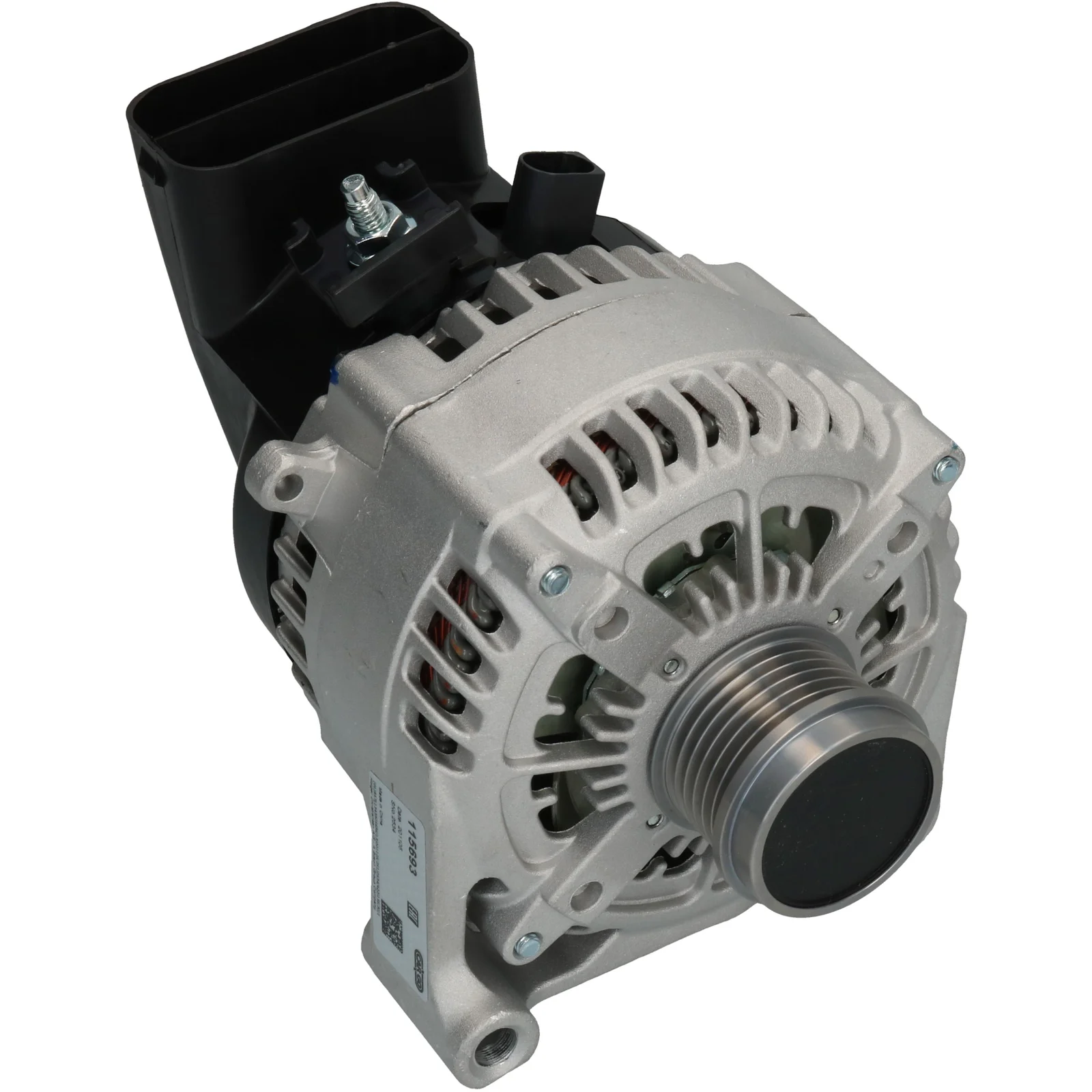

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Amp.: 170, Kääntö: Myötäpäiv. kierros, Asennuskiinnikkeen etäisyys: 75,50

Kuvaus

Jännite: 14
Ampere: 170
Välipunoksen etäisyys: 49.50
Leveys/kannatinvarren etäisyys: 27.50
Kiinnitystelineen etäisyys: 75.50
Telineen reikä: 10.30
Vöiden säätötelineen reiän positio: 45
Vöiden säätötelineen reiän 1 sijainti: 10.80
Välipunoksen halkaisija: 49.00
urien/pulley: 6
Säde: 93.00
Säde 2: 93.00
B+: M8
Sijainti/B+ min: 58
Kierros: Kello myötä
pistokkeen nro.: PL181
Kokonaispituus mm: 223.00
Terminaalityyppi: COM
Viestintä: LIN
Välipunos: SP/FW
Fani: IF
Säädin tyyppi: IR
Huomautukset: Tämä generaattori on varustettu COM-terminaali säädinssä. Sopivuuden tarkistamiseksi suositellaan käytettäväksi OEM-numeroa ennen tilausta.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 75.50
Belt. adj. bracket hole 1 10.80
Belt. adj. brackethole pos. 45
Plug no. PL181
Bracket hole 10.30
Position/B+ in min. 58
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 49.50
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 223.00 mm
Width/holder arm 27.50
Amp 170

  • OEM
    F032115693, 1986A00610, 104210-6330, 104210-6331, 104210-6332, 104210-6333, 104210-6334, 7605060, 12317605060, 12317610260

  • Konkurrentreferens
    A6346, CAL40425, dan1125, DRA1477, 28-7605, 215.587.170, 24111, 209296, 209296A, 440961, 554455RI, 12090620, 32084740, 0986084740

  • NormaliseratArtNr
    a6346, cal40425, dan1125, dra1477, f032115693, 1986a00610, 24111, 209296, 209296a, 287605, 440961, 554455ri, 7605060, 12090620, 32084740, 215587170, 0986084740, 1042106330, 1042106331, 1042106332, 1042106333, 1042106334, 12317605060, 12317610260

  • Passar modeller
    BMW Model: 1 Model series: 114 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-07-2012 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 114 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-12-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 116 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-07-2011 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 116 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-12-2011 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 118 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-03-2015 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 118 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-07-2011 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 118 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 118 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-07-2012 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-03-2015 To date: 01-06-2016 Fuel: Gasoline Approved: Yes
    BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F30 From date: 01-07-2012 To date: 01-08-2016 Fuel: Gasoline Approved: Yes
    BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F31 Body: Estate From date: 01-03-2013 To date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 320 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F30 From date: 01-11-2012 To date: 01-06-2016 Fuel: Gasoline Approved: Yes
    1 / 3
  • Kuvaus
    Jännite: 14
    Ampere: 170
    Välipunoksen etäisyys: 49.50
    Leveys/kannatinvarren etäisyys: 27.50
    Kiinnitystelineen etäisyys: 75.50
    Telineen reikä: 10.30
    Vöiden säätötelineen reiän positio: 45
    Vöiden säätötelineen reiän 1 sijainti: 10.80
    Välipunoksen halkaisija: 49.00
    urien/pulley: 6
    Säde: 93.00
    Säde 2: 93.00
    B+: M8
    Sijainti/B+ min: 58
    Kierros: Kello myötä
    pistokkeen nro.: PL181
    Kokonaispituus mm: 223.00
    Terminaalityyppi: COM
    Viestintä: LIN
    Välipunos: SP/FW
    Fani: IF
    Säädin tyyppi: IR
    Huomautukset: Tämä generaattori on varustettu COM-terminaali säädinssä. Sopivuuden tarkistamiseksi suositellaan käytettäväksi OEM-numeroa ennen tilausta.

    Tiedostot

  • Määrittely
    B+ M8
    Communication LIN
    Mount. bracket dist. 75.50
    Belt. adj. bracket hole 1 10.80
    Belt. adj. brackethole pos. 45
    Plug no. PL181
    Bracket hole 10.30
    Position/B+ in min. 58
    Pulley SP/FW
    Pulley dia. 49.00
    Pulley dist. 49.50
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 223.00 mm
    Width/holder arm 27.50
    Amp 170
  • Nämä ajoneuvot sopivat

    • OEM
      F032115693, 1986A00610, 104210-6330, 104210-6331, 104210-6332, 104210-6333, 104210-6334, 7605060, 12317605060, 12317610260

    • Konkurrentreferens
      A6346, CAL40425, dan1125, DRA1477, 28-7605, 215.587.170, 24111, 209296, 209296A, 440961, 554455RI, 12090620, 32084740, 0986084740

    • NormaliseratArtNr
      a6346, cal40425, dan1125, dra1477, f032115693, 1986a00610, 24111, 209296, 209296a, 287605, 440961, 554455ri, 7605060, 12090620, 32084740, 215587170, 0986084740, 1042106330, 1042106331, 1042106332, 1042106333, 1042106334, 12317605060, 12317610260

    • Passar modeller
      BMW Model: 1 Model series: 114 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-07-2012 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 114 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-12-2011 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 116 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-07-2011 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 116 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-12-2011 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 118 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-03-2015 To date: 01-06-2015 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 118 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-07-2011 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 118 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 118 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-07-2012 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F20 Body: Hatchback From date: 01-03-2015 To date: 01-06-2016 Fuel: Gasoline Approved: Yes
      BMW Model: 1 Model series: 120 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F21 Body: Hatchback From date: 01-03-2015 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F30 From date: 01-07-2012 To date: 01-08-2016 Fuel: Gasoline Approved: Yes
      BMW Model: 3 Model series: 316 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F31 Body: Estate From date: 01-03-2013 To date: 01-06-2015 Fuel: Gasoline Approved: Yes Manufacture type: Touring
      BMW Model: 3 Model series: 320 Type of engine: i Size of motor: 1.6 Brand of engine: N13B16A Type description: F30 From date: 01-11-2012 To date: 01-06-2016 Fuel: Gasoline Approved: Yes
      1 / 3
