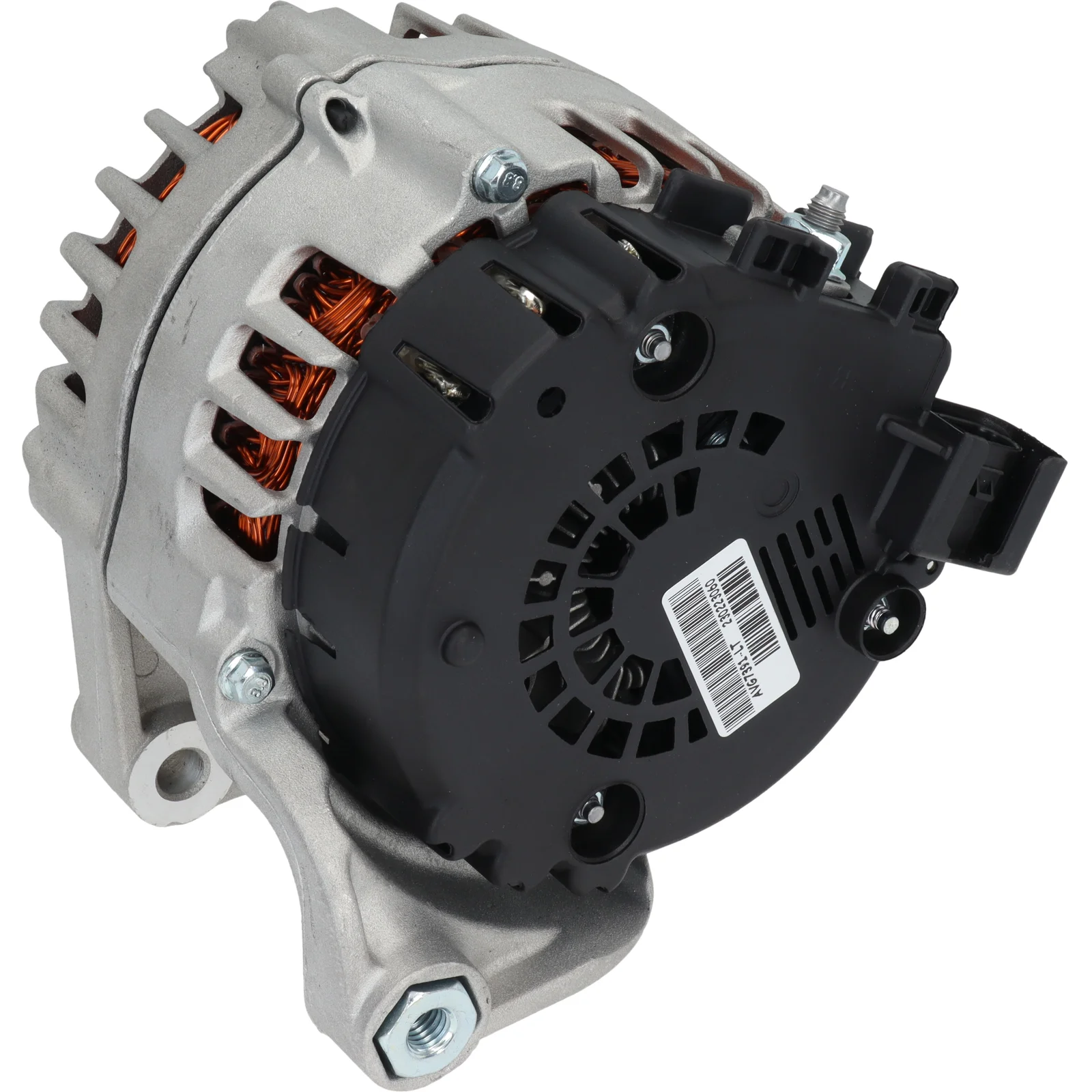

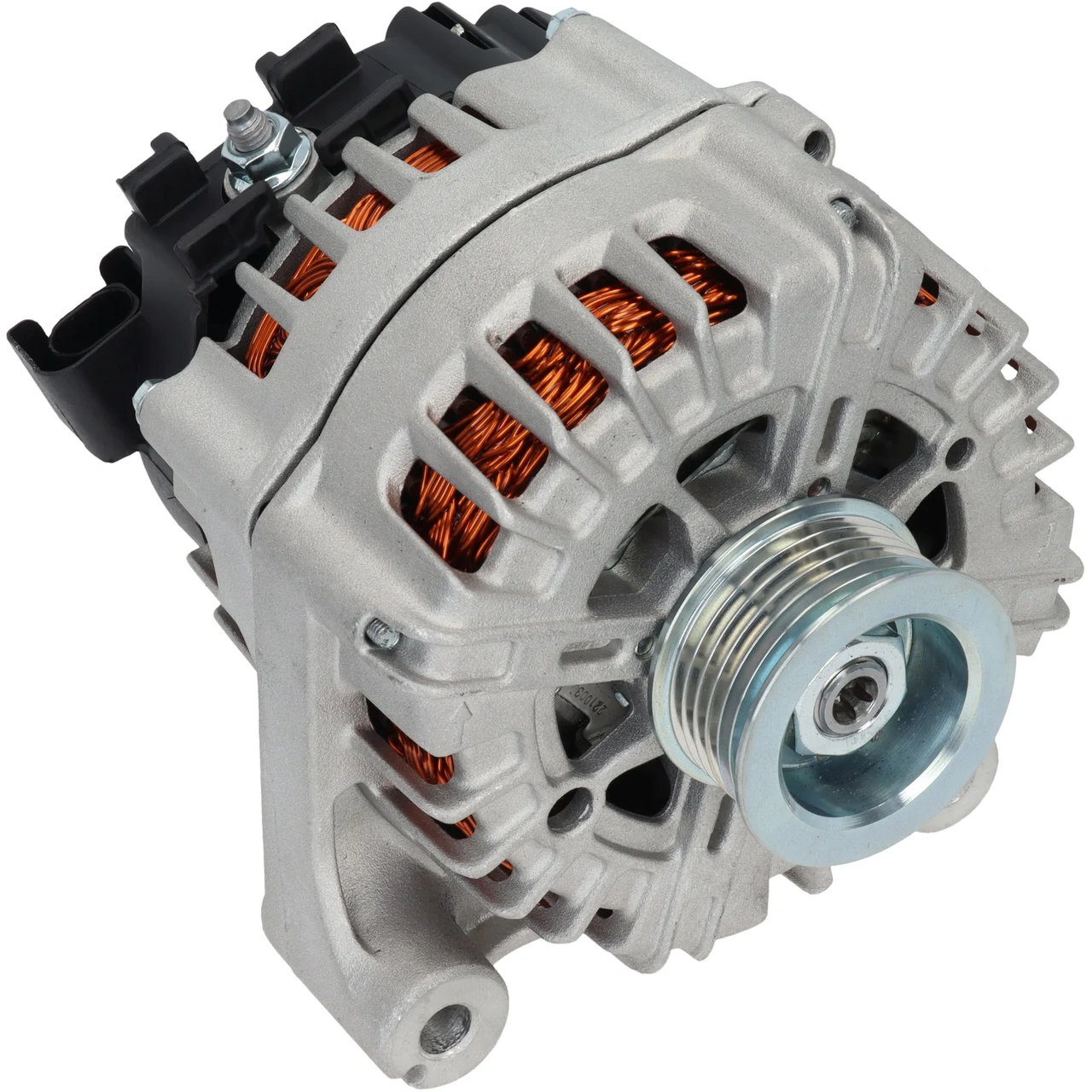

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032115902

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, A: 230, Kääntö: myötäpäivään, Asennuskiinnikkeen etäisyys: 75.50

Kuvaus

Volyymi: 14
Ampeerit: 230
Vanne etäisyys: 57,80
Leveys/kiinnityskahva: 28,00
Kotelon kiinnitysraudan etäisyys: 75,50
Kotelon reikä: 10,50
Hihnan säätö ruuvin paikka: 20
Vanneti.: 53,30
Ugoloket: 6
Radious: 92,00
Radious 2: 92,00
B+ pituus mm: 14,50
B+: M8
Sijoitus/B+ minuutteina: 55
Kääntö: Kello myötä
Pistokkeen numero: PL125
Koko pituus mm: 182,00
Terminaalityyppi: COM
Viestintä: BSS
Vanne: SP
Tuulivirtain: IF
Säädin tyyppi: IR
Huomautukset: Tämä generaattori on säädinliittimellä COM. On suositeltavaa käyttää OE-numeroa yhteensopivuuden tarkistamiseen ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication BSS
Mount. bracket dist. 75.50
Belt. adj. brackethole pos. 20
Plug no. PL125
Bracket hole 10.50
Position/B+ in min. 55
Pulley SP
Pulley dia. 53.30
Pulley dist. 57.80
Radius 92.00
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 182.00 mm
Width/holder arm 28.00
Amp 230
B+ Length 14.50 mm

  • OEM
    F032115902, FG23S058, 2613207A, 12317823341, 12317823342, 12318515754, 12318516094

  • Konkurrentreferens
    A3461S, CAL15528, CAL15531, DRA0953, LRA03429, 28-6541, 215.194.2202, 215.194.2302, 215.566.220, 24120N, 209210, 209210A, 439731, 439810, 440321, 12090594, 12090941, 32440321

  • NormaliseratArtNr
    a3461s, cal15528, cal15531, dra0953, f032115902, fg23s058, lra03429, 24120n, 209210, 209210a, 286541, 439731, 439810, 440321, 2613207a, 12090594, 12090941, 32440321, 215566220, 2151942202, 2151942302, 12317823341, 12317823342, 12318515754, 12318516094

  • Passar modeller
    BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-03-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10, F18 From date: 01-03-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-03-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10, F18 From date: 01-09-2010 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F10 From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F10 From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: M 550 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30C Type description: F11 Body: Estate From date: 01-03-2012 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 6 Model series: 640 Model type: Cran Coupe Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F06 Body: Coupe From date: 01-03-2012 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    BMW Model: 6 Model series: 640 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F12 Body: Convertible From date: 01-03-2012 To date: 01-06-2018 Fuel: Diesel Approved: Yes
    BMW Model: 6 Model series: 640 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F13, F06 Body: Coupe From date: 01-03-2012 To date: 01-10-2017 Fuel: Diesel Approved: Yes
    BMW Model: 6 Model series: 640 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F12 Body: Convertible From date: 01-09-2011 To date: 01-06-2018 Fuel: Diesel Approved: Yes
    BMW Model: 6 Model series: 640 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F13 Body: Coupe From date: 01-09-2011 To date: 01-10-2017 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-06-2016 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive 30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-04-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive 35d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F25 From date: 01-10-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-06-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-04-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    1 / 5
  • Kuvaus
    Volyymi: 14
    Ampeerit: 230
    Vanne etäisyys: 57,80
    Leveys/kiinnityskahva: 28,00
    Kotelon kiinnitysraudan etäisyys: 75,50
    Kotelon reikä: 10,50
    Hihnan säätö ruuvin paikka: 20
    Vanneti.: 53,30
    Ugoloket: 6
    Radious: 92,00
    Radious 2: 92,00
    B+ pituus mm: 14,50
    B+: M8
    Sijoitus/B+ minuutteina: 55
    Kääntö: Kello myötä
    Pistokkeen numero: PL125
    Koko pituus mm: 182,00
    Terminaalityyppi: COM
    Viestintä: BSS
    Vanne: SP
    Tuulivirtain: IF
    Säädin tyyppi: IR
    Huomautukset: Tämä generaattori on säädinliittimellä COM. On suositeltavaa käyttää OE-numeroa yhteensopivuuden tarkistamiseen ennen tilaamista.

    Tiedostot

  • Määrittely
    B+ M8
    Communication BSS
    Mount. bracket dist. 75.50
    Belt. adj. brackethole pos. 20
    Plug no. PL125
    Bracket hole 10.50
    Position/B+ in min. 55
    Pulley SP
    Pulley dia. 53.30
    Pulley dist. 57.80
    Radius 92.00
    Radius 2 92.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 182.00 mm
    Width/holder arm 28.00
    Amp 230
    B+ Length 14.50 mm
  • Nämä ajoneuvot sopivat

    • OEM
      F032115902, FG23S058, 2613207A, 12317823341, 12317823342, 12318515754, 12318516094

    • Konkurrentreferens
      A3461S, CAL15528, CAL15531, DRA0953, LRA03429, 28-6541, 215.194.2202, 215.194.2302, 215.566.220, 24120N, 209210, 209210A, 439731, 439810, 440321, 12090594, 12090941, 32440321

    • NormaliseratArtNr
      a3461s, cal15528, cal15531, dra0953, f032115902, fg23s058, lra03429, 24120n, 209210, 209210a, 286541, 439731, 439810, 440321, 2613207a, 12090594, 12090941, 32440321, 215566220, 2151942202, 2151942302, 12317823341, 12317823342, 12318515754, 12318516094

    • Passar modeller
      BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-03-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10, F18 From date: 01-03-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-03-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10, F18 From date: 01-09-2010 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F10 From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F10 From date: 01-09-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 5 Model series: M 550 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30C Type description: F11 Body: Estate From date: 01-03-2012 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
      BMW Model: 6 Model series: 640 Model type: Cran Coupe Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F06 Body: Coupe From date: 01-03-2012 To date: 01-10-2018 Fuel: Diesel Approved: Yes
      BMW Model: 6 Model series: 640 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F12 Body: Convertible From date: 01-03-2012 To date: 01-06-2018 Fuel: Diesel Approved: Yes
      BMW Model: 6 Model series: 640 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F13, F06 Body: Coupe From date: 01-03-2012 To date: 01-10-2017 Fuel: Diesel Approved: Yes
      BMW Model: 6 Model series: 640 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F12 Body: Convertible From date: 01-09-2011 To date: 01-06-2018 Fuel: Diesel Approved: Yes
      BMW Model: 6 Model series: 640 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F13 Body: Coupe From date: 01-09-2011 To date: 01-10-2017 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-06-2016 To date: 01-08-2017 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Model type: xDrive 30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-04-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Model type: xDrive 35d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F25 From date: 01-10-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
      BMW Model: X3 Model series: X3 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-06-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
      BMW Model: X5 Model series: X5 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-04-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
