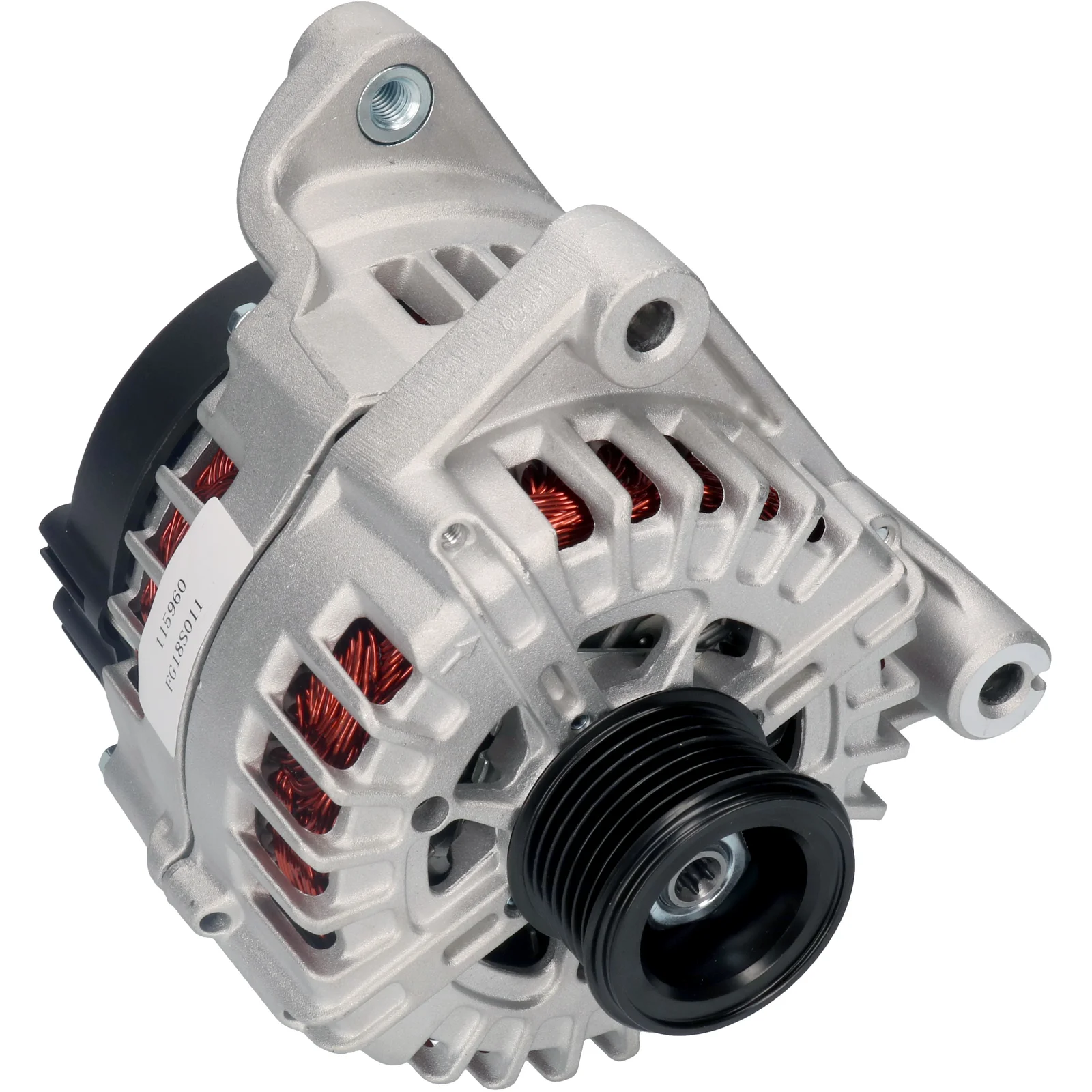

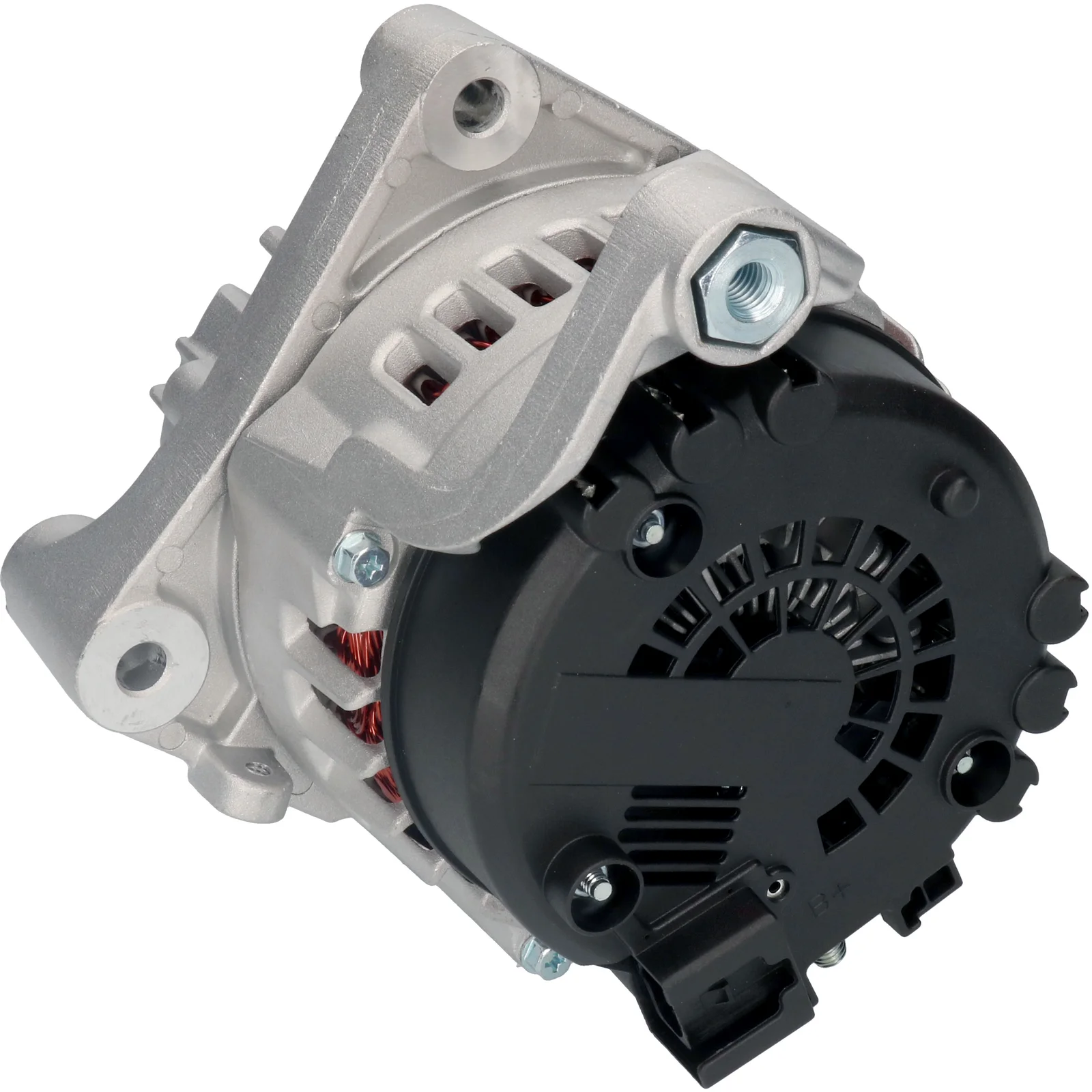

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032115960

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Amp: 180, Kääntö: Myötäpäivään, Asennuskiinnikkeen väli: 75.00

Kuvaus

Jännite: 14
Ampeerit: 180
Vannenajohdinkulma: 55.50
Leveys/tuentop: 27.70
Kiinnitykiskaaren etäisyys: 75.00
Kaaren reikä: 10.50
Vaimennusnestesäätökaarteen reiän pos.: 45
Vaimennusnestesäätökaarteen reiän 1: 10.50
VannenajiDiametri: 53.80
Ulimat: 7
Säteen pituus: 93.00
Säteen 2: 93.00
B+: M8
Sijainti/B+ väh: 60
Pyörähdys: Klo 24
Pistokkeen numero: PL86
Kokonaispituus mm: 188.00
Terminaalityyppi: COM
Vannenaja: SP
Säädin tyyppi: IR
Tuotetiedot: BN
Huomautukset: Tämä generaattori in sisältää COM -terminaali säätimeen. On suositeltavaa käyttää OEM-nro toteutuksen soveltuvuuden tarkistamiseen ennen tilausta.

Tiedostot

Määrittely

B+ M8
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL86
Bracket hole 10.50
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 53.80
Pulley dist. 55.50
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 188.00 mm
Width/holder arm 27.70
Amp 180

  • OEM
    F032115960, FG18S011, 2543403B, 2543403C, 7803724, 7808074, 12317803724, 12317808074

  • Konkurrentreferens
    A3469S, CAL15469, DRA0971, LRA03683, 8EL012240-281, 28-6744, 215.198.1802, 20979N, 200261, 209169, 209169A, 439668, 440255, 9090573, 12090299

  • NormaliseratArtNr
    a3469s, cal15469, dra0971, f032115960, fg18s011, lra03683, 8el012240281, 20979n, 200261, 209169, 209169a, 286744, 439668, 440255, 2543403b, 2543403c, 7803724, 7808074, 9090573, 12090299, 2151981802, 12317803724, 12317808074

  • Passar modeller
    BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-03-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: Gran Turismo Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07 Body: Hatchback From date: 01-08-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: GRAN TURISMO Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07 Body: Hatchback From date: 01-09-2010 To date: 01-02-2017 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07GT Body: Hatchback From date: 01-06-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-01-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 7 Model series: 730 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F01, F02 From date: 01-09-2008 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 7 Model series: 730 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F01, F02, F03, F04 From date: 01-02-2008 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    BMW Model: 7 Model series: 740 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57SD30B Type description: F01, F02 From date: 01-09-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    BMW Model: 7 Model series: 740 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F01, F02, F03, F04 From date: 01-09-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-04-2010 To date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive40d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: E70 From date: 01-09-2010 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-10-2008 To date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive40d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: E71, E72 From date: 01-07-2009 To date: 01-06-2014 Fuel: Diesel Approved: Yes
    1 / 4
