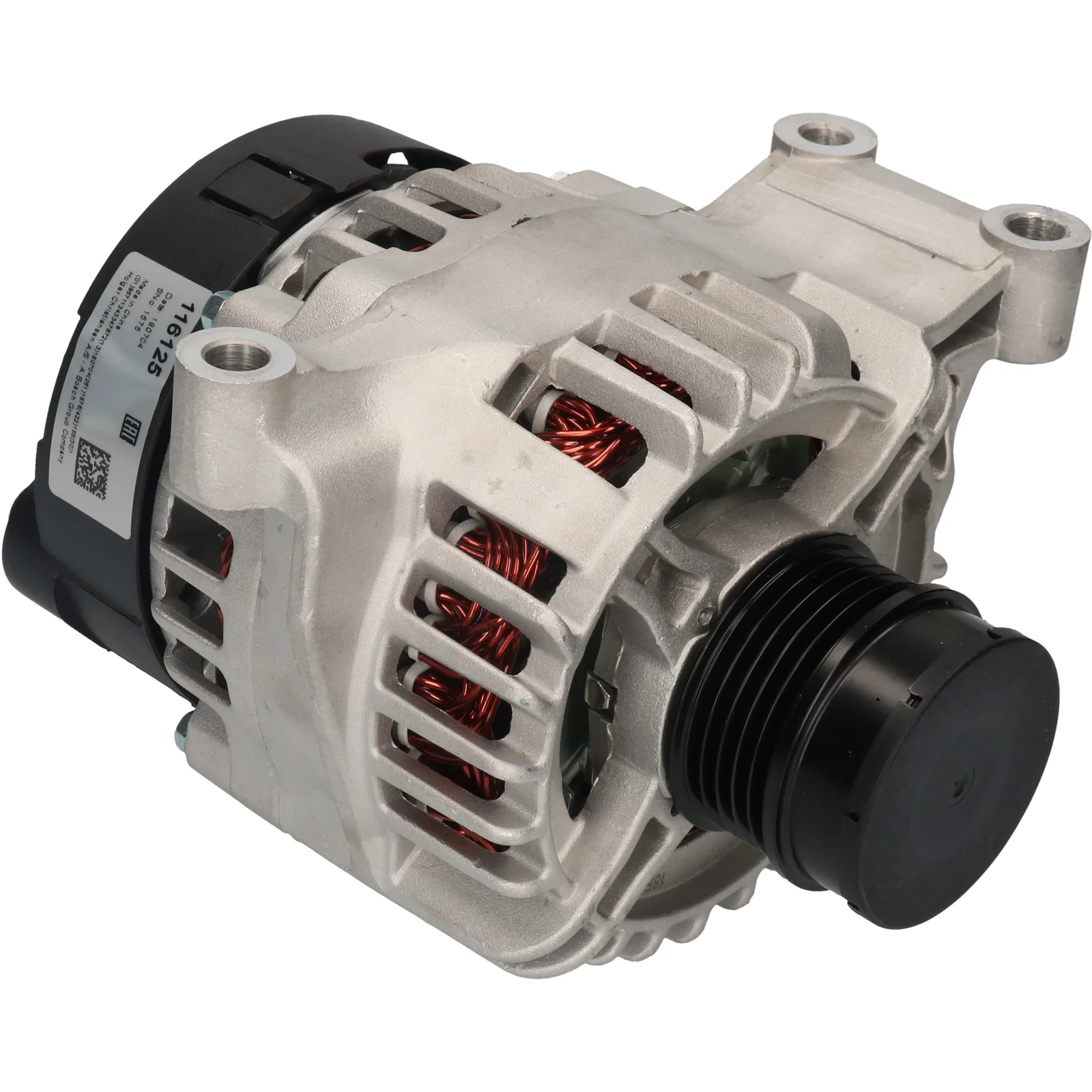

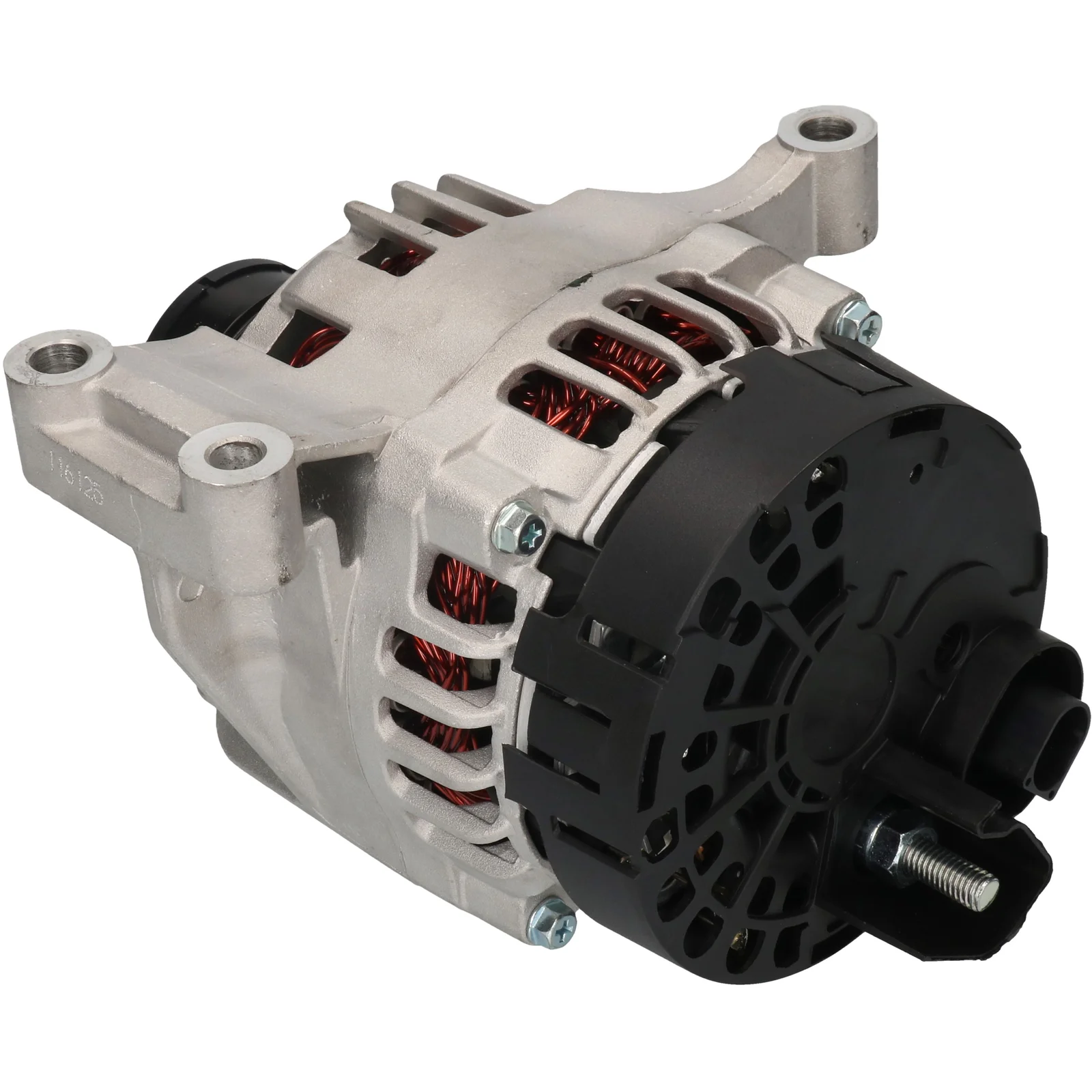

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116125

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Ampeeri: 120, Pyörimissuunta: Ti, Asennuskiinnikkeen välimatka: 50,00

Kuvaus

HC-Cargo Laturi 14V - 120A, 5rengasai

Jännite: 14
Ampeerit: 120
Holkin etäisyys: 17.00
Leveys/pidinvarsi: 24.00
Kytkentätangon etäisyys: 50.00
Holken reikä: 8.50
Holken reikä 2: 10.50
Vöiden säätöholkin reikä 1: 8.50
Vöiden säätöholkin reikä 2: 10.50
Holkin halkaisija: 54.00
urien määrä/holkki: 5
B+: M8
Sija/B+ min.: 10
Kääntö:myötäpäivään
Kytkentä nro.: PL174
Kokonaispituus mm: 197.00
Päätytyyppi: COM
Viestintä: LIN
Holkki: SP/FW
Regulatorin tyyppi: IR
Tuotetiedot: BN
Huomautukset: Tämä generaattori on nytten COM-pääte regulatorissa. Suositellaan, että olemassa oleva OEM-numero käytetään soveltuvuuden tarkistamiseen ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 50.00
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 10.50
Plug no. PL174
Bracket hole 8.50
Bracket hole 2 10.50
Position/B+ in min. 10
Prod. info BN
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 17.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 5
Terminal type COM
Voltage 14
Total length 197.00 mm
Width/holder arm 24.00
Amp 120

  • OEM
    F032116125, 1986A00607, 101210-1660, 101210-1670, 101210-1840, 104211-4820, 116125, 51874104, 51874105, 51929095, 52137908

  • Konkurrentreferens
    A6130, A6130(DENSO), A6130S, CAL40372, DAN1078, DRA1318, LRA03659, 28-6799, 505.574.120, 210948, 210948A, 553583RI, 12090749, 32561010, 0986084710

  • Bilmärken
    Alfa Romeo, Fiat, Jeep - AMC - Eagle

  • NormaliseratArtNr
    a6130, a6130denso, a6130s, cal40372, dan1078, dra1318, f032116125, lra03659, 1986a00607, 116125, 210948, 210948a, 286799, 553583ri, 12090749, 32561010, 51874104, 51874105, 51929095, 52137908, 505574120, 0986084710, 1012101660, 1012101670, 1012101840, 1042114820

  • Passar modeller
    Alfa Romeo Model: Giulietta Model series: Giulietta Size of motor: 1.4 Brand of engine: 198A4.000 Type description: 940_ Body: Box From date: 01-04-2011 To date: 01-02-2016 Fuel: Gasoline Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Size of motor: 1.4 Brand of engine: 940A2.000 Type description: 940_ Body: Box From date: 01-04-2011 Fuel: Gasoline Approved: Yes
    Alfa Romeo Series: GIULIETTA Skåp/halvk Model: 1.4 Engine volume: 1.4 Engine type: 198 A4.000 Year: 04.11-02.16
    Alfa Romeo Series: GIULIETTA Skåp/halvk Model: 1.4 Engine volume: 1.4 Engine type: 940 A2.000 Year: 04.11-12.20
    Fiat Model: 500 C Model series: 500 C Size of motor: 0.9 Brand of engine: 312A6.000 Type description: 312_ Body: Convertible From date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500 Size of motor: 0.9 Brand of engine: 312A2.000 Type description: 150 Body: Hatchback From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: 500 Model series: 500L Model type: CNG Size of motor: 0.9 Brand of engine: 312A2.000 Body: Hatchback From date: 01-03-2013 Fuel: Gasoline/gas Approved: Yes
    Fiat Model: Tipo Model series: Tipo Type of engine: LPG Size of motor: 1.4 Brand of engine: 940B7.000 Type description: 356_ Body: Estate From date: 01-05-2016 Fuel: Gasoline Approved: Yes Manufacture type: Estate
    Fiat Model: Tipo Model series: Tipo Type of engine: LPG Size of motor: 1.4 Brand of engine: 940B7.000 Type description: 356_ Body: Hatchback From date: 01-05-2016 Fuel: Gasoline Approved: Yes
    Fiat Series: 500 C (312_) Model: 0.9 (312AXP1A) Engine volume: 0,9 Engine type: 312 A6.000 Year: 12.13-
    Fiat Series: 500 Model: 0.9 Engine volume: 0.9 Engine type: 312.A2.000 Year: 07.10-
    Fiat Series: 500L Model: 0.9 Natural Power Engine volume: 0.9 Engine type: 312 A2.000 Year: 03.13-
    Fiat Series: TIPO Halvkombi Model: 1.4 LPG Engine volume: 1.4 Engine type: 940 B7.000 Year: 05.16-10.20
    Fiat Series: TIPO Kombi Model: 1.4 LPG Engine volume: 1.4 Engine type: 940 B7.000 Year: 05.16-10.20
    Jeep - AMC - Eagle Series: RENEGADE SUV Model: 1.4 Engine volume: 1.4 Engine type: 552 63 624 Year: 01.16-
    Jeep - AMC - Eagle Series: RENEGADE VAN Model: 1.4 4x4 Engine volume: 1.4 Engine type: 552 63 623 Year: 07.14-
    Jeep - AMC - Eagle Series: RENEGADE VAN Model: 1.4 Engine volume: 1.4 Engine type: 552 63 624 Year: 07.14-
    Jeep Model: Renegade Model series: Renegade Model type: 4X4 Size of motor: 1.4 Brand of engine: 55263623 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Petrol Approved: Yes
    Jeep Model: Renegade Model series: Renegade Size of motor: 1.4 Brand of engine: 55263624 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Petrol Approved: Yes
    Jeep Model: Renegade Model series: Renegade Size of motor: 1.4 Brand of engine: 55263624 Type description: BU, B1 Body: Closed Off-Road Vehicle From date: 01-01-2016 Fuel: Gasoline Approved: Yes
