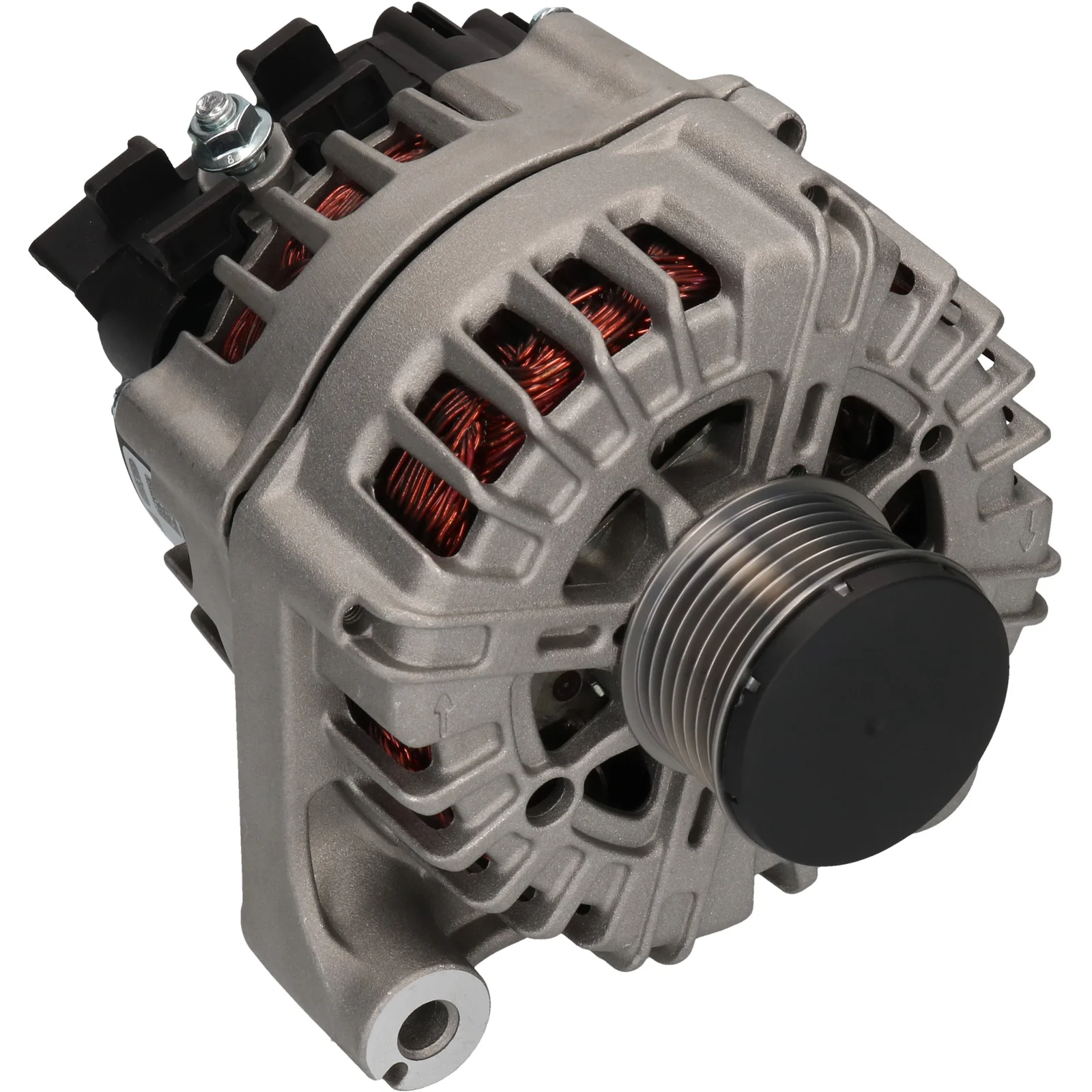

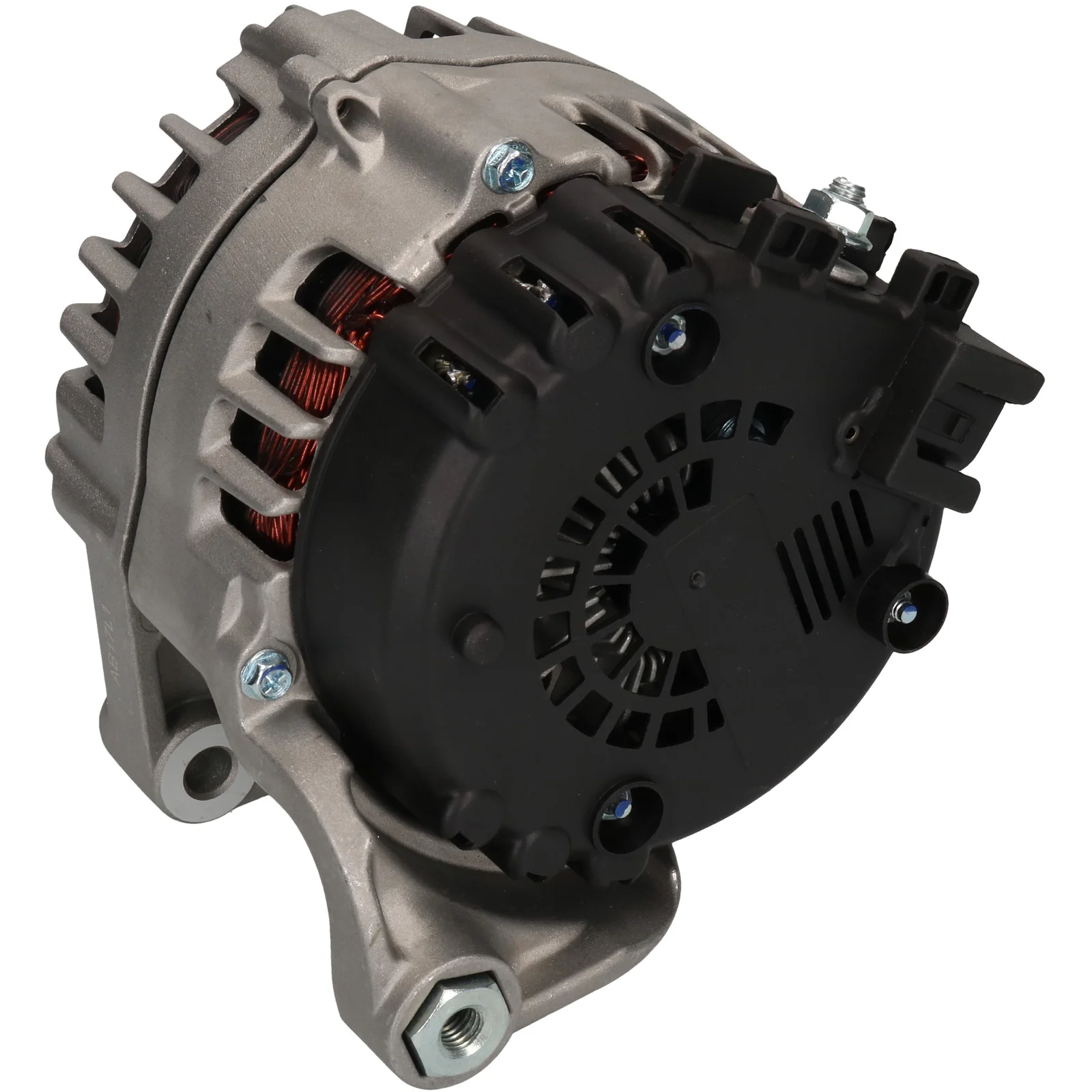

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116138

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Ampeeri: 220, Pyörimisliike: myötäpäivään, Asennuskiinnikkeen välimatka: 76,00

Kuvaus

Jännite: 14
Amm: 220
Jarrun etäisyys: 55.30
Leveys/pidikkeen käsivarsi: 28.00
Asennuskannattimen etäisyys: 76.00
Kannattimen reikä: 10.50
Hihnan säätökelpoisen kannattimen reiän sijoitus: 45
Hihnan säätökelpoisen kannattimen reikänumero 1: 10.50
Kiilahihnan halkaisija: 54.00
Uomat/kiilaih. : 7
Säde: 92.00
Säde 2: 92.00
B+: M8
Sijainti/B+ minuuteissa: 58
Pyörimisliike: myötäpäivään
Kytkentänumero: PL125
Kokonaispituus mm: 185.00
_TERM_D NTYPE_: COM
Viestintä: BSS
Kiilakierre: SP/FW
Puhallin: IF
Säädin: IR
Huomautukset: Tällä generaattorilla on COM-terminaali säädin. Suositeltavaa on käyttää OEM-numeroa yhteensopivuuden tarkistamiseen ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication BSS
Mount. bracket dist. 76.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 10.50
Position/B+ in min. 58
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 55.30
Radius 92.00
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 28.00
Amp 220

  • OEM
    F032116138, FG23S011, FGN23S011, 2543517B, 2543517C, 7807187, 12317807187, 12317808075

  • Konkurrentreferens
    A3402S, CAL15523, DRA1254, LRA03642, 8EL011713-081, 28-6782, 215.198.2202, 215.583.220, 215.583.230, 24129N, 200216, 209272, 209272A, 439670, 440256, 553844RI, 9090572, 12090634, 32440256, 0986086670

  • NormaliseratArtNr
    a3402s, cal15523, dra1254, f032116138, fg23s011, fgn23s011, lra03642, 8el011713081, 24129n, 200216, 209272, 209272a, 286782, 439670, 440256, 553844ri, 2543517b, 2543517c, 7807187, 9090572, 12090634, 32440256, 215583220, 215583230, 0986086670, 2151982202, 12317807187, 12317808075

  • Passar modeller
    BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-03-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-09-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 530 Model type: Gran Turismo Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07 Body: Hatchback From date: 01-08-2009 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: GRAN TURISMO Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07 Body: Hatchback From date: 01-09-2010 To date: 01-02-2017 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F07GT Body: Hatchback From date: 01-06-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10 From date: 01-01-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-06-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 535 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F07GT Body: Hatchback From date: 01-03-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F07 Body: Hatchback From date: 01-03-2010 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F10 From date: 01-09-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 535 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F11 Body: Estate From date: 01-09-2010 To date: 01-08-2011 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 7 Model series: 730 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F01, F02 From date: 01-09-2008 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    BMW Model: 7 Model series: 740 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57SD30B Type description: F01, F02 From date: 01-09-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-04-2010 To date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive40d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: E70 From date: 01-09-2010 To date: 01-06-2013 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Size of motor: 3.0 Brand of engine: N57D30A Type description: E70 From date: 01-10-2008 To date: 01-07-2013 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D3) Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive30d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: E71, E72 From date: 01-04-2010 To date: 01-07-2014 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive40d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: E71, E72 From date: 01-07-2009 To date: 01-06-2014 Fuel: Diesel Approved: Yes
    1 / 4
