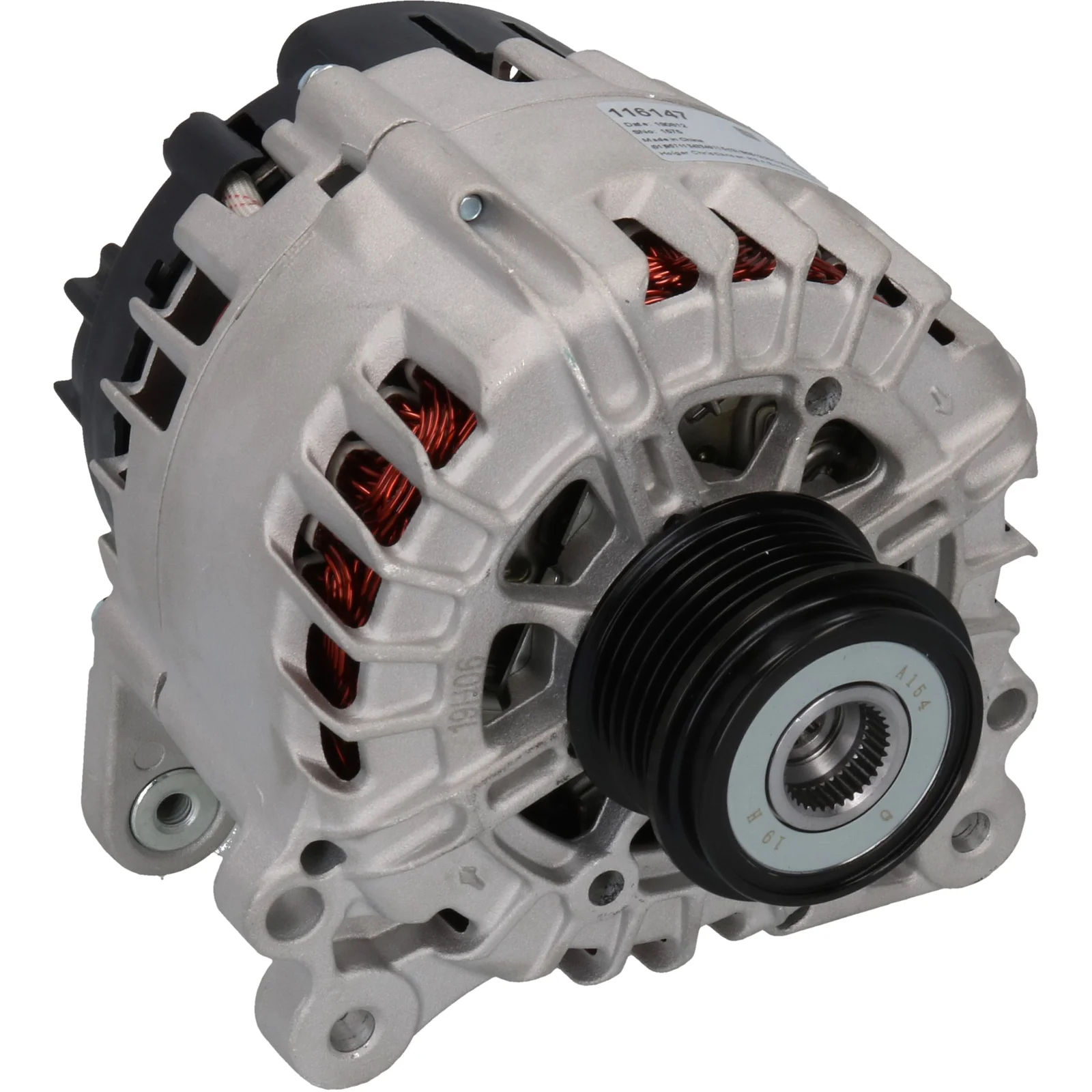

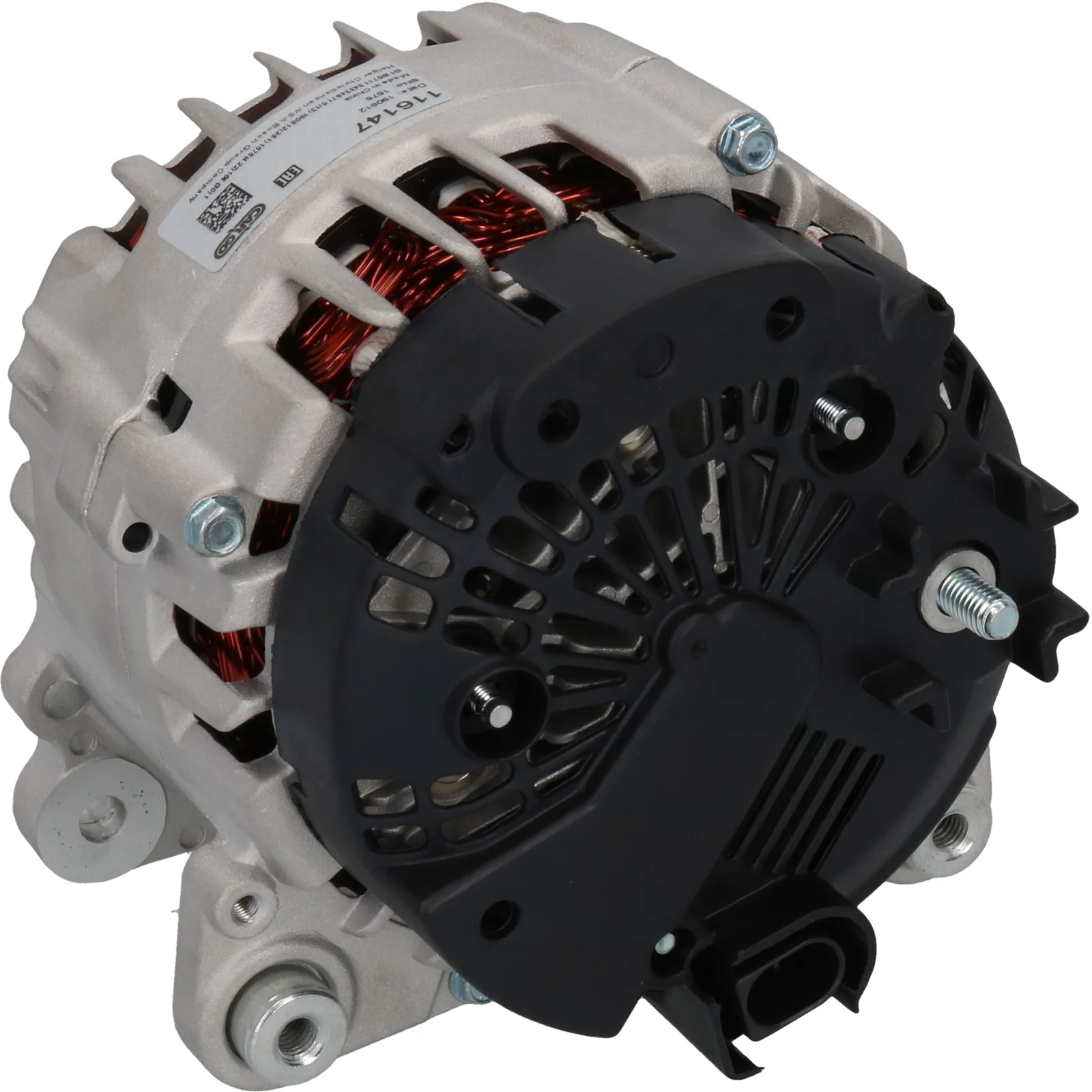

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116147

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, A: 180, Kiertokulma: myötäpäivään, Kiinnitysmiehen etäisyys: 60,80

Kuvaus

Volyymi: 14
Ampeerit: 180
Valkokulman etäisyys: 29,30
Leveys/kiinnityskahva: 13,70
Kiinnityksyrmeen etäisyys: 60,80
Ruuvi aukko: 8,50
Vöidin säätöarvon aukko positio: 15
Vöidin säätöarvon aukko 1: 8,50
Valkokulman halkaisija: 56,00
urien määrä/välileukula: 6
Ympärysmitta: 90,00
Ympärysmitta 2: 90,00
B+: M8
Sijainti/B+ min.: 25
Pyörimissuunta: myötäpäivään
Verkkotunnus: PL181
Kokonaispituus mm: 191,00
Terminaalityyppi: COM
Viestintä: LIN
Valkokulma: SP/FW
Regulaattorin tyyppi: IR
Huomautukset: Tämä laturin regulatorissa on COM-terminaali. On suositeltavaa käyttää OEM-numeroa sopivuuden varmistamiseen ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 60.80
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 15
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 25
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 29.30
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 13.70
Amp 180

  • OEM
    F032116147, FG18S100, FG18T094, FG18T120, FGN18S100, 059903019D, 059903023K, 059903023KX, 059903023M, 059903023MX

  • Konkurrentreferens
    A3147, A3147(VALEO), A3468S, A3600S, CAL15399, CAL15485, CAL15514, CAL15543, DRA0675, DRA0794, LRA03358, 28-5970, 211.375.1802, 305.902.180, 305.912.180, 20939AN, 113447, 209195, 209195A, 439777, 439784, 439838, 440410, 440416, 440563, 553442RI, 553626RI, 553959RI, 9090608, 9090860, 12090474, 12090661

  • NormaliseratArtNr
    a3147, a3147valeo, a3468s, a3600s, cal15399, cal15485, cal15514, cal15543, dra0675, dra0794, f032116147, fg18s100, fg18t094, fg18t120, fgn18s100, lra03358, 20939an, 113447, 209195, 209195a, 285970, 439777, 439784, 439838, 440410, 440416, 440563, 553442ri, 553626ri, 553959ri, 9090608, 9090860, 12090474, 12090661, 059903019d, 059903023k, 059903023kx, 059903023m, 059903023mx, 305902180, 305912180, 2113751802

  • Passar modeller
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASD Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CVWA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDI Size of motor: 3.0 Brand of engine: CATA Type description: 7P5 From date: 01-06-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CNRB Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Van Model type: 4Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 Body: Box Body / Estate From date: 01-05-2011 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    1 / 2
  • Kuvaus
    Volyymi: 14
    Ampeerit: 180
    Valkokulman etäisyys: 29,30
    Leveys/kiinnityskahva: 13,70
    Kiinnityksyrmeen etäisyys: 60,80
    Ruuvi aukko: 8,50
    Vöidin säätöarvon aukko positio: 15
    Vöidin säätöarvon aukko 1: 8,50
    Valkokulman halkaisija: 56,00
    urien määrä/välileukula: 6
    Ympärysmitta: 90,00
    Ympärysmitta 2: 90,00
    B+: M8
    Sijainti/B+ min.: 25
    Pyörimissuunta: myötäpäivään
    Verkkotunnus: PL181
    Kokonaispituus mm: 191,00
    Terminaalityyppi: COM
    Viestintä: LIN
    Valkokulma: SP/FW
    Regulaattorin tyyppi: IR
    Huomautukset: Tämä laturin regulatorissa on COM-terminaali. On suositeltavaa käyttää OEM-numeroa sopivuuden varmistamiseen ennen tilaamista.

    Tiedostot

  • Määrittely
    B+ M8
    Communication LIN
    Mount. bracket dist. 60.80
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 15
    Plug no. PL181
    Bracket hole 8.50
    Position/B+ in min. 25
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 29.30
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 191.00 mm
    Width/holder arm 13.70
    Amp 180
  • Nämä ajoneuvot sopivat

    • OEM
      F032116147, FG18S100, FG18T094, FG18T120, FGN18S100, 059903019D, 059903023K, 059903023KX, 059903023M, 059903023MX

    • Konkurrentreferens
      A3147, A3147(VALEO), A3468S, A3600S, CAL15399, CAL15485, CAL15514, CAL15543, DRA0675, DRA0794, LRA03358, 28-5970, 211.375.1802, 305.902.180, 305.912.180, 20939AN, 113447, 209195, 209195A, 439777, 439784, 439838, 440410, 440416, 440563, 553442RI, 553626RI, 553959RI, 9090608, 9090860, 12090474, 12090661

    • NormaliseratArtNr
      a3147, a3147valeo, a3468s, a3600s, cal15399, cal15485, cal15514, cal15543, dra0675, dra0794, f032116147, fg18s100, fg18t094, fg18t120, fgn18s100, lra03358, 20939an, 113447, 209195, 209195a, 285970, 439777, 439784, 439838, 440410, 440416, 440563, 553442ri, 553626ri, 553959ri, 9090608, 9090860, 12090474, 12090661, 059903019d, 059903023k, 059903023kx, 059903023m, 059903023mx, 305902180, 305912180, 2113751802

    • Passar modeller
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASD Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CVWA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDI Size of motor: 3.0 Brand of engine: CATA Type description: 7P5 From date: 01-06-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CNRB Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Van Model type: 4Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 Body: Box Body / Estate From date: 01-05-2011 To date: 01-12-2014 Fuel: Diesel Approved: Yes
