HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116184

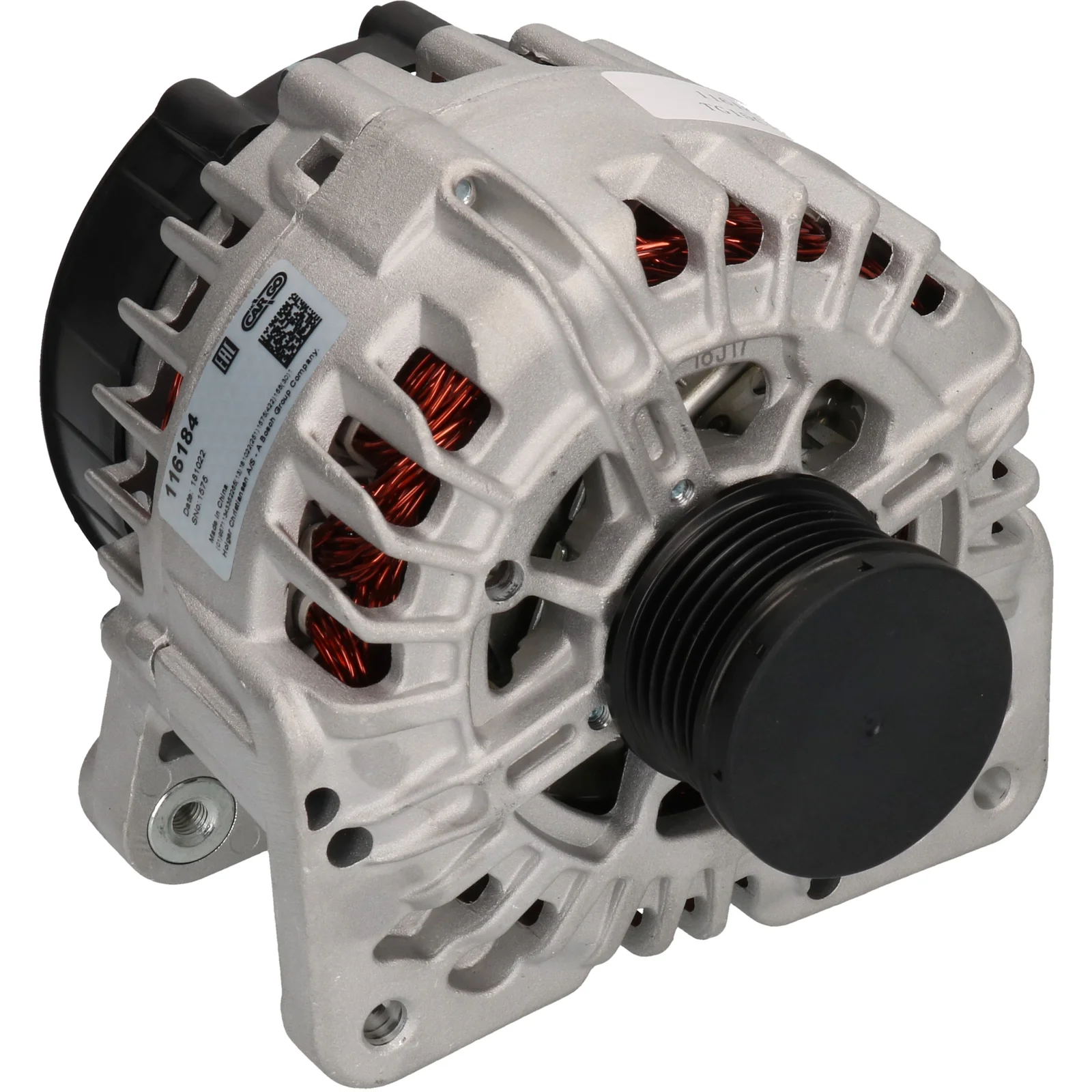

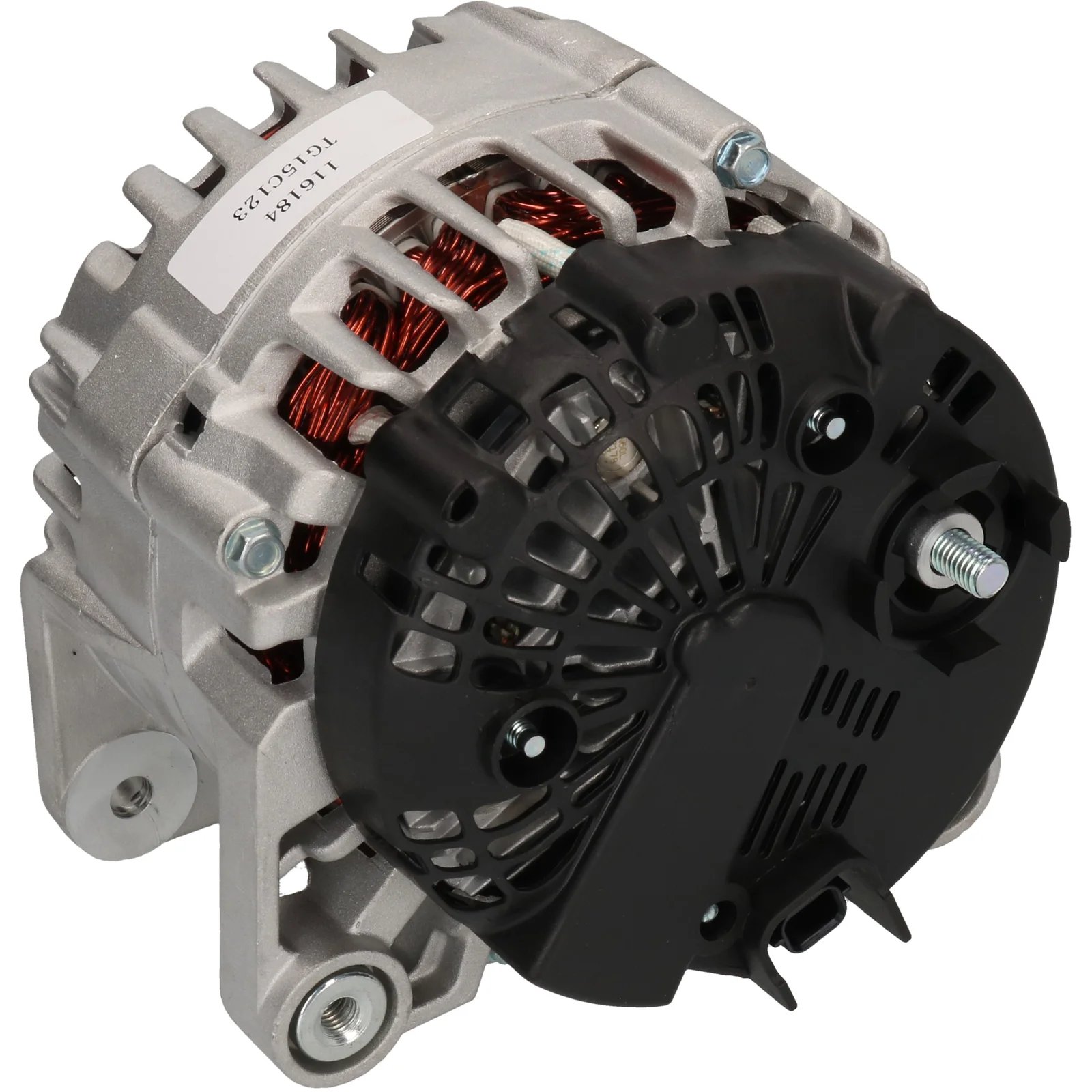

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, A: 150, Kääntö: myötäpäivään, Asennuskehyksen etäisyys: 61.00

Kuvaus

Volyymi: 14
Amp: 150
Rattaen etäisyys: 33.00
Leveys/kiinnityskahva: 14.00
Asennuskiinnikkeen etäisyys: 61.00
Pultinreikä: 8.50
Vyön säätökiinnikkeen reiän asento: 45
Vyön säätökiinnikkeen reikä 1: 8.50
Rattaan halkaisija: 51.50
Uurit/rattaan ura: 6
Säde: 90.00
Säde 2: 90.00
B+: M8
Sijainti/B+ minuuttina: 5
kääntö: myötäpäivään
Pistokkeen numero: PL131
Kokonaispituus mm: 185.00
Napa tyyppi: COM
Viestintä: BSS
Rattaan: SP/FW
Regulaattorin tyyppi: IR
Huomautuksia: Tämä generaattori on varustettu COM-napalla regulaattorissa. Suositellaan, että OEM-numeroa käytetään sopivuuden tarkistamiseen ennen tilausta.

Tiedostot

Määrittely

B+ M8
Communication BSS
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL131
Bracket hole 8.50
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 51.50
Pulley dist. 33.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F032116184, TG15C123, 23100-0011R, 2543592, 2543592A, 231000011R

  • Konkurrentreferens
    A3168, CAL15556, LRA03485, 28-6595, 230.351.1502, 575.911.150, 20843N, 440187, 553151RI, 9090527, 12090679

  • NormaliseratArtNr
    a3168, cal15556, f032116184, lra03485, tg15c123, 20843n, 286595, 440187, 553151ri, 2543592, 2543592a, 9090527, 12090679, 231000011r, 575911150, 2303511502

  • Passar modeller
    Renault Model: Laguna Model series: Laguna Model type: Grandtour Type of engine: 16V Hi-Flex Size of motor: 2.0 Brand of engine: M4R704 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes Manufacture type: Grandtour
    Renault Model: Laguna Model series: Laguna Model type: Grandtour Type of engine: 16V Hi-Flex Size of motor: 2.0 Brand of engine: M4R726 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes Manufacture type: Grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Hi-Flex Size of motor: 2.0 Brand of engine: M4R704 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R704 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R704 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: BZ.. Body: Hatchback From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: DZ0_ Body: Coupe From date: 01-05-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R713 Type description: BZ.. Body: Hatchback From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4RF713 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R710 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    1 / 3
  • Kuvaus
    Volyymi: 14
    Amp: 150
    Rattaen etäisyys: 33.00
    Leveys/kiinnityskahva: 14.00
    Asennuskiinnikkeen etäisyys: 61.00
    Pultinreikä: 8.50
    Vyön säätökiinnikkeen reiän asento: 45
    Vyön säätökiinnikkeen reikä 1: 8.50
    Rattaan halkaisija: 51.50
    Uurit/rattaan ura: 6
    Säde: 90.00
    Säde 2: 90.00
    B+: M8
    Sijainti/B+ minuuttina: 5
    kääntö: myötäpäivään
    Pistokkeen numero: PL131
    Kokonaispituus mm: 185.00
    Napa tyyppi: COM
    Viestintä: BSS
    Rattaan: SP/FW
    Regulaattorin tyyppi: IR
    Huomautuksia: Tämä generaattori on varustettu COM-napalla regulaattorissa. Suositellaan, että OEM-numeroa käytetään sopivuuden tarkistamiseen ennen tilausta.

    Tiedostot

  • Määrittely
    B+ M8
    Communication BSS
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL131
    Bracket hole 8.50
    Position/B+ in min. 5
    Pulley SP/FW
    Pulley dia. 51.50
    Pulley dist. 33.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 185.00 mm
    Width/holder arm 14.00
    Amp 150
  • Nämä ajoneuvot sopivat

    • OEM
      F032116184, TG15C123, 23100-0011R, 2543592, 2543592A, 231000011R

    • Konkurrentreferens
      A3168, CAL15556, LRA03485, 28-6595, 230.351.1502, 575.911.150, 20843N, 440187, 553151RI, 9090527, 12090679

    • NormaliseratArtNr
      a3168, cal15556, f032116184, lra03485, tg15c123, 20843n, 286595, 440187, 553151ri, 2543592, 2543592a, 9090527, 12090679, 231000011r, 575911150, 2303511502

    • Passar modeller
      Renault Model: Laguna Model series: Laguna Model type: Grandtour Type of engine: 16V Hi-Flex Size of motor: 2.0 Brand of engine: M4R704 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes Manufacture type: Grandtour
      Renault Model: Laguna Model series: Laguna Model type: Grandtour Type of engine: 16V Hi-Flex Size of motor: 2.0 Brand of engine: M4R726 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes Manufacture type: Grandtour
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Hi-Flex Size of motor: 2.0 Brand of engine: M4R704 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2015 Fuel: Bi-Fuel Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R704 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R704 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: BZ.. Body: Hatchback From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: DZ0_ Body: Coupe From date: 01-05-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R713 Type description: BZ.. Body: Hatchback From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 2.0 Brand of engine: M4RF713 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R710 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 2.0 Brand of engine: M4R711 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
