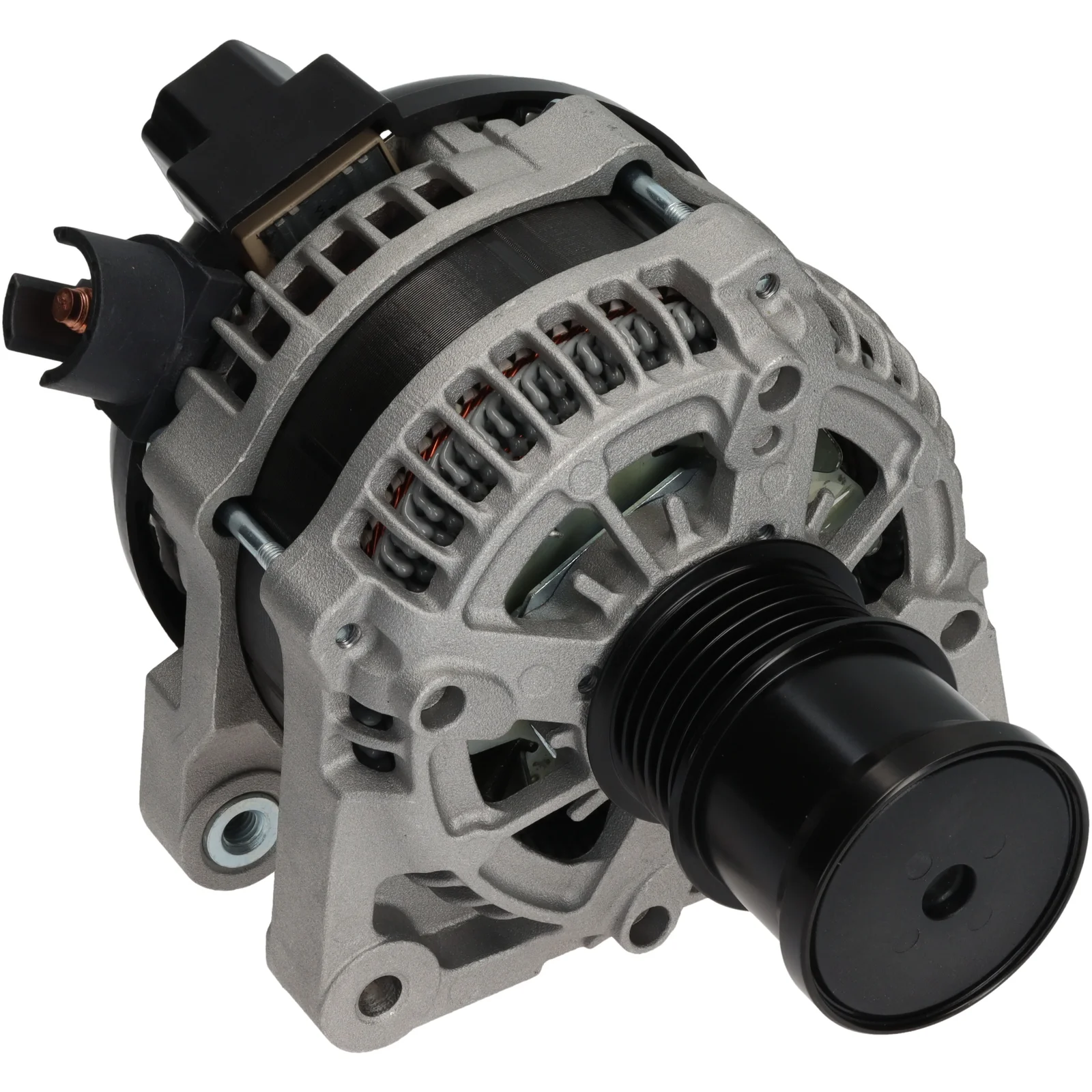

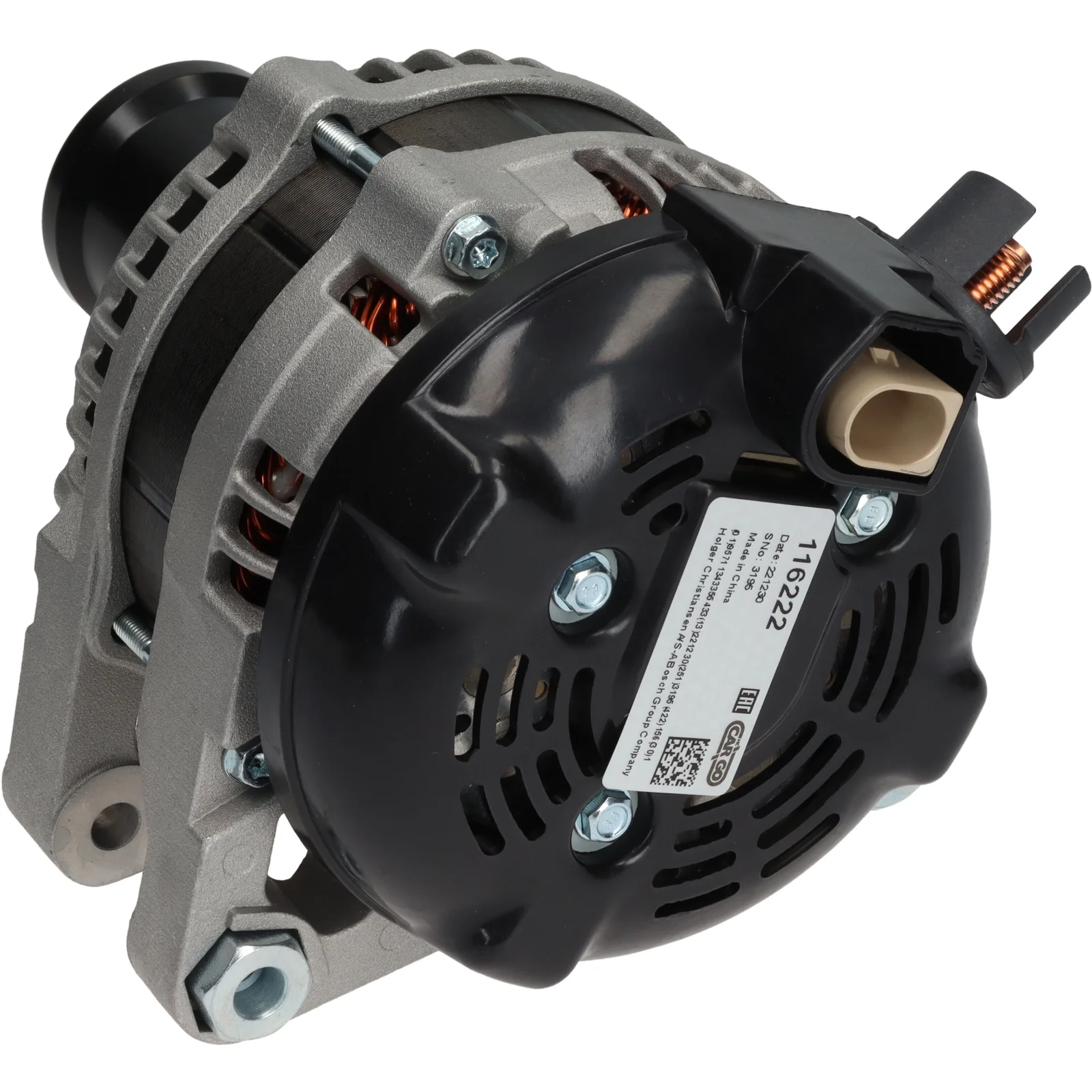

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116222

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, A: 120, Kierre: myötä:auki, Asennuskiinnikerenkaan etäisyys: 31.00

Kuvaus

Volyymi: 14
Amp: 120
Johdinvakauma: 41.50
Leveys/pidin käsivarsi: 21.50
Kiinnitysvaieruksen etäisyys: 31.00
Levyreiän koko: 8.50
Vaimennusrataskotelon positio: 46
Vaimennusrataskotelon reiän koko: 8.00
Vaimennusrattaan halkaisija: 48.50
Urien määrä/rataska: 6
Säde: 87.00
Säde 2: 80.50
B+ pituus mm: 14.50
B+: M8
Sijoitus/B+ minuutteina: 5
Kääntö: myötäpäivään
Pistokkeen numero: PL174
Kokonaispituus mm: 204.00
Termiinityyppi: COM
Viestintä: LIN
Vaimennusrataska: SP/FW
Lehmä: IF
Säätimen tyyppi: IR
Huomautuksia: Tämä generaattori on säätimessä COM-liitäntä. On suositeltavaa käyttää OEM-numeroa sopivuuden tarkistamiseen ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 31.00
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 46
Plug no. PL174
Bracket hole 8.50
Position/B+ in min. 5
Pulley SP/FW
Pulley dia. 48.50
Pulley dist. 41.50
Radius 87.00
Radius 2 80.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 204.00 mm
Width/holder arm 21.50
Amp 120
B+ Length 14.50 mm

  • OEM
    CV6T10300GA, F032116222, 1986A01500, 104211-3330, 1781479

  • Konkurrentreferens
    A6435S, DAN1313, DRA1482, LRA03821, 28-6931, 20502, 210874, 210874A, 444213, 12090765, 0986084670

  • NormaliseratArtNr
    a6435s, cv6t10300ga, dan1313, dra1482, f032116222, lra03821, 1986a01500, 20502, 210874, 210874a, 286931, 444213, 1781479, 12090765, 0986084670, 1042113330

  • Passar modeller
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: M1DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: M2DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: SFDA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJA Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJB Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJB Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJC Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJA Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJD Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Estate From date: 01-02-2012 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Estate From date: 01-10-2017 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Hatchback From date: 01-10-2017 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH From date: 01-10-2017 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-02-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Tourneo Model series: Tourneo Connect Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2GA Body: MPV From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Ford Model: Transit Model series: Transit Connect Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2GA Body: Van From date: 01-02-2013 Fuel: Gasoline Approved: Yes
    1 / 6
  • Kuvaus
    Volyymi: 14
    Amp: 120
    Johdinvakauma: 41.50
    Leveys/pidin käsivarsi: 21.50
    Kiinnitysvaieruksen etäisyys: 31.00
    Levyreiän koko: 8.50
    Vaimennusrataskotelon positio: 46
    Vaimennusrataskotelon reiän koko: 8.00
    Vaimennusrattaan halkaisija: 48.50
    Urien määrä/rataska: 6
    Säde: 87.00
    Säde 2: 80.50
    B+ pituus mm: 14.50
    B+: M8
    Sijoitus/B+ minuutteina: 5
    Kääntö: myötäpäivään
    Pistokkeen numero: PL174
    Kokonaispituus mm: 204.00
    Termiinityyppi: COM
    Viestintä: LIN
    Vaimennusrataska: SP/FW
    Lehmä: IF
    Säätimen tyyppi: IR
    Huomautuksia: Tämä generaattori on säätimessä COM-liitäntä. On suositeltavaa käyttää OEM-numeroa sopivuuden tarkistamiseen ennen tilaamista.

    Tiedostot

  • Määrittely
    B+ M8
    Communication LIN
    Mount. bracket dist. 31.00
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 46
    Plug no. PL174
    Bracket hole 8.50
    Position/B+ in min. 5
    Pulley SP/FW
    Pulley dia. 48.50
    Pulley dist. 41.50
    Radius 87.00
    Radius 2 80.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 204.00 mm
    Width/holder arm 21.50
    Amp 120
    B+ Length 14.50 mm
  • Nämä ajoneuvot sopivat

    • OEM
      CV6T10300GA, F032116222, 1986A01500, 104211-3330, 1781479

    • Konkurrentreferens
      A6435S, DAN1313, DRA1482, LRA03821, 28-6931, 20502, 210874, 210874A, 444213, 12090765, 0986084670

    • NormaliseratArtNr
      a6435s, cv6t10300ga, dan1313, dra1482, f032116222, lra03821, 1986a01500, 20502, 210874, 210874a, 286931, 444213, 1781479, 12090765, 0986084670, 1042113330

    • Passar modeller
      Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: M1DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: M2DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: Ecoboost Size of motor: 1.0 Brand of engine: SFDA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: MPV From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJA Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJB Body: Hatchback From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJB Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJC Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJA Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFJD Body: Van From date: 01-01-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Estate From date: 01-02-2012 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Hatchback From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Estate From date: 01-10-2017 Fuel: Gasoline Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH Body: Hatchback From date: 01-10-2017 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DH From date: 01-10-2017 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-02-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Grand C-Max Model series: Grand C-Max Model type: EcoBoost Size of motor: 1.0 Brand of engine: SFDA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M1DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Grand C-Max Model series: Grand C-Max Van Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2DA Body: Van From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Tourneo Model series: Tourneo Connect Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2GA Body: MPV From date: 01-11-2013 Fuel: Gasoline Approved: Yes
      Ford Model: Transit Model series: Transit Connect Model type: EcoBoost Size of motor: 1.0 Brand of engine: M2GA Body: Van From date: 01-02-2013 Fuel: Gasoline Approved: Yes
