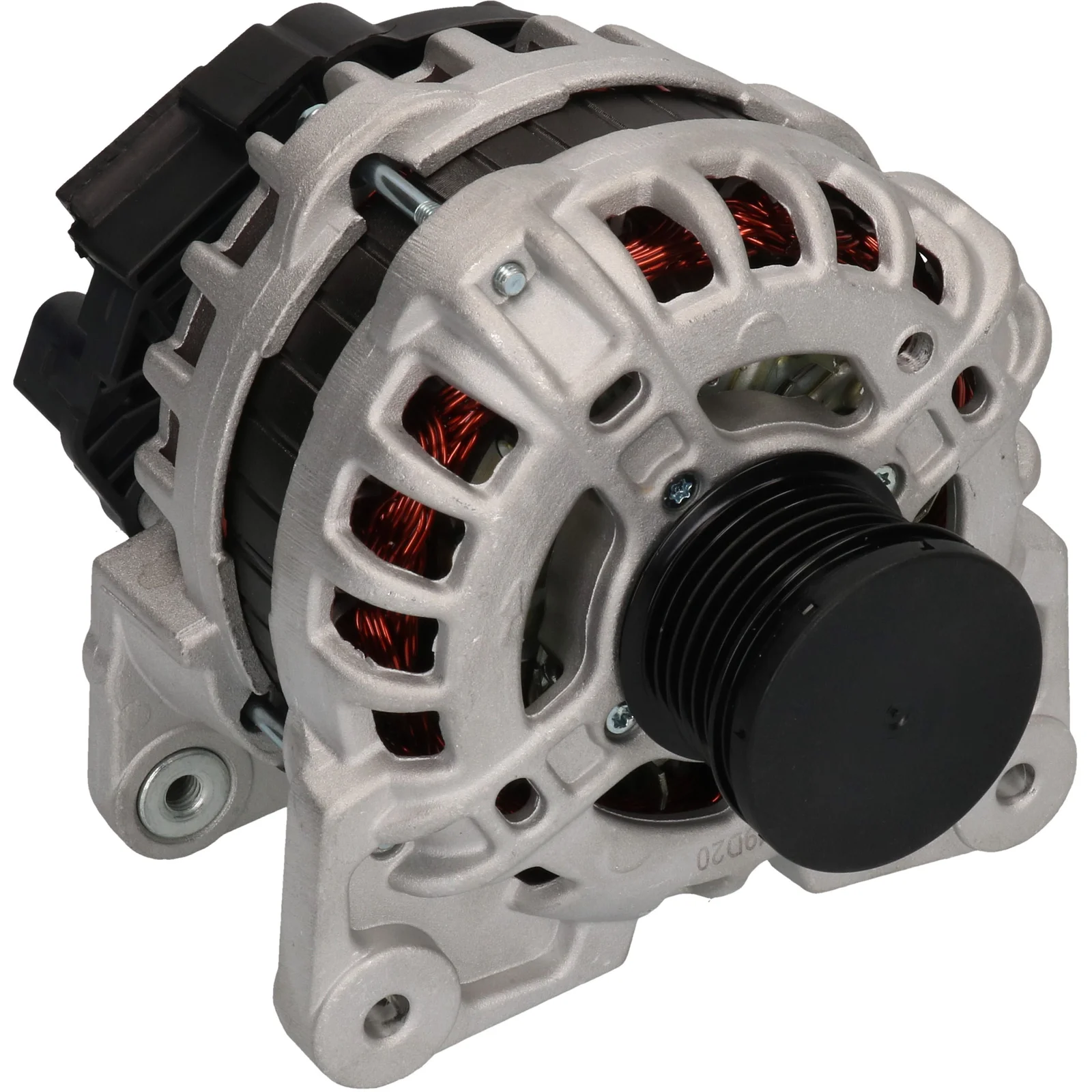

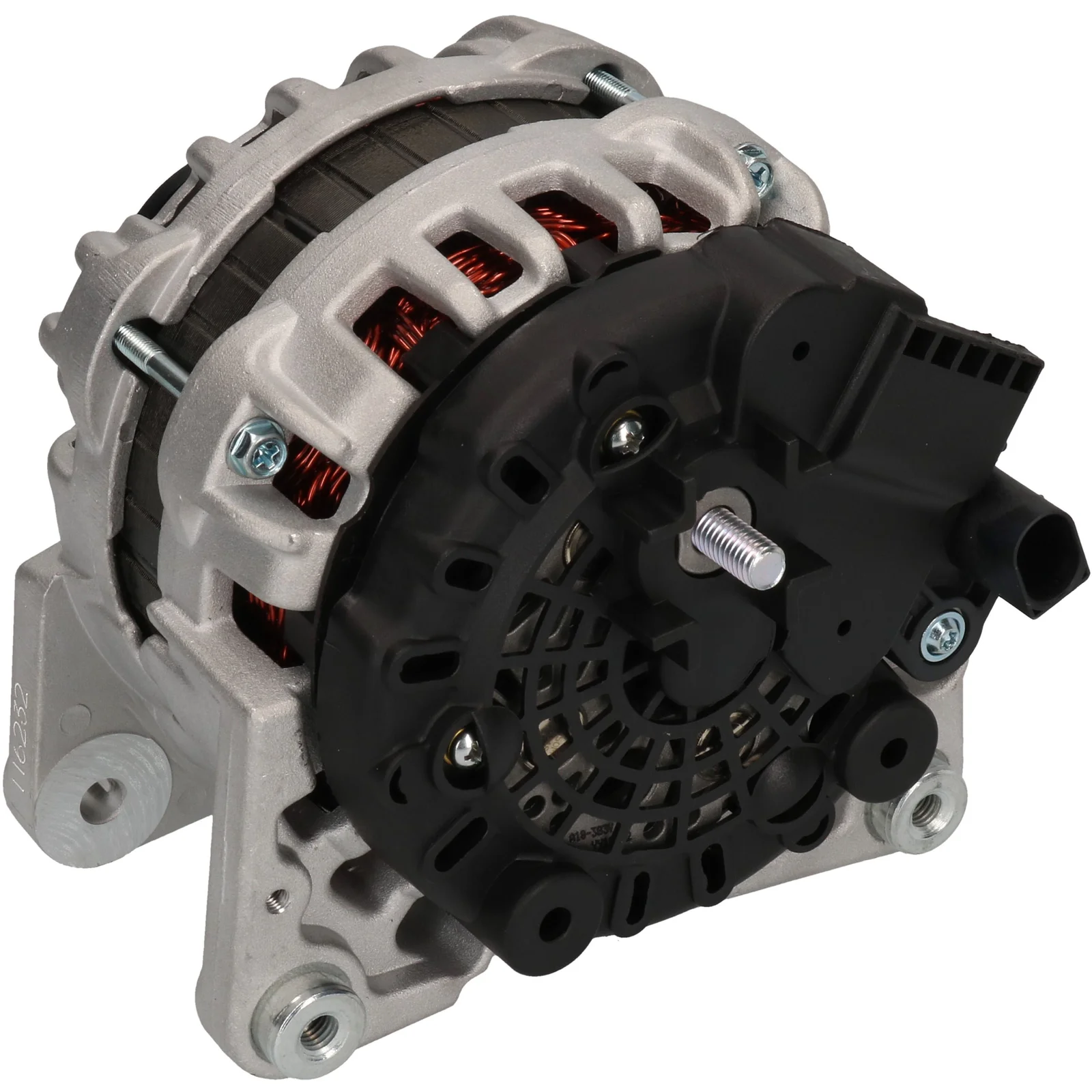

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116232

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, A: 110, Kääntö: myötäpoikki, Asennuskehikon etäisyys: 60.60

Kuvaus

Jännite: 14
Amp: 110
Holkin etäisyys: 29.00
Leveys/pitimen varren etäisyys: 14.50
Koukun kiinnityskohdan etäisyys: 60.60
Koukun reikä: 8.50
Vihjan säätökiinnityskohdan sijainti: 45
Vihjan säätökiinnityskohdan reiän koko: 8.50
Holkin halkaisija: 49.30
Urien määrä/holkki: 6
Säde: 90.00
Säde 2: 90.00
B+: M8
Sijainti/B+ minimissä: 50
Kääntyminen: Kello myötä
Pistokkeen numero: PL125
Kokonaispituus mm: 174.50
S Musta tyyppi: COM
Viestintä: LIN
Holkki: SP/FW
Tuuletin: IF
Regulaattorityyppi: IR
Huomautuksia: Tämä generaattoriin liittyvä säätölaite sisältää COM-liittimen. On suositeltavaa käyttää OEM-numeroa oikeellisuuden varmistamiseksi ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 60.60
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 50
Pulley SP/FW
Pulley dia. 49.30
Pulley dist. 29.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 174.50 mm
Width/holder arm 14.50
Amp 110

  • OEM
    F000BL0603, F000BL0664, F032116232, 04C903023D, 04C903023DX, 04C903023J, 04C903023JX, 1986A01069

  • Konkurrentreferens
    A0474, A0474PR, A0513, CAL10017, CAL10544, DRA1248, 8EL011713-391, 28-6976, 211.519.1102, 24117N, 24118N, 456405, 12090698, 12090909, 32080001, 0986085030

  • NormaliseratArtNr
    a0474, a0474pr, a0513, cal10017, cal10544, dra1248, f000bl0603, f000bl0664, f032116232, 04c903023d, 04c903023dx, 04c903023j, 04c903023jx, 8el011713391, 1986a01069, 24117n, 24118n, 286976, 456405, 12090698, 12090909, 32080001, 0986085030, 2115191102

  • Passar modeller
    Seat Model: Ibiza Model series: Ibiza Model type: Sportcoupe Size of motor: 1.0 Brand of engine: CHYB Type description: 6J1, 6P1 Body: Coupe From date: 01-05-2015 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J5, 6P5 Body: Hatchback From date: 01-05-2015 To date: 01-06-2017 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: 6J8, 6P8 Body: Estate From date: 01-05-2015 To date: 01-07-2016 Fuel: Gasoline Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: KJ1, KJG Body: Hatchback From date: 01-01-2017 Fuel: Petrol Approved: Yes
    Seat Model: Ibiza Model series: Ibiza Type of engine: MPi Size of motor: 1.0 Brand of engine: DFNA Type description: KJ1 Body: Hatchback From date: 01-07-2018 Fuel: Gasoline Approved: Yes
    Seat Model: Mii Model series: Mii Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Type description: KF1_ Body: Hatchback From date: 01-10-2012 To date: 01-07-2019 Fuel: Gas Approved: Yes
    Seat Model: Mii Model series: Mii Size of motor: 1.0 Brand of engine: CHYA Type description: KF1_ Body: Hatchback From date: 01-10-2011 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
    Seat Model: Mii Model series: Mii Size of motor: 1.0 Brand of engine: CHYB Type description: KF1_ Body: Hatchback From date: 01-10-2011 To date: 01-07-2019 Fuel: Gasoline Approved: Yes
    Seat Model: Toledo Model series: Toledo Size of motor: 1.6 Brand of engine: CWVA Type description: KG3 Body: Hatchback From date: 01-05-2015 To date: 01-04-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Citigo Model series: Citigo Model type: CNG Size of motor: 1.0 Brand of engine: CPGA Body: Hatchback From date: 01-11-2012 To date: 01-08-2019 Fuel: Gasoline/gas Approved: Yes
    Skoda Model: Citigo Model series: Citigo Size of motor: 1.0 Brand of engine: CHYA Body: Hatchback From date: 01-10-2011 To date: 01-08-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Citigo Model series: Citigo Size of motor: 1.0 Brand of engine: CHYB Body: Hatchback From date: 01-10-2011 To date: 01-08-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.6 Brand of engine: CWVA Type description: NJ3 Body: Hatchback From date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.6 Brand of engine: CWVA Type description: NJ5 Body: Estate From date: 01-01-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Skoda Model: Kamiq Model series: Kamiq Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NW4 Body: SUV From date: 01-07-2019 Fuel: Petrol Approved: Yes
    Skoda Model: Karoq Model series: Karoq Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NU7 Body: SUV From date: 01-06-2020 Fuel: Petrol Approved: Yes
    Skoda Model: Octavia Model series: Octavia Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NX3 Body: Hatchback From date: 01-07-2020 Fuel: Petrol Approved: Yes
    Skoda Model: Scala Model series: Scala Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NW1 Body: Hatchback From date: 01-02-2019 Fuel: Petrol Approved: Yes
    VW Model: Load Up Model series: Load Up Model type: BlueMotion Size of motor: 1.0 Brand of engine: CHYB Type description: 121, 122, BL1, BL2 Body: Box From date: 01-05-2016 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
    VW Model: Load Up Model series: Load Up Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Body: Van From date: 01-12-2014 To date: 01-08-2020 Fuel: Gasoline Approved: Yes
    VW Model: Load Up Model series: Load Up Size of motor: 1.0 Brand of engine: CHYA Body: Van From date: 01-12-2014 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: AW1, BZ1, AE1 Body: Hatchback From date: 01-06-2017 To date: 01-08-2021 Fuel: Petrol Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYC Type description: AW1 Body: Hatchback From date: 01-08-2017 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: MPi Size of motor: 1.0 Brand of engine: DFNA Type description: AW1, BZ1 Body: Hatchback From date: 01-09-2018 Fuel: Gasoline Approved: Yes
    VW Model: Up Model series: Up Model type: EcoFuel Size of motor: 1.0 Brand of engine: CPGA Body: Hatchback From date: 01-11-2012 To date: 01-08-2020 Fuel: Gas Approved: Yes
    VW Model: Up Model series: Up Size of motor: 1.0 Brand of engine: CHYA Type description: 121 Body: Hatchback From date: 01-08-2011 To date: 01-08-2020 Fuel: Gasoline Approved: Yes
    VW Model: Up Model series: Up Size of motor: 1.0 Brand of engine: CHYB Type description: 121 Body: Hatchback From date: 01-08-2011 To date: 01-11-2019 Fuel: Gasoline Approved: Yes
