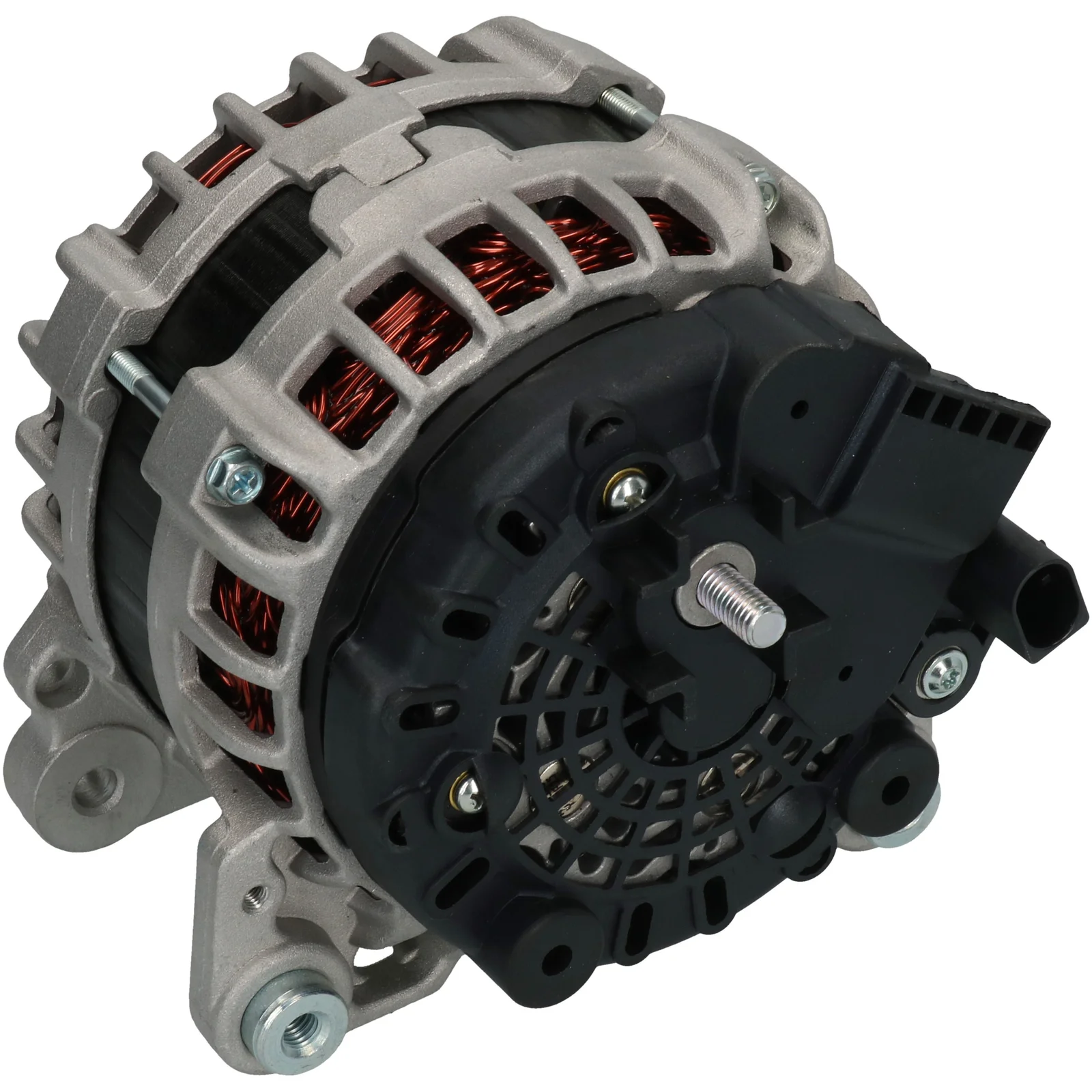

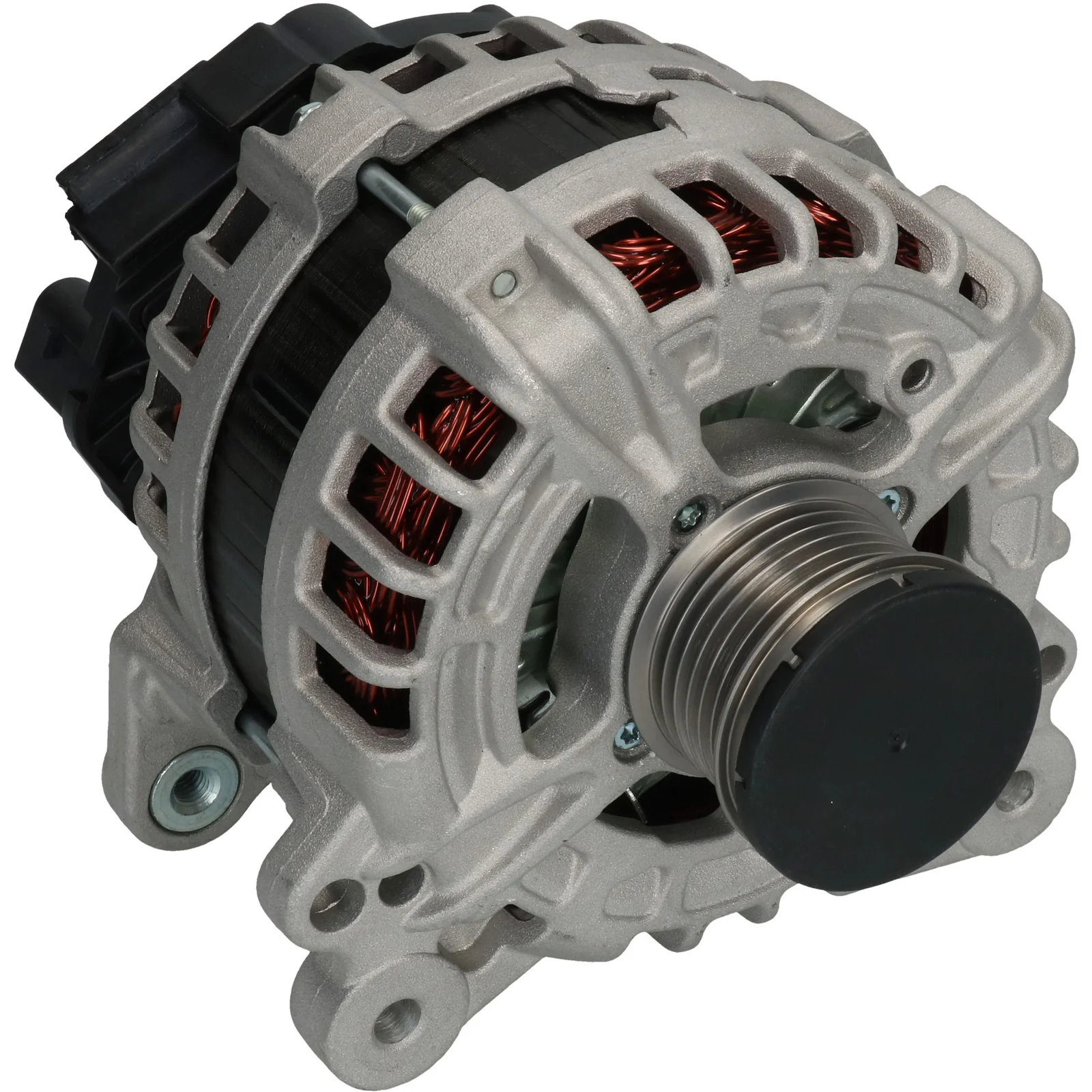

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116383

HC-Cargo Laturi

Tekniset tiedot:

Napa: 14, A: 140, Kierto: Myötäperään, Asennuskehikon etäisyys: 61.00

Kuvaus

Jännite: 14
Amp: 140
Vaihdelaatikon halkaisija: 29.50
Leveys/kiinnitysalustan varren leveys: 14.00
Kotelon kiinnityskiskon etäisyys: 61.00
Kiskon reikä: 8.50
Kiskon reikä 2: M8
Vöden säätögeometria kiinnitysalustan reiällä: 45
Vöden säätöjalustan reiällä 1: 8.50
Vöden säätöjalustan reiällä 2: M8
Välineen halkaisija: 49.30
Urien määrä/ vapaapää: 6
Säde: 90.00
Säde 2: 90.00
B+: M8
Sijainti/B+ min.: 52
Kääntö: myötäpäivään
Pistokkeen numero: PL125
Kokonaispituus mm: 185.00
Terminaalityyppi: COM
Välinen viestintä: LIN
Vaihdelaatikko: SP/FW
H vaku: IF
Säädin tyyppi: IR
Huomautukset: Tämä generaattori on ruuvattu COM-terminaali säätimeen. On suositeltavaa käyttää OEM-numeron tarkastamiseen sopivuutta ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Bracket hole 2 M8
Position/B+ in min. 52
Pulley SP/FW
Pulley dia. 49.30
Pulley dist. 29.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 185.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    F000BL0801, F000BL0802, F000BL08A1, F000BL08J1, F000BL08J2, F032116383, 04C903023C, 04C903023CX, 04E903024Q, 1986A01375

  • Konkurrentreferens
    A0592S, CAL10549, DRA1536, 28-7570, 211.530.1402, 305.932.140, 209260, 209260A, 443304, 443392, 444217, 444275, 12090733, 12091034, 32118301, 0986086090, 0986086220

  • NormaliseratArtNr
    a0592s, cal10549, dra1536, f000bl0801, f000bl0802, f000bl08a1, f000bl08j1, f000bl08j2, f032116383, 04c903023c, 04c903023cx, 04e903024q, 1986a01375, 209260, 209260a, 287570, 443304, 443392, 444217, 444275, 12090733, 12091034, 32118301, 305932140, 0986086090, 0986086220, 2115301402

  • Passar modeller
    Seat Model: Ibiza Model series: Ibiza Size of motor: 1.0 Brand of engine: CHYB Type description: KJ1, KJG Body: Hatchback From date: 01-01-2017 Fuel: Petrol Approved: Yes
    Seat Model: Toledo Model series: Toledo Size of motor: 1.6 Brand of engine: CWVA Type description: KG3 Body: Hatchback From date: 01-05-2015 To date: 01-04-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.6 Brand of engine: CWVA Type description: NJ3 Body: Hatchback From date: 01-01-2015 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.6 Brand of engine: CWVA Type description: NJ5 Body: Estate From date: 01-01-2015 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Skoda Model: Kamiq Model series: Kamiq Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NW4 Body: SUV From date: 01-07-2019 Fuel: Petrol Approved: Yes
    Skoda Model: Karoq Model series: Karoq Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NU7 Body: SUV From date: 01-06-2020 Fuel: Petrol Approved: Yes
    Skoda Model: Octavia Model series: Octavia Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NX3 Body: Hatchback From date: 01-07-2020 Fuel: Petrol Approved: Yes
    Skoda Model: Rapid Model series: Rapid Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NH1 Body: Hatchback From date: 01-05-2015 To date: 01-12-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Rapid Model series: Rapid Model type: SRE Size of motor: 1.6 Type description: NH3 Body: Hatchback From date: 01-06-2015 To date: 01-12-2019 Fuel: Gasoline Approved: Yes
    Skoda Model: Scala Model series: Scala Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: NW1 Body: Hatchback From date: 01-02-2019 Fuel: Petrol Approved: Yes
    Skoda Model: Yeti Model series: Yeti Size of motor: 1.6 Brand of engine: CWVA Type description: 5L From date: 01-04-2014 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
    VW Model: Caddy Model series: Caddy Alltrack Model type: SRE Size of motor: 1.6 Brand of engine: CWVA Type description: SAA Body: Box Body/MPV From date: 01-11-2015 To date: 01-09-2020 Fuel: Petrol Approved: Yes
    VW Model: Caddy Model series: Caddy MPV Size of motor: 1.6 Brand of engine: CWVA Type description: SAA, SAH Body: Box Body/MPV From date: 01-11-2015 To date: 01-09-2020 Fuel: Petrol Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYB Type description: AW1, BZ1, AE1 Body: Hatchback From date: 01-06-2017 To date: 01-08-2021 Fuel: Petrol Approved: Yes
    VW Model: Polo Model series: Polo Size of motor: 1.0 Brand of engine: CHYC Type description: AW1 Body: Hatchback From date: 01-08-2017 Fuel: Gasoline Approved: Yes
    VW Model: Polo Model series: Polo Van Model type: TDI Type of engine: TDI Size of motor: 1.4 Brand of engine: CUTA Type description: 6R Body: Hatchback Van From date: 01-03-2014 To date: 01-10-2017 Fuel: Diesel Approved: Yes
