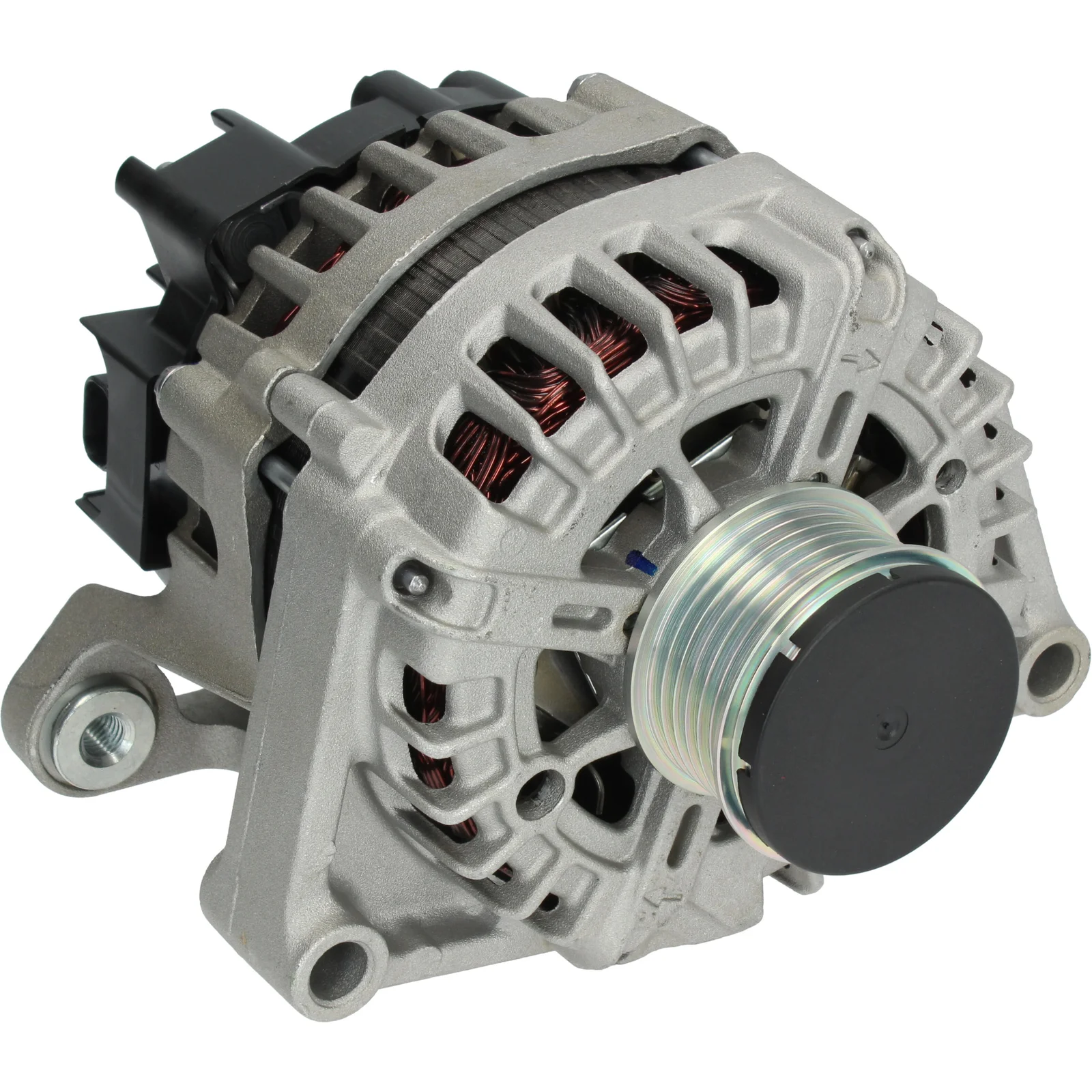

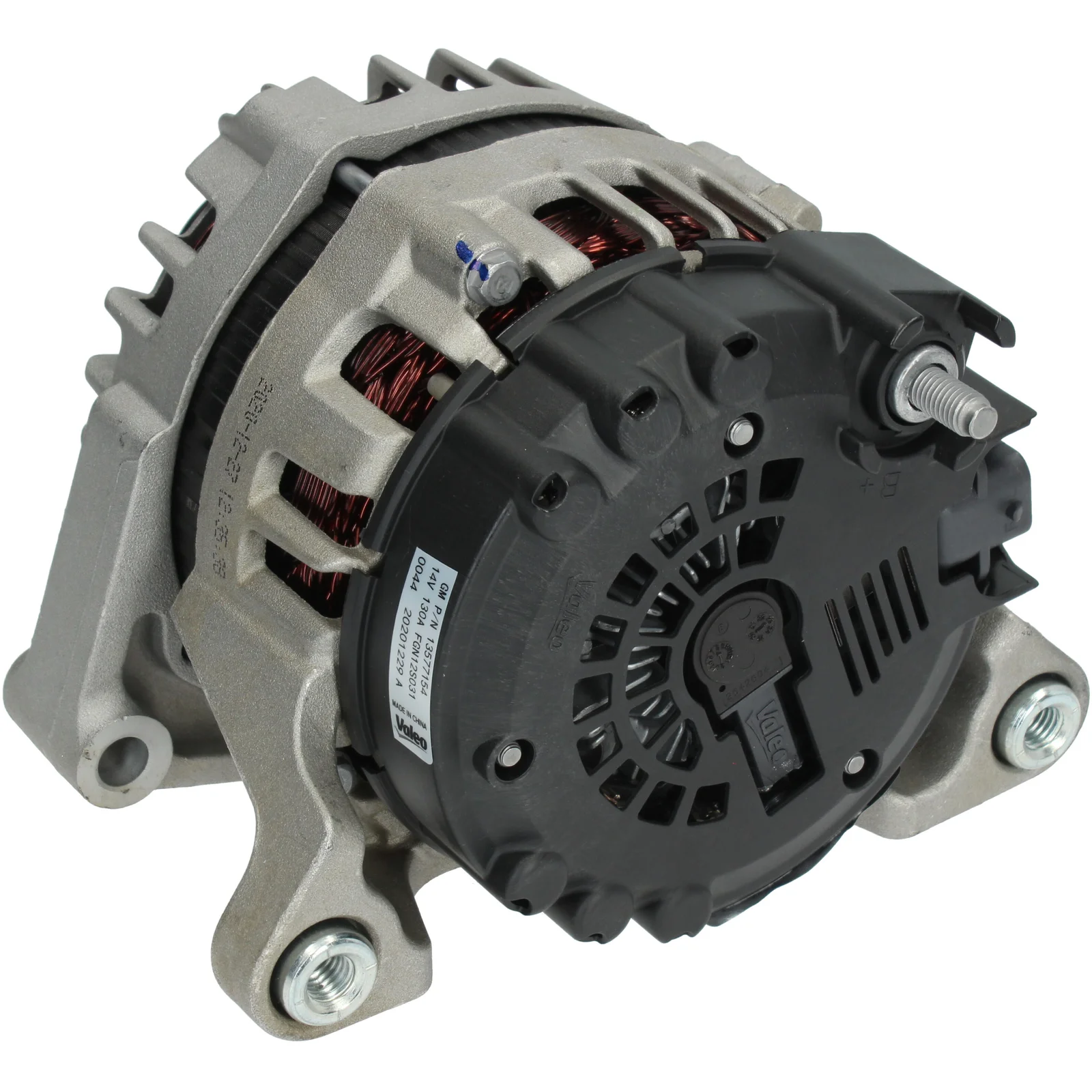

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116389

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, A: 120, Käännös: myötä, Asennuksen kannattimen väli: 60.50

Kuvaus

Jännite: 14
Ampeeri: 120
holkki etäisyys: 54,40
Leveys/kiinnityskahva: 33,40
Telineen kiinnitysraudan etäisyys: 60,50
Telineen reikä: 10,70
Hihnan säätörahakulman sijainti: 50
Hihnan säätörahakulman reikä 1: 10,60
Holkin ø.: 53,60
urien määrä/holkki: 6
Säde: 92,00
Säde 2: 92,00
B+: M8
Sijainti/B+ väh.: 56
D+ koko: Pistoke
kääntymissuunta: Myötäpäivään
Pistokkeen nro.: PL180
Kokonaispituus mm: 187,00
Terminaalityyppi: L-F
Viestintä: PWM
Holkki: SP/FW
Tuuletin: IF
Säätimen tyyppi: IR
Huomautuksia: Tämä generaattori on säätimessä PWM-terminalilla. On suositeltavaa tarkistaa sopivuus OEM-numeron avulla ennen tilausta.

Tiedostot

Määrittely

B+ M8
Communication PWM
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 10.60
Belt. adj. brackethole pos. 50
Plug no. PL180
Bracket hole 10.70
Position/B+ in min. 56
Pulley SP/FW
Pulley dia. 53.60
Pulley dist. 54.40
Radius 92.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 187.00 mm
Width/holder arm 33.40
Amp 120

  • OEM
    F032116389, TG12C072, 2605854A, 13500583

  • Konkurrentreferens
    LRA04423, 28-8532, 40729, 89216847

  • NormaliseratArtNr
    f032116389, lra04423, tg12c072, 40729, 288532, 2605854a, 13500583, 89216847

  • Passar modeller
    Opel Model: Astra Model series: Astra J Model type: ecoFlex Size of motor: 1.4 Brand of engine: A14XEL Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Ecoflex Size of motor: 1.4 Brand of engine: A14XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Model type: ecoFlex Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-10-2011 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: LPG Size of motor: 1.4 Brand of engine: A14NET From date: 01-07-2014 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-01-2012 To date: 01-10-2015 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2011 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.4 Brand of engine: A14XER From date: 01-06-2012 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NET From date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra Sports Tourer Model type: LPG Type of engine: BiFuel Size of motor: 1.4 Brand of engine: A14NET Type description: J Body: Estate From date: 01-12-2011 To date: 01-10-2015 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK V Type of engine: Turbo Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-08-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Size of motor: 1.4 Brand of engine: A14NEL Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.4 Brand of engine: A14NET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.4 Brand of engine: A14XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14NET Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14XEL Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.4 Brand of engine: A14XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    1 / 5
