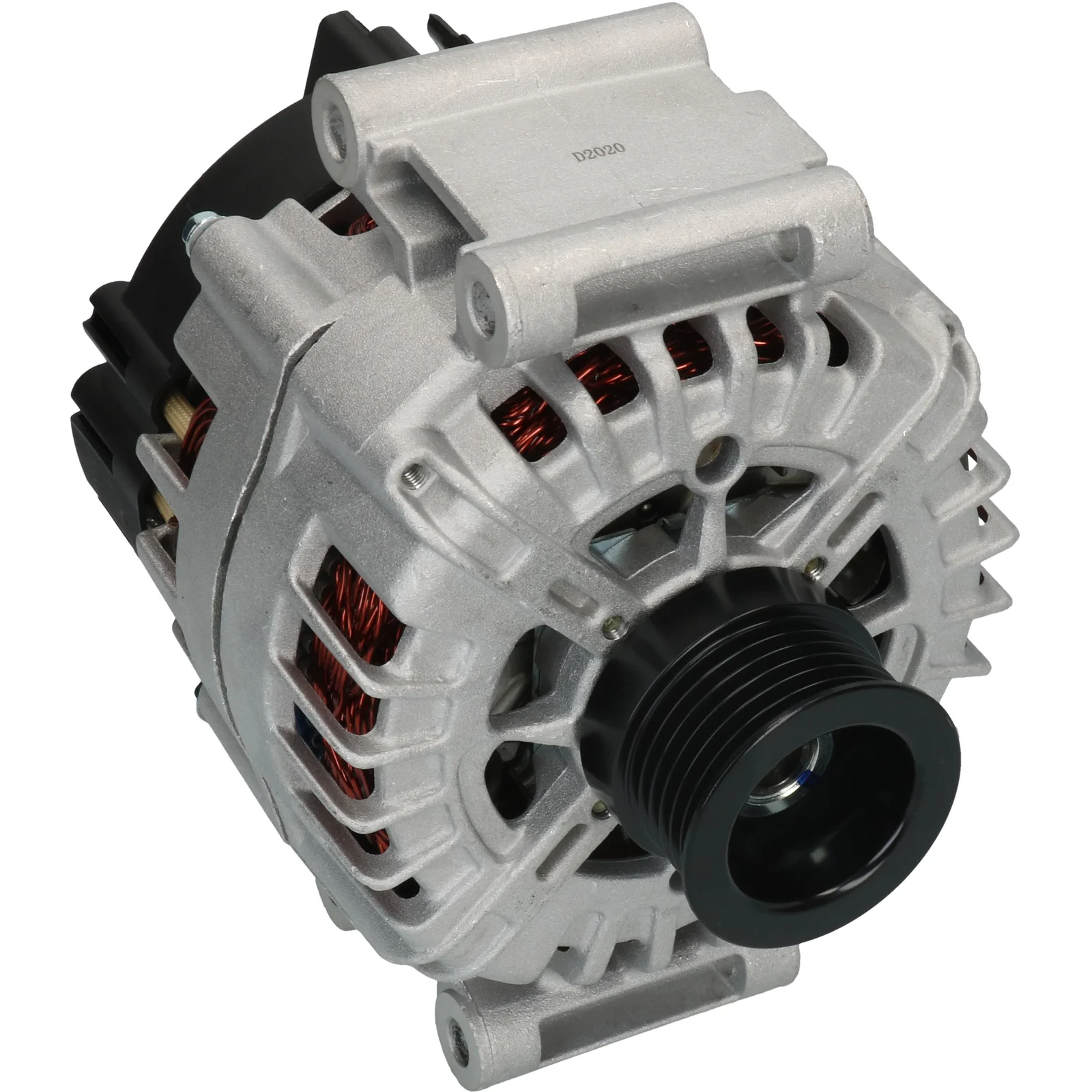

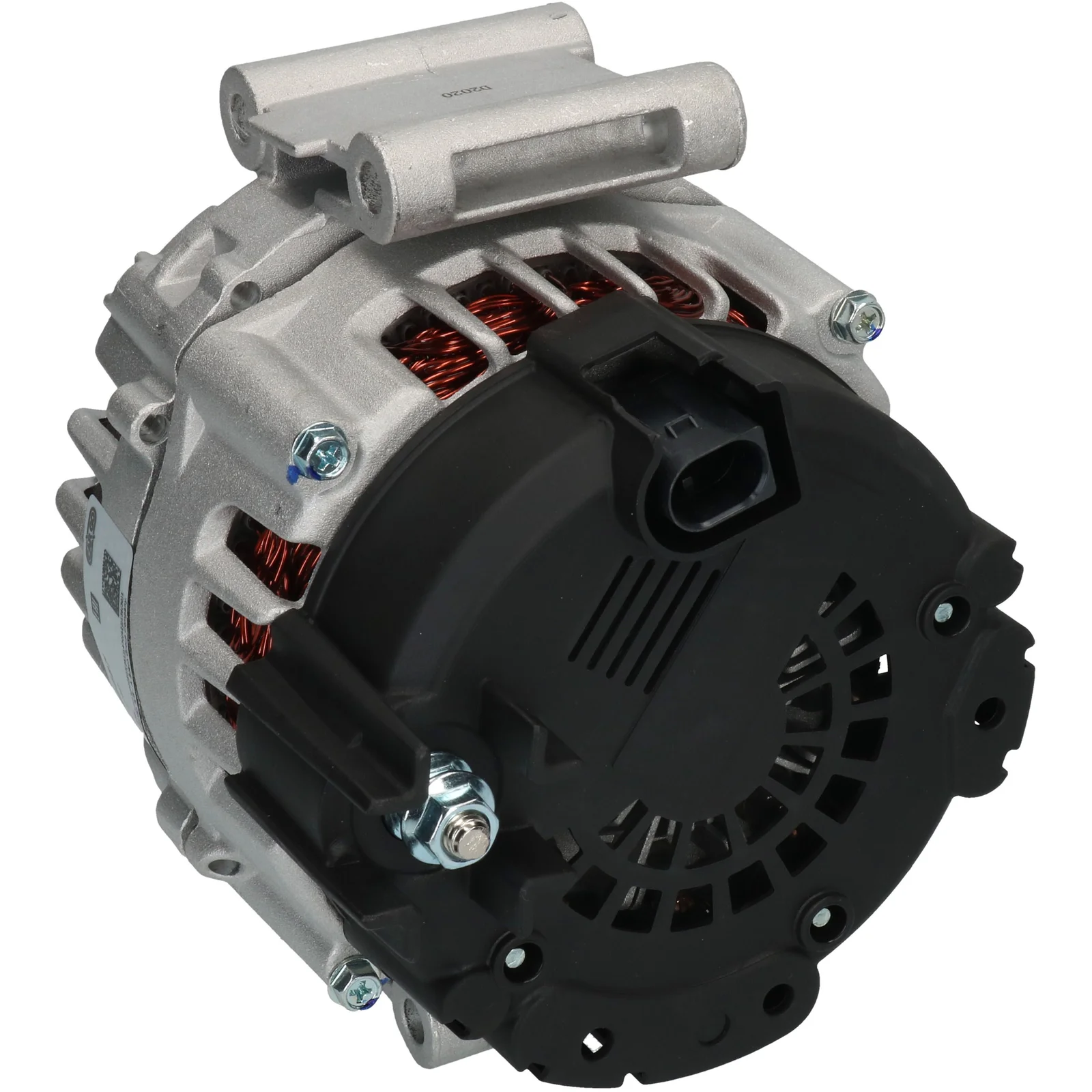

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116487

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Ampeeria: 180, Asennuskiskon etäisyys: 56,00, Ratas halkaisija: 49,50

Kuvaus

Jännite: 14
Amp: 180
Holkki etäisyys: 31,50
Leveys/pidikkeen varsi: 70,00
Kiinnityskehikon etäisyys: 56,00
Kehikon reikä: 9,20
Hihnan säätökehikon reikä 1: 9,20
Holkin halkaisija: 49,50
Uurteet/holkki: 6
Säde: 77,50
Säde 2: 85,00
B+: M8
Sijainti/B+ vähimmäis: 45
Pistokkeen numero: PL125
Kokonaispituus mm: 191,00
Terminaalityyppi: COM
Viestintä: LIN
Holkki: SP
Tuuletin: IF
Säädin tyyppi: IR
Huomautukset: Tällä generaattorilla on COM-terminaali säätimeen. On suositeltavaa käyttää OEM-numeroa käyttökelpoisuuden tarkistamiseen ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.20
Plug no. PL125
Bracket hole 9.20
Position/B+ in min. 45
Pulley SP
Pulley dia. 49.50
Pulley dist. 31.50
Radius 77.50
Radius 2 85.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    a0141540402, F00E100550, F032116487, FG18S016, FGN18S016, 1986A00041, 2543467A, 0141540402

  • Konkurrentreferens
    A3430S, CAL15384, DRA1269, LRA03435, 28-6547, 225.301.1802, 555.973.180, 200221, 439649, 440219, 12091048, 0986047651

  • NormaliseratArtNr
    a0141540402, a3430s, cal15384, dra1269, f00e100550, f032116487, fg18s016, fgn18s016, lra03435, 1986a00041, 200221, 286547, 439649, 440219, 2543467a, 12091048, 0141540402, 555973180, 0986047651, 2253011802

  • Passar modeller
    Mercedes-Benz Model: 280 Model series: R 280 Size of motor: 3.0 Brand of engine: M272.945 Type description: W251 Body: MPV From date: 01-01-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 300 Model series: R 300 Size of motor: 3.0 Brand of engine: M272.945 Type description: W251 Body: MPV From date: 01-07-2009 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: ML 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.967 Type description: 164 From date: 01-02-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: R 350 Model type: 4 Matic Size of motor: 3.5 Brand of engine: M272.967 Type description: 251 Body: MPV From date: 01-08-2005 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: R 350 Size of motor: 3.5 Brand of engine: M272.967 Type description: W251 Body: MPV From date: 01-01-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: SL 350 Size of motor: 3.5 Brand of engine: M272.968 Type description: R230 Body: Convertible From date: 01-04-2008 To date: 01-01-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: SLK 350 Size of motor: 3.5 Brand of engine: M272.969 Type description: R171 Body: Convertible From date: 01-01-2008 To date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 350 Model series: SLK 350 Size of motor: 3.5 Brand of engine: M276.956 Type description: R172 Body: Convertible From date: 01-02-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 450 Model series: GL 450 Size of motor: 4.7 Brand of engine: M273.923 Type description: 164 From date: 01-09-2006 To date: 01-08-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: GL 500 Size of motor: 5.5 Brand of engine: M273.963 Type description: 164 From date: 01-09-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: ML 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.963 Type description: W164 From date: 01-12-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 500 Model series: R 500 Model type: 4 Matic Size of motor: 5.5 Brand of engine: M273.963 Type description: W251 Body: MPV From date: 01-05-2007 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: R-Class Model series: R-Class Model type: 4 Matic Size of motor: 3.0 Brand of engine: M272.945 Type description: W251 Body: MPV From date: 01-05-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
