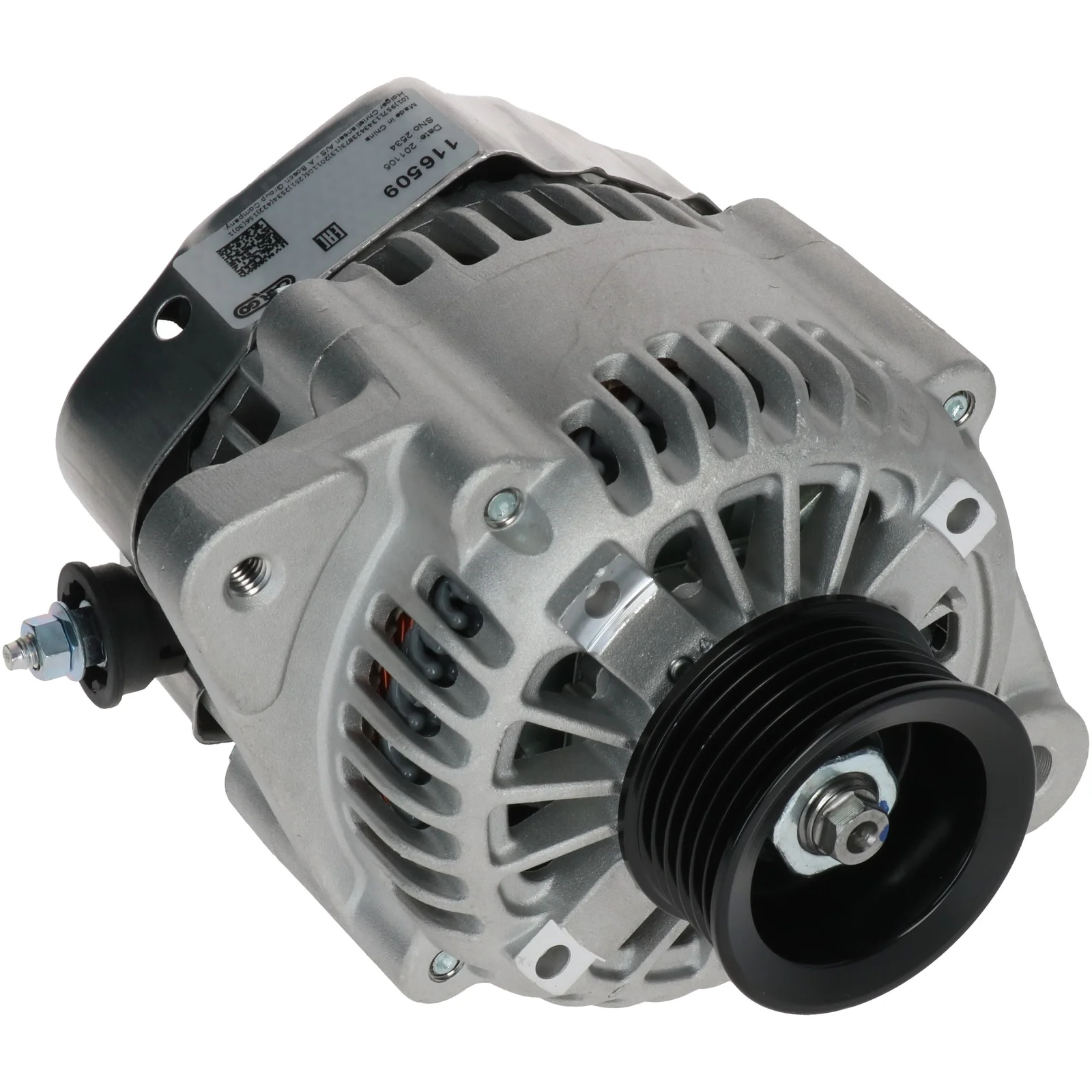

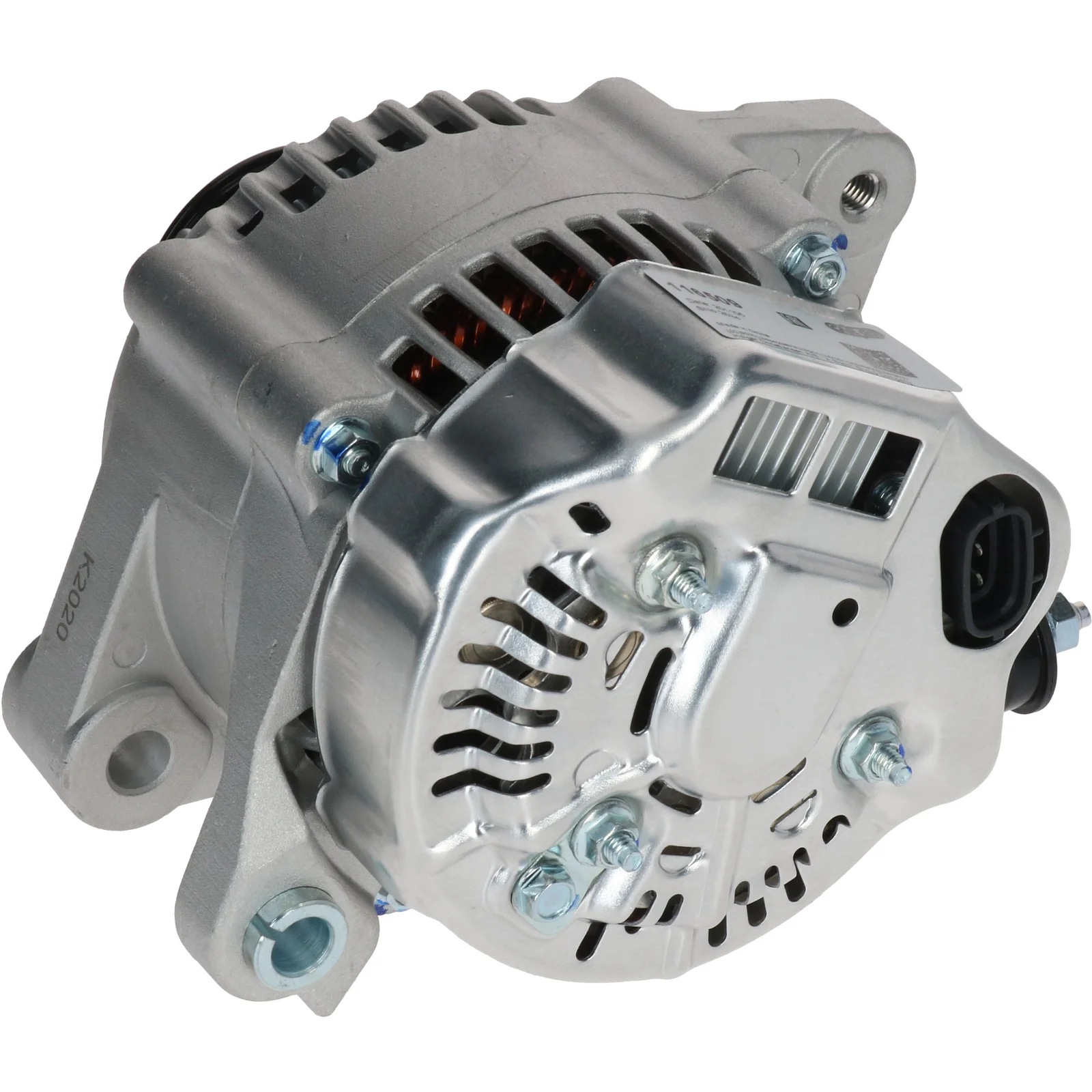

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116509

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Amppi: 80, Kierto: myötätaivutus, Asennustelineen etäisyys: 39,50

Kuvaus

Volyymi: 14
Amp: 80
Pultti etäisyys: 48.00
Leveys/kiinnityskunvanivelen etäisyys: 27.00
Kehyksetuki etäisyys: 39.50
Kehikkaulus: 11.00
Hihnan säädettävä kehyksetuki sijainti: 59
Hihnan säädettävä kehyksetuki 1: M8
Pultti halkaisija: 55.00
urat/pultti: 6
Säde: 75.00
Säde 2: 80.00
B+: M6
Sijainti/B+ min.: 7
D+ koko: Pistoke
Kääntyminen: myötäpäivään
Pistokkeen numero: PL95
Kokonaispituus mm: 158.00
Terminaalityyppi: C-IG-L
Valaisintyyppi: Ei aktiivinen
Pultti: SP
Tuulettin: IF
Regulaattorin tyyppi: IR

Tiedostot

Määrittely

B+ M6
Mount. bracket dist. 39.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 59
Plug no. PL95
Bracket hole 11.00
Position/B+ in min. 7
Pulley SP
Pulley dia. 55.00
Pulley dist. 48.00
Radius 75.00
D+ Size Plug
Radius 2 80.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Lamp type Inactive
Terminal type C-IG-L
Voltage 14
Total length 158.00 mm
Width/holder arm 27.00
Amp 80

  • OEM
    F032116509, 27060-b1030, 27060-B1030, 27060-B1030-000, 27060-B1050, 27060B1050000, 104210-8200, 104210-8201, 104210-8202, 104210-8210, 104210-8211, 104210-8212

  • Konkurrentreferens
    A6200(DENSO), A6200S, A6201(DENSO), A6201S, CAL40355, DAN979, DAN980, DRA0936, DRA0937, J5116036, LRA03421, MAN7518, 28-6533, 28-6913, 115.526.080, 115.529.080, 217.125.802, 217.128.802, 209395, 209395A, 553213RI, 12060894, 12061199, 0986082460, 063377518010, 063377519010

  • NormaliseratArtNr
    a6200denso, a6200s, a6201denso, a6201s, cal40355, dan979, dan980, dra0936, dra0937, f032116509, j5116036, lra03421, man7518, 27060b1030, 27060b1030000, 27060b1050, 27060b1050000, 209395, 209395a, 286533, 286913, 553213ri, 12060894, 12061199, 115526080, 115529080, 217125802, 217128802, 0986082460, 1042108200, 1042108201, 1042108202, 1042108210, 1042108211, 1042108212, 063377518010, 063377519010

  • Passar modeller
    Daihatsu Model: Bego Model series: Bego Type of engine: LPG Size of motor: 1.5 Brand of engine: 3SZ-VE Type description: J2_ Body: Closed Off-Road Vehicle From date: 01-06-2009 Fuel: Petrol/Electro Approved: Yes
    Daihatsu Model: Materia Model series: Materia Model type: ECO 4WD Size of motor: 1.5 Brand of engine: 3SZ-VE Type description: M4_ Body: Hatchback From date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Materia Model series: Materia Size of motor: 1.3 Brand of engine: K3-VE Type description: M4_ Body: Hatchback From date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Materia Model series: Materia Size of motor: 1.5 Brand of engine: 3SZ-VE Type description: M4_ Body: Hatchback From date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Materia Model series: Materia Type of engine: LPG Size of motor: 1.5 Brand of engine: 3SZ-VE Type description: M4_ Body: MPV From date: 01-01-2010 To date: 01-12-2011 Fuel: Petrol/Electro Approved: Yes
    Daihatsu Model: Rush Model series: Rush Model type: 4x4 Size of motor: 1.5 Brand of engine: 3SZ-VE From date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Rush Model series: Rush Size of motor: 1.5 Brand of engine: 3SZ-VE From date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Sirion Model series: Sirion Size of motor: 1.5 Brand of engine: 3SZ-VE Type description: M3. Body: Hatchback From date: 01-03-2008 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Terios Model series: Terios Model type: 4WD Type of engine: 16V Size of motor: 1.5 Brand of engine: 3SZ-VE Type description: J2_ From date: 01-05-2006 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Terios Model series: Terios Model type: 4x4 Type of engine: DVVT Size of motor: 1.5 Brand of engine: 3SZ-VE Type description: J2_ From date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Terios Model series: Terios Model type: RWD Type of engine: DVVT Size of motor: 1.5 Brand of engine: 3SZ-VE Type description: J2_ From date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Terios Model series: Terios Model type: VVT-i Size of motor: 1.5 Brand of engine: 3SZ-VE Type description: J2_ Body: Closed Off-Road Vehicle From date: 01-12-2006 To date: 01-10-2010 Fuel: Petrol Approved: Yes
    Toyota Model: bB Model series: bB Size of motor: 1.5 Brand of engine: 1NZ-FE Body: MPV From date: 01-03-2000 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Rush Model series: Rush Model type: 4x4 Size of motor: 1.5 From date: 01-03-2006 Fuel: Gasoline Approved: Yes
    Toyota Model: Rush Model series: Rush Size of motor: 1.5 From date: 01-03-2006 Fuel: Gasoline Approved: Yes
