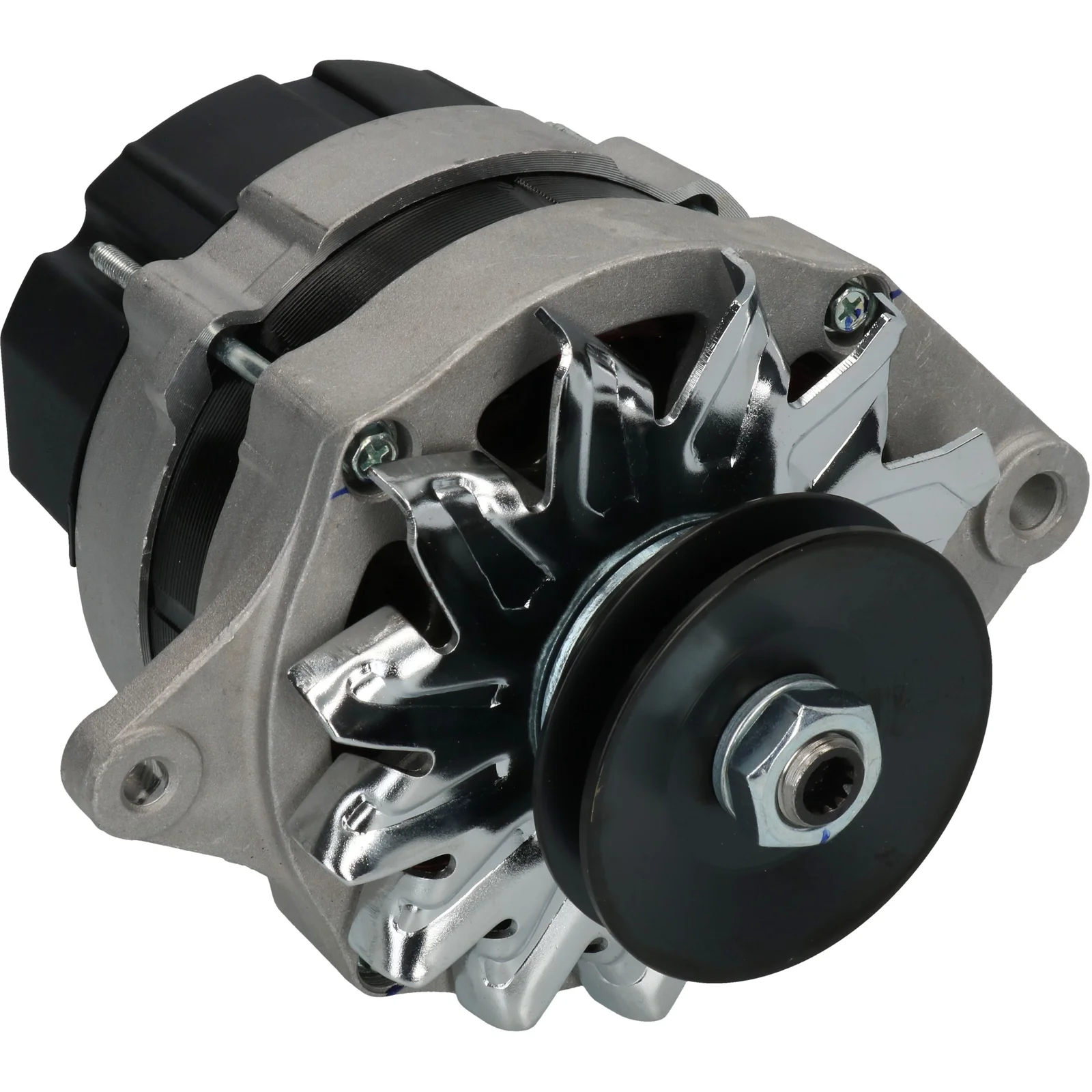

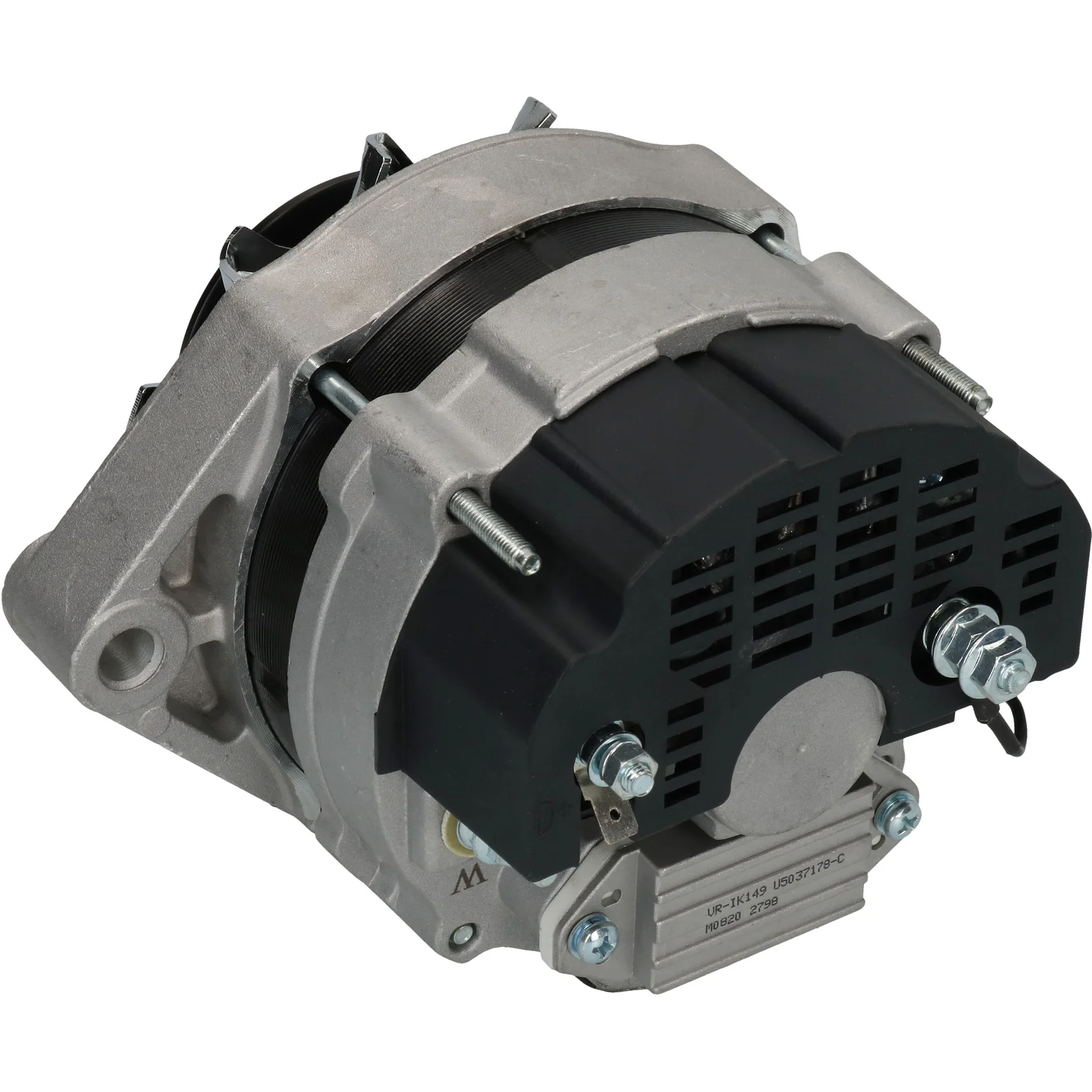

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116545

HC-Cargo Laturi

Tekniset tiedot:

jännite: 14, Amp: 65, Pyörimissuunta: myötäpäivään, Hihnan halkaisija: 77.00

Kuvaus

jännite: 14
amp: 65
Käynnistysratas etäisyys: 61,00
Leveys/pitimen varsi: 27,00
Holkki: 10,20
Hihnan säätöholkin positio: 60
Hihnan säätöholkin ensimmäinen paikka: 7,30
Käynnistysratas dia.: 77,00
Umedet/käynnistysratas: 1
Säde: 83,00
Säde 2: 85,00
B+: M6
Sijoitus/B+ minuutissa: 55
D+ koko: M5-6,30
Kääntö: myötäpäivään
W liittimen tyyppi: M5
Kokonaispituus mm: 178,00
Käynnistysratas: P
Tuuletin: EF

Tiedostot

Määrittely

B+ M6
Belt. adj. bracket hole 1 7.30
Belt. adj. brackethole pos. 60
Bracket hole 10.20
Position/B+ in min. 55
Pulley P
Pulley dia. 77.00
Pulley dist. 61.00
Radius 83.00
D+ Size M5-6.30
Radius 2 85.00
Rotation CW
Fan EF
Grooves/pulley 1
Voltage 14
W plug type M5
Total length 178.00 mm
Width/holder arm 27.00
Amp 65

  • OEM
    a13n277, a13n278, a13n280, a13n69, a13r173, a14n19, aak3581, AAK4821, C000900010120, CT6005700086, F032116545, 9AR2729F, 11.201.513, 11.204.372, 0513, 2522161, 2523458, 2541198, 2541744, 2541756, 2940119, 2940146, 6005003141, 6005003142, 6005003150, 6005011695, 6005700086, 6005700723, 6005700724, 7700008742, 7700012722, 7700017781, 7700034493, 7700034497, 7700034498, 7700034500, 7700591911, 7700683200

  • Konkurrentreferens
    A3231, A3619S, DRA0395, DRA1334, mg478, 8EL015643-151, 575.045.050, 23118N, 200147, 202000, 746875

  • NormaliseratArtNr
    a13n277, a13n278, a13n280, a13n69, a13r173, a14n19, a3231, a3619s, aak3581, aak4821, c000900010120, ct6005700086, dra0395, dra1334, f032116545, mg478, 8el015643151, 9ar2729f, 0513, 23118n, 200147, 202000, 746875, 2522161, 2523458, 2541198, 2541744, 2541756, 2940119, 2940146, 11201513, 11204372, 575045050, 6005003141, 6005003142, 6005003150, 6005011695, 6005700086, 6005700723, 6005700724, 7700008742, 7700012722, 7700017781, 7700034493, 7700034497, 7700034498, 7700034500, 7700591911, 7700683200

  • Passar modeller
    Caterpillar Model: ORTHOPACTOR P3/ Model series: ORTHOPACTOR P3/ Model type: Rollers Brand of engine: D226-6 Approved: Yes
    Caterpillar Model: SISMOPACTOR TT9 Model series: SISMOPACTOR TT9 Model type: Rollers Brand of engine: D226-6 Approved: Yes
    Fendt Model: 311LSA Model series: 311LSA Model type: 2-Wheel Drive Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
    Fendt Model: 612LSA Model series: 612LSA Model type: 2-Wheel Drive Tractors Brand of engine: TD226-6 Body: Tractor Approved: Yes
    Fendt Model: FARMER 311 Model series: FARMER 311 Model type: MFWD Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
    Fendt Model: FARMER 312 Model series: FARMER 312 Model type: MFWD Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
    Fendt Model: FAVORIT 500 SER Model series: FAVORIT 500 SER Model type: 2-Wheel Drive Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
    Fendt Model: FAVORIT 511 C Model series: FAVORIT 511 C Model type: MFWD Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
    Fendt Model: FAVORIT 512 C Model series: FAVORIT 512 C Model type: MFWD Tractors Brand of engine: TD226-6 Body: Tractor Approved: Yes
    Fendt Model: FAVORIT 514 C Model series: FAVORIT 514 C Model type: MFWD Tractors Brand of engine: TD226-6 Body: Tractor Approved: Yes
    Fendt Model: FAVORIT 515 C Model series: FAVORIT 515 C Model type: 2-Wheel Drive Tractors Brand of engine: TD226-6 Body: Tractor Approved: Yes
    Renault Model: 110-54 Model series: 110-54 Model type: MFWD Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
    Renault Model: 120-54 Model series: 120-54 Model type: MFWD Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
    Renault Model: 133-54 Model series: 133-54 Model type: MFWD Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
    1 / 3
  • Kuvaus
    jännite: 14
    amp: 65
    Käynnistysratas etäisyys: 61,00
    Leveys/pitimen varsi: 27,00
    Holkki: 10,20
    Hihnan säätöholkin positio: 60
    Hihnan säätöholkin ensimmäinen paikka: 7,30
    Käynnistysratas dia.: 77,00
    Umedet/käynnistysratas: 1
    Säde: 83,00
    Säde 2: 85,00
    B+: M6
    Sijoitus/B+ minuutissa: 55
    D+ koko: M5-6,30
    Kääntö: myötäpäivään
    W liittimen tyyppi: M5
    Kokonaispituus mm: 178,00
    Käynnistysratas: P
    Tuuletin: EF

    Tiedostot

  • Määrittely
    B+ M6
    Belt. adj. bracket hole 1 7.30
    Belt. adj. brackethole pos. 60
    Bracket hole 10.20
    Position/B+ in min. 55
    Pulley P
    Pulley dia. 77.00
    Pulley dist. 61.00
    Radius 83.00
    D+ Size M5-6.30
    Radius 2 85.00
    Rotation CW
    Fan EF
    Grooves/pulley 1
    Voltage 14
    W plug type M5
    Total length 178.00 mm
    Width/holder arm 27.00
    Amp 65
  • Nämä ajoneuvot sopivat

    • OEM
      a13n277, a13n278, a13n280, a13n69, a13r173, a14n19, aak3581, AAK4821, C000900010120, CT6005700086, F032116545, 9AR2729F, 11.201.513, 11.204.372, 0513, 2522161, 2523458, 2541198, 2541744, 2541756, 2940119, 2940146, 6005003141, 6005003142, 6005003150, 6005011695, 6005700086, 6005700723, 6005700724, 7700008742, 7700012722, 7700017781, 7700034493, 7700034497, 7700034498, 7700034500, 7700591911, 7700683200

    • Konkurrentreferens
      A3231, A3619S, DRA0395, DRA1334, mg478, 8EL015643-151, 575.045.050, 23118N, 200147, 202000, 746875

    • NormaliseratArtNr
      a13n277, a13n278, a13n280, a13n69, a13r173, a14n19, a3231, a3619s, aak3581, aak4821, c000900010120, ct6005700086, dra0395, dra1334, f032116545, mg478, 8el015643151, 9ar2729f, 0513, 23118n, 200147, 202000, 746875, 2522161, 2523458, 2541198, 2541744, 2541756, 2940119, 2940146, 11201513, 11204372, 575045050, 6005003141, 6005003142, 6005003150, 6005011695, 6005700086, 6005700723, 6005700724, 7700008742, 7700012722, 7700017781, 7700034493, 7700034497, 7700034498, 7700034500, 7700591911, 7700683200

    • Passar modeller
      Caterpillar Model: ORTHOPACTOR P3/ Model series: ORTHOPACTOR P3/ Model type: Rollers Brand of engine: D226-6 Approved: Yes
      Caterpillar Model: SISMOPACTOR TT9 Model series: SISMOPACTOR TT9 Model type: Rollers Brand of engine: D226-6 Approved: Yes
      Fendt Model: 311LSA Model series: 311LSA Model type: 2-Wheel Drive Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
      Fendt Model: 612LSA Model series: 612LSA Model type: 2-Wheel Drive Tractors Brand of engine: TD226-6 Body: Tractor Approved: Yes
      Fendt Model: FARMER 311 Model series: FARMER 311 Model type: MFWD Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
      Fendt Model: FARMER 312 Model series: FARMER 312 Model type: MFWD Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
      Fendt Model: FAVORIT 500 SER Model series: FAVORIT 500 SER Model type: 2-Wheel Drive Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
      Fendt Model: FAVORIT 511 C Model series: FAVORIT 511 C Model type: MFWD Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
      Fendt Model: FAVORIT 512 C Model series: FAVORIT 512 C Model type: MFWD Tractors Brand of engine: TD226-6 Body: Tractor Approved: Yes
      Fendt Model: FAVORIT 514 C Model series: FAVORIT 514 C Model type: MFWD Tractors Brand of engine: TD226-6 Body: Tractor Approved: Yes
      Fendt Model: FAVORIT 515 C Model series: FAVORIT 515 C Model type: 2-Wheel Drive Tractors Brand of engine: TD226-6 Body: Tractor Approved: Yes
      Renault Model: 110-54 Model series: 110-54 Model type: MFWD Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
      Renault Model: 120-54 Model series: 120-54 Model type: MFWD Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
      Renault Model: 133-54 Model series: 133-54 Model type: MFWD Tractors Brand of engine: D226-6 Body: Tractor Approved: Yes
