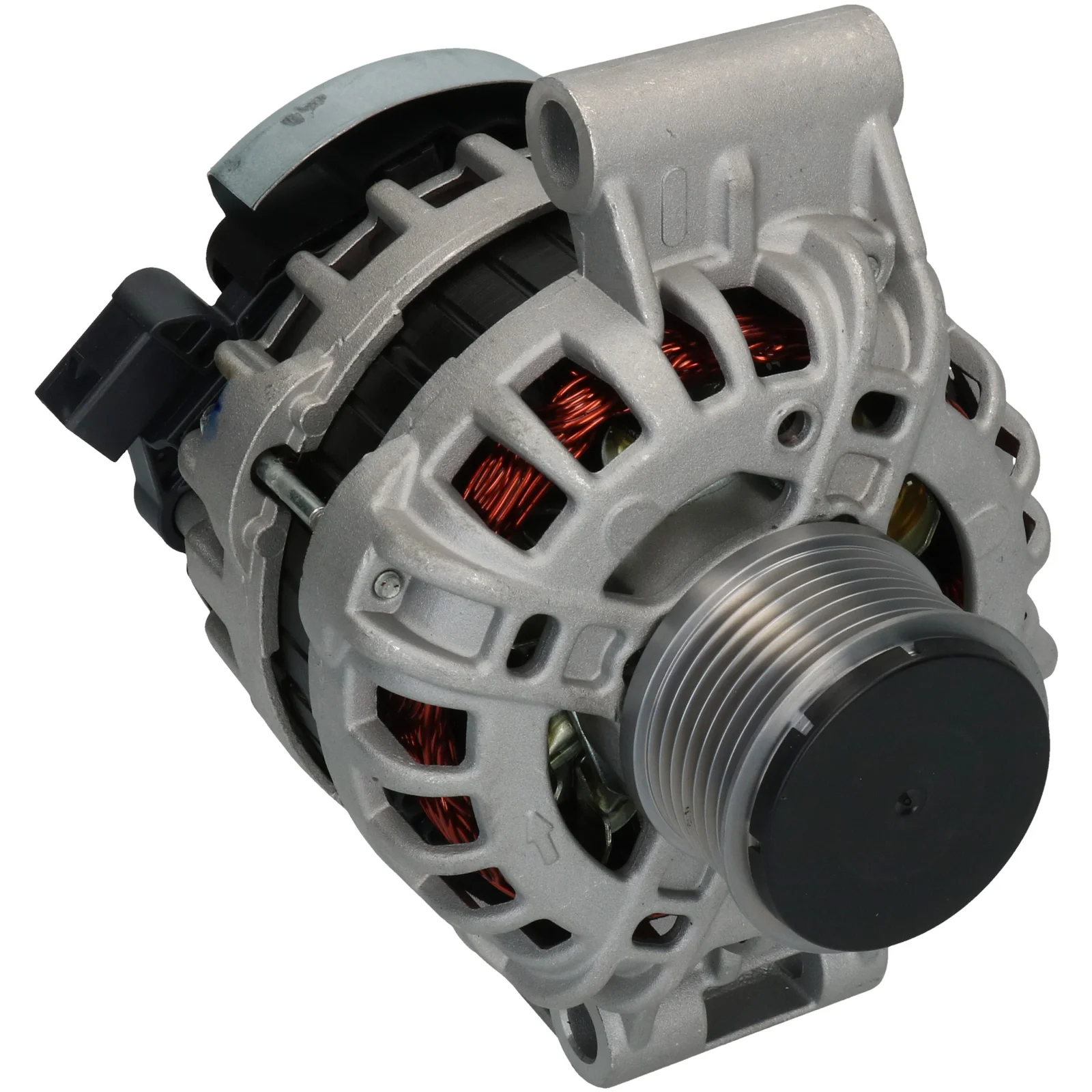

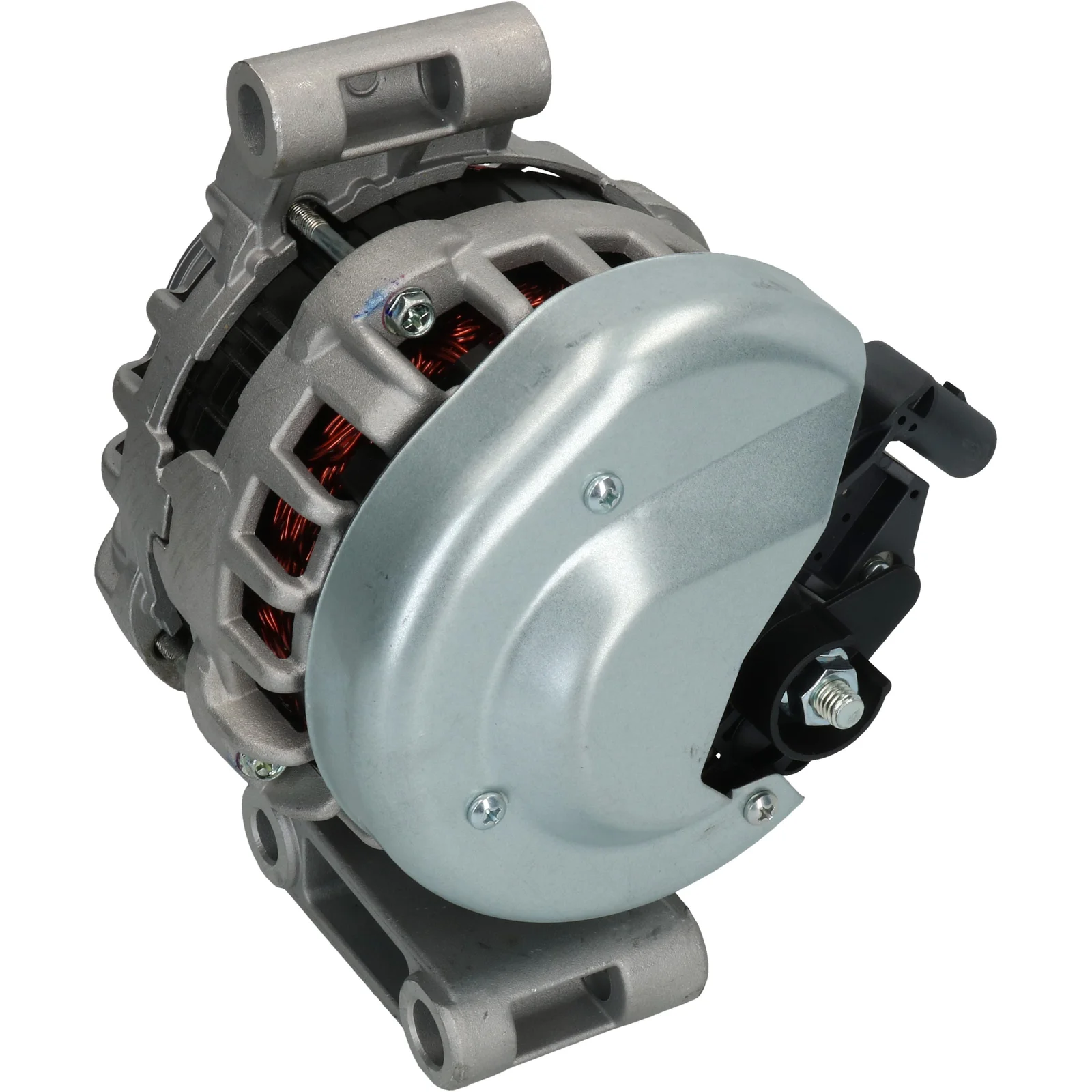

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116546

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Ampeeri: 110, Käänt: myötäpäivään, Kiinnityskorin etäisyys: 74.00

Kuvaus

HC-Cargo Laturi

Jännite: 14
Ampere: 110
Holkin etäisyys: 43.00
Leveys/pidäntövarren: 61.00
Asennuskannattimen etäisyys: 74.00
Kannen reikä: 10.40
Vöytäksin säätökannattimen reikä 1: 11.00
Holkin halkaisija: 59.00
urien/yhdistü: 7
Säde: 87.50
Säde 2: 87.50
B+: M8
Sijoitus/B+ min.: 20
Kääntö: myötävaillaan
Pistorasian numero: PL137
Kokonaispituus mm: 180.00
Terminaalityyppi: COM
Viestintä: LIN
Holkki: SP/FW
Tuuletin: IF
Jännitteensäädin tyyppi: IR
Huomiot: Tämä generaattori on varustettu COM-liittimellä säädinssä. Suositellaan, että OEM-numeroa käytetään oikean soveltuvuuden tarkistamiseen ennen tilausta.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 74.00
Belt. adj. bracket hole 1 11.00
Plug no. PL137
Bracket hole 10.40
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 59.00
Pulley dist. 43.00
Radius 87.50
Radius 2 87.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 180.00 mm
Width/holder arm 61.00
Amp 110

  • OEM
    AB3910300AD, AB3910300AE, AB3910300AF, AB3910300AFFC, AB3910300AG, AB3910300BE, AB391030AG, F000BL0639, F000BL06BG, F000BL06BK, F000BL06BM, F000BL06EY, F032116546, UK01-18-400D, 1916724, 5215796, 5287955

  • Konkurrentreferens
    A0588S, CAL10557, 58-6992, 595.901.110, 595.948.110, 20499N, 444295, 12090778, 32002317

  • NormaliseratArtNr
    a0588s, ab3910300ad, ab3910300ae, ab3910300af, ab3910300affc, ab3910300ag, ab3910300be, ab391030ag, cal10557, f000bl0639, f000bl06bg, f000bl06bk, f000bl06bm, f000bl06ey, f032116546, uk0118400d, 20499n, 444295, 586992, 1916724, 5215796, 5287955, 12090778, 32002317, 595901110, 595948110

  • Passar modeller
    Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Pick Up From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Platform / Chassis From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 3.2 Type description: PX Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Ford Australia Model: Ranger Model series: Ranger Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Pick Up From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ, T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQW Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFA Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Model type: TDCi 4x4 Type of engine: Diesel Size of motor: 3.2 Brand of engine: P5-AT Type description: TKE Body: Pickup Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ, T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQW Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 3.2 Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
    Ford Model: Ranger Model series: Ranger Type of engine: TDdi Size of motor: 2.2 Brand of engine: GBVAJQJ Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
    1 / 3
  • Kuvaus
    HC-Cargo Laturi

    Jännite: 14
    Ampere: 110
    Holkin etäisyys: 43.00
    Leveys/pidäntövarren: 61.00
    Asennuskannattimen etäisyys: 74.00
    Kannen reikä: 10.40
    Vöytäksin säätökannattimen reikä 1: 11.00
    Holkin halkaisija: 59.00
    urien/yhdistü: 7
    Säde: 87.50
    Säde 2: 87.50
    B+: M8
    Sijoitus/B+ min.: 20
    Kääntö: myötävaillaan
    Pistorasian numero: PL137
    Kokonaispituus mm: 180.00
    Terminaalityyppi: COM
    Viestintä: LIN
    Holkki: SP/FW
    Tuuletin: IF
    Jännitteensäädin tyyppi: IR
    Huomiot: Tämä generaattori on varustettu COM-liittimellä säädinssä. Suositellaan, että OEM-numeroa käytetään oikean soveltuvuuden tarkistamiseen ennen tilausta.

    Tiedostot

  • Määrittely
    B+ M8
    Communication LIN
    Mount. bracket dist. 74.00
    Belt. adj. bracket hole 1 11.00
    Plug no. PL137
    Bracket hole 10.40
    Position/B+ in min. 20
    Pulley SP/FW
    Pulley dia. 59.00
    Pulley dist. 43.00
    Radius 87.50
    Radius 2 87.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 61.00
    Amp 110
  • Nämä ajoneuvot sopivat

    • OEM
      AB3910300AD, AB3910300AE, AB3910300AF, AB3910300AFFC, AB3910300AG, AB3910300BE, AB391030AG, F000BL0639, F000BL06BG, F000BL06BK, F000BL06BM, F000BL06EY, F032116546, UK01-18-400D, 1916724, 5215796, 5287955

    • Konkurrentreferens
      A0588S, CAL10557, 58-6992, 595.901.110, 595.948.110, 20499N, 444295, 12090778, 32002317

    • NormaliseratArtNr
      a0588s, ab3910300ad, ab3910300ae, ab3910300af, ab3910300affc, ab3910300ag, ab3910300be, ab391030ag, cal10557, f000bl0639, f000bl06bg, f000bl06bk, f000bl06bm, f000bl06ey, f032116546, uk0118400d, 20499n, 444295, 586992, 1916724, 5215796, 5287955, 12090778, 32002317, 595901110, 595948110

    • Passar modeller
      Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Pick Up From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Platform / Chassis From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Australia Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDDi Size of motor: 3.2 Type description: PX Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
      Ford Australia Model: Ranger Model series: Ranger Type of engine: TDDi Size of motor: 2.2 Type description: PX Body: Pick Up From date: 01-11-2011 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ, T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQW Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: 4x4 Type of engine: TDCi Size of motor: 3.2 Brand of engine: SAFA Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Model type: TDCi 4x4 Type of engine: Diesel Size of motor: 3.2 Brand of engine: P5-AT Type description: TKE Body: Pickup Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQJ, T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: GBVAJQW Body: Pick Up From date: 01-04-2011 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 2.2 Brand of engine: T22DD0P Type description: TKE Body: Pick Up From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDCi Size of motor: 3.2 Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
      Ford Model: Ranger Model series: Ranger Type of engine: TDdi Size of motor: 2.2 Brand of engine: GBVAJQJ Body: Pick Up From date: 01-11-2011 Fuel: Diesel Approved: Yes
      1 / 3
