HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116573

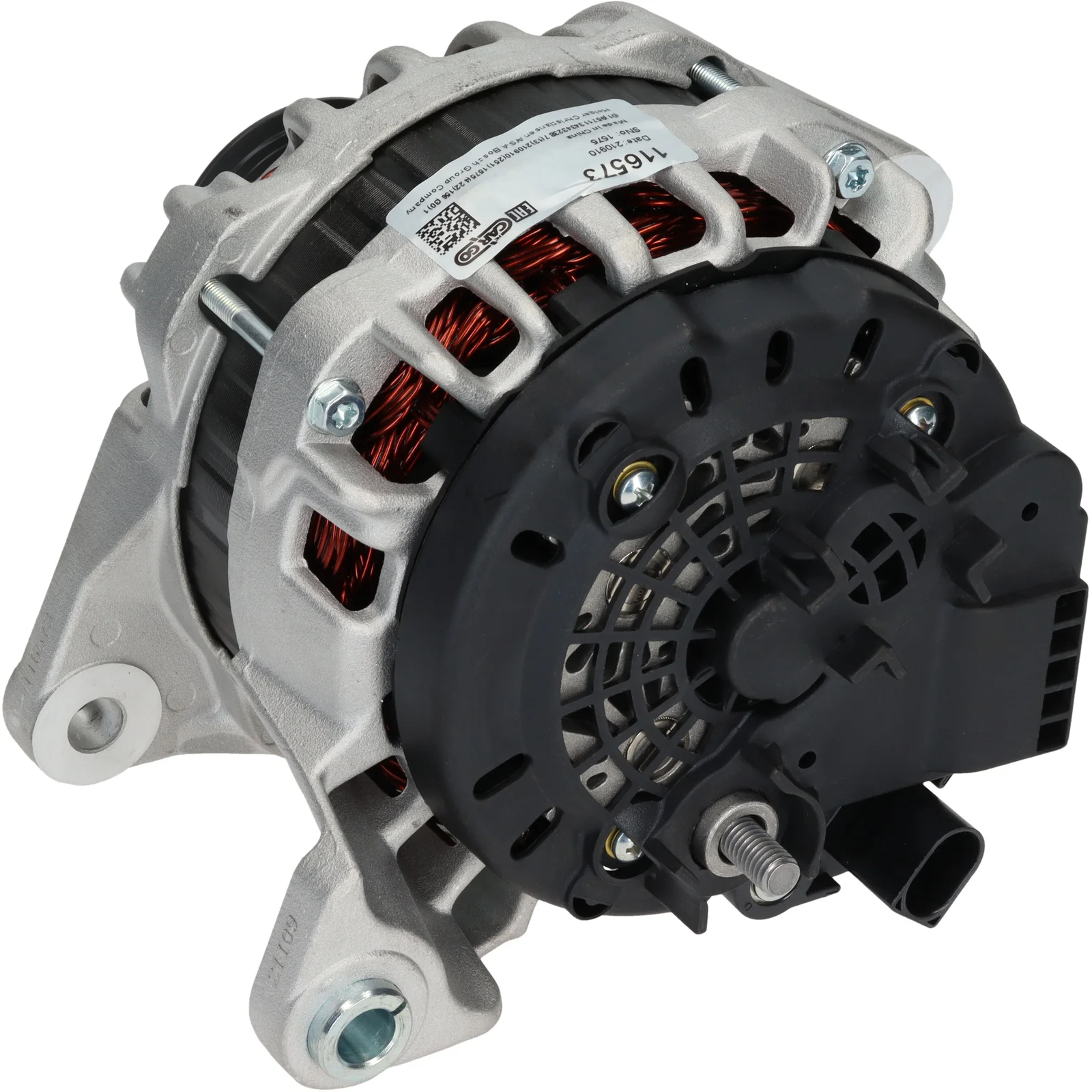

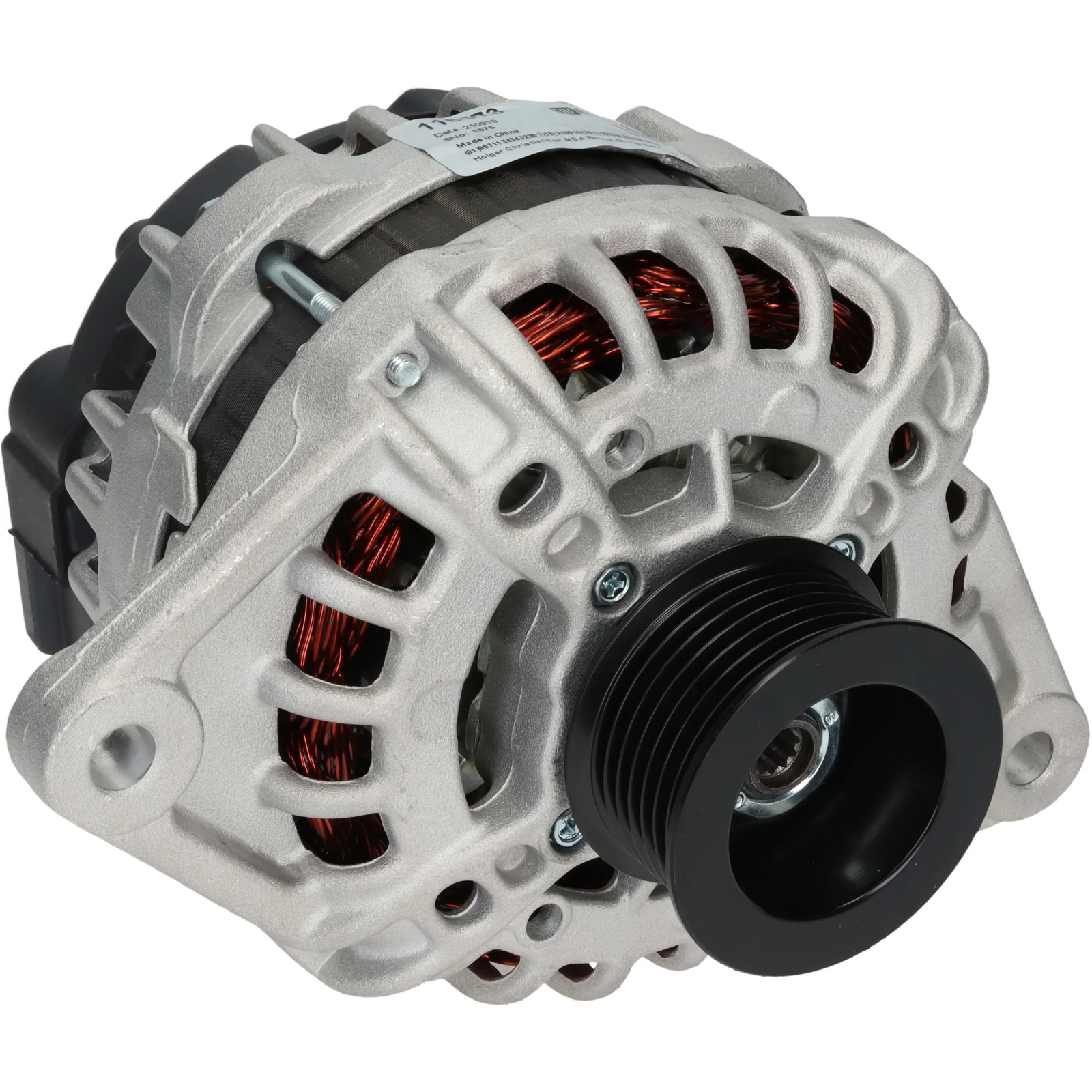

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Ampeerit: 150, Kääntymissuunta: myötäpäivään, Asennuskoukku etäisyys: 83,40

Kuvaus

Volyymi: 14
Amm.: 150
Pulley etäisyys: 41.40
Leveys/kannatinvarren etäisyys: 14.20
Asennusankkuran etäisyys: 83.40
Ankkurireikä: 10.50
Hihnan säätöankkurireikäpos. asent. ankkurireikä 1: 55
Hihnan säätöankkureikä 1: 11.00
Välitysrattaan halkaisija: 55.00
Uomat / välitysrattaassa: 7
Säde: 95.00
Säde 2: 95.00
B+: M8
Sijainti / B+ minuuttiin: 22
Pyörimissuunta: Tunnarilta oikealle
Pistokkeen numero: PL174
Kokonaispituus mm: 180.00
Päätteen tyyppi: COM
ID-koodi: 24
Viestintä: LIN
Välitysrattaat: SP
Säädin tyyppi: IR
Huomautukset: Tässä generaattorissa on COM-liitin säädinssä. On suositeltavaa käyttää OEM-numeroa tarkastettaessa sopivuutta ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 83.40
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 55
Plug no. PL174
Bracket hole 10.50
Position/B+ in min. 22
Pulley SP
Pulley dia. 55.00
Pulley dist. 41.40
Radius 95.00
Radius 2 95.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
ID Code 24
Terminal type COM
Voltage 14
Total length 180.00 mm
Width/holder arm 14.20
Amp 150

  • OEM
    F000BL0781, F000BL0782, F032116573, 5801580927

  • Konkurrentreferens
    A0665PR, A0665S, CAL10547, 8EL015637-381, 28-7631, 505.594.150, 12090817

  • NormaliseratArtNr
    a0665pr, a0665s, cal10547, f000bl0781, f000bl0782, f032116573, 8el015637381, 287631, 12090817, 505594150, 5801580927

  • Passar modeller
    Iveco Model: Daily Model series: 33 S 13 Size of motor: 2.3 Brand of engine: F1AFL411B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S11, 35S11, 35C11 Size of motor: 2.3 Brand of engine: F1AFL411A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 33S15, 35S15, 35C15 Size of motor: 2.3 Brand of engine: F1AFL411C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: 35 C 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481B Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33 S 11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Platform / Chassis From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-120, 35-120 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-140, 35-140 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Platform / Chassis From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33-160, 35-160 Type of engine: Diesel Size of motor: 2.3 Body: Twin Cab From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481A Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AE3481C Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    Iveco Model: Daily VI Model series: 33S11, 35S11, 35C11 Type of engine: Diesel Size of motor: 2.3 Brand of engine: F1AFL411B Body: Twin Cab From date: 01-03-2014 To date: 01-04-2016 Fuel: Diesel Approved: Yes
    1 / 4
