HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116583

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, A: 180, Kierto: myötäpäivään, Asennuskiinnikkeen etäisyys: 62,00

Kuvaus

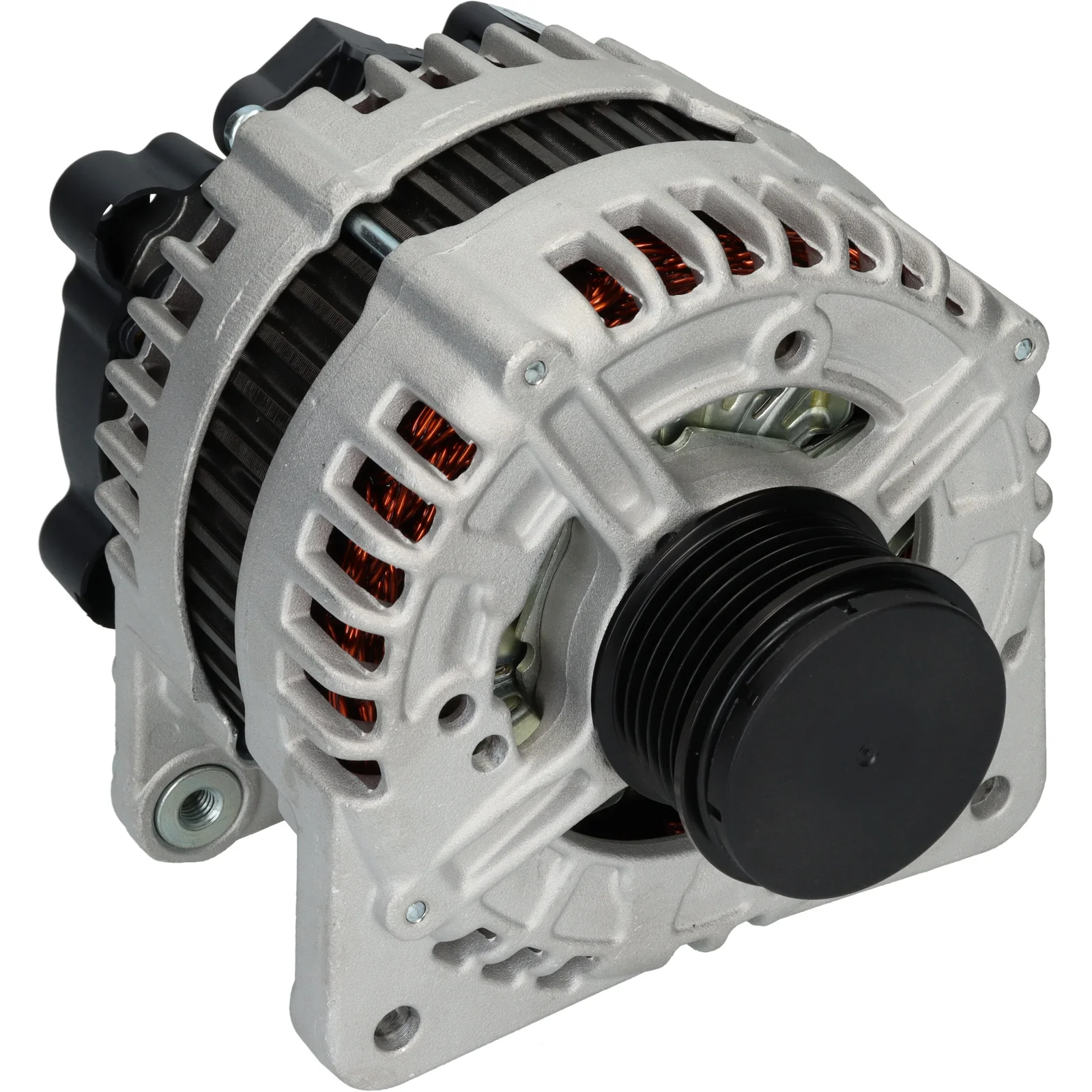

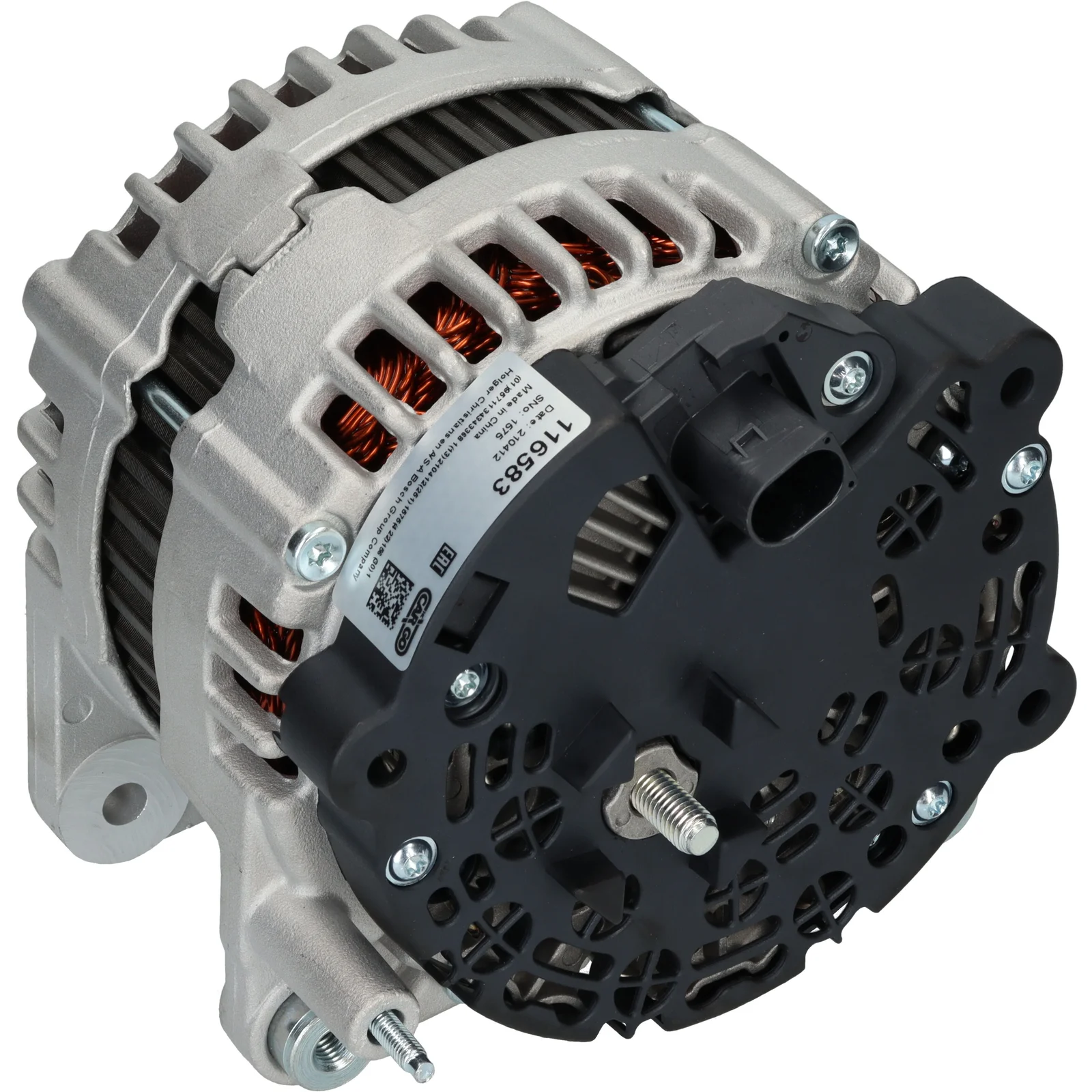

HC-Cargo Laturi 14V - 180A, 6r

Jännite: 14
Ampere: 180
Holkin halkaisija: 30.00
Leveys / holkipidikke: 14.20
Asennuskehikon etäisyys: 62.00
Kehikon reikä: 8.50
Vesiliinan säätökehikon reiän sijainti: 45
Vesiliinan säätökehikon reiän sijainti 1: 8.50
Vesiliinan säätökehikon reiän sijainti 2: M8
Holkin halkaisija: 56.00
urien määrä / holkki: 6
Säde: 90.00
Säde 2: 90.00
B+: M8
Sijainti / B+: min.: 35
Kääntö: myötäpäivään
Pistokkeen numero: PL86
Kokona pituus mm: 180.00
Pään tyyppi: COM
Kommunikaatio: LIN
Vesiliina: SP/FW
Tuuletin: IF
Regulaattorin tyyppi: IR
Huomautukset: Tämä generaattori sisältää COM-pään regulaattorissa. Suositellaan käyttämään OEM-numeroa sopivuuden tarkistamiseen ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 62.00
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL86
Bracket hole 8.50
Position/B+ in min. 35
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 180.00 mm
Width/holder arm 14.20
Amp 180

  • OEM
    F032116583, 059 903 018K, 0121 715 080, 0121 715 180, 116583, 059903018k, 059903018KX, 0121715080, 0121715180

  • Konkurrentreferens
    A0409, DRA0899, LRA04075, 28-7684, 205.579.180, 443303, 444205, 12090905

  • Bilmärken
    Audi

  • NormaliseratArtNr
    a0409, dra0899, f032116583, lra04075, 116583, 287684, 443303, 444205, 12090905, 059903018k, 059903018kx, 0121715080, 0121715180, 205579180

  • Passar modeller
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CAPA Type description: 8K2 From date: 01-11-2007 To date: 01-03-2012 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CAPA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-03-2012 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCLA Type description: 8K2 From date: 01-11-2007 To date: 01-03-2012 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCLA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-03-2012 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCWA Type description: 8K2 From date: 01-11-2007 To date: 01-03-2012 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCWA Type description: 8K5 Body: Estate From date: 01-04-2008 To date: 01-03-2012 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA,CASA,CJGA Type description: 4LB Body: Box Body / Estate From date: 01-11-2007 To date: 01-05-2012 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4LB Body: Box Body / Estate From date: 01-11-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CASA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGC Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CLZB Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CNRB Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Series: A4 B8 Avant Model: 3.0 TDI quattro Engine volume: 3.0 Engine type: CAPA/CCLA/CCWA Year: 04.08-03.12
    Audi Series: A4 B8 Model: 3.0 TDI quattro Engine volume: 3.0 Engine type: CAPA/CCLA/CCWA Year: 11.07-03.12
    Audi Series: Q7 (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CJGC/CJMA Year: 05.10-08.15
    Audi Series: Q7 (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CJGD/CLZB/CRCA Year: 05.11-08.15
    Audi Series: Q7 (4LB) Model: 3.0 TDI quattro Engine volume: 3.0 Engine type: CASA/CCMA/CJGA/CNRB Year: 11.07-08.15
    Audi Series: Q7 Van (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CASA/CCMA/CJGA Year: 11.07-05.12
    Audi Series: Q7 Van (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CJMA Year: 11.10-08.15
