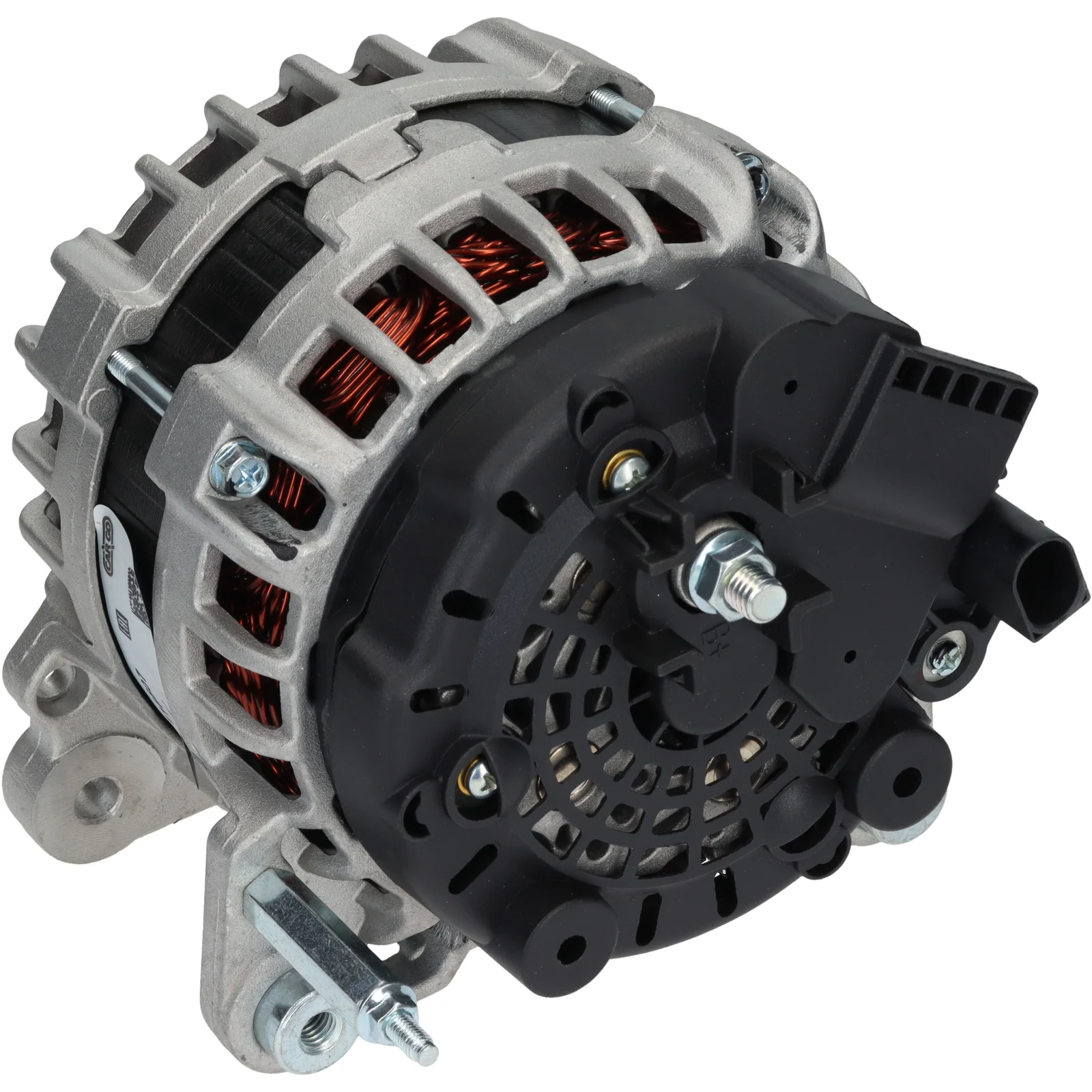

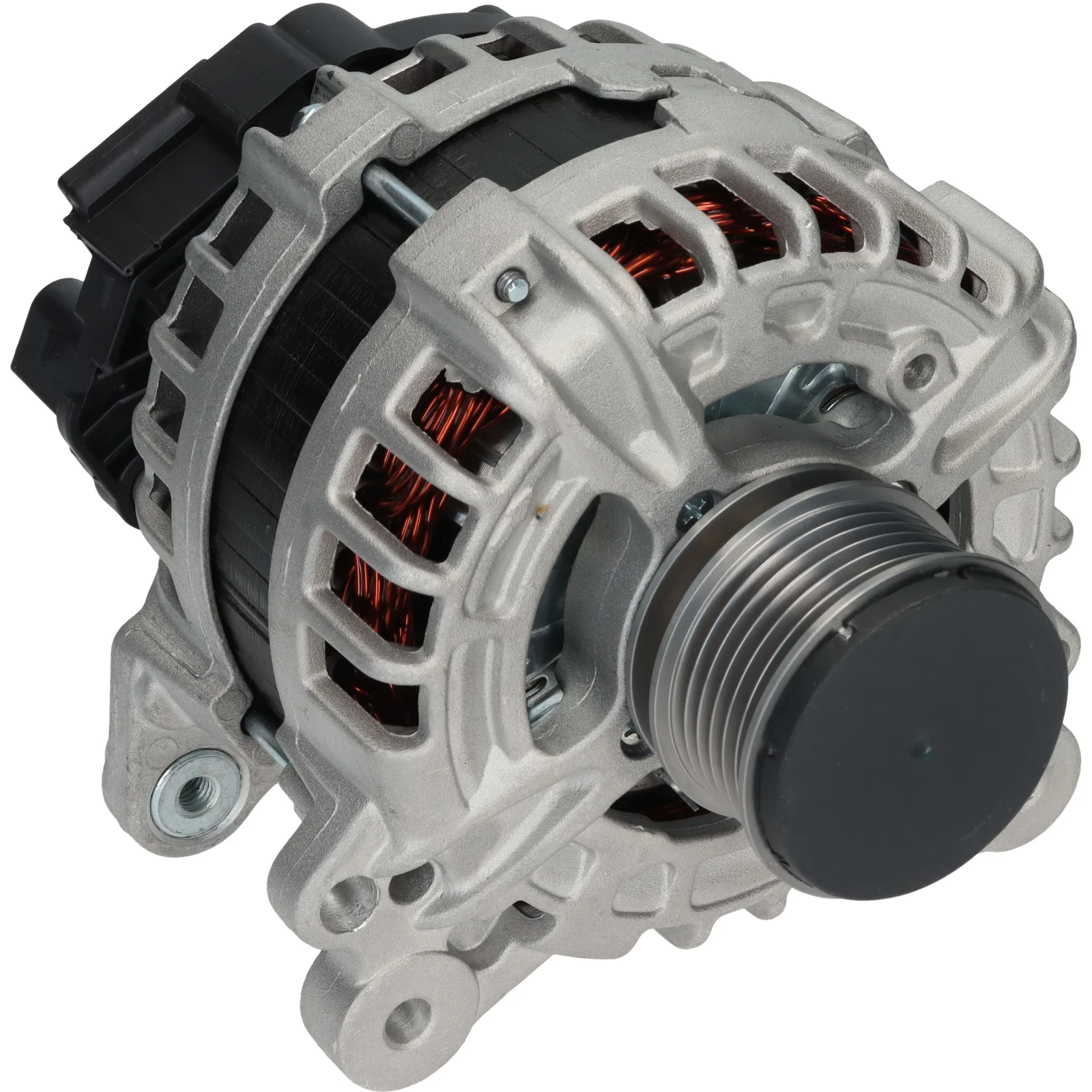

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116607

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Amp. : 140, Kääntö: myötä, Asennuskehyksen etäisyys: 61.50

Kuvaus

Jännite: 14
Amm.: 140
Ratasetäisyys: 39,50
Leveys/kiinnityskahvan: 14,00
Mutterin etäisyys: 61,50
Kehyksen reikä: 8,50
Hihnan säätökehän reiän positio: 45
Hihnan säätökehän reiän1: 8,50
Rattaan halkaisija: 56,00
Uomat/ratas: 6
Säde: 90,00
Säde 2: 90,00
B+: M8
Sijainti/B+ minuuttina: 52
Kierros: myötäpäivään
Pistokkeen numero: PL125
Kokonais pituus mm: 191,00
Etuasteen tyyppi: COM
Viestintä: LIN
Tuuletin: IF
Säädintyypitys: IR
Huomautuksia: Tämä generaattori sisältää COM-liittimen säädinssä. On suositeltavaa käyttää OE-numeroa soveltuvuuden tarkistamiseen ennen tilausta.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 61.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL125
Bracket hole 8.50
Position/B+ in min. 52
Pulley dia. 56.00
Pulley dist. 39.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 14.00
Amp 140

  • OEM
    F000BL08E1, f000bl08e2, F000BL08F7, F000BL08F8, F000BL08S6, F032116607, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 06K903026B, 1986A00634, 1986A01248

  • Konkurrentreferens
    305.940.140, 305.950.140, 32085040, 0986085040

  • NormaliseratArtNr
    f000bl08e1, f000bl08e2, f000bl08f7, f000bl08f8, f000bl08s6, f032116607, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 06k903026b, 1986a00634, 1986a01248, 32085040, 305940140, 305950140, 0986085040

  • Passar modeller
    Audi Model: A1 Model series: A1 Model type: Sportback Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: 8XA, 8XK Body: Hatchback From date: 01-11-2014 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Audi Model: A1 Model series: A1 Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: 8X1, 8XF Body: Hatchback From date: 01-11-2014 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSA Type description: NJ3 Body: Hatchback From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSA Type description: NJ5 Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUTA Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUTA Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Skoda Model: Rapid Model series: Rapid Model type: Spaceback Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NH1 Body: Hatchback From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
    Skoda Model: Rapid Model series: Rapid Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NH3 Body: Hatchback From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
    VW Model: Jetta Model series: Jetta Model type: GLI Size of motor: 2.0 Brand of engine: DKFA, DXSA Type description: BU3, BU4 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    VW Model: Polo Model series: Polo Van Model type: TDI Type of engine: TDI Size of motor: 1.4 Brand of engine: CUTA Type description: 6R Body: Hatchback Van From date: 01-03-2014 To date: 01-10-2017 Fuel: Diesel Approved: Yes
    1 / 3
  • Kuvaus
    Jännite: 14
    Amm.: 140
    Ratasetäisyys: 39,50
    Leveys/kiinnityskahvan: 14,00
    Mutterin etäisyys: 61,50
    Kehyksen reikä: 8,50
    Hihnan säätökehän reiän positio: 45
    Hihnan säätökehän reiän1: 8,50
    Rattaan halkaisija: 56,00
    Uomat/ratas: 6
    Säde: 90,00
    Säde 2: 90,00
    B+: M8
    Sijainti/B+ minuuttina: 52
    Kierros: myötäpäivään
    Pistokkeen numero: PL125
    Kokonais pituus mm: 191,00
    Etuasteen tyyppi: COM
    Viestintä: LIN
    Tuuletin: IF
    Säädintyypitys: IR
    Huomautuksia: Tämä generaattori sisältää COM-liittimen säädinssä. On suositeltavaa käyttää OE-numeroa soveltuvuuden tarkistamiseen ennen tilausta.

    Tiedostot

  • Määrittely
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL125
    Bracket hole 8.50
    Position/B+ in min. 52
    Pulley dia. 56.00
    Pulley dist. 39.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 191.00 mm
    Width/holder arm 14.00
    Amp 140
  • Nämä ajoneuvot sopivat

    • OEM
      F000BL08E1, f000bl08e2, F000BL08F7, F000BL08F8, F000BL08S6, F032116607, 04B903023B, 04B903023BX, 04B903023D, 04B903023DX, 06K903026B, 1986A00634, 1986A01248

    • Konkurrentreferens
      305.940.140, 305.950.140, 32085040, 0986085040

    • NormaliseratArtNr
      f000bl08e1, f000bl08e2, f000bl08f7, f000bl08f8, f000bl08s6, f032116607, 04b903023b, 04b903023bx, 04b903023d, 04b903023dx, 06k903026b, 1986a00634, 1986a01248, 32085040, 305940140, 305950140, 0986085040

    • Passar modeller
      Audi Model: A1 Model series: A1 Model type: Sportback Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: 8XA, 8XK Body: Hatchback From date: 01-11-2014 To date: 01-10-2018 Fuel: Diesel Approved: Yes
      Audi Model: A1 Model series: A1 Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: 8X1, 8XF Body: Hatchback From date: 01-11-2014 To date: 01-10-2018 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSA Type description: NJ3 Body: Hatchback From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSA Type description: NJ5 Body: Estate From date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUTA Type description: NJ3 Body: Hatchback From date: 01-08-2014 Fuel: Diesel Approved: Yes
      Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.4 Brand of engine: CUTA Type description: NJ5 Body: Estate From date: 01-10-2014 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Skoda Model: Rapid Model series: Rapid Model type: Spaceback Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NH1 Body: Hatchback From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
      Skoda Model: Rapid Model series: Rapid Type of engine: TDi Size of motor: 1.4 Brand of engine: CUSB Type description: NH3 Body: Hatchback From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
      VW Model: Jetta Model series: Jetta Model type: GLI Size of motor: 2.0 Brand of engine: DKFA, DXSA Type description: BU3, BU4 Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      VW Model: Polo Model series: Polo Van Model type: TDI Type of engine: TDI Size of motor: 1.4 Brand of engine: CUTA Type description: 6R Body: Hatchback Van From date: 01-03-2014 To date: 01-10-2017 Fuel: Diesel Approved: Yes
