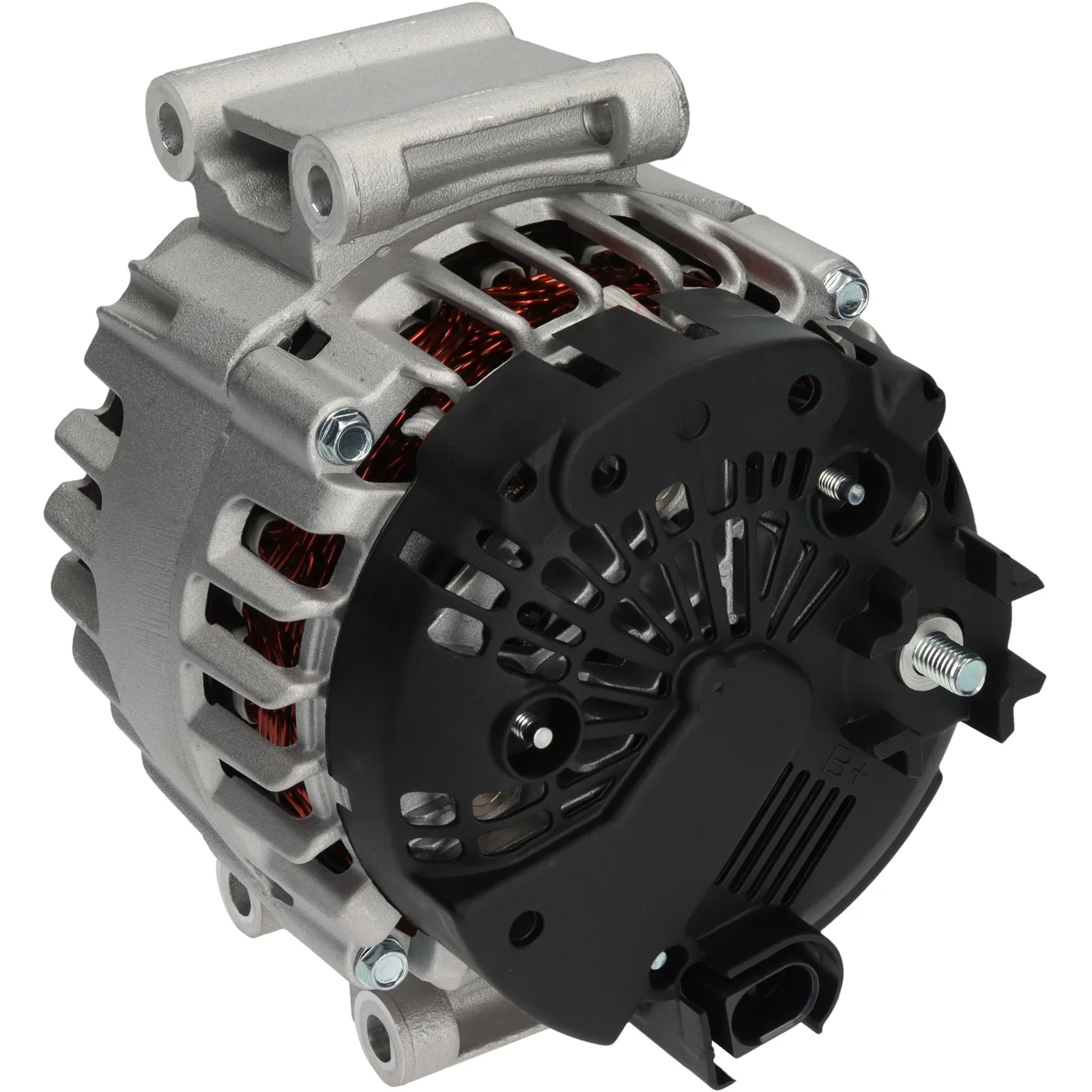

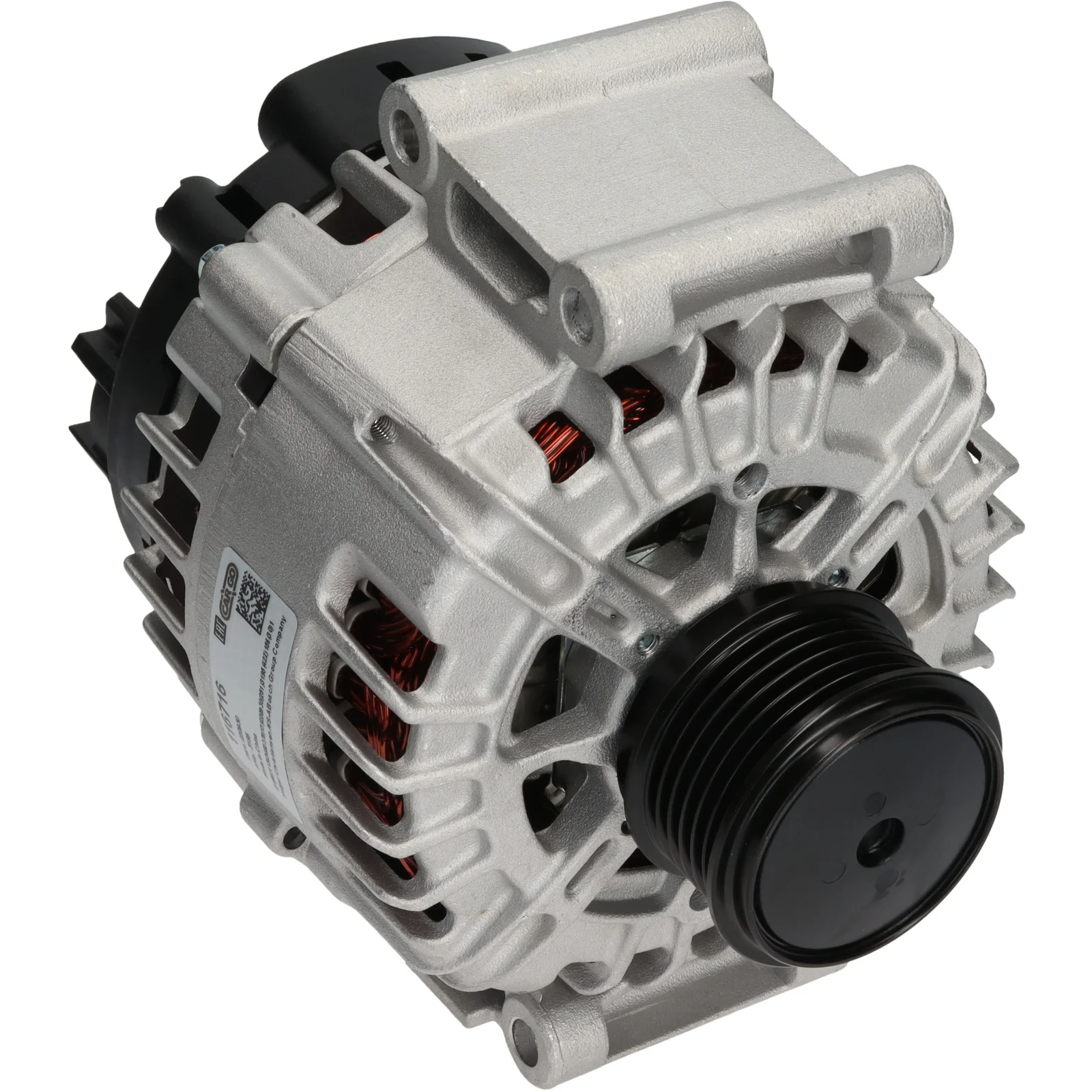

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116716

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Amp: 140, Kääntö: Myös, Asennuskehäsriihen etäisyys: 56.00

Kuvaus

Jännite: 14
Amp: 140
Holkin pituus: 29.50
Leveys/kiinnitysvarren pituus: 70.00
Kiinnitysraudan etäisyys: 56.00
Raudan reikä: 9.00
Hihnan säätöraudan reikä 1: 8.50
Holkin halkaisija: 56.00
urien määrä/holkki: 6
Säde: 81.50
Säde 2: 81.50
B+: M8
Paikka/B+ minuuteissa: 45
Käännös: myötäpäivään
Nippelitunnus: PL181
Kokonaispituus mm: 191.00
Termiinityyppi: COM
Tunnuskoodi: 25
Viestintä: LIN
Holkki: SP/FW
Tuuletin: IF
Regulator-tyyppi: IR
Huomautukset: Tämä laturi on varustettu COM-terminated regulatorilla. On suositeltavaa käyttää OEM-numeroa sopivuuden tarkistamiseen ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 8.50
Plug no. PL181
Bracket hole 9.00
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 29.50
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 25
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 70.00
Amp 140

  • OEM
    F032116716, TG14C056, 06J903023R

  • Konkurrentreferens
    CAL15486, 305.911.140, 439831, 440556, 553578RIV, 12090586

  • NormaliseratArtNr
    cal15486, f032116716, tg14c056, 06j903023r, 439831, 440556, 553578riv, 12090586, 305911140

  • Passar modeller
    Audi (FAW) Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 Fuel: Gasoline Approved: Yes
    Audi (FAW) Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Audi (FAW) Model: Q3 Model series: Q3 Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 Fuel: Gasoline Approved: Yes
    Audi Model: Q3 Model series: Q3 Model type: quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CCTA Type description: 8UB, 8UG Body: SUV From date: 01-09-2014 To date: 01-10-2018 Fuel: Petrol Approved: Yes
    Audi Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CCZC From date: 01-06-2011 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Audi Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CPSA From date: 01-06-2011 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J3 Body: Coupe From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J9 Body: Convertible From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CETA Type description: 8J3 Body: Coupe From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CETA Type description: 8J9 Body: Convertible From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 1.8 Brand of engine: CDAA Type description: 8J3 Body: Coupe From date: 01-06-2008 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 1.8 Brand of engine: CDAA Type description: 8J9 Body: Convertible From date: 01-06-2008 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J3 Body: Coupe From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J9 Body: Convertible From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    VW Model: CC Model series: CC Type of engine: TSi Size of motor: 1.8 Brand of engine: CDAA Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: CC Model series: CC Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CDAA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.8 Brand of engine: CDAA Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Alltrack
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CDAA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.8 Brand of engine: CDAB Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Alltrack
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Type description: 362 From date: 01-11-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Type description: 365 Body: Estate From date: 01-11-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant
