Tuotenro.: F032116718

HC-Cargo Laturi

Tekniset tiedot:

Jännitteen: 14, Amppi: 180, Kääntö: Myötäenkinsuunta, Asennuskiinnikkeen etäisyys: 61.00

Kuvaus

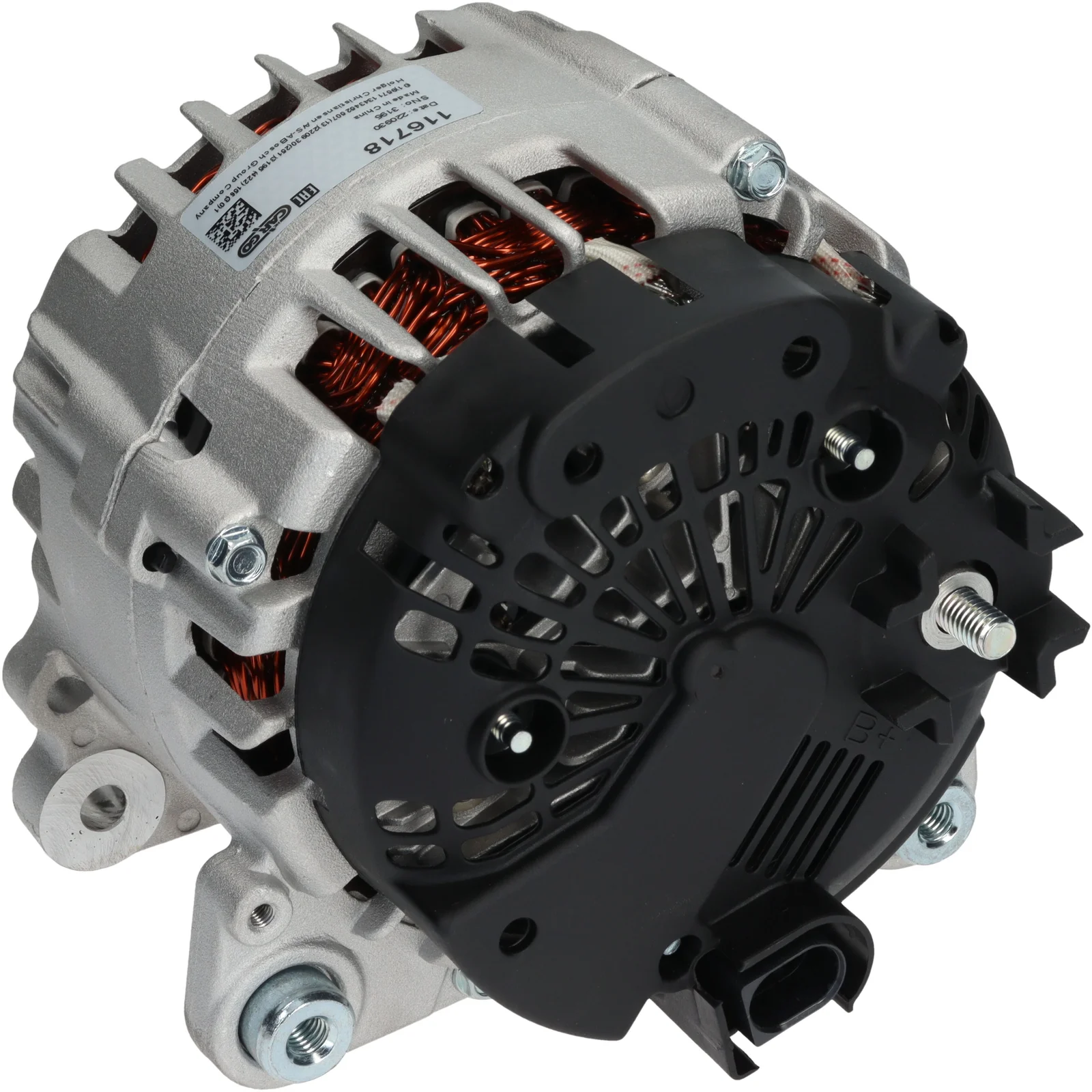

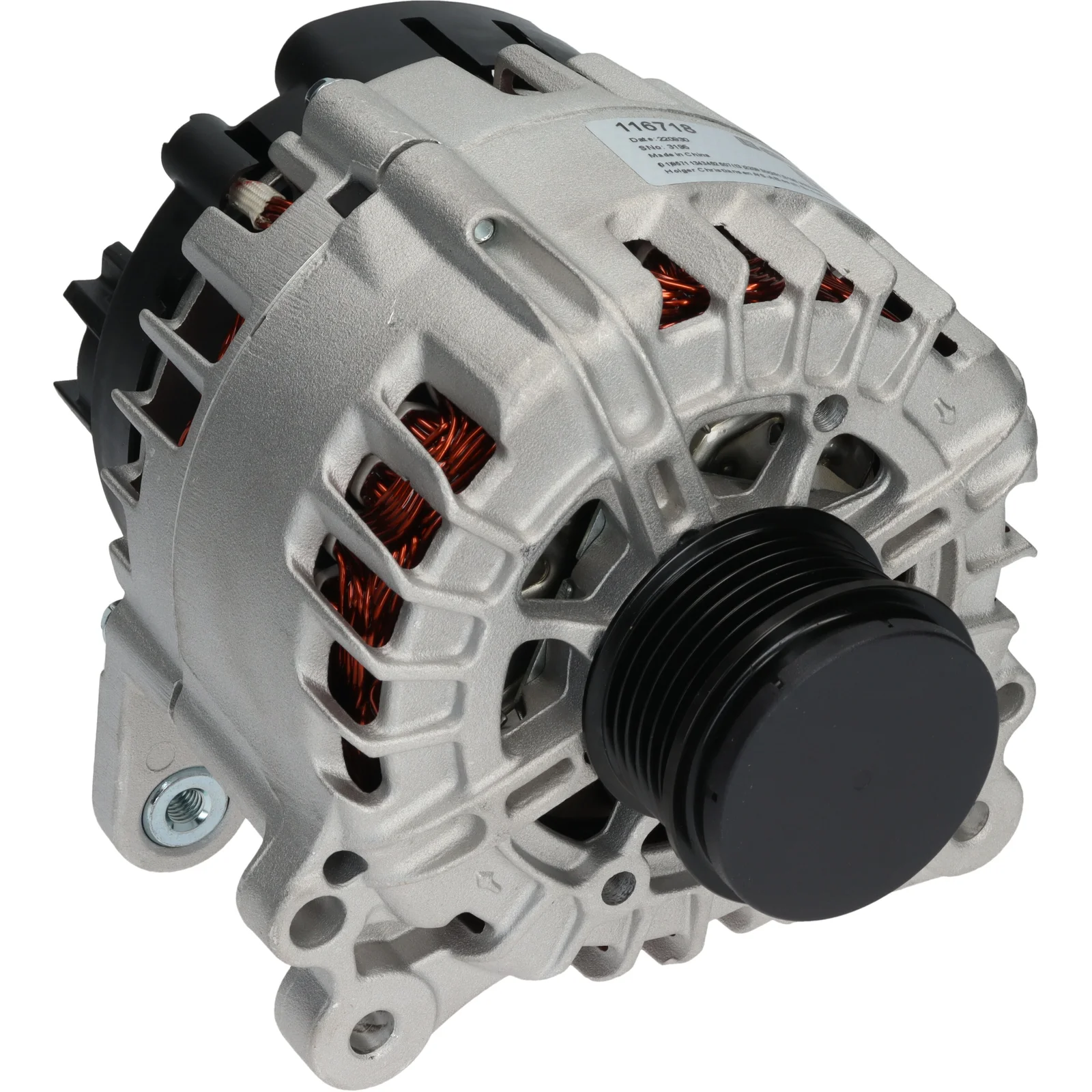

HC-Cargo Generaattori 14V - 180A, 6r

Jännite: 14
Ampere: 180
Holkin etäisyys: 30,00
Leveys/tukivarteen: 14,00
Kiinnitystuen etäisyys: 61,00
Tuen reikä: 8,50
Völyn säätö. holkin pos.: 45
Völyn säätö. holkin 1: 8,50
Holkin halkaisija: 56,00
urien määrä/holkki: 6
Säde: 90,00
Säde 2: 90,00
B+: M8
Asema/B+ minuutteina: 6
kääntö: myötäpäivään
Kytkentäntie: PL181
Kokonaispituus mm: 187,00
Terminalityyppi: COM
ID-koodi: 73
Viestintä: LIN
Holkki: SP/FW
Tuuletin: IF
Jännitteensäädin tyyppi: IR
Huomautukset: Tämä generaattori sisältää COM-liittimen jännitteensäätimeen. Suositellaan, että OEM-numeroa käytetään sopivuuden tarkistamiseen ennen tilaamista.

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 45
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 6
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 73
Terminal type COM
Voltage 14
Total length 187.00 mm
Width/holder arm 14.00
Amp 180
  • OEM

    F032116718, FG18T163, FG18T180, 059 903 023S, 059 903 023T, 116718, 2714247, 2714247B, 2714247C, 059903023S, 059903023T, 059903023TX
  • Konkurrentreferens

    CAL15026, DRA2057, LRA04157, 28-7766, 305.308.180, 305.974.180, 20829-OS, 40193, 440826, 443018, 554567RIV, 12090830, 12090831, 89215510
  • Bilmärken

    VW
  • NormaliseratArtNr

    cal15026, dra2057, f032116718, fg18t163, fg18t180, lra04157, 20829os, 40193, 116718, 287766, 440826, 443018, 554567riv, 2714247, 2714247b, 2714247c, 12090830, 12090831, 059903023s, 059903023t, 059903023tx, 89215510, 305308180, 305974180
  • Passar modeller

    VW Model: Amarok Model series: Amarok Model type: 4 Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: DDXC Type description: 2H_, S1B Body: Pick Up From date: 01-06-2016 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXA Type description: 2HA, 2HB, S1B, S6B, S7A, S7B Body: Pick Up From date: 01-06-2016 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 3.0 Brand of engine: DDXB Type description: 2H_, S1B Body: Pick Up From date: 01-06-2016 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: 4Motion Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXB Type description: S1B, S6B, S7B Body: Box Body / Estate From date: 01-06-2016 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXE Type description: 2HA, 2HB, S1B, S6B, S7A, S7B Body: Pick Up From date: 01-05-2018 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 3.0 Brand of engine: DDXE Type description: S1B Body: Platform / Chassis From date: 01-05-2018 Fuel: Diesel Approved: Yes
    VW Model: Amarok Model series: Amarok Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXA Type description: 2HA, 2HB, S1B, S6B, S7A, S7B Body: Pickup From date: 01-06-2016 To date: 01-08-2019 Fuel: Diesel Approved: Yes
    VW Series: AMAROK Flak/chassi Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXB Year: 06.16-08.20
    VW Series: AMAROK Flak/chassi Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXE Year: 05.18-05.22
    VW Series: AMAROK Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXA Year: 06.16-06.20
    VW Series: AMAROK Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXB Year: 06.16-08.20
    VW Series: AMAROK Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXC/DDXD Year: 06.16-05.22
    VW Series: Amarok Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXE Year: 05.18-
    VW Series: AMAROK Model: 3.0 TDI Engine volume: 3.0 Engine type: DDXA Year: 06.16-06.20
    1 / 3
  • Kuvaus
    HC-Cargo Generaattori 14V - 180A, 6r

    Jännite: 14
    Ampere: 180
    Holkin etäisyys: 30,00
    Leveys/tukivarteen: 14,00
    Kiinnitystuen etäisyys: 61,00
    Tuen reikä: 8,50
    Völyn säätö. holkin pos.: 45
    Völyn säätö. holkin 1: 8,50
    Holkin halkaisija: 56,00
    urien määrä/holkki: 6
    Säde: 90,00
    Säde 2: 90,00
    B+: M8
    Asema/B+ minuutteina: 6
    kääntö: myötäpäivään
    Kytkentäntie: PL181
    Kokonaispituus mm: 187,00
    Terminalityyppi: COM
    ID-koodi: 73
    Viestintä: LIN
    Holkki: SP/FW
    Tuuletin: IF
    Jännitteensäädin tyyppi: IR
    Huomautukset: Tämä generaattori sisältää COM-liittimen jännitteensäätimeen. Suositellaan, että OEM-numeroa käytetään sopivuuden tarkistamiseen ennen tilaamista.
  • Määrittely
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 45
    Plug no. PL181
    Bracket hole 8.50
    Position/B+ in min. 6
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 30.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 73
    Terminal type COM
    Voltage 14
    Total length 187.00 mm
    Width/holder arm 14.00
    Amp 180
  • Nämä ajoneuvot sopivat
    • OEM

      F032116718, FG18T163, FG18T180, 059 903 023S, 059 903 023T, 116718, 2714247, 2714247B, 2714247C, 059903023S, 059903023T, 059903023TX
    • Konkurrentreferens

      CAL15026, DRA2057, LRA04157, 28-7766, 305.308.180, 305.974.180, 20829-OS, 40193, 440826, 443018, 554567RIV, 12090830, 12090831, 89215510
    • Bilmärken

      VW
    • NormaliseratArtNr

      cal15026, dra2057, f032116718, fg18t163, fg18t180, lra04157, 20829os, 40193, 116718, 287766, 440826, 443018, 554567riv, 2714247, 2714247b, 2714247c, 12090830, 12090831, 059903023s, 059903023t, 059903023tx, 89215510, 305308180, 305974180
    • Passar modeller

      VW Model: Amarok Model series: Amarok Model type: 4 Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: DDXC Type description: 2H_, S1B Body: Pick Up From date: 01-06-2016 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXA Type description: 2HA, 2HB, S1B, S6B, S7A, S7B Body: Pick Up From date: 01-06-2016 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 3.0 Brand of engine: DDXB Type description: 2H_, S1B Body: Pick Up From date: 01-06-2016 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: 4Motion Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXB Type description: S1B, S6B, S7B Body: Box Body / Estate From date: 01-06-2016 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXE Type description: 2HA, 2HB, S1B, S6B, S7A, S7B Body: Pick Up From date: 01-05-2018 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Model type: 4motion Type of engine: TDi Size of motor: 3.0 Brand of engine: DDXE Type description: S1B Body: Platform / Chassis From date: 01-05-2018 Fuel: Diesel Approved: Yes
      VW Model: Amarok Model series: Amarok Type of engine: TDI Size of motor: 3.0 Brand of engine: DDXA Type description: 2HA, 2HB, S1B, S6B, S7A, S7B Body: Pickup From date: 01-06-2016 To date: 01-08-2019 Fuel: Diesel Approved: Yes
      VW Series: AMAROK Flak/chassi Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXB Year: 06.16-08.20
      VW Series: AMAROK Flak/chassi Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXE Year: 05.18-05.22
      VW Series: AMAROK Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXA Year: 06.16-06.20
      VW Series: AMAROK Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXB Year: 06.16-08.20
      VW Series: AMAROK Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXC/DDXD Year: 06.16-05.22
      VW Series: Amarok Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: DDXE Year: 05.18-
      VW Series: AMAROK Model: 3.0 TDI Engine volume: 3.0 Engine type: DDXA Year: 06.16-06.20
      1 / 3
