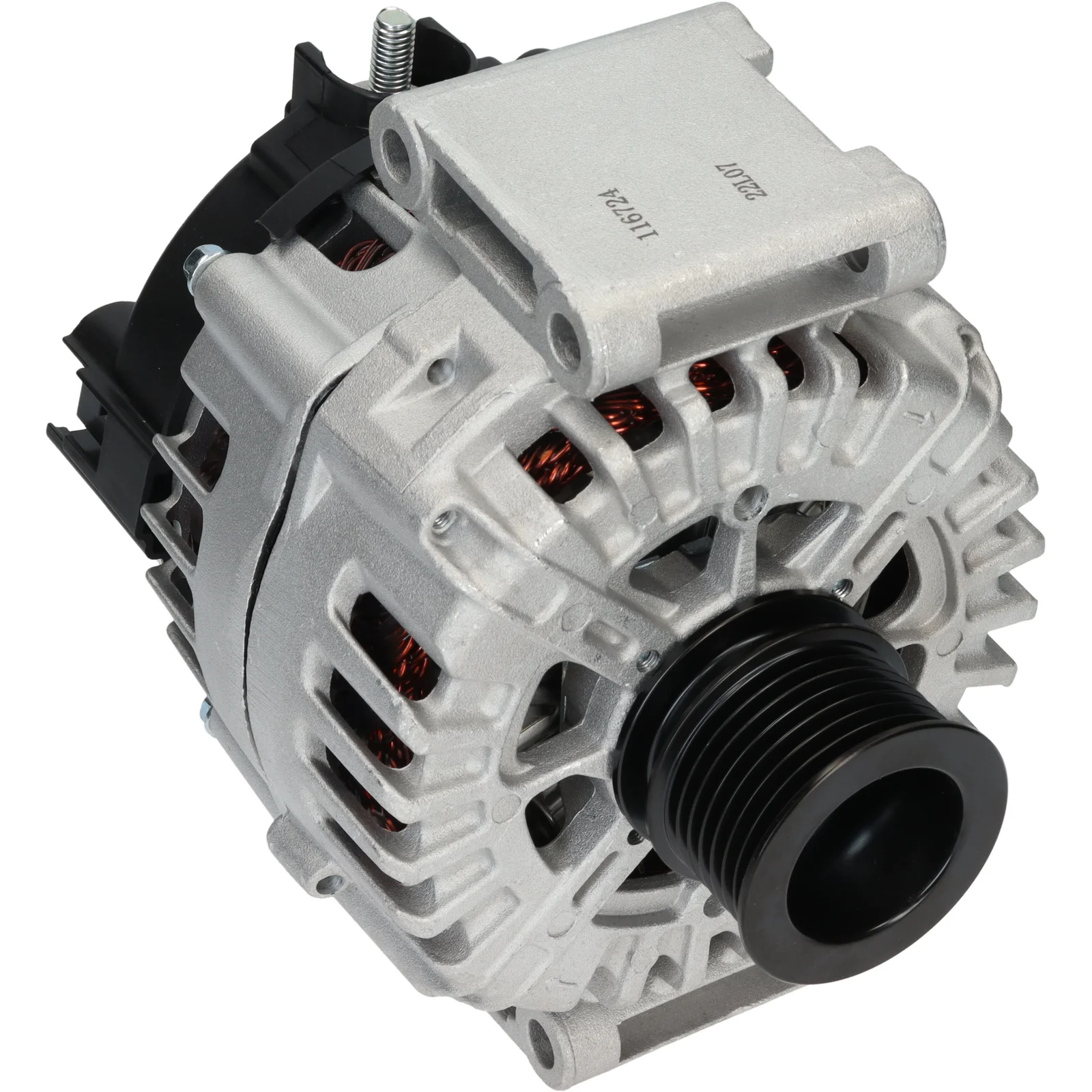

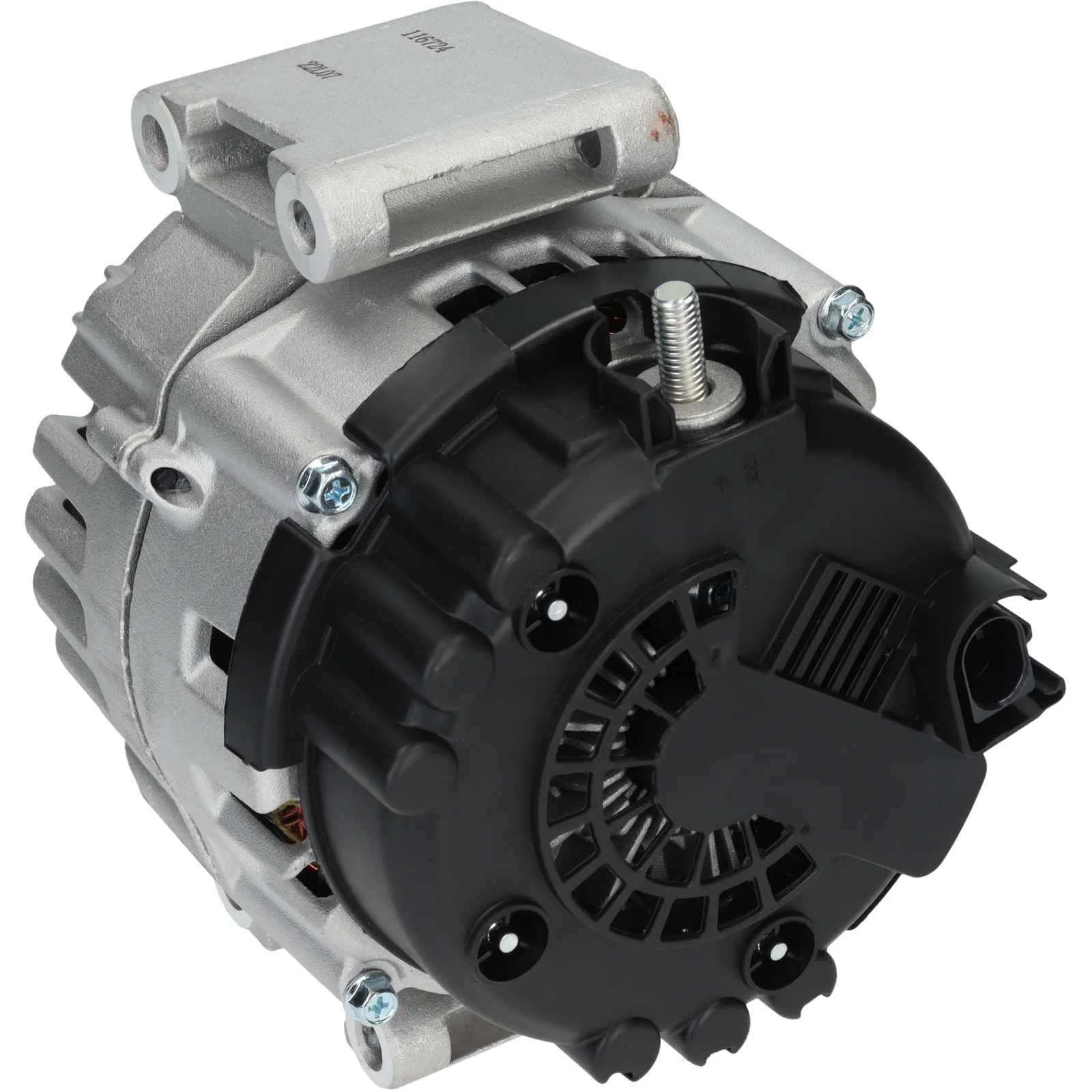

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116724

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Amp.: 250, Kierre: myötäpäivään, Asennuskehän etäisyys: 56.00

Kuvaus

Volyymi: 14
Amp: 250
Hihnan vetokulma: 31.70
Leveys/pidikevarren pituus: 70.00
Kiinnitystelineen etäisyys: 56.00
Telineen reikä: 9.00
Hihnan säätö telineen reiän 1 etäisyys: 9.20
Hihnan säätö telineen reiän 2 etäisyys: 8.50
Hihnapyörän halkaisija: 50.00
Uurteet/hihnapyörä: 7
Säde: 81.50
Säde 2: 81.50
B+: M8
Sijainti/B+ min.: 30
Kierre: myötäpäivään
Pistokkeen nro.: PL181
Kokonaispituus mm: 187.00
Terminaalityyppi: COM
ID-koodi: 89
Viestintä: LIN
Hihnapyörä: SP
Tuuletin: IF
Regulaattorin tyyppi: IR
Huomautukset: Tässä generaattorissa on COM-termianali regulaattorissa. Suositellaan, että OEM-numeroa käytetään oikeellisuuden tarkistamiseen ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.20
Belt. adj. bracket hole 2 8.50
Plug no. PL181
Bracket hole 9.00
Position/B+ in min. 30
Pulley SP
Pulley dia. 50.00
Pulley dist. 31.70
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
ID Code 89
Terminal type COM
Voltage 14
Total length 187.00 mm
Width/holder arm 70.00
Amp 250

  • OEM
    A0009060903, A0009065307, CG25S035, F032116724, 0009065307

  • Konkurrentreferens
    A3606S, CAL15A08, LRA04154, 28-7763, 555.948.250, 40341, 439891, 440638, 554678RIR, 12090837, 32439891

  • NormaliseratArtNr
    a0009060903, a0009065307, a3606s, cal15a08, cg25s035, f032116724, lra04154, 40341, 287763, 439891, 440638, 554678rir, 0009065307, 12090837, 32439891, 555948250

  • Passar modeller
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: A238 Body: Convertible From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: C238 Body: Coupe From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: W213 From date: 01-06-2017 To date: 01-05-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-10-2016 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: W213 From date: 01-01-2016 To date: 01-05-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GL 350 Model type: BlueTEC 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GL 3560 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 AMG Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Coupe From date: 01-03-2015 To date: 01-10-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-04-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 Body: Closed Off-Road Vehicle From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: de 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-10-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLS 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-11-2015 To date: 01-04-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: ML 350 Model type: BlueTec 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: 166 From date: 01-06-2011 To date: 01-02-2015 Fuel: Diesel Approved: Yes
    1 / 4
  • Kuvaus
    Volyymi: 14
    Amp: 250
    Hihnan vetokulma: 31.70
    Leveys/pidikevarren pituus: 70.00
    Kiinnitystelineen etäisyys: 56.00
    Telineen reikä: 9.00
    Hihnan säätö telineen reiän 1 etäisyys: 9.20
    Hihnan säätö telineen reiän 2 etäisyys: 8.50
    Hihnapyörän halkaisija: 50.00
    Uurteet/hihnapyörä: 7
    Säde: 81.50
    Säde 2: 81.50
    B+: M8
    Sijainti/B+ min.: 30
    Kierre: myötäpäivään
    Pistokkeen nro.: PL181
    Kokonaispituus mm: 187.00
    Terminaalityyppi: COM
    ID-koodi: 89
    Viestintä: LIN
    Hihnapyörä: SP
    Tuuletin: IF
    Regulaattorin tyyppi: IR
    Huomautukset: Tässä generaattorissa on COM-termianali regulaattorissa. Suositellaan, että OEM-numeroa käytetään oikeellisuuden tarkistamiseen ennen tilaamista.

    Tiedostot

  • Määrittely
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.20
    Belt. adj. bracket hole 2 8.50
    Plug no. PL181
    Bracket hole 9.00
    Position/B+ in min. 30
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 31.70
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 7
    ID Code 89
    Terminal type COM
    Voltage 14
    Total length 187.00 mm
    Width/holder arm 70.00
    Amp 250
  • Nämä ajoneuvot sopivat

    • OEM
      A0009060903, A0009065307, CG25S035, F032116724, 0009065307

    • Konkurrentreferens
      A3606S, CAL15A08, LRA04154, 28-7763, 555.948.250, 40341, 439891, 440638, 554678RIR, 12090837, 32439891

    • NormaliseratArtNr
      a0009060903, a0009065307, a3606s, cal15a08, cg25s035, f032116724, lra04154, 40341, 287763, 439891, 440638, 554678rir, 0009065307, 12090837, 32439891, 555948250

    • Passar modeller
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: A238 Body: Convertible From date: 01-06-2017 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: C238 Body: Coupe From date: 01-06-2017 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: W213 From date: 01-06-2017 To date: 01-05-2018 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-10-2016 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: W213 From date: 01-01-2016 To date: 01-05-2018 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GL 350 Model type: BlueTEC 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GL 3560 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 AMG Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Coupe From date: 01-03-2015 To date: 01-10-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-04-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 Body: Closed Off-Road Vehicle From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 Model type: de 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-10-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLS 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-11-2015 To date: 01-04-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: ML 350 Model type: BlueTec 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: 166 From date: 01-06-2011 To date: 01-02-2015 Fuel: Diesel Approved: Yes
      1 / 4
