Tuotenro.: F032116753

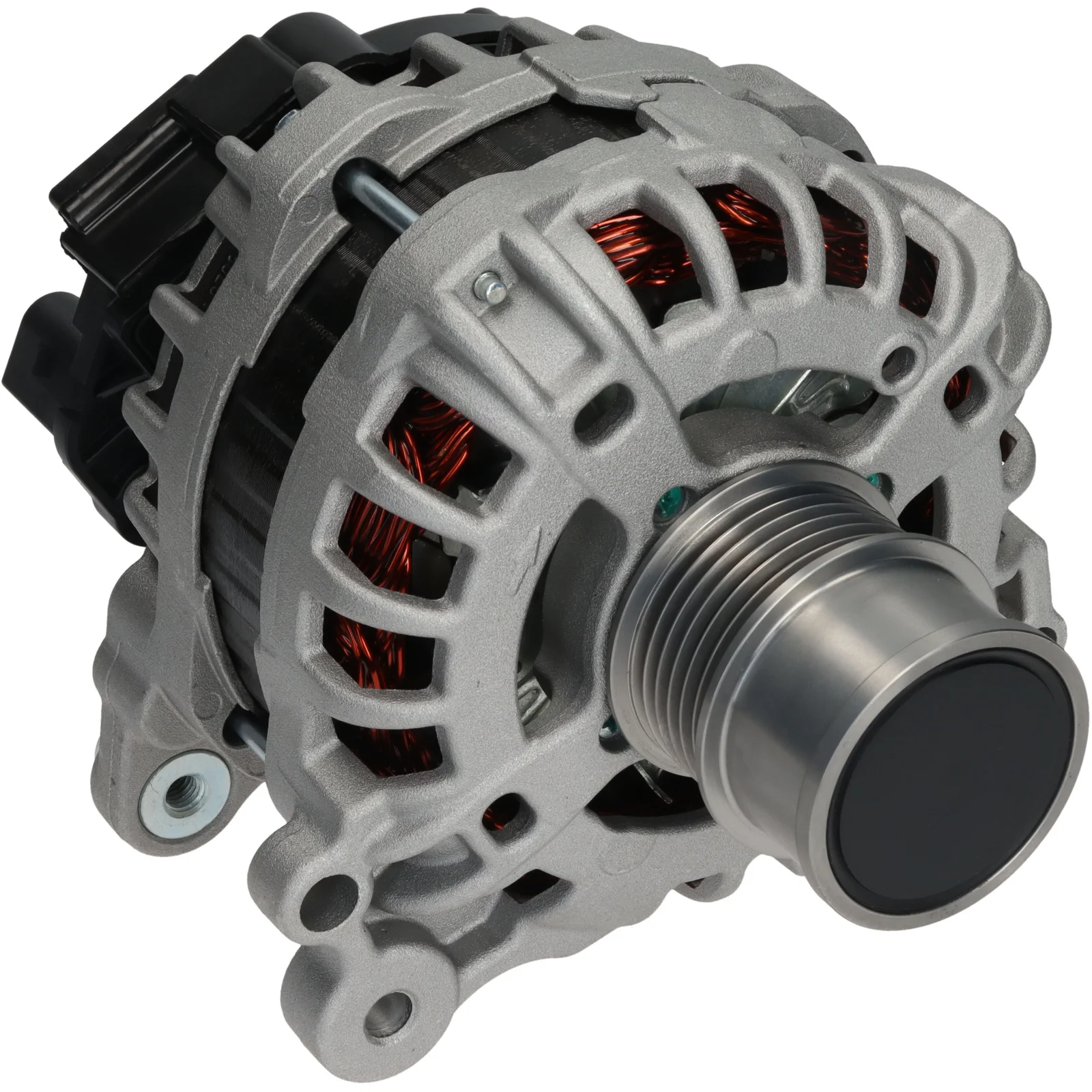

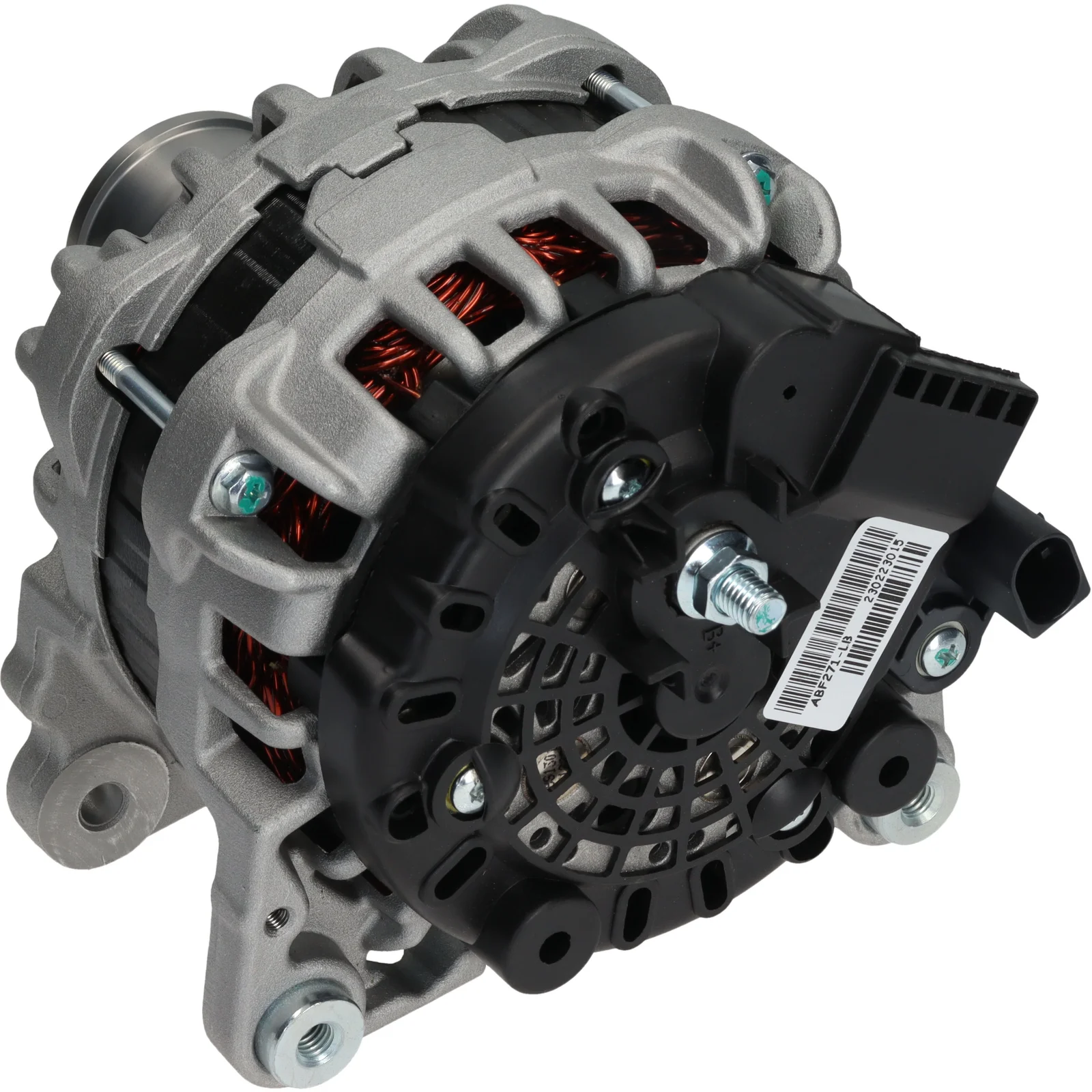

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Ampeeri: 110, Kierre: myötä, Asennus keeppi etäisyys: 60.00

Kuvaus

Volyymi: 14
Ampeer: 110
Välityssuhde: 30.00
Leveys/pidäntäkampi: 14.00
Asennuskehikon etäisyys: 60.00
Kehikon reikä: 8.50
Kourun säätökehän reikäpos.: 15
Kourun säätökehän reikä 1: M8
Välityssil Runnable: 52.30
urien määrä/kierukka: 6
Säteen mitta: 90.00
Säteen mitta 2: 90.00
B+ pituus mm: 14.00
B+: M8
Sijainti/B+ min.: 55
Pyörimissuunta: myötävaisto
liitin numero: PL181
Koko pituus mm: 195.00
Terminaalityyppi: COM
Viestintä: LIN
Käynnistysratas: SP/FW
Tuuletin: IF
Jännitteensäädin tyyppi: IR
Huomautuksia: Tämä generaattori sisältää COM-terminaalin jännitteensäätimeen. On suositeltavaa käyttää OEM-numeroa sopivuuden tarkistamiseen ennen tilaamista.

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 15
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 55
Pulley SP/FW
Pulley dia. 52.30
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 195.00 mm
Width/holder arm 14.00
Amp 110
B+ Length 14.00 mm
  • OEM

    F000BL0701, F000BL07A0, F032116753, 04E903023G
  • Konkurrentreferens

    305.963.110
  • NormaliseratArtNr

    f000bl0701, f000bl07a0, f032116753, 04e903023g, 305963110
  • Passar modeller

    Skoda Model: Octavia Model series: Octavia Model type: G-TEC Type of engine: TSI Size of motor: 1.4 Brand of engine: CPWA Type description: 5,00E+03 Body: Hatchback From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Model type: G-TEC Type of engine: TSI Size of motor: 1.4 Brand of engine: CPWA Type description: 5,00E+05 Body: Estate From date: 01-11-2013 Fuel: Gasoline Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Type description: 5,00E+03 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Type description: 5,00E+05 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5,00E+03 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5,00E+05 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.4 Brand of engine: CHPA Type description: 5,00E+03 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.4 Brand of engine: CHPA Type description: 5,00E+05 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes Manufacture type: Combi
