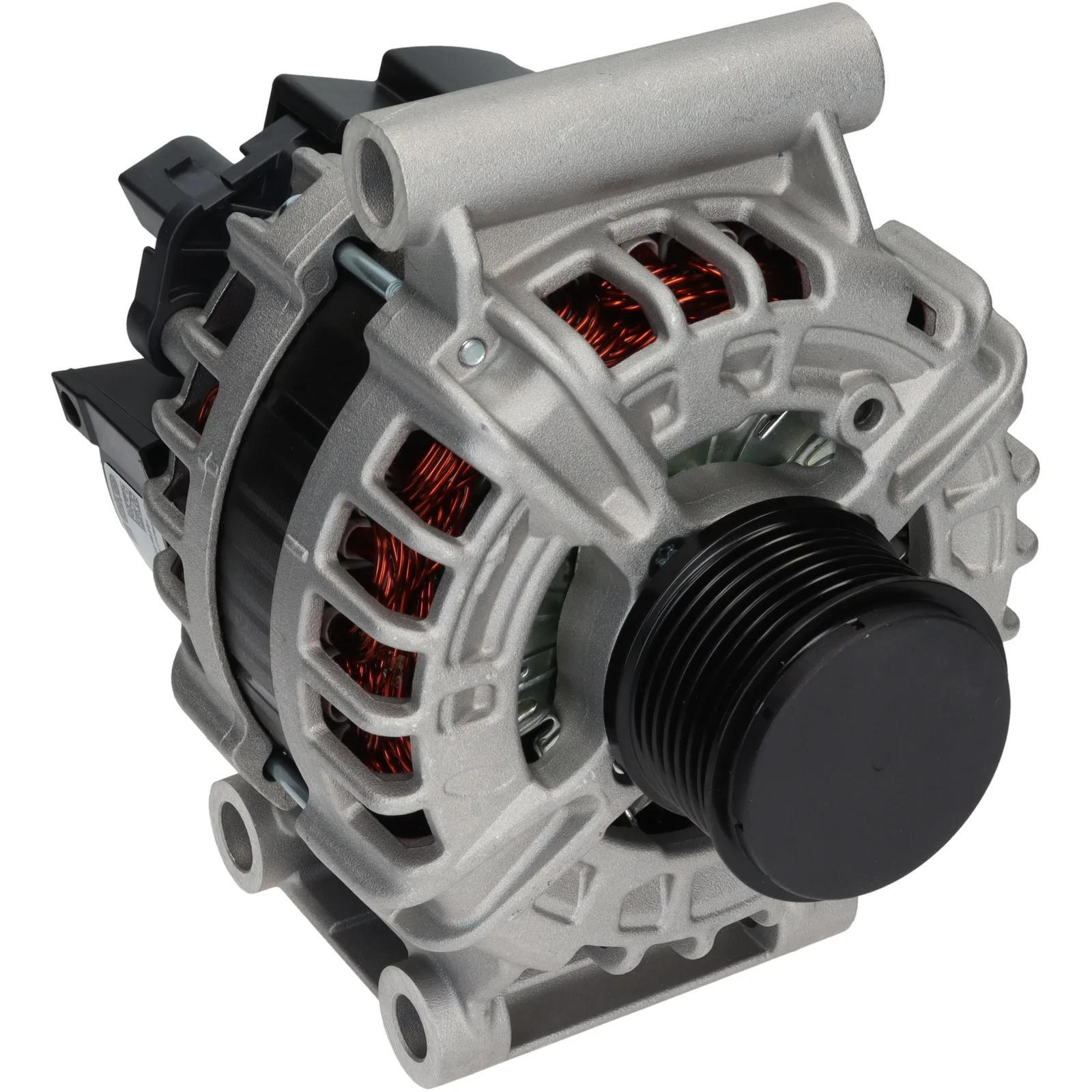

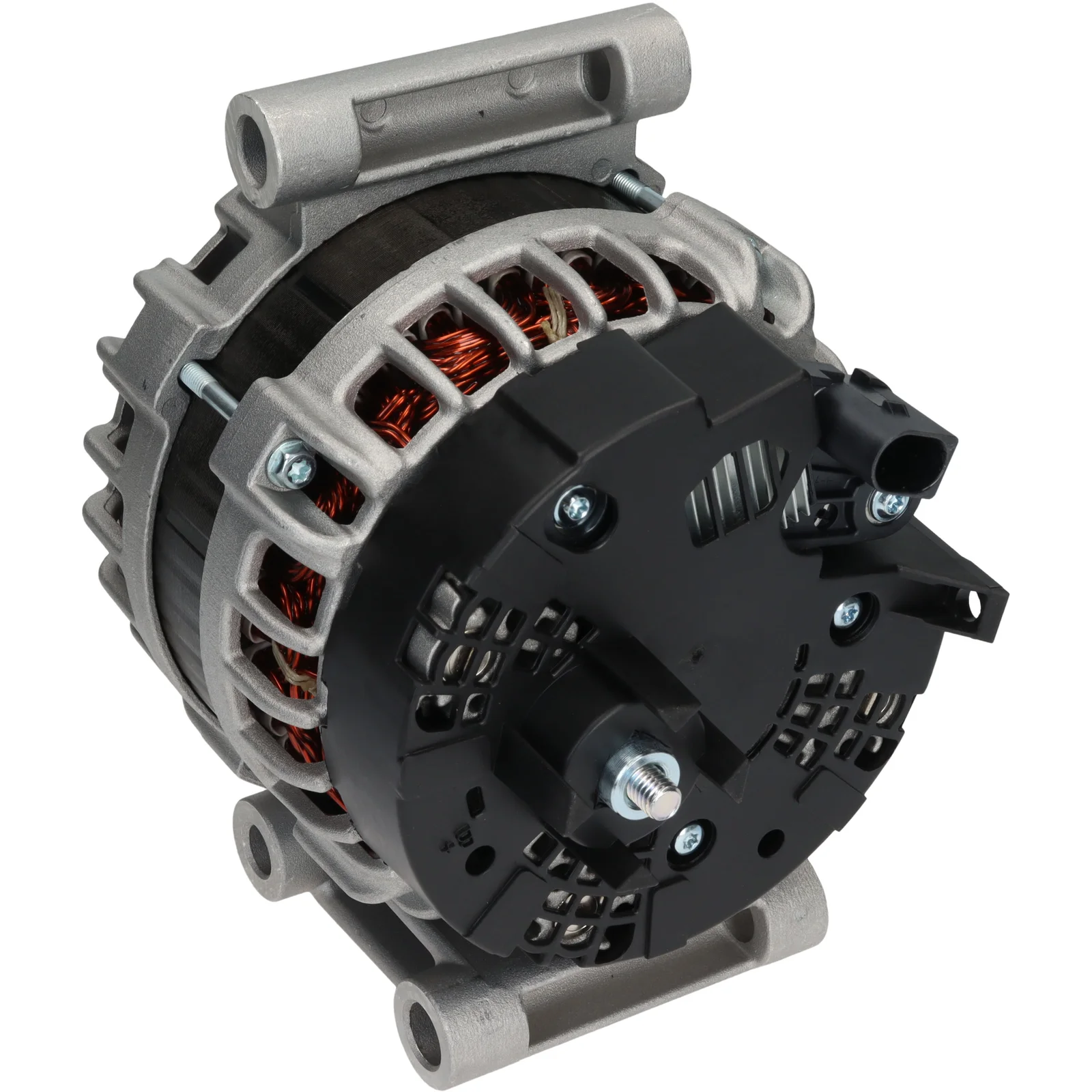

HC-Cargo Laturi
HC-Cargo Laturi
Tuotenro.: F032116782

HC-Cargo Laturi

Tekniset tiedot:

Jännite: 14, Esg: 210, Kääntö: Kännykkä, Kiinnitystuki etäisyys: 74,00

Kuvaus

Volyymi: 14
Amp: 210
Holkin etäisyys: 43,50
Leveys/kannatinvarren etäisyys: 97,00
Kiinnikehyllyn etäisyys: 74,00
Hyllyn reikä: 10,30
Hihnan säätöhyllyn reikä 1: 10,30
Holkin halkaisija: 58,70
Urien määrä/holkki: 7
Säde: 87,50
Säde 2: 87,50
B+: M8
Sijainti/B+ min.: 44
Kierros: Myötäpäivään
Liittimen numero: PL174
Kokonaispituus mm: 203,00
-Terminaalityyppi: COM
ID-koodi: 88
Viestintä: LIN
Holkki: SP/FW
Fani: IF
Regulatorityyppi: IR
Huomautukset: Tämä generaattori sisältää COM-liittimen regulattorissa. On suositeltavaa käyttää OEM-koodia sopivuuden tarkistamiseen ennen tilaamista.

Tiedostot

Määrittely

B+ M8
Communication LIN
Mount. bracket dist. 74.00
Belt. adj. bracket hole 1 10.30
Plug no. PL174
Bracket hole 10.30
Position/B+ in min. 44
Pulley SP/FW
Pulley dia. 58.70
Pulley dist. 43.50
Radius 87.50
Radius 2 87.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
ID Code 88
Terminal type COM
Voltage 14
Total length 203.00 mm
Width/holder arm 97.00
Amp 210

  • OEM
    BK3T10300EA, BK3T10300EB, BK3Z10346A, F032116782, 1986A00683, 1820604, 1874997, 0125811015, 0125811016, 0125811085, 0125811086

  • Konkurrentreferens
    A0770S, CAL10A05, DRA1798, LRA04178, 8EL011713-921, 28-7787, 595.596.210, 40356, 443414, 444289, 555028RIB, 12090744, 32003008, 0986082187, 0986086040

  • NormaliseratArtNr
    a0770s, bk3t10300ea, bk3t10300eb, bk3z10346a, cal10a05, dra1798, f032116782, lra04178, 8el011713921, 1986a00683, 40356, 287787, 443414, 444289, 555028rib, 1820604, 1874997, 12090744, 32003008, 0125811015, 0125811016, 0125811085, 0125811086, 595596210, 0986082187, 0986086040

  • Passar modeller
    Ford Model: Transit Model series: Transit Box Model type: RWD Type of engine: TDCi Size of motor: 2.2 Brand of engine: UHR5 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Van From date: 01-08-2015 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCI Size of motor: 2.2 Brand of engine: CVR5 Body: Bus From date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Van From date: 01-08-2015 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CY24 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CY24 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CYR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CYR5 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CYR5, CY24 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Model type: RWD Type of engine: TDCi Size of motor: 2.2 Brand of engine: UHR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CYF5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: DRR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: DRR5 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: USR6 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: USR6 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: USR6 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: UYR6 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: UYR6 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
    Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: UYR6 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
    1 / 6
  • Kuvaus
    Volyymi: 14
    Amp: 210
    Holkin etäisyys: 43,50
    Leveys/kannatinvarren etäisyys: 97,00
    Kiinnikehyllyn etäisyys: 74,00
    Hyllyn reikä: 10,30
    Hihnan säätöhyllyn reikä 1: 10,30
    Holkin halkaisija: 58,70
    Urien määrä/holkki: 7
    Säde: 87,50
    Säde 2: 87,50
    B+: M8
    Sijainti/B+ min.: 44
    Kierros: Myötäpäivään
    Liittimen numero: PL174
    Kokonaispituus mm: 203,00
    -Terminaalityyppi: COM
    ID-koodi: 88
    Viestintä: LIN
    Holkki: SP/FW
    Fani: IF
    Regulatorityyppi: IR
    Huomautukset: Tämä generaattori sisältää COM-liittimen regulattorissa. On suositeltavaa käyttää OEM-koodia sopivuuden tarkistamiseen ennen tilaamista.

    Tiedostot

  • Määrittely
    B+ M8
    Communication LIN
    Mount. bracket dist. 74.00
    Belt. adj. bracket hole 1 10.30
    Plug no. PL174
    Bracket hole 10.30
    Position/B+ in min. 44
    Pulley SP/FW
    Pulley dia. 58.70
    Pulley dist. 43.50
    Radius 87.50
    Radius 2 87.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 7
    ID Code 88
    Terminal type COM
    Voltage 14
    Total length 203.00 mm
    Width/holder arm 97.00
    Amp 210
  • Nämä ajoneuvot sopivat

    • OEM
      BK3T10300EA, BK3T10300EB, BK3Z10346A, F032116782, 1986A00683, 1820604, 1874997, 0125811015, 0125811016, 0125811085, 0125811086

    • Konkurrentreferens
      A0770S, CAL10A05, DRA1798, LRA04178, 8EL011713-921, 28-7787, 595.596.210, 40356, 443414, 444289, 555028RIB, 12090744, 32003008, 0986082187, 0986086040

    • NormaliseratArtNr
      a0770s, bk3t10300ea, bk3t10300eb, bk3z10346a, cal10a05, dra1798, f032116782, lra04178, 8el011713921, 1986a00683, 40356, 287787, 443414, 444289, 555028rib, 1820604, 1874997, 12090744, 32003008, 0125811015, 0125811016, 0125811085, 0125811086, 595596210, 0986082187, 0986086040

    • Passar modeller
      Ford Model: Transit Model series: Transit Box Model type: RWD Type of engine: TDCi Size of motor: 2.2 Brand of engine: UHR5 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Van From date: 01-08-2015 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCI Size of motor: 2.2 Brand of engine: CVR5 Body: Bus From date: 01-12-2014 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Van From date: 01-08-2015 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CY24 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CY24 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CYR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CYR5 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Model type: 4x4 Type of engine: TDCi Size of motor: 2.2 Brand of engine: CYR5, CY24 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Model type: RWD Type of engine: TDCi Size of motor: 2.2 Brand of engine: UHR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CV24 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CVR5 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: CYF5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: DRR5 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: DRR5 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: USR6 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: USR6 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: USR6 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: UYR6 Body: Bus From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: UYR6 Body: Platform / Chassis From date: 01-08-2013 Fuel: Diesel Approved: Yes
      Ford Model: Transit Model series: Transit Type of engine: TDCi Size of motor: 2.2 Brand of engine: UYR6 Body: Van From date: 01-08-2013 Fuel: Diesel Approved: Yes
