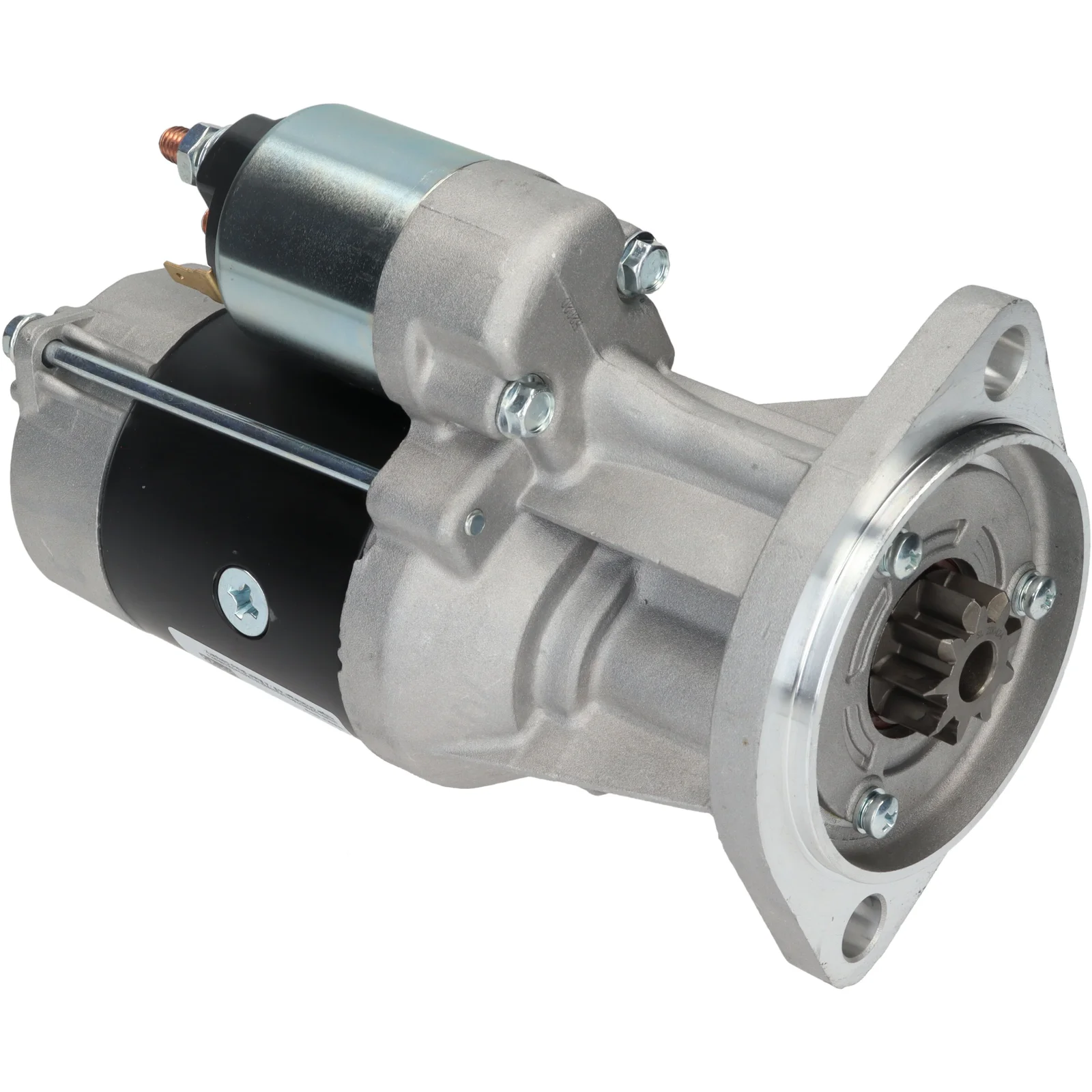

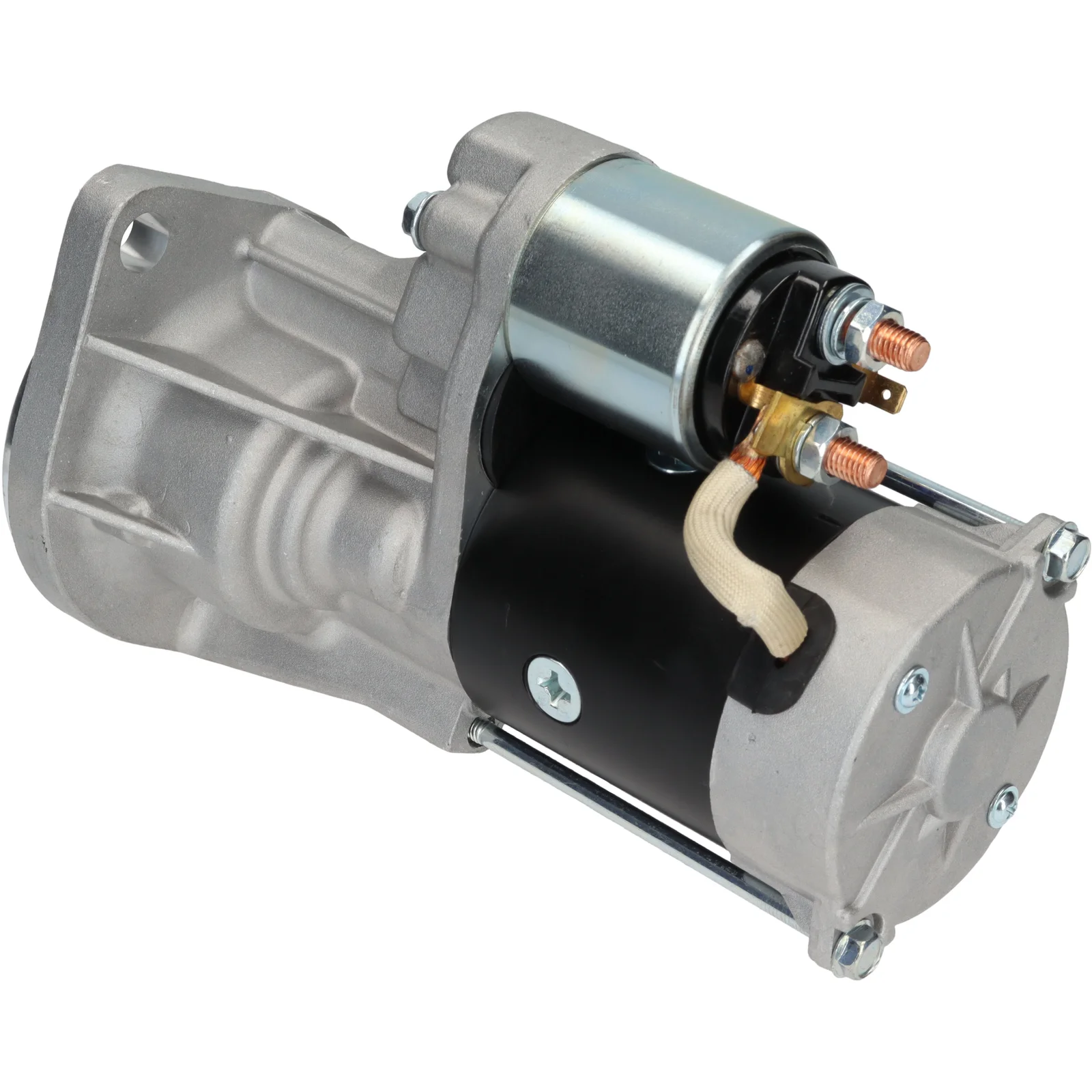

HC-Cargo Starttimoottori
HC-Cargo Starttimoottori
Tuotenro.: F032116525

HC-Cargo Starttimoottori

Tekniset tiedot:

jännite: 12, kilowatti: 2,3, nro./hampaat: 9, pyörimissuunta: myötäpäivään

Kuvaus

Jännite: 12
kW: 2.3
Kytkentäholkin halkaisija: 95.00
Vetoetäisyys: 11.00
Kytkentäholkin 2 mm: 13.50
Kytkentäholkin 1 mm: 13.50
Etäisyys/taakse: 202.00
Etäisyys/eteen: 11.00
Number/hammas: 9
B+: M8
Sijoitus/B+: 60
Sijoitus/50: 15
Terminaali 50: 6.30
Vaihtoehdon tyyppi: GR
Etäisyys mm: 120.00
Kierto: myötäpäivään
Kokonaispituus mm: 213.00
Number/kytkentäholkit: 2 (0)

Tiedostot

Määrittely

B+ M8
No./teeth 9
Mount. flange 95.00
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Rotation CW
Dist./back 202.00
Dist./front 11.00
Drive dist. 11.00
Gear type GR
kW 2.3
Terminal 50 6.30
Voltage 12
Total length 213.00 mm
Dist. 120.00 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    F032116525, s13-557, S13-557A, S13-557B, 8980281980, 8980281990

  • Konkurrentreferens
    CST20186, DRS0647, S2043, 25-4040, 130.560.092, 30252N, 254679

  • NormaliseratArtNr
    cst20186, drs0647, f032116525, s13557, s13557a, s13557b, s2043, 30252n, 254040, 254679, 130560092, 8980281980, 8980281990

  • Passar modeller
    Chevrolet Model: Colorado Model series: Colorado Crew Cab Pickup Model type: D 4WD Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1 Body: Pickup Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max (8Dh) Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: (TFR85H) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: TFR, TFS Body: Pickup Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: 4x4 (TFS85H) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: TFR, TFS Body: Pickup Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: D (TFR85_) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TCX Type description: TFR, TFS Body: Pickup Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: TFR, TFS Body: Platform / Chassis From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: KB Model series: KB Model type: 4WD Type of engine: D-TEQ Size of motor: 3.0 Brand of engine: 4JJ1-TC Body: Pick Up From date: 01-08-2010 Fuel: Diesel Approved: Yes
    Isuzu Model: KB Model series: KB Type of engine: D-TEQ Size of motor: 2.5 Brand of engine: 4JK1-TC Body: Pick Up From date: 01-10-2008 Fuel: Diesel Approved: Yes
    Isuzu Model: KB Model series: KB Type of engine: D-TEQ Size of motor: 3.0 Brand of engine: 4JJ1-TC Body: Pick Up From date: 01-08-2010 Fuel: Diesel Approved: Yes
    Isuzu Model: Mu-7 Model series: Mu-7 SUV Type of engine: TD Size of motor: 3.0 Brand of engine: 4JJ1-TCX Body: SUV From date: 01-02-2013 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Model type: 4x4 Type of engine: DTi Size of motor: 2.5 Brand of engine: 4JA1 Type description: TF_ Body: Pick Up From date: 01-07-2001 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Opel Model: Campo Model series: Campo Type of engine: DTi Size of motor: 2.5 Brand of engine: 4JA1 Type description: TF_ Body: Pick Up From date: 01-07-2001 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Vauxhall Model: Brava Model series: Brava Model type: 4x4 Type of engine: DTi Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-08-2001 To date: 01-12-2002 Fuel: Diesel Approved: Yes
    Vauxhall Model: Brava Model series: Brava Type of engine: DTi Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-08-2001 To date: 01-12-2002 Fuel: Diesel Approved: Yes
    1 / 3
  • Kuvaus
    Jännite: 12
    kW: 2.3
    Kytkentäholkin halkaisija: 95.00
    Vetoetäisyys: 11.00
    Kytkentäholkin 2 mm: 13.50
    Kytkentäholkin 1 mm: 13.50
    Etäisyys/taakse: 202.00
    Etäisyys/eteen: 11.00
    Number/hammas: 9
    B+: M8
    Sijoitus/B+: 60
    Sijoitus/50: 15
    Terminaali 50: 6.30
    Vaihtoehdon tyyppi: GR
    Etäisyys mm: 120.00
    Kierto: myötäpäivään
    Kokonaispituus mm: 213.00
    Number/kytkentäholkit: 2 (0)

    Tiedostot

  • Määrittely
    B+ M8
    No./teeth 9
    Mount. flange 95.00
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Rotation CW
    Dist./back 202.00
    Dist./front 11.00
    Drive dist. 11.00
    Gear type GR
    kW 2.3
    Terminal 50 6.30
    Voltage 12
    Total length 213.00 mm
    Dist. 120.00 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Nämä ajoneuvot sopivat

    • OEM
      F032116525, s13-557, S13-557A, S13-557B, 8980281980, 8980281990

    • Konkurrentreferens
      CST20186, DRS0647, S2043, 25-4040, 130.560.092, 30252N, 254679

    • NormaliseratArtNr
      cst20186, drs0647, f032116525, s13557, s13557a, s13557b, s2043, 30252n, 254040, 254679, 130560092, 8980281980, 8980281990

    • Passar modeller
      Chevrolet Model: Colorado Model series: Colorado Crew Cab Pickup Model type: D 4WD Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1 Body: Pickup Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max (8Dh) Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Model type: (TFR85H) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: TFR, TFS Body: Pickup Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Model type: 4x4 (TFS85H) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: TFR, TFS Body: Pickup Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Model type: D (TFR85_) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TCX Type description: TFR, TFS Body: Pickup Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: D-Max Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: TFR, TFS Body: Platform / Chassis From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Isuzu Model: KB Model series: KB Model type: 4WD Type of engine: D-TEQ Size of motor: 3.0 Brand of engine: 4JJ1-TC Body: Pick Up From date: 01-08-2010 Fuel: Diesel Approved: Yes
      Isuzu Model: KB Model series: KB Type of engine: D-TEQ Size of motor: 2.5 Brand of engine: 4JK1-TC Body: Pick Up From date: 01-10-2008 Fuel: Diesel Approved: Yes
      Isuzu Model: KB Model series: KB Type of engine: D-TEQ Size of motor: 3.0 Brand of engine: 4JJ1-TC Body: Pick Up From date: 01-08-2010 Fuel: Diesel Approved: Yes
      Isuzu Model: Mu-7 Model series: Mu-7 SUV Type of engine: TD Size of motor: 3.0 Brand of engine: 4JJ1-TCX Body: SUV From date: 01-02-2013 Fuel: Diesel Approved: Yes
      Opel Model: Campo Model series: Campo Model type: 4x4 Type of engine: DTi Size of motor: 2.5 Brand of engine: 4JA1 Type description: TF_ Body: Pick Up From date: 01-07-2001 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Opel Model: Campo Model series: Campo Type of engine: DTi Size of motor: 2.5 Brand of engine: 4JA1 Type description: TF_ Body: Pick Up From date: 01-07-2001 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Vauxhall Model: Brava Model series: Brava Model type: 4x4 Type of engine: DTi Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-08-2001 To date: 01-12-2002 Fuel: Diesel Approved: Yes
      Vauxhall Model: Brava Model series: Brava Type of engine: DTi Size of motor: 2.5 Brand of engine: 4JA1 Body: Pick Up From date: 01-08-2001 To date: 01-12-2002 Fuel: Diesel Approved: Yes
