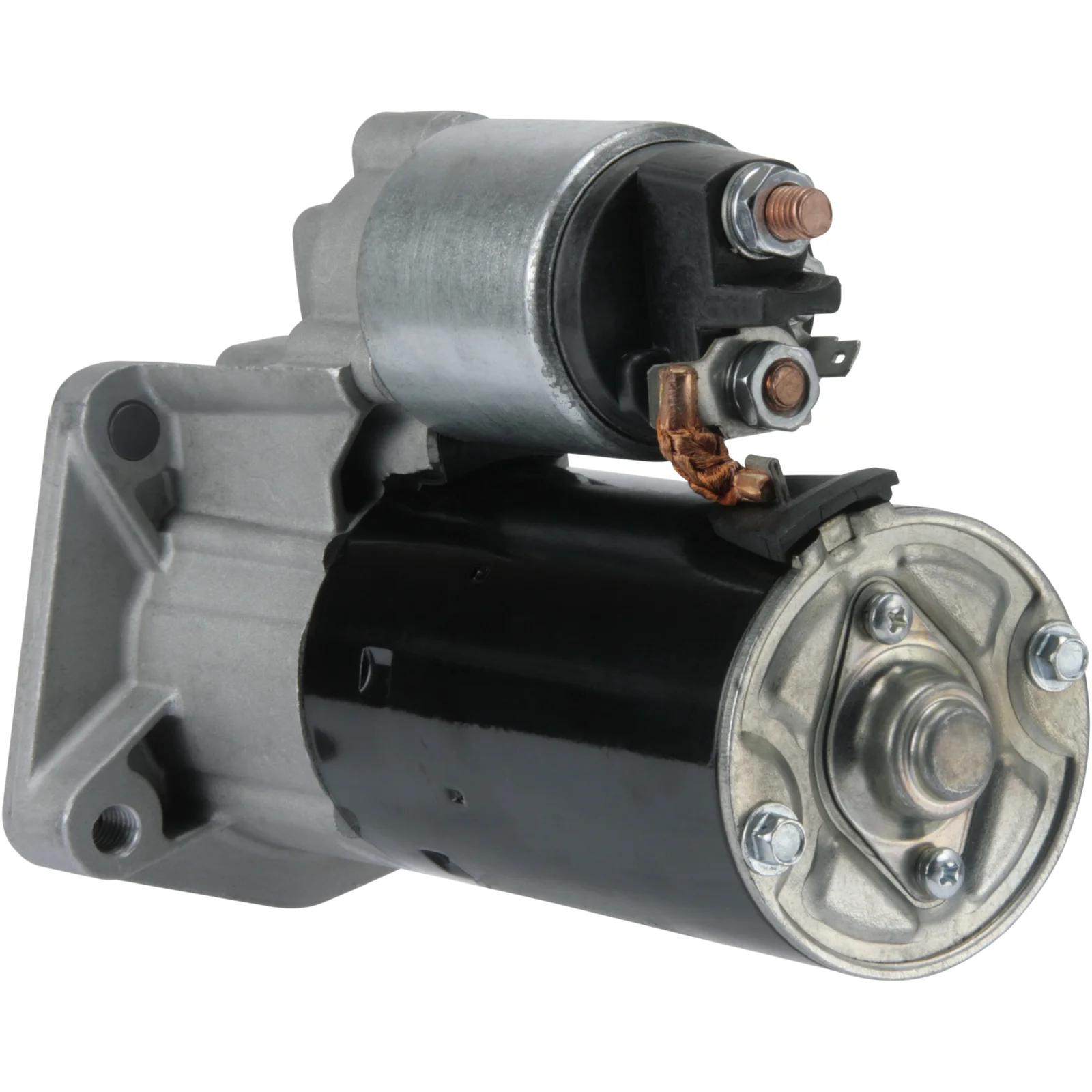

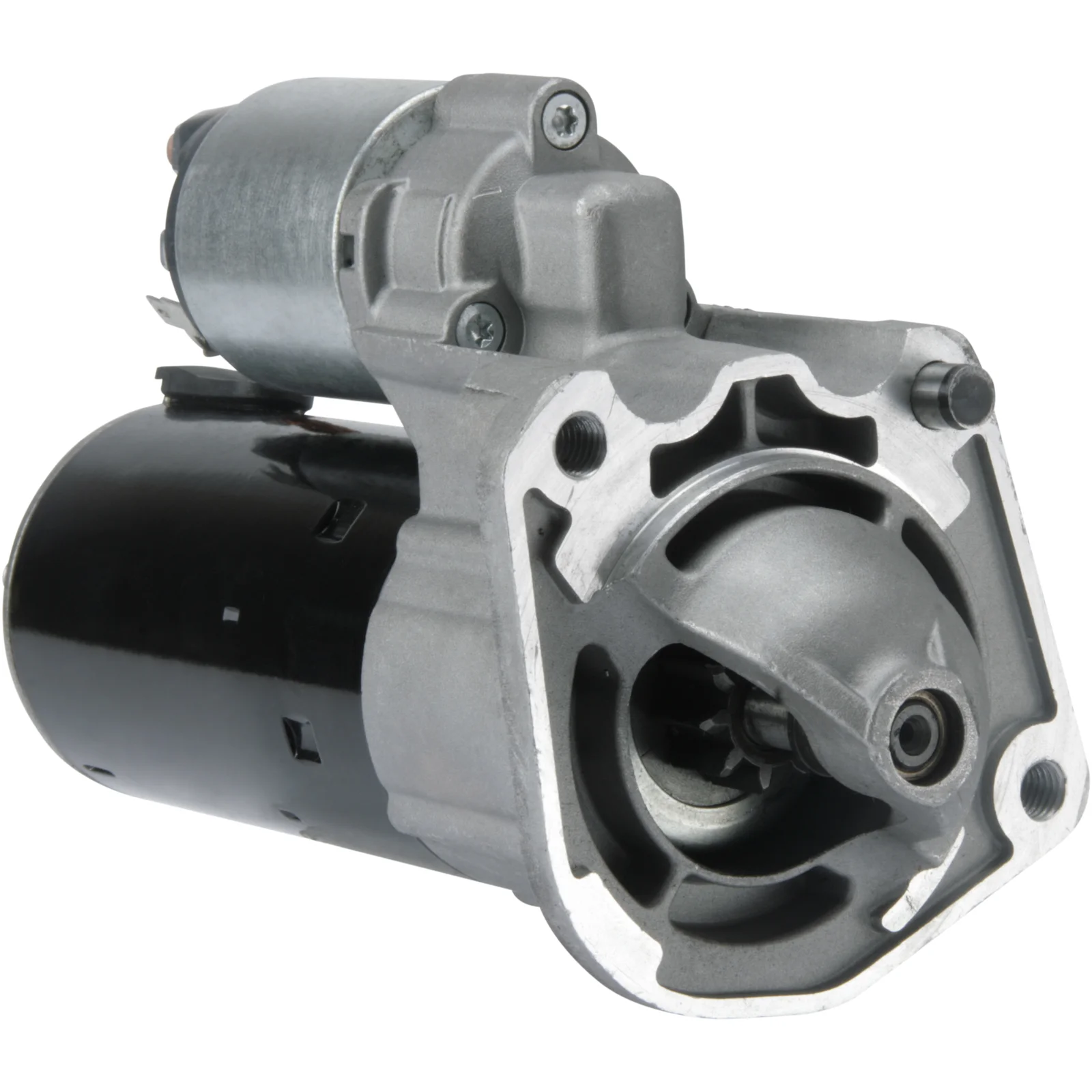

HC-Cargo Starttimoottori
HC-Cargo Starttimoottori
Tuotenro.: F032114315

HC-Cargo Starttimoottori

Tekniset tiedot:

Jännite: 12, kW: 1.4, Nro./hampaat: 9, Kierto: myötäpäivään

Kuvaus

Käynnistysmoottori 12V-1.4kW sopii Volvo 12V - 1.4kW, 9k A - 76 mm, B - 1 mm Für Yourex tuote tilaus 91-600-2086

Jännite: 12
kW: 1.4
Asentokannake: 76.00
Vetomatka: 0.00
Asennusreikä 3 mm: M10
Asennusreikä 1 mm: 10.00
Etäisyys / takana: 173.00
Etäisyys / edessä: 34.00
Reikien / hampaat: 9
B+: M8
Sijainti / 50: 20
Terminaali 50: 6.30
Vaihteen tyyppi: GR
Etäisyys 2: 106.00
Etäisyys 3: 67.00
Etäisyys mm: 67.00
Pyörimissuunta: myötäpäivään
Kokonaispituus mm: 213.50
Vetotyyppi: Teräs
Reikien / asennusreikien määrä: 3 (2)

Tiedostot

Määrittely

B+ M8
No./teeth 9
Mount. flange 76.00
No./mount. holes 3 (2)
Position/50 20
Dist. 2 106.00
Dist. 3 67.00
Rotation CW
Dist./back 173.00
Dist./front 34.00
Drive dist. 0.00
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 213.50 mm
Dist. 67.00 mm
Mount. hole 3 M10 mm
Mount. hole 1 10.00 mm

  • OEM
    cs1398, F032114315, FO 1374049, RGO 114315, 0001 108 402, 3M5T-11000EA, 3M5T11000EA, 0986 020 860, 1986S00715, 114315, 0001108402, 0001108472, 1374049, 8602924, 8622742, 36050273, 86029240, 360502730

  • Konkurrentreferens
    CST10549, DRT0860, LRS02331, S0877S, 8EA011611-401, 25-4003, 338.041.092, 17979N, 17979R, 101398, 105386, 220412, 220412A, 438547, 458829, 8020860, 11020860, 42020860, 0986020860, 0986020863, 0986020867

  • Bilmärken
    Ford EU, Volvo

  • NormaliseratArtNr
    cs1398, cst10549, drt0860, f032114315, fo1374049, lrs02331, rgo114315, s0877s, 3m5t11000ea, 8ea011611401, 1986s00715, 17979n, 17979r, 101398, 105386, 114315, 220412, 220412a, 254003, 438547, 458829, 0001108402, 0001108472, 1374049, 8020860, 8602924, 8622742, 11020860, 36050273, 42020860, 86029240, 338041092, 360502730, 0986020860, 0986020863, 0986020867

  • Passar modeller
    Changan Ford Mazda Model: S40 Model series: S40 Size of motor: 2.4 Brand of engine: B5244S Type description: MS From date: 01-06-2006 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Ford EU Series: Focus II Model: 2.5 ST Engine volume: 2.5 Engine type: HYDA Year: 10.05-08.06
    Ford Model: Focus Model series: Focus Model type: ST Size of motor: 2.5 Brand of engine: HYDA Type description: DA_ Body: Hatchback From date: 01-10-2005 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: C70 Model series: C70 Model type: T5 Size of motor: 2.5 Brand of engine: D5254T3 Body: Convertible From date: 01-03-2006 To date: 01-02-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: C70 Model series: C70 Model type: T5 Type of engine: Turbo Size of motor: 2.5 Brand of engine: B5254T7 Body: Convertible From date: 01-03-2007 To date: 01-10-2009 Fuel: Gasoline Approved: Yes
    Volvo Model: C70 Model series: C70 Size of motor: 2.4 Brand of engine: B5244S5 Body: Convertible From date: 01-03-2006 To date: 01-10-2009 Fuel: Gasoline Approved: Yes
    Volvo Model: C70 Model series: C70 Type of engine: i Size of motor: 2.4 Brand of engine: B5244S4 Body: Convertible From date: 01-03-2006 To date: 01-10-2009 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Model type: T5 AWD Size of motor: 2.5 Brand of engine: B5254T3 Type description: MS From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Model type: T5 AWD Type of engine: Turbo Size of motor: 2.5 Brand of engine: B5254T7 Type description: MS From date: 01-03-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Model type: T5 Size of motor: 2.5 Brand of engine: B5254T3 Type description: MS From date: 01-01-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Model type: T5 Type of engine: Turbo Size of motor: 2.5 Brand of engine: B5254T7 Type description: MS From date: 01-03-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Size of motor: 2.4 Brand of engine: B5244S4 Type description: MS From date: 01-01-2004 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Size of motor: 2.4 Brand of engine: B5244S5 Type description: MS From date: 01-01-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Model type: T5 AWD Size of motor: 2.5 Brand of engine: B5254T3 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Model type: T5 AWD Type of engine: Turbo Size of motor: 2.5 Brand of engine: B5254T7 Type description: MW Body: Estate From date: 01-03-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Model type: T5 Size of motor: 2.5 Brand of engine: B5254T3 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Model type: T5 Type of engine: Turbo Size of motor: 2.5 Brand of engine: B5254T7 Type description: MW Body: Estate From date: 01-03-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Size of motor: 2.4 Brand of engine: B5244S4 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Size of motor: 2.4 Brand of engine: B5244S5 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Series: C70 II Cabriolet Model: 2.4 >ch.nr 9999 Engine volume: 2.4 Engine type: B 5244 S5 Year: 03.06-
    Volvo Series: C70 II Cabriolet Model: 2.4 i >ch.nr 9999 Engine volume: 2.4 Engine type: B 5244 S4 Year: 03.06-
    Volvo Series: C70 II Cabriolet Model: T5 >ch.nr 9999 Engine volume: 2.5 Engine type: B 5254 T3 Year: 03.06-07.07
    Volvo Series: C70 II Cabriolet Model: T5 >ch.nr 9999 Engine volume: 2.5 Engine type: B 5254 T7 Year: 08.07-
    Volvo Series: S40 II Model: 2.4 >ch.nr 249999 Engine volume: 2.4 Engine type: B 5244 S Year: 01.04-
    Volvo Series: S40 II Model: 2.4 >ch.nr 249999 Engine volume: 2.4 Engine type: B 5244 S5 Year: 01.04-
    Volvo Series: S40 II Model: T5 >ch.nr 249999 Engine volume: 2.5 Engine type: B 5254 T3 Year: 01.04-07.07
    Volvo Series: S40 II Model: T5 >ch.nr 249999 Engine volume: 2.5 Engine type: B 5254 T7 Year: 08.07-
    Volvo Series: S40 II Model: T5 AWD >ch.nr 249999 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-07.07
    Volvo Series: S40 II Model: T5 AWD >ch.nr 249999 Engine volume: 2.5 Engine type: B 5254 T7 Year: 08.07-
    Volvo Series: V50 Model: 2.4 >ch.nr 269999 Engine volume: 2.4 Engine type: B 5244 S Year: 04.04-
    Volvo Series: V50 Model: 2.4 >ch.nr 269999 Engine volume: 2.4 Engine type: B 5244 S5 Year: 04.04-
    Volvo Series: V50 Model: T5 >ch.nr 269999 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-07.07
    Volvo Series: V50 Model: T5 >ch.nr 269999 Engine volume: 2.5 Engine type: B 5254 T7 Year: 08.07-
    Volvo Series: V50 Model: T5 AWD >ch.nr 269999 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-07.07
    Volvo Series: V50 Model: T5 AWD >ch.nr 269999 Engine volume: 2.5 Engine type: B 5254 T7 Year: 08.07-
    1 / 7
  • Kuvaus
    Käynnistysmoottori 12V-1.4kW sopii Volvo 12V - 1.4kW, 9k A - 76 mm, B - 1 mm Für Yourex tuote tilaus 91-600-2086

    Jännite: 12
    kW: 1.4
    Asentokannake: 76.00
    Vetomatka: 0.00
    Asennusreikä 3 mm: M10
    Asennusreikä 1 mm: 10.00
    Etäisyys / takana: 173.00
    Etäisyys / edessä: 34.00
    Reikien / hampaat: 9
    B+: M8
    Sijainti / 50: 20
    Terminaali 50: 6.30
    Vaihteen tyyppi: GR
    Etäisyys 2: 106.00
    Etäisyys 3: 67.00
    Etäisyys mm: 67.00
    Pyörimissuunta: myötäpäivään
    Kokonaispituus mm: 213.50
    Vetotyyppi: Teräs
    Reikien / asennusreikien määrä: 3 (2)

    Tiedostot

  • Määrittely
    B+ M8
    No./teeth 9
    Mount. flange 76.00
    No./mount. holes 3 (2)
    Position/50 20
    Dist. 2 106.00
    Dist. 3 67.00
    Rotation CW
    Dist./back 173.00
    Dist./front 34.00
    Drive dist. 0.00
    Drive type Steel
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 213.50 mm
    Dist. 67.00 mm
    Mount. hole 3 M10 mm
    Mount. hole 1 10.00 mm
  • Nämä ajoneuvot sopivat

    • OEM
      cs1398, F032114315, FO 1374049, RGO 114315, 0001 108 402, 3M5T-11000EA, 3M5T11000EA, 0986 020 860, 1986S00715, 114315, 0001108402, 0001108472, 1374049, 8602924, 8622742, 36050273, 86029240, 360502730

    • Konkurrentreferens
      CST10549, DRT0860, LRS02331, S0877S, 8EA011611-401, 25-4003, 338.041.092, 17979N, 17979R, 101398, 105386, 220412, 220412A, 438547, 458829, 8020860, 11020860, 42020860, 0986020860, 0986020863, 0986020867

    • Bilmärken
      Ford EU, Volvo

    • NormaliseratArtNr
      cs1398, cst10549, drt0860, f032114315, fo1374049, lrs02331, rgo114315, s0877s, 3m5t11000ea, 8ea011611401, 1986s00715, 17979n, 17979r, 101398, 105386, 114315, 220412, 220412a, 254003, 438547, 458829, 0001108402, 0001108472, 1374049, 8020860, 8602924, 8622742, 11020860, 36050273, 42020860, 86029240, 338041092, 360502730, 0986020860, 0986020863, 0986020867

    • Passar modeller
      Changan Ford Mazda Model: S40 Model series: S40 Size of motor: 2.4 Brand of engine: B5244S Type description: MS From date: 01-06-2006 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Ford EU Series: Focus II Model: 2.5 ST Engine volume: 2.5 Engine type: HYDA Year: 10.05-08.06
      Ford Model: Focus Model series: Focus Model type: ST Size of motor: 2.5 Brand of engine: HYDA Type description: DA_ Body: Hatchback From date: 01-10-2005 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Volvo Model: C70 Model series: C70 Model type: T5 Size of motor: 2.5 Brand of engine: D5254T3 Body: Convertible From date: 01-03-2006 To date: 01-02-2007 Fuel: Gasoline Approved: Yes
      Volvo Model: C70 Model series: C70 Model type: T5 Type of engine: Turbo Size of motor: 2.5 Brand of engine: B5254T7 Body: Convertible From date: 01-03-2007 To date: 01-10-2009 Fuel: Gasoline Approved: Yes
      Volvo Model: C70 Model series: C70 Size of motor: 2.4 Brand of engine: B5244S5 Body: Convertible From date: 01-03-2006 To date: 01-10-2009 Fuel: Gasoline Approved: Yes
      Volvo Model: C70 Model series: C70 Type of engine: i Size of motor: 2.4 Brand of engine: B5244S4 Body: Convertible From date: 01-03-2006 To date: 01-10-2009 Fuel: Gasoline Approved: Yes
      Volvo Model: S40 Model series: S40 Model type: T5 AWD Size of motor: 2.5 Brand of engine: B5254T3 Type description: MS From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Volvo Model: S40 Model series: S40 Model type: T5 AWD Type of engine: Turbo Size of motor: 2.5 Brand of engine: B5254T7 Type description: MS From date: 01-03-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: S40 Model series: S40 Model type: T5 Size of motor: 2.5 Brand of engine: B5254T3 Type description: MS From date: 01-01-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Volvo Model: S40 Model series: S40 Model type: T5 Type of engine: Turbo Size of motor: 2.5 Brand of engine: B5254T7 Type description: MS From date: 01-03-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Volvo Model: S40 Model series: S40 Size of motor: 2.4 Brand of engine: B5244S4 Type description: MS From date: 01-01-2004 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Volvo Model: S40 Model series: S40 Size of motor: 2.4 Brand of engine: B5244S5 Type description: MS From date: 01-01-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: V50 Model series: V50 Model type: T5 AWD Size of motor: 2.5 Brand of engine: B5254T3 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Volvo Model: V50 Model series: V50 Model type: T5 AWD Type of engine: Turbo Size of motor: 2.5 Brand of engine: B5254T7 Type description: MW Body: Estate From date: 01-03-2007 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: V50 Model series: V50 Model type: T5 Size of motor: 2.5 Brand of engine: B5254T3 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
      Volvo Model: V50 Model series: V50 Model type: T5 Type of engine: Turbo Size of motor: 2.5 Brand of engine: B5254T7 Type description: MW Body: Estate From date: 01-03-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Volvo Model: V50 Model series: V50 Size of motor: 2.4 Brand of engine: B5244S4 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Model: V50 Model series: V50 Size of motor: 2.4 Brand of engine: B5244S5 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Volvo Series: C70 II Cabriolet Model: 2.4 >ch.nr 9999 Engine volume: 2.4 Engine type: B 5244 S5 Year: 03.06-
      Volvo Series: C70 II Cabriolet Model: 2.4 i >ch.nr 9999 Engine volume: 2.4 Engine type: B 5244 S4 Year: 03.06-
      Volvo Series: C70 II Cabriolet Model: T5 >ch.nr 9999 Engine volume: 2.5 Engine type: B 5254 T3 Year: 03.06-07.07
      Volvo Series: C70 II Cabriolet Model: T5 >ch.nr 9999 Engine volume: 2.5 Engine type: B 5254 T7 Year: 08.07-
      Volvo Series: S40 II Model: 2.4 >ch.nr 249999 Engine volume: 2.4 Engine type: B 5244 S Year: 01.04-
      Volvo Series: S40 II Model: 2.4 >ch.nr 249999 Engine volume: 2.4 Engine type: B 5244 S5 Year: 01.04-
      Volvo Series: S40 II Model: T5 >ch.nr 249999 Engine volume: 2.5 Engine type: B 5254 T3 Year: 01.04-07.07
      Volvo Series: S40 II Model: T5 >ch.nr 249999 Engine volume: 2.5 Engine type: B 5254 T7 Year: 08.07-
      Volvo Series: S40 II Model: T5 AWD >ch.nr 249999 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-07.07
      Volvo Series: S40 II Model: T5 AWD >ch.nr 249999 Engine volume: 2.5 Engine type: B 5254 T7 Year: 08.07-
      Volvo Series: V50 Model: 2.4 >ch.nr 269999 Engine volume: 2.4 Engine type: B 5244 S Year: 04.04-
      Volvo Series: V50 Model: 2.4 >ch.nr 269999 Engine volume: 2.4 Engine type: B 5244 S5 Year: 04.04-
      Volvo Series: V50 Model: T5 >ch.nr 269999 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-07.07
      Volvo Series: V50 Model: T5 >ch.nr 269999 Engine volume: 2.5 Engine type: B 5254 T7 Year: 08.07-
      Volvo Series: V50 Model: T5 AWD >ch.nr 269999 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-07.07
      Volvo Series: V50 Model: T5 AWD >ch.nr 269999 Engine volume: 2.5 Engine type: B 5254 T7 Year: 08.07-
