Tuotenro.: F032113314

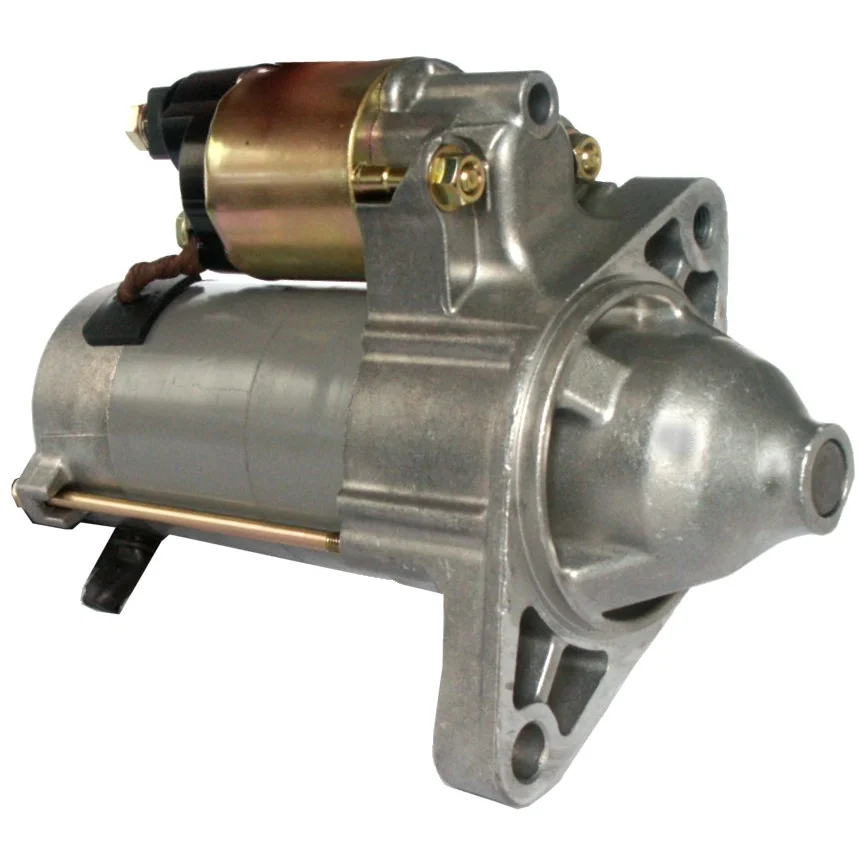

HC-Cargo Starttimoottori

Tekniset tiedot:

Jännite: 12, kW: 1.0, Nro./hampaat: 9, Kierto: myötäpäivään

Kuvaus

Jännite: 12
kW: 1.0
Kytkentäholkki: 74.00
Käynnistysrataspituus: 13.50
Kytkentäkkeen 2 mm: 11.00
Etäisyys/taaksepäin: 156.00
Etäisyys/eteenpäin: 48.00
Nro./hampaat: 9
B+: M8
Sijainti/50: 40
Terminaali 50: Pistorasia
Välitys tyypit: GR
Etäisyys mm: 122.50
Kierros: Myötäpäivään
Kokonaispituus mm: 204.00
Käynnistys tyyppi: Teräs
Tuotetiedot: BN
Vesisuojaus: Ei
Öljysuojattu: Ei
Nro./kytkentäkkeen reiät: 2 (1)

Tiedostot

Määrittely

B+ M8
No./teeth 9
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (1)
Position/50 40
Prod. info BN
Rotation CW
Dist./back 156.00
Dist./front 48.00
Drive dist. 13.50
Drive type Steel
Gear type GR
kW 1.0
Terminal 50 Plug
Voltage 12
Total length 204.00 mm
Waterproof No
Dist. 122.50 mm
Mount. hole 2 11.00 mm

  • OEM
    F032113314, js1224, RGO 113314, 1986S01090, 1986S01181, 28100-0M051, 28100-21020, 28100-21021, 28100-21022, 28100-21030, 28100-21031, 28100-21050, 28100-75191, 28100B1060, 228000-8540, 228000-8541, 228000-8542, 228000-8550, 228000-8552, 428000-9370, 2810097213

  • Konkurrentreferens
    CST44101, DENDSN934, DRS3866, DRS3867, DSN934, F042000207, F042200154, F042S00207, lrs01479, LRT00216, S6036, S6036(DENSO), S6309S, STR-8268, STR8268, STR8280, 2-2057-ND, 2-2058-ND, 8EA012526-101, 8EA012527-421, 8EA737971-001, 25-2422, 25-3094, 335.071.092, 335.099.092, 17805, 17805R, 17805RW, 17806, 17806N, 17806R, 17850N, 106372, 201224, 201233, 220486, 220486A, 220926, 220926A, 458320, 8080146, 11040694, 063280055, 0986020541, 0986023910, 0986027160, 063280055010, 944280801460

  • NormaliseratArtNr
    cst44101, dendsn934, drs3866, drs3867, dsn934, f032113314, f042000207, f042200154, f042s00207, js1224, lrs01479, lrt00216, rgo113314, s6036, s6036denso, s6309s, str8268, str8280, 8ea012526101, 8ea012527421, 8ea737971001, 1986s01090, 1986s01181, 17805, 17805r, 17805rw, 17806, 17806n, 17806r, 17850n, 22057nd, 22058nd, 28100b1060, 106372, 201224, 201233, 220486, 220486a, 220926, 220926a, 252422, 253094, 281000m051, 458320, 8080146, 11040694, 063280055, 335071092, 335099092, 0986020541, 0986023910, 0986027160, 2280008540, 2280008541, 2280008542, 2280008550, 2280008552, 2810021020, 2810021021, 2810021022, 2810021030, 2810021031, 2810021050, 2810075191, 2810097213, 4280009370, 063280055010, 944280801460

  • Passar modeller
    Toyota Model: Corolla Model series: Corolla Model type: RC Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _E12_, _E12T_ From date: 01-11-2001 To date: 01-07-2007 Fuel: Gasoline Approved: Yes
    Toyota Model: Echo Model series: Echo Saloon Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _P1_ Body: Saloon From date: 01-08-1999 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    Toyota Model: Echo Model series: Echo Size of motor: 1.5 Brand of engine: 1NZ-FE From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Toyota Model: Echo Model series: Echo Type of engine: VVTi Size of motor: 1.5 Brand of engine: 1NZ-FE From date: 01-08-1999 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Opa Model series: Opa Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: ZCT1_, ACT1_ Body: Estate From date: 01-04-2000 To date: 01-08-2003 Fuel: Gasoline Approved: Yes
    Toyota Model: Premio Model series: Premio Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: _T24_ From date: 01-12-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Toyota Model: RAV 4 Model series: RAV 4 Size of motor: 2.0 Brand of engine: 3S-FE Type description: _A1_ Body: SUV From date: 01-09-1997 To date: 01-09-2000 Fuel: Petrol Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.5 Brand of engine: 1NZ-FE From date: 01-08-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _P9_ Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Petrol Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP10 Body: Hatchback From date: 01-11-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: i 16V Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP13 Body: Hatchback From date: 01-04-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _CP10_ Body: Hatchback From date: 01-01-2003 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _CP10 Body: Hatchback From date: 01-03-2000 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Model type: 4WD Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _NLP2_, _NCP2_ Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP2_ Body: MPV From date: 01-08-1999 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP2_ Body: MPV From date: 01-11-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Type of engine: 16V Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP21 Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Type of engine: TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP2_ Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: _P2_ Body: Box From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: VVTi Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _P2_ Body: Box From date: 01-03-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
    1 / 4
  • Kuvaus
    Jännite: 12
    kW: 1.0
    Kytkentäholkki: 74.00
    Käynnistysrataspituus: 13.50
    Kytkentäkkeen 2 mm: 11.00
    Etäisyys/taaksepäin: 156.00
    Etäisyys/eteenpäin: 48.00
    Nro./hampaat: 9
    B+: M8
    Sijainti/50: 40
    Terminaali 50: Pistorasia
    Välitys tyypit: GR
    Etäisyys mm: 122.50
    Kierros: Myötäpäivään
    Kokonaispituus mm: 204.00
    Käynnistys tyyppi: Teräs
    Tuotetiedot: BN
    Vesisuojaus: Ei
    Öljysuojattu: Ei
    Nro./kytkentäkkeen reiät: 2 (1)

    Tiedostot

  • Määrittely
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (1)
    Position/50 40
    Prod. info BN
    Rotation CW
    Dist./back 156.00
    Dist./front 48.00
    Drive dist. 13.50
    Drive type Steel
    Gear type GR
    kW 1.0
    Terminal 50 Plug
    Voltage 12
    Total length 204.00 mm
    Waterproof No
    Dist. 122.50 mm
    Mount. hole 2 11.00 mm
  • Nämä ajoneuvot sopivat

    • OEM
      F032113314, js1224, RGO 113314, 1986S01090, 1986S01181, 28100-0M051, 28100-21020, 28100-21021, 28100-21022, 28100-21030, 28100-21031, 28100-21050, 28100-75191, 28100B1060, 228000-8540, 228000-8541, 228000-8542, 228000-8550, 228000-8552, 428000-9370, 2810097213

    • Konkurrentreferens
      CST44101, DENDSN934, DRS3866, DRS3867, DSN934, F042000207, F042200154, F042S00207, lrs01479, LRT00216, S6036, S6036(DENSO), S6309S, STR-8268, STR8268, STR8280, 2-2057-ND, 2-2058-ND, 8EA012526-101, 8EA012527-421, 8EA737971-001, 25-2422, 25-3094, 335.071.092, 335.099.092, 17805, 17805R, 17805RW, 17806, 17806N, 17806R, 17850N, 106372, 201224, 201233, 220486, 220486A, 220926, 220926A, 458320, 8080146, 11040694, 063280055, 0986020541, 0986023910, 0986027160, 063280055010, 944280801460

    • NormaliseratArtNr
      cst44101, dendsn934, drs3866, drs3867, dsn934, f032113314, f042000207, f042200154, f042s00207, js1224, lrs01479, lrt00216, rgo113314, s6036, s6036denso, s6309s, str8268, str8280, 8ea012526101, 8ea012527421, 8ea737971001, 1986s01090, 1986s01181, 17805, 17805r, 17805rw, 17806, 17806n, 17806r, 17850n, 22057nd, 22058nd, 28100b1060, 106372, 201224, 201233, 220486, 220486a, 220926, 220926a, 252422, 253094, 281000m051, 458320, 8080146, 11040694, 063280055, 335071092, 335099092, 0986020541, 0986023910, 0986027160, 2280008540, 2280008541, 2280008542, 2280008550, 2280008552, 2810021020, 2810021021, 2810021022, 2810021030, 2810021031, 2810021050, 2810075191, 2810097213, 4280009370, 063280055010, 944280801460

    • Passar modeller
      Toyota Model: Corolla Model series: Corolla Model type: RC Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _E12_, _E12T_ From date: 01-11-2001 To date: 01-07-2007 Fuel: Gasoline Approved: Yes
      Toyota Model: Echo Model series: Echo Saloon Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _P1_ Body: Saloon From date: 01-08-1999 To date: 01-12-2005 Fuel: Petrol Approved: Yes
      Toyota Model: Echo Model series: Echo Size of motor: 1.5 Brand of engine: 1NZ-FE From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Toyota Model: Echo Model series: Echo Type of engine: VVTi Size of motor: 1.5 Brand of engine: 1NZ-FE From date: 01-08-1999 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Opa Model series: Opa Size of motor: 1.8 Brand of engine: 1ZZ-FE Type description: ZCT1_, ACT1_ Body: Estate From date: 01-04-2000 To date: 01-08-2003 Fuel: Gasoline Approved: Yes
      Toyota Model: Premio Model series: Premio Size of motor: 2.0 Brand of engine: 1AZ-FSE Type description: _T24_ From date: 01-12-2001 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
      Toyota Model: RAV 4 Model series: RAV 4 Size of motor: 2.0 Brand of engine: 3S-FE Type description: _A1_ Body: SUV From date: 01-09-1997 To date: 01-09-2000 Fuel: Petrol Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.5 Brand of engine: 1NZ-FE From date: 01-08-2007 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _P9_ Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Petrol Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP10 Body: Hatchback From date: 01-11-1999 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: i 16V Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP13 Body: Hatchback From date: 01-04-2001 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _CP10_ Body: Hatchback From date: 01-01-2003 To date: 01-11-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _CP10 Body: Hatchback From date: 01-03-2000 To date: 01-07-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Model type: 4WD Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _NLP2_, _NCP2_ Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP2_ Body: MPV From date: 01-08-1999 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: NCP2_ Body: MPV From date: 01-11-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Type of engine: 16V Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP21 Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Type of engine: TS Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: NCP2_ Body: MPV From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2NZ-FE Type description: _P2_ Body: Box From date: 01-03-2000 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: VVTi Size of motor: 1.5 Brand of engine: 1NZ-FE Type description: _P2_ Body: Box From date: 01-03-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
