Tuotenro.: F032111420

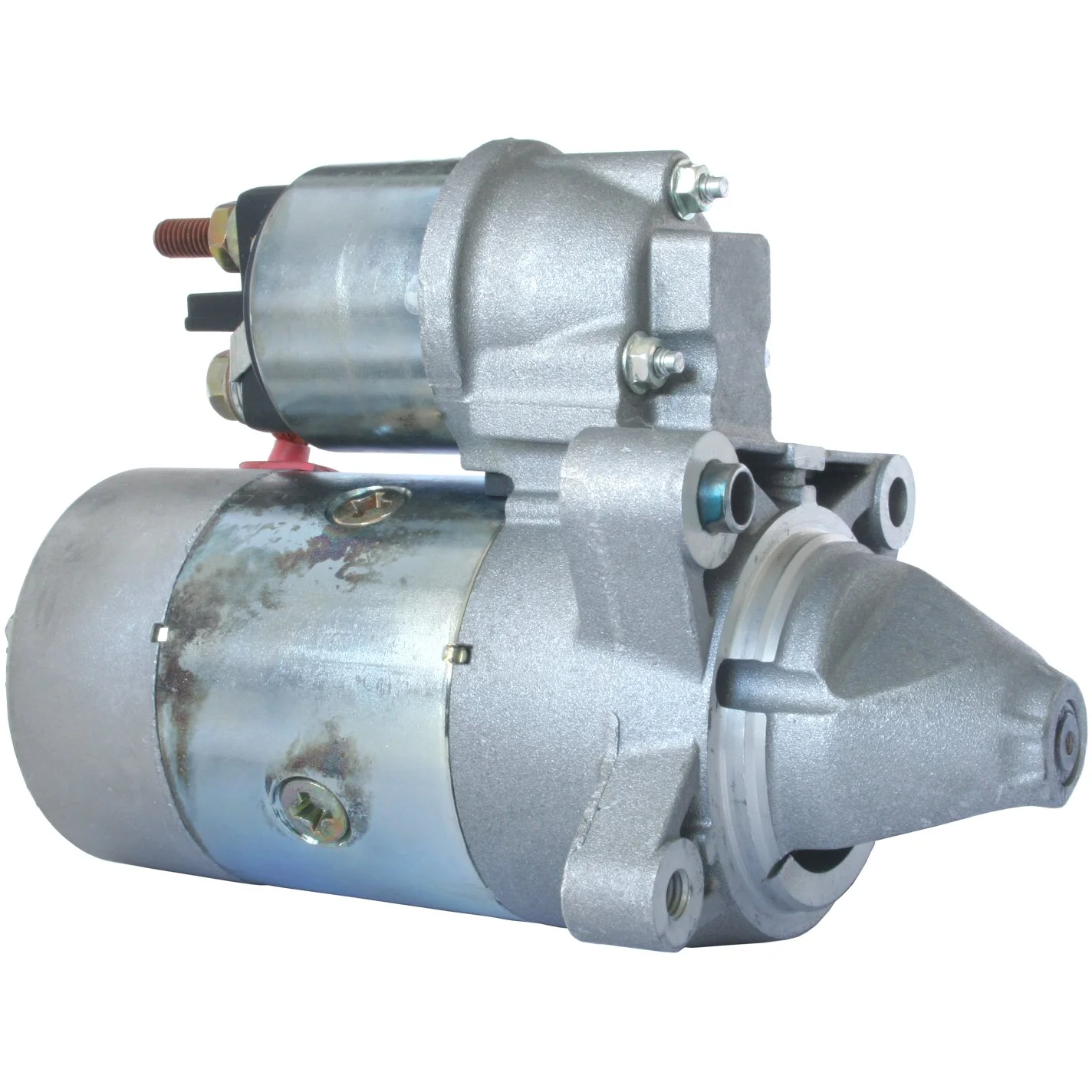

HC-Cargo Starttimoottori

Tekniset tiedot:

Jännite: 12, kW: 0.9, No./hampaat: 9, Kääntö: Myötäpäivään

Kuvaus

Fiat Brava/Bravo Starttimoottori 12V - 0.9kW, 9k 12V - 0.9kW, 9k For Yourex tuote, tilaus 91-165-1778

Jännite: 12
tehoarvo: 0.9
Kiinnityslaippa: 64.00
Vetomatka: 10.50
Kiinnitysholkin halkaisija 3 mm: 8.00
Kiinnitysholkin halkaisija 1 mm: 9.00
Etäisyys/taaksepäin: 160.00
Etäisyys/eteen: 48.00
Hammasluku: 9
B+: M8
Sijainti/B+: 60
Sijainti/50: 43
Terminalli 50: M6
Vaihtotyypit: DD
Etäisyys 2: 64.50
Etäisyys 3: 77.50
Etäisyys mm: 103.00
Kierrossuunta: Saaressa päin
Kokonaispituus mm: 205.50
Kytketyypit: Kuiva
Vetotyyppi: Teräs
Tuotetiedot: BN/OE
Vedenpitävä: Ei
Öljysuojattu: Ei
Hattujen/kiinnitysreikien määrä: 3 (1)

Tiedostot

Määrittely

B+ M8
No./teeth 9
Mount. flange 64.00
Oil sealed No
No./mount. holes 3 (1)
Position/50 43
Clutch type Dry
Position/B+ 60
Prod. info BN/OE
Dist. 2 64.50
Dist. 3 77.50
Rotation CW
Dist./back 160.00
Dist./front 48.00
Drive dist. 10.50
Drive type Steel
Gear type DD
kW 0.9
Terminal 50 M6
Voltage 12
Total length 205.50 mm
Waterproof No
Dist. 103.00 mm
Mount. hole 3 8.00 mm
Mount. hole 1 9.00 mm

  • OEM
    cs981, F032111420, LRT 146, RGO 111420, 0986 017 781, 111420, 46231541, 46419332, 46419362, 46419392, 63102003, 63222904, 71721250

  • Konkurrentreferens
    BSO7231, CST30108, drs3308, DRS3308X, F042S0H024, FRS178, lrt00146, QS2020, S4015, S4015PR, STR-H024, STR52005, 8EA012528-331, 8ea737151-001, 25-2081, 3825, 4433, 10981, 31160N, 31160R, 103636, 220179, 220179A, 458230, 11017780, 42017781, 063102003, 0986017781, 063102003010, 944280177810

  • Bilmärken
    Fiat

  • NormaliseratArtNr
    bso7231, cs981, cst30108, drs3308, drs3308x, f032111420, f042s0h024, frs178, lrt00146, lrt146, qs2020, rgo111420, s4015, s4015pr, str52005, strh024, 8ea012528331, 8ea737151001, 3825, 4433, 10981, 31160n, 31160r, 103636, 111420, 220179, 220179a, 252081, 458230, 11017780, 42017781, 46231541, 46419332, 46419362, 46419392, 063102003, 63102003, 63222904, 71721250, 0986017781, 063102003010, 944280177810

  • Passar modeller
    Fiat Model: Brava Model series: Brava Size of motor: 1.4 Brand of engine: 182A5.000 Body: Hatchback From date: 01-10-1995 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Brava Model series: Brava Size of motor: 1.6 Approved: Yes
    Fiat Model: Brava Model series: Brava Type of engine: 12V Size of motor: 1.4 Brand of engine: 182A3.000 Body: Hatchback From date: 01-10-1995 To date: 01-08-1998 Fuel: Gasoline Approved: Yes
    Fiat Model: Bravo Model series: Bravo Size of motor: 1.4 Brand of engine: 182A3.000 Body: Hatchback From date: 01-10-1995 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Bravo Model series: Bravo Size of motor: 1.4 Brand of engine: 182A5.000 Body: Hatchback From date: 01-10-1995 To date: 01-10-2001 Fuel: Gasoline Approved: Yes
    Fiat Model: Marea Model series: Marea Type of engine: i 16V Size of motor: 1.4 Brand of engine: 182A3.000 Type description: 185_ Body: Estate From date: 01-09-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes Manufacture type: weekend
    Fiat Model: Marea Model series: Marea Type of engine: i 16V Size of motor: 1.4 Brand of engine: 182A3.000 Type description: 185_ From date: 01-09-1996 To date: 01-05-2002 Fuel: Gasoline Approved: Yes
    Fiat Series: Brava Model: 1.4 12V Engine volume: 1.4 Engine type: 182 A3.000 Year: 10.95-10.98
    Fiat Series: Brava Model: 1.4 Engine volume: 1.4 Year: 10.95-10.98
    Fiat Series: Bravo Model: 1.4 Engine volume: 1.4 Engine type: 182 A3.000 Year: 10.95-10.01
    Fiat Series: Bravo Model: 1.4 Engine volume: 1.4 Engine type: 182 A5.000 Year: 10.95-10.98
    Fiat Series: Marea Model: 1.4 12V Engine volume: 1.4 Engine type: 182 A.3000 Year: 08.96-02.99
    Fiat Series: Marea Weekend Model: 1.4 12V Engine volume: 1.4 Engine type: 182 A.3000 Year: 10.96-02.99
