Tuotenro.: F032111585

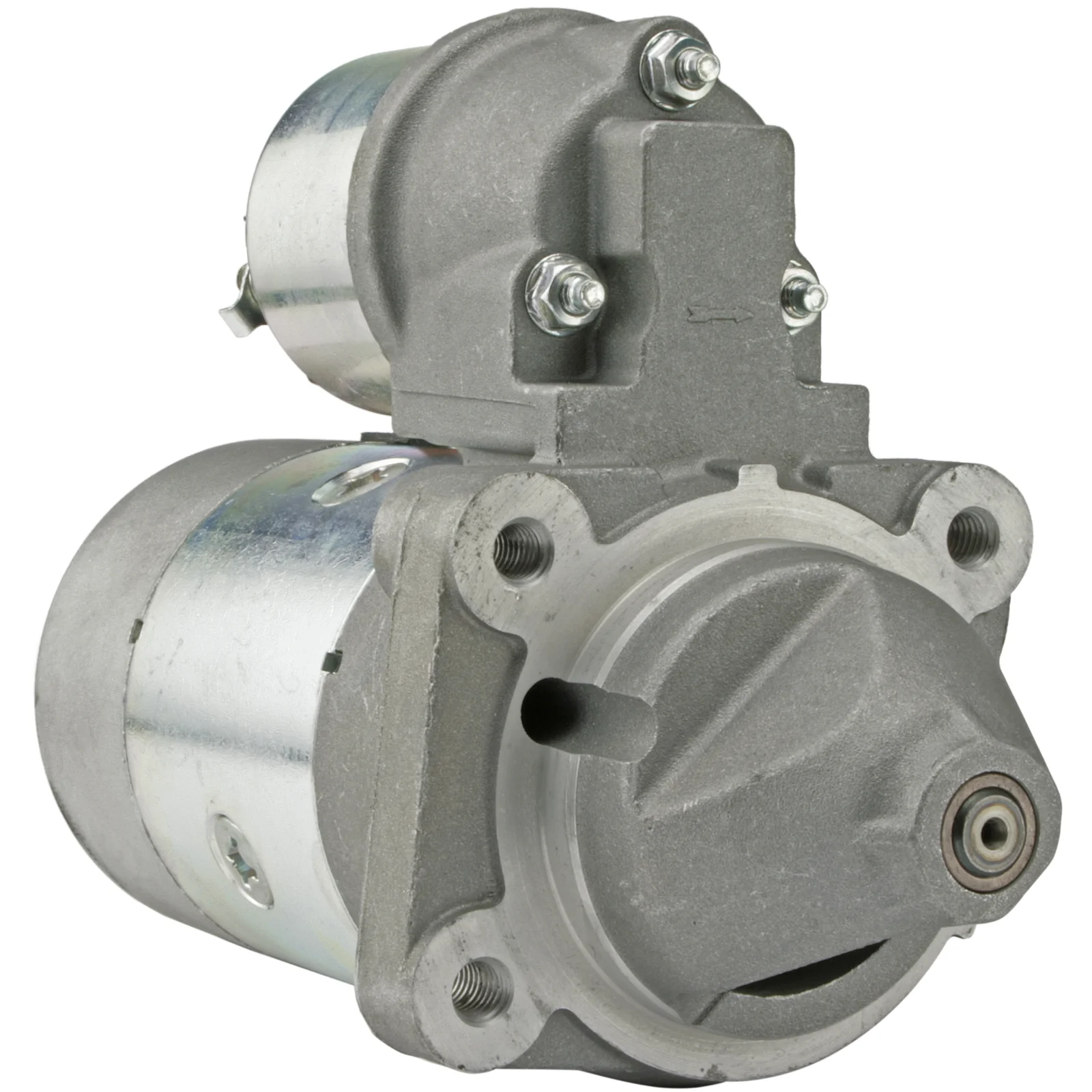

HC-Cargo Starttimoottori

Tekniset tiedot:

Jännite: 12, kW: 0.8, Nro./hamm.: 9, Kääntö: myötä — aerobänt

Kuvaus

Jännite: 12
kW: 0.8
Asennusholkin halkaisija: 62.00
Vetoetäisyys: 13.00
Asennusaukon halkaisija 3 mm: M8
Etäisyys/takapuoli: 150.00
Etäisyys/eteenpäin: 49.00
No./hampaat: 9
B+: M8
Sijoitus/50: 20
Terminaali 50: M6
Vaihtoehdon tyyppi: DD
Etäisyys 2: 53.00
Etäisyys 3: 67.00
Etäisyys mm: 89.50
Kääntö: myötäpäivään
Kokonaispituus mm: 206.00
Veton tyyppi: Teräs
Tuotetiedot: BN
Säänkestävä: Ei
Öljysuljettu: Ei
No./asennusreiät: 3 (3)

Tiedostot

Määrittely

B+ M8
No./teeth 9
Mount. flange 62.00
Oil sealed No
No./mount. holes 3 (3)
Position/50 20
Prod. info BN
Dist. 2 53.00
Dist. 3 67.00
Rotation CW
Dist./back 150.00
Dist./front 49.00
Drive dist. 13.00
Drive type Steel
Gear type DD
kW 0.8
Terminal 50 M6
Voltage 12
Total length 206.00 mm
Waterproof No
Dist. 89.50 mm
Mount. hole 3 M8 mm

  • OEM
    cs1038, F032111585, r80c, r80c1, RGO 111585, 7668988, 7737262, 8100000, 46231500, 46432301, 63222836, 63222837, 63222897, 63222905, 63222908, 8020020000, 9000330929, 9000330948

  • Konkurrentreferens
    00-11.891, CST30113, DENDSN585, drs1891, drs7041, DRS7041N, DRS7041X, DSN585, is0586, lrs00234, QS1570, S4033, S4033PR, STR52001, STR52020, 8ea737273-001, 25-0048, 25-2257, 318.005.092, 318.073.092, 318.085.092, 4479, 11201, 30191R, 30193R, 101038, 103556, 220162, 220162A, 433276, 8017041, 11017040, 063222905, 063222908, 0986011898, 0986014718, 0986017041, 944280170410

  • NormaliseratArtNr
    cs1038, cst30113, dendsn585, drs1891, drs7041, drs7041n, drs7041x, dsn585, f032111585, is0586, lrs00234, qs1570, r80c, r80c1, rgo111585, s4033, s4033pr, str52001, str52020, 8ea737273001, 4479, 11201, 0011891, 30191r, 30193r, 101038, 103556, 220162, 220162a, 250048, 252257, 433276, 7668988, 7737262, 8017041, 8100000, 11017040, 46231500, 46432301, 63222836, 63222837, 63222897, 063222905, 63222905, 063222908, 63222908, 318005092, 318073092, 318085092, 0986011898, 0986014718, 0986017041, 8020020000, 9000330929, 9000330948, 944280170410

  • Passar modeller
    Fiat Model: Cinquecento Model series: Cinquecento Size of motor: 0.9 Brand of engine: 1170A1.046 Type description: 170 Body: Box Body / Hatchback From date: 01-07-1991 To date: 01-02-1998 Fuel: Gasoline Approved: Yes
    Fiat Model: Cinquecento Model series: Cinquecento Size of motor: 0.9 Brand of engine: 170A1.000 Body: Hatchback From date: 01-07-1991 To date: 01-12-1993 Fuel: Gasoline Approved: Yes
    Fiat Model: Cinquecento Model series: Cinquecento Type of engine: i.e. Size of motor: 0.9 Brand of engine: 1170A1.000 Body: Hatchback From date: 01-07-1991 To date: 01-07-1999 Fuel: Gasoline Approved: Yes
    Fiat Model: Cinquecento Model series: Cinquecento Type of engine: i.e. Size of motor: 0.9 Brand of engine: 1170A1.046 Body: Hatchback From date: 01-07-1991 To date: 01-07-1999 Fuel: Gasoline Approved: Yes
    Fiat Model: Cinquecento Model series: Cinquecento Type of engine: i.e. Size of motor: 0.9 Brand of engine: 170A1.046 Type description: 170AC Body: Hatchback From date: 01-07-1991 To date: 01-09-1994 Fuel: Gasoline Approved: Yes
    Fiat Model: Panda Model series: Panda Size of motor: 0.9 Brand of engine: 1170A1.046 Type description: 141AT,GT Body: Hatchback From date: 01-04-1992 To date: 01-12-1996 Fuel: Gasoline Approved: Yes
    Fiat Model: Seicento Model series: Seicento Size of motor: 0.9 Brand of engine: 1170A1.046 Body: Van From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
    Fiat Model: Seicento Model series: Seicento Size of motor: 0.9 Brand of engine: 1170A1.046 Type description: 187 Body: Hatchback From date: 01-11-1997 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Fiat Model: Uno Model series: Uno Model type: ES Size of motor: 0.9 Brand of engine: 146A.000 Type description: 146A Body: Hatchback From date: 01-03-1983 To date: 01-09-1992 Fuel: Gasoline Approved: Yes
    Fiat Model: Uno Model series: Uno Model type: ES Size of motor: 0.9 Brand of engine: 146A1.000 Type description: 146A Body: Hatchback From date: 01-03-1983 To date: 01-09-1992 Fuel: Gasoline Approved: Yes
    Lancia Model: A 112 Model series: A 112 Model type: Junior Size of motor: 0.9 Brand of engine: 112A.000 Body: Hatchback From date: 01-03-1981 To date: 01-06-1986 Fuel: Gasoline Approved: Yes
    Lancia Model: A 112 Model series: A 112 Model type: Junior Size of motor: 0.9 Brand of engine: 112A5.000 Body: Hatchback From date: 01-03-1981 To date: 01-06-1986 Fuel: Gasoline Approved: Yes
    Lancia Model: A 112 Model series: A 112 Model type: Junior Size of motor: 0.9 Brand of engine: 112B2.000 Body: Hatchback From date: 01-03-1981 To date: 01-06-1986 Fuel: Gasoline Approved: Yes
    1 / 3
  • Kuvaus
    Jännite: 12
    kW: 0.8
    Asennusholkin halkaisija: 62.00
    Vetoetäisyys: 13.00
    Asennusaukon halkaisija 3 mm: M8
    Etäisyys/takapuoli: 150.00
    Etäisyys/eteenpäin: 49.00
    No./hampaat: 9
    B+: M8
    Sijoitus/50: 20
    Terminaali 50: M6
    Vaihtoehdon tyyppi: DD
    Etäisyys 2: 53.00
    Etäisyys 3: 67.00
    Etäisyys mm: 89.50
    Kääntö: myötäpäivään
    Kokonaispituus mm: 206.00
    Veton tyyppi: Teräs
    Tuotetiedot: BN
    Säänkestävä: Ei
    Öljysuljettu: Ei
    No./asennusreiät: 3 (3)

    Tiedostot

  • Määrittely
    B+ M8
    No./teeth 9
    Mount. flange 62.00
    Oil sealed No
    No./mount. holes 3 (3)
    Position/50 20
    Prod. info BN
    Dist. 2 53.00
    Dist. 3 67.00
    Rotation CW
    Dist./back 150.00
    Dist./front 49.00
    Drive dist. 13.00
    Drive type Steel
    Gear type DD
    kW 0.8
    Terminal 50 M6
    Voltage 12
    Total length 206.00 mm
    Waterproof No
    Dist. 89.50 mm
    Mount. hole 3 M8 mm
  • Nämä ajoneuvot sopivat

    • OEM
      cs1038, F032111585, r80c, r80c1, RGO 111585, 7668988, 7737262, 8100000, 46231500, 46432301, 63222836, 63222837, 63222897, 63222905, 63222908, 8020020000, 9000330929, 9000330948

    • Konkurrentreferens
      00-11.891, CST30113, DENDSN585, drs1891, drs7041, DRS7041N, DRS7041X, DSN585, is0586, lrs00234, QS1570, S4033, S4033PR, STR52001, STR52020, 8ea737273-001, 25-0048, 25-2257, 318.005.092, 318.073.092, 318.085.092, 4479, 11201, 30191R, 30193R, 101038, 103556, 220162, 220162A, 433276, 8017041, 11017040, 063222905, 063222908, 0986011898, 0986014718, 0986017041, 944280170410

    • NormaliseratArtNr
      cs1038, cst30113, dendsn585, drs1891, drs7041, drs7041n, drs7041x, dsn585, f032111585, is0586, lrs00234, qs1570, r80c, r80c1, rgo111585, s4033, s4033pr, str52001, str52020, 8ea737273001, 4479, 11201, 0011891, 30191r, 30193r, 101038, 103556, 220162, 220162a, 250048, 252257, 433276, 7668988, 7737262, 8017041, 8100000, 11017040, 46231500, 46432301, 63222836, 63222837, 63222897, 063222905, 63222905, 063222908, 63222908, 318005092, 318073092, 318085092, 0986011898, 0986014718, 0986017041, 8020020000, 9000330929, 9000330948, 944280170410

    • Passar modeller
      Fiat Model: Cinquecento Model series: Cinquecento Size of motor: 0.9 Brand of engine: 1170A1.046 Type description: 170 Body: Box Body / Hatchback From date: 01-07-1991 To date: 01-02-1998 Fuel: Gasoline Approved: Yes
      Fiat Model: Cinquecento Model series: Cinquecento Size of motor: 0.9 Brand of engine: 170A1.000 Body: Hatchback From date: 01-07-1991 To date: 01-12-1993 Fuel: Gasoline Approved: Yes
      Fiat Model: Cinquecento Model series: Cinquecento Type of engine: i.e. Size of motor: 0.9 Brand of engine: 1170A1.000 Body: Hatchback From date: 01-07-1991 To date: 01-07-1999 Fuel: Gasoline Approved: Yes
      Fiat Model: Cinquecento Model series: Cinquecento Type of engine: i.e. Size of motor: 0.9 Brand of engine: 1170A1.046 Body: Hatchback From date: 01-07-1991 To date: 01-07-1999 Fuel: Gasoline Approved: Yes
      Fiat Model: Cinquecento Model series: Cinquecento Type of engine: i.e. Size of motor: 0.9 Brand of engine: 170A1.046 Type description: 170AC Body: Hatchback From date: 01-07-1991 To date: 01-09-1994 Fuel: Gasoline Approved: Yes
      Fiat Model: Panda Model series: Panda Size of motor: 0.9 Brand of engine: 1170A1.046 Type description: 141AT,GT Body: Hatchback From date: 01-04-1992 To date: 01-12-1996 Fuel: Gasoline Approved: Yes
      Fiat Model: Seicento Model series: Seicento Size of motor: 0.9 Brand of engine: 1170A1.046 Body: Van From date: 01-01-1998 To date: 01-01-2010 Fuel: Gasoline Approved: Yes
      Fiat Model: Seicento Model series: Seicento Size of motor: 0.9 Brand of engine: 1170A1.046 Type description: 187 Body: Hatchback From date: 01-11-1997 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
      Fiat Model: Uno Model series: Uno Model type: ES Size of motor: 0.9 Brand of engine: 146A.000 Type description: 146A Body: Hatchback From date: 01-03-1983 To date: 01-09-1992 Fuel: Gasoline Approved: Yes
      Fiat Model: Uno Model series: Uno Model type: ES Size of motor: 0.9 Brand of engine: 146A1.000 Type description: 146A Body: Hatchback From date: 01-03-1983 To date: 01-09-1992 Fuel: Gasoline Approved: Yes
      Lancia Model: A 112 Model series: A 112 Model type: Junior Size of motor: 0.9 Brand of engine: 112A.000 Body: Hatchback From date: 01-03-1981 To date: 01-06-1986 Fuel: Gasoline Approved: Yes
      Lancia Model: A 112 Model series: A 112 Model type: Junior Size of motor: 0.9 Brand of engine: 112A5.000 Body: Hatchback From date: 01-03-1981 To date: 01-06-1986 Fuel: Gasoline Approved: Yes
      Lancia Model: A 112 Model series: A 112 Model type: Junior Size of motor: 0.9 Brand of engine: 112B2.000 Body: Hatchback From date: 01-03-1981 To date: 01-06-1986 Fuel: Gasoline Approved: Yes
