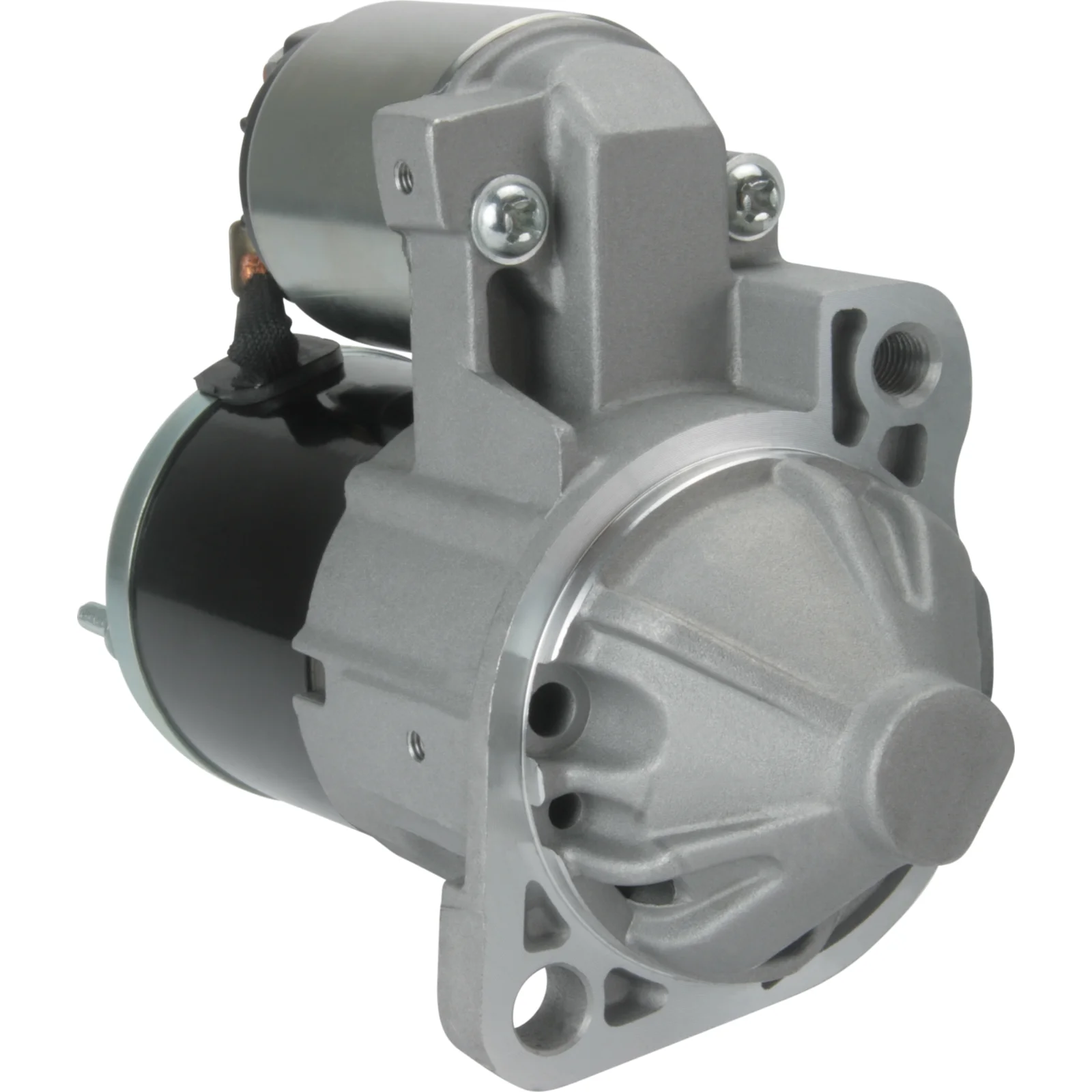

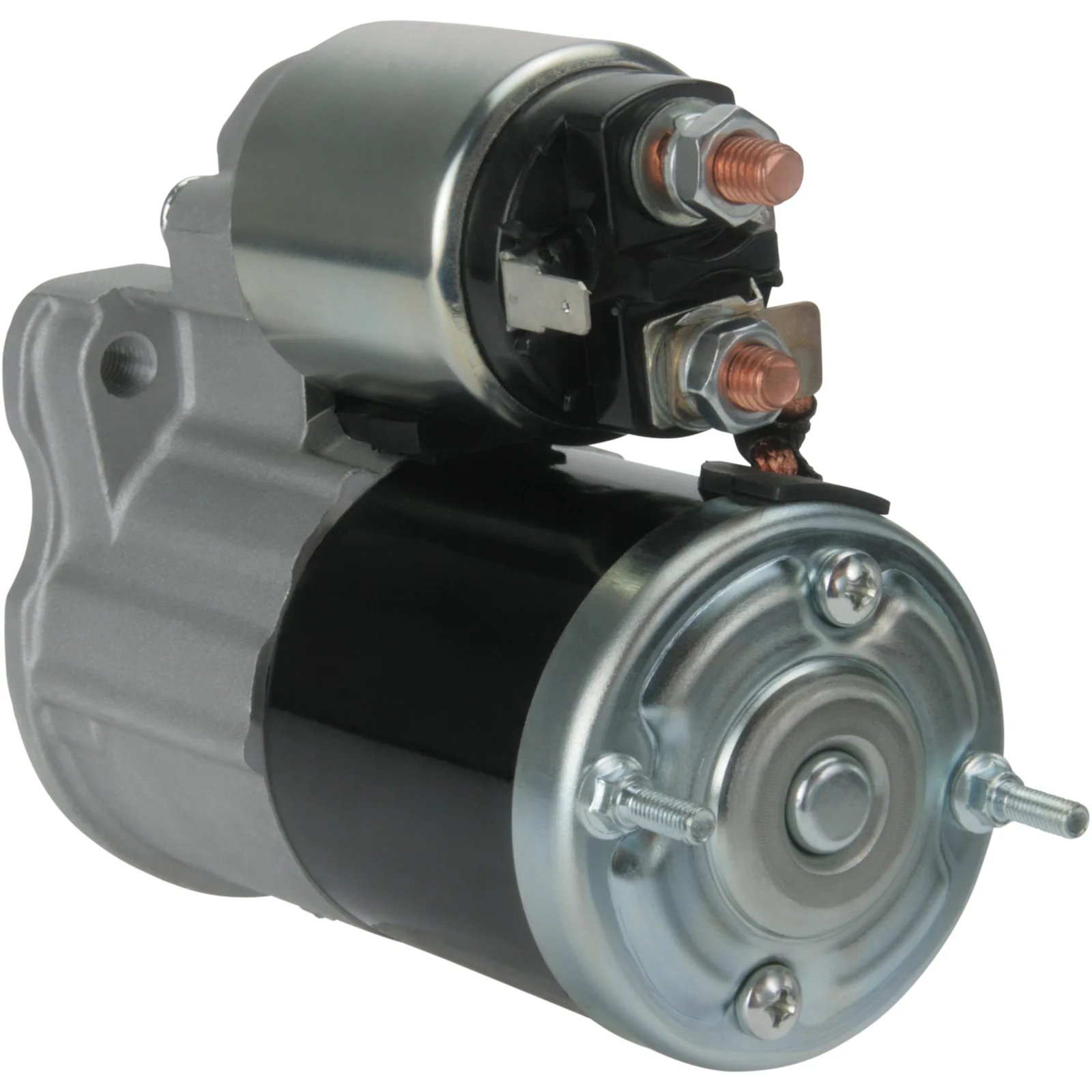

HC-Cargo Starttimoottori
HC-Cargo Starttimoottori
Tuotenro.: F032114488

HC-Cargo Starttimoottori

Tekniset tiedot:

Jännite: 12, kW: 1.2, No./hampaiden määrä: 8, Pyörimissuunta: myötäpäivään

Kuvaus

jännite: 12
kW: 1,2
Halkaisijan kiinnitys: 71,00
Käynnistysratas etäisyys: 9,50
Kiinnitysreikä 2 mm: 11,00
Etäisyys / taakse: 130,00
Etäisyys / eteen: 42,00
Nro./hampaat: 8
B+: M8
Kierrepituus mm: 13,00
Sijainti / 50: 45
Terminaali 50: 6,30
Kytkin tyyppi: GR
Etäisyys mm: 96,50
Kääntö: myötäpäivään
Kokonaispituus mm: 184,50
Nro./kiinnitysreiät: 2 (1)

Tiedostot

Määrittely

B+ M8
No./teeth 8
Mount. flange 71.00
No./mount. holes 2 (1)
Position/50 45
Rotation CW
Dist./back 130.00
Dist./front 42.00
Drive dist. 9.50
Gear type GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 184.50 mm
Dist. 96.50 mm
Thread length 13.00 mm
Mount. hole 2 11.00 mm

  • OEM
    F032114488, M000T31071, M000T31171, M000T31771, M000T32471, M000T81482, M000T81781, m0t31071, m0t31171, M0T31771, M0T32471, m0t80681, m0t80685, m0t80686, m0t81481, m0t81482, m0t81781, md319770, md320576, md341386, md341813, md342382, MN128202, mn137825, RGO 114488, 1810a025, 1810A098

  • Konkurrentreferens
    CST35142, DRS0688, DRS3879, LRS02518, 25-2483, 25-4190, 150.549.082, 326.060.082, 17906R, 19038, 19038R, 8080347, 11040658, 11040919

  • NormaliseratArtNr
    cst35142, drs0688, drs3879, f032114488, lrs02518, m000t31071, m000t31171, m000t31771, m000t32471, m000t81482, m000t81781, m0t31071, m0t31171, m0t31771, m0t32471, m0t80681, m0t80685, m0t80686, m0t81481, m0t81482, m0t81781, md319770, md320576, md341386, md341813, md342382, mn128202, mn137825, rgo114488, 1810a025, 1810a098, 17906r, 19038, 19038r, 252483, 254190, 8080347, 11040658, 11040919, 150549082, 326060082

  • Passar modeller
    Mitsubishi Model: Galant Model series: Galant Type of engine: V6 24V Size of motor: 2.5 Brand of engine: 6A13 Body: Estate From date: 01-09-2000 To date: 01-10-2003 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Galant Model series: Galant Type of engine: V6 24V Size of motor: 2.5 Brand of engine: 6A13 From date: 01-09-2000 To date: 01-10-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Galant Model series: Galant Type of engine: V6 24V Size of motor: 2.5 Brand of engine: 6A13 Type description: EA5A From date: 01-09-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Galant Model series: Galant Type of engine: V6 24V Size of motor: 2.5 Brand of engine: 6A13 Type description: EA5W Body: Estate From date: 01-09-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Size of motor: 2.0 Brand of engine: 4G63Turbo Type description: CS_A From date: 01-08-1996 To date: 01-12-1997 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Lancer Model series: Lancer Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CP9A From date: 01-01-1998 To date: 01-12-1998 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Size of motor: 2.0 Brand of engine: 4G63 Body: SUV From date: 01-01-2002 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: Turbo 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CU2W Body: SUV From date: 01-04-2004 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
    1 / 2
  • Kuvaus
    jännite: 12
    kW: 1,2
    Halkaisijan kiinnitys: 71,00
    Käynnistysratas etäisyys: 9,50
    Kiinnitysreikä 2 mm: 11,00
    Etäisyys / taakse: 130,00
    Etäisyys / eteen: 42,00
    Nro./hampaat: 8
    B+: M8
    Kierrepituus mm: 13,00
    Sijainti / 50: 45
    Terminaali 50: 6,30
    Kytkin tyyppi: GR
    Etäisyys mm: 96,50
    Kääntö: myötäpäivään
    Kokonaispituus mm: 184,50
    Nro./kiinnitysreiät: 2 (1)

    Tiedostot

  • Määrittely
    B+ M8
    No./teeth 8
    Mount. flange 71.00
    No./mount. holes 2 (1)
    Position/50 45
    Rotation CW
    Dist./back 130.00
    Dist./front 42.00
    Drive dist. 9.50
    Gear type GR
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 184.50 mm
    Dist. 96.50 mm
    Thread length 13.00 mm
    Mount. hole 2 11.00 mm
  • Nämä ajoneuvot sopivat

    • OEM
      F032114488, M000T31071, M000T31171, M000T31771, M000T32471, M000T81482, M000T81781, m0t31071, m0t31171, M0T31771, M0T32471, m0t80681, m0t80685, m0t80686, m0t81481, m0t81482, m0t81781, md319770, md320576, md341386, md341813, md342382, MN128202, mn137825, RGO 114488, 1810a025, 1810A098

    • Konkurrentreferens
      CST35142, DRS0688, DRS3879, LRS02518, 25-2483, 25-4190, 150.549.082, 326.060.082, 17906R, 19038, 19038R, 8080347, 11040658, 11040919

    • NormaliseratArtNr
      cst35142, drs0688, drs3879, f032114488, lrs02518, m000t31071, m000t31171, m000t31771, m000t32471, m000t81482, m000t81781, m0t31071, m0t31171, m0t31771, m0t32471, m0t80681, m0t80685, m0t80686, m0t81481, m0t81482, m0t81781, md319770, md320576, md341386, md341813, md342382, mn128202, mn137825, rgo114488, 1810a025, 1810a098, 17906r, 19038, 19038r, 252483, 254190, 8080347, 11040658, 11040919, 150549082, 326060082

    • Passar modeller
      Mitsubishi Model: Galant Model series: Galant Type of engine: V6 24V Size of motor: 2.5 Brand of engine: 6A13 Body: Estate From date: 01-09-2000 To date: 01-10-2003 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Galant Model series: Galant Type of engine: V6 24V Size of motor: 2.5 Brand of engine: 6A13 From date: 01-09-2000 To date: 01-10-2004 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Galant Model series: Galant Type of engine: V6 24V Size of motor: 2.5 Brand of engine: 6A13 Type description: EA5A From date: 01-09-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Galant Model series: Galant Type of engine: V6 24V Size of motor: 2.5 Brand of engine: 6A13 Type description: EA5W Body: Estate From date: 01-09-1996 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Size of motor: 2.0 Brand of engine: 4G63Turbo Type description: CS_A From date: 01-08-1996 To date: 01-12-1997 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Lancer Model series: Lancer Type of engine: 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CP9A From date: 01-01-1998 To date: 01-12-1998 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Size of motor: 2.0 Brand of engine: 4G63 Body: SUV From date: 01-01-2002 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Outlander Model series: Outlander Model type: 4WD Type of engine: Turbo 16V Size of motor: 2.0 Brand of engine: 4G63 Type description: CU2W Body: SUV From date: 01-04-2004 To date: 01-10-2006 Fuel: Gasoline Approved: Yes
      1 / 2
