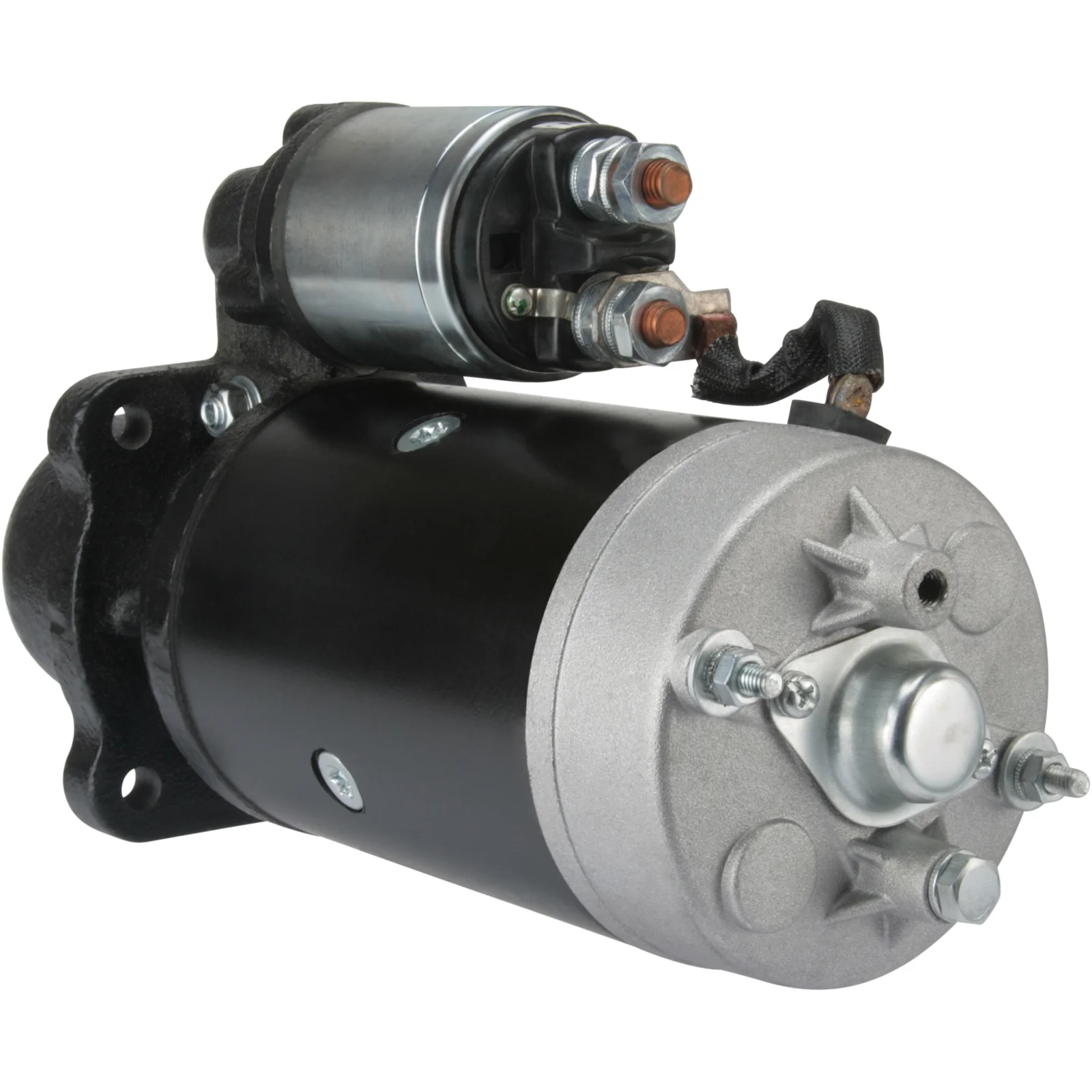

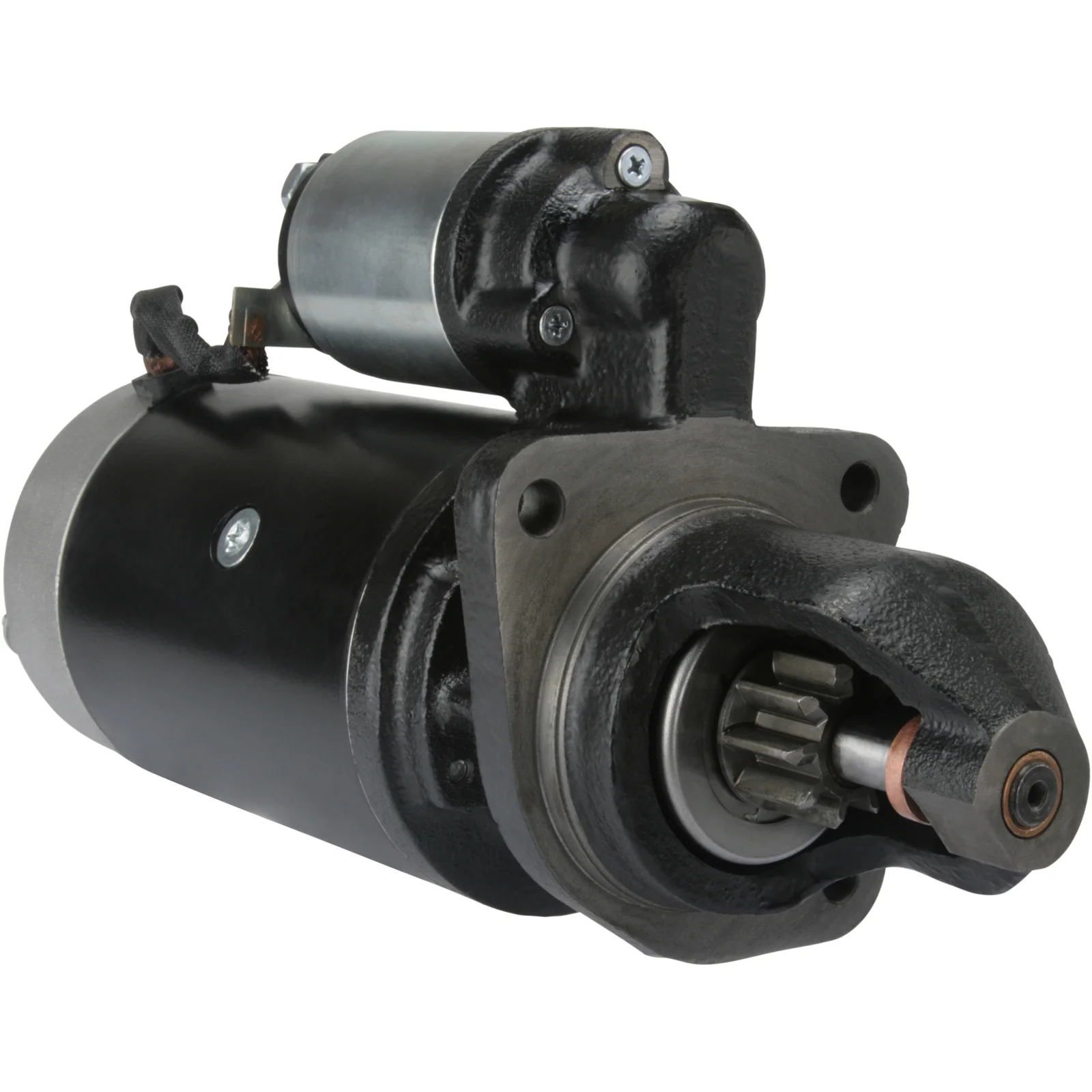

HC-Cargo Starttimoottori
HC-Cargo Starttimoottori
Tuotenro.: F032110519

HC-Cargo Starttimoottori

Tekniset tiedot:

Jännite: 12, kW: 3,0, No./hampaat: 9, Pyörimissuunta: myötäpäivään

Kuvaus

Jännite: 12
kW: 3.0
Asennuslaippa: 89.00
Vetomatka: 48.00
Asennusreikä 3 mm: 10.50
Asennusreikä 2 mm: 10.50
Asennusreikä 1 mm: 10.50
Matka/taaksepäin: 233.00
Matka/eteenpäin: 96.00
Num./hampaat: 9
B+: M10
Sijainti/50: 45
Terminaali 50: M4-6.30
Vaihtoehto tyyppi: DD
Matka 2: 127.00
Matka 3: 90.00
Matka mm: 90.00
Kierre: Kello(myötäpäivään)
Kokonaispituus mm: 340.50
Vetotapa: Teräs
Valmistustiedot: BN
Sadel/vedeneristetty: Ei
Öljytiivistetty: Ei
Num./asennusreiät: 3 (0)

Tiedostot

Määrittely

B+ M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 233.00
Dist./front 96.00
Drive dist. 48.00
Drive type Steel
Gear type DD
kW 3.0
Terminal 50 M4-6.30
Voltage 12
Total length 340.50 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    azj3299, F032110519, mt68b, mt68ba, R23.27, 11.130.862, 22626, 0001359071, 0001367030, 2022518, 4713805, 4737758, 4755112, 8962687, 9142744, 012270774, 12270774, 19024229, 63216802, 63216833, 63217116, 88205018, 296190900, 296191500, 41200090001, 41200090004

  • Konkurrentreferens
    CST10190, CST10267, CST10306, CST30176, drs1220, IS0862, lrs00848, MS269, MS280, MS366, MSN220, S0673S, S0737S, S9054, STR52030, 25-1070, 318.010.092, 338.012.092, 500.563.093, 618.001.092, 8043, 18237, 18462, 33347, 33447, 220237, 220237A, 254089, 11011250, 063216833, 0986001251, 0986011230, 0986011231, 943252232010

  • NormaliseratArtNr
    azj3299, cst10190, cst10267, cst10306, cst30176, drs1220, f032110519, is0862, lrs00848, ms269, ms280, ms366, msn220, mt68b, mt68ba, r2327, s0673s, s0737s, s9054, str52030, 8043, 18237, 18462, 22626, 33347, 33447, 220237, 220237a, 251070, 254089, 0001359071, 0001367030, 2022518, 4713805, 4737758, 4755112, 8962687, 9142744, 11011250, 11130862, 012270774, 12270774, 19024229, 63216802, 063216833, 63216833, 63217116, 88205018, 296190900, 296191500, 318010092, 338012092, 500563093, 618001092, 0986001251, 0986011230, 0986011231, 41200090001, 41200090004, 943252232010

  • Passar modeller
    Fiat Model: 60 Series Model series: 65N Size of motor: 4.6 Brand of engine: CO3/41 Body: Platform / Chassis From date: 01-01-1972 To date: 01-12-1976 Fuel: Diesel Approved: Yes
    Fiat Model: 70 Series Model series: 70FNM Size of motor: 4.6 Brand of engine: CO3/41 Body: Platform / Chassis From date: 01-01-1973 Fuel: Diesel Approved: Yes
    Fiat Model: 70 Series Model series: 70N Size of motor: 4.6 Brand of engine: CO3/41 Body: Platform / Chassis From date: 01-01-1972 To date: 01-12-1976 Fuel: Diesel Approved: Yes
    Fiat Model: 70 Series Model series: 75N Size of motor: 4.6 Brand of engine: CO3/41 Body: Platform / Chassis From date: 01-01-1972 To date: 01-12-1976 Fuel: Diesel Approved: Yes
    Fiat Model: Series 130 Model series: 130 Size of motor: 7.4 Brand of engine: CP3 Body: Platform / Chassis From date: 01-12-1974 To date: 01-12-1978 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 609 Size of motor: 5.5 Brand of engine: D60A Body: Platform / Chassis From date: 01-03-1975 To date: 01-02-1980 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 610 Size of motor: 5.5 Brand of engine: TD60C Body: Platform / Chassis From date: 01-02-1980 To date: 01-10-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 611 Size of motor: 5.5 Brand of engine: D60A Body: Platform / Chassis From date: 01-09-1975 To date: 01-01-1980 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 611 Size of motor: 5.5 Brand of engine: TD60C Body: Platform / Chassis From date: 01-02-1980 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 613 Size of motor: 5.5 Brand of engine: TD60A Body: Platform / Chassis From date: 01-09-1975 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 613 Size of motor: 5.5 Brand of engine: TD60B Body: Platform / Chassis From date: 01-09-1975 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 614 Size of motor: 5.5 Brand of engine: TD60B Body: Platform / Chassis From date: 01-09-1975 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 615 S Size of motor: 5.5 Brand of engine: TD60B Body: Platform / Chassis From date: 01-12-1978 To date: 01-10-1981 Fuel: Diesel Approved: Yes
    Volvo Model: F Series Model series: F 617 S Size of motor: 5.5 Brand of engine: TD60B Body: Platform / Chassis From date: 01-12-1978 To date: 01-02-1986 Fuel: Diesel Approved: Yes
    Volvo Model: N Series Model series: N 7 Size of motor: 6.7 Brand of engine: TD70ES Body: Platform / Chassis From date: 01-01-1973 To date: 01-09-1980 Fuel: Diesel Approved: Yes
