Tuotenro.: F032110640

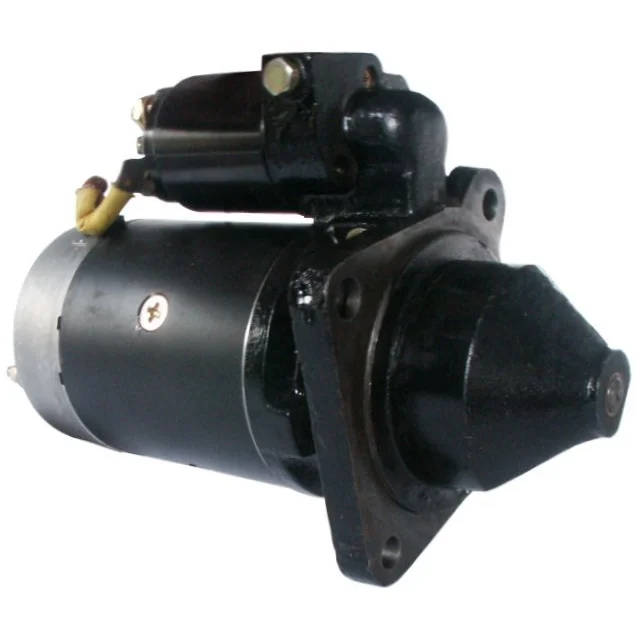

HC-Cargo Starttimoottori

Tekniset tiedot:

Jännite: 12, kW: 3,0, No./hampaat: 9, Pyörimissuunta: myötäpäivään

Kuvaus

Jännite: 12
kW: 3.0
Käynnistysremskan kiinnitysliitin: 110.00
Vetoetäisyys: 26.00
Käynnistysremskan asennusreikä 3 mm: 12.20
Käynnistysremskan asennusreikä 2 mm: 12.20
Käynnistysremskan asennusreikä 1 mm: 12.20
Etäisyys/kohdunkaulusta: 249.00
Etäisyys/etuosasta: 72.50
Hampaiden lukumäärä: 9
B+: M10
Sijainti/50: 15
Terminaali 50: M5
Vaihtotyypin: DD
Etäisyys 2: 103.00
Etäisyys 3: 103.00
Etäisyys mm: 146.00
Kääntö: oikealle (CW)
Kokonaispituus mm: 339.00
Käytön tyyppi: Teräs
Valmistustiedot: BN
Sade-kestävä: Ei
Öljysuljettu: Ei
Käynnistysreikien lukumäärä: 3 (0)

Tiedostot

Määrittely

B+ M10
No./teeth 9
Mount. flange 110.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Prod. info BN
Dist. 2 103.00
Dist. 3 103.00
Rotation CW
Dist./back 249.00
Dist./front 72.50
Drive dist. 26.00
Drive type Steel
Gear type DD
kW 3.0
Terminal 50 M5
Voltage 12
Total length 339.00 mm
Waterproof No
Dist. 146.00 mm
Mount. hole 3 12.20 mm
Mount. hole 2 12.20 mm
Mount. hole 1 12.20 mm

  • OEM
    azj3115, azj3516, azj3534, CT6005706623, dm2120, dm2130, dm2134, F032110640, mt71z, 11.130.127, 11.130.198, 11.130.409, 2130, 26394, 27440, 27440a, 27440b, 0001359091, 0001367014, 5119319, 84273182, 6005706623

  • Konkurrentreferens
    CST30165, drs1220, drs2670, drs3405, drs3850, is0409, is0618, IS9448, LES0014, lrs00182, lrs00847, lrs00944, MS192, MS224, S0116, S4026, S4061, 2-1805-RO, 8ea730220-001, 25-0339, 25-1268, 32-13.850, 50-9900, 618.003.092, 618.004.092, 790.501.093, 4103, 10704, 17184, 17184N, 17219, 33416, 104248, 220044, 220044A, 433311, 063217121, 943251136

  • NormaliseratArtNr
    azj3115, azj3516, azj3534, cst30165, ct6005706623, dm2120, dm2130, dm2134, drs1220, drs2670, drs3405, drs3850, f032110640, is0409, is0618, is9448, les0014, lrs00182, lrs00847, lrs00944, ms192, ms224, mt71z, s0116, s4026, s4061, 8ea730220001, 2130, 4103, 10704, 17184, 17184n, 17219, 21805ro, 26394, 27440, 27440a, 27440b, 33416, 104248, 220044, 220044a, 250339, 251268, 433311, 509900, 0001359091, 0001367014, 3213850, 5119319, 11130127, 11130198, 11130409, 063217121, 84273182, 618003092, 618004092, 790501093, 943251136, 6005706623

  • Passar modeller
    Allis Chalmers Model: 300 Model series: 310 From date: 01-01-1980 To date: 01-01-1990 Fuel: Diesel Approved: Yes
    Allis Chalmers Model: 300 Model series: 340 From date: 01-01-1980 To date: 01-01-1985 Fuel: Diesel Approved: Yes
    Allis Chalmers Model: 300 Model series: 360 From date: 01-01-1977 To date: 01-01-1991 Fuel: Diesel Approved: Yes
    Allis Chalmers Model: 400 Model series: 445 From date: 01-01-1974 To date: 01-01-1989 Approved: Yes
    Allis Chalmers Model: 400 Model series: 460 From date: 01-01-1977 To date: 01-01-1991 Fuel: Diesel Approved: Yes
    Allis Chalmers Model: 500 Model series: 500 From date: 01-01-1980 To date: 01-01-1985 Fuel: Diesel Approved: Yes
    Allis Chalmers Model: 500 Model series: 510 From date: 01-01-1979 To date: 01-01-1990 Fuel: Diesel Approved: Yes
    Allis Chalmers Model: 600 Model series: 610 From date: 01-01-1979 To date: 01-01-1990 Fuel: Diesel Approved: Yes
    Allis Chalmers Model: Various Models Model series: Various Models Approved: Yes
    Fiat Model: 400 Model series: 404 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 420 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 440 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 450 From date: 01-06-1972 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 455 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 470 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500S From date: 01-01-1978 To date: 01-01-1982 Fuel: Diesel Approved: Yes
    Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Long Model: 300 Series Model series: 350 Size of motor: 2.3 Brand of engine: Fiat From date: 01-05-1974 Fuel: Diesel Approved: Yes
    Long Model: 400 Series Model series: 445 Size of motor: 2.3 Brand of engine: Fiat From date: 01-05-1974 Fuel: Diesel Approved: Yes
    Long Model: 500 Series Model series: 550 Size of motor: 3.1 Brand of engine: Fiat From date: 01-05-1974 Fuel: Diesel Approved: Yes
    1 / 4
  • Kuvaus
    Jännite: 12
    kW: 3.0
    Käynnistysremskan kiinnitysliitin: 110.00
    Vetoetäisyys: 26.00
    Käynnistysremskan asennusreikä 3 mm: 12.20
    Käynnistysremskan asennusreikä 2 mm: 12.20
    Käynnistysremskan asennusreikä 1 mm: 12.20
    Etäisyys/kohdunkaulusta: 249.00
    Etäisyys/etuosasta: 72.50
    Hampaiden lukumäärä: 9
    B+: M10
    Sijainti/50: 15
    Terminaali 50: M5
    Vaihtotyypin: DD
    Etäisyys 2: 103.00
    Etäisyys 3: 103.00
    Etäisyys mm: 146.00
    Kääntö: oikealle (CW)
    Kokonaispituus mm: 339.00
    Käytön tyyppi: Teräs
    Valmistustiedot: BN
    Sade-kestävä: Ei
    Öljysuljettu: Ei
    Käynnistysreikien lukumäärä: 3 (0)

    Tiedostot

  • Määrittely
    B+ M10
    No./teeth 9
    Mount. flange 110.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 15
    Prod. info BN
    Dist. 2 103.00
    Dist. 3 103.00
    Rotation CW
    Dist./back 249.00
    Dist./front 72.50
    Drive dist. 26.00
    Drive type Steel
    Gear type DD
    kW 3.0
    Terminal 50 M5
    Voltage 12
    Total length 339.00 mm
    Waterproof No
    Dist. 146.00 mm
    Mount. hole 3 12.20 mm
    Mount. hole 2 12.20 mm
    Mount. hole 1 12.20 mm
  • Nämä ajoneuvot sopivat

    • OEM
      azj3115, azj3516, azj3534, CT6005706623, dm2120, dm2130, dm2134, F032110640, mt71z, 11.130.127, 11.130.198, 11.130.409, 2130, 26394, 27440, 27440a, 27440b, 0001359091, 0001367014, 5119319, 84273182, 6005706623

    • Konkurrentreferens
      CST30165, drs1220, drs2670, drs3405, drs3850, is0409, is0618, IS9448, LES0014, lrs00182, lrs00847, lrs00944, MS192, MS224, S0116, S4026, S4061, 2-1805-RO, 8ea730220-001, 25-0339, 25-1268, 32-13.850, 50-9900, 618.003.092, 618.004.092, 790.501.093, 4103, 10704, 17184, 17184N, 17219, 33416, 104248, 220044, 220044A, 433311, 063217121, 943251136

    • NormaliseratArtNr
      azj3115, azj3516, azj3534, cst30165, ct6005706623, dm2120, dm2130, dm2134, drs1220, drs2670, drs3405, drs3850, f032110640, is0409, is0618, is9448, les0014, lrs00182, lrs00847, lrs00944, ms192, ms224, mt71z, s0116, s4026, s4061, 8ea730220001, 2130, 4103, 10704, 17184, 17184n, 17219, 21805ro, 26394, 27440, 27440a, 27440b, 33416, 104248, 220044, 220044a, 250339, 251268, 433311, 509900, 0001359091, 0001367014, 3213850, 5119319, 11130127, 11130198, 11130409, 063217121, 84273182, 618003092, 618004092, 790501093, 943251136, 6005706623

    • Passar modeller
      Allis Chalmers Model: 300 Model series: 310 From date: 01-01-1980 To date: 01-01-1990 Fuel: Diesel Approved: Yes
      Allis Chalmers Model: 300 Model series: 340 From date: 01-01-1980 To date: 01-01-1985 Fuel: Diesel Approved: Yes
      Allis Chalmers Model: 300 Model series: 360 From date: 01-01-1977 To date: 01-01-1991 Fuel: Diesel Approved: Yes
      Allis Chalmers Model: 400 Model series: 445 From date: 01-01-1974 To date: 01-01-1989 Approved: Yes
      Allis Chalmers Model: 400 Model series: 460 From date: 01-01-1977 To date: 01-01-1991 Fuel: Diesel Approved: Yes
      Allis Chalmers Model: 500 Model series: 500 From date: 01-01-1980 To date: 01-01-1985 Fuel: Diesel Approved: Yes
      Allis Chalmers Model: 500 Model series: 510 From date: 01-01-1979 To date: 01-01-1990 Fuel: Diesel Approved: Yes
      Allis Chalmers Model: 600 Model series: 610 From date: 01-01-1979 To date: 01-01-1990 Fuel: Diesel Approved: Yes
      Allis Chalmers Model: Various Models Model series: Various Models Approved: Yes
      Fiat Model: 400 Model series: 404 From date: 01-01-1984 Fuel: Diesel Approved: Yes
      Fiat Model: 400 Model series: 420 From date: 01-01-1984 Fuel: Diesel Approved: Yes
      Fiat Model: 400 Model series: 440 From date: 01-01-1984 Fuel: Diesel Approved: Yes
      Fiat Model: 400 Model series: 450 From date: 01-06-1972 Fuel: Diesel Approved: Yes
      Fiat Model: 400 Model series: 455 From date: 01-01-1984 Fuel: Diesel Approved: Yes
      Fiat Model: 400 Model series: 470 From date: 01-01-1984 Fuel: Diesel Approved: Yes
      Fiat Model: 500 Model series: 500S From date: 01-01-1978 To date: 01-01-1982 Fuel: Diesel Approved: Yes
      Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Long Model: 300 Series Model series: 350 Size of motor: 2.3 Brand of engine: Fiat From date: 01-05-1974 Fuel: Diesel Approved: Yes
      Long Model: 400 Series Model series: 445 Size of motor: 2.3 Brand of engine: Fiat From date: 01-05-1974 Fuel: Diesel Approved: Yes
      Long Model: 500 Series Model series: 550 Size of motor: 3.1 Brand of engine: Fiat From date: 01-05-1974 Fuel: Diesel Approved: Yes
