Tuotenro.: F032113313

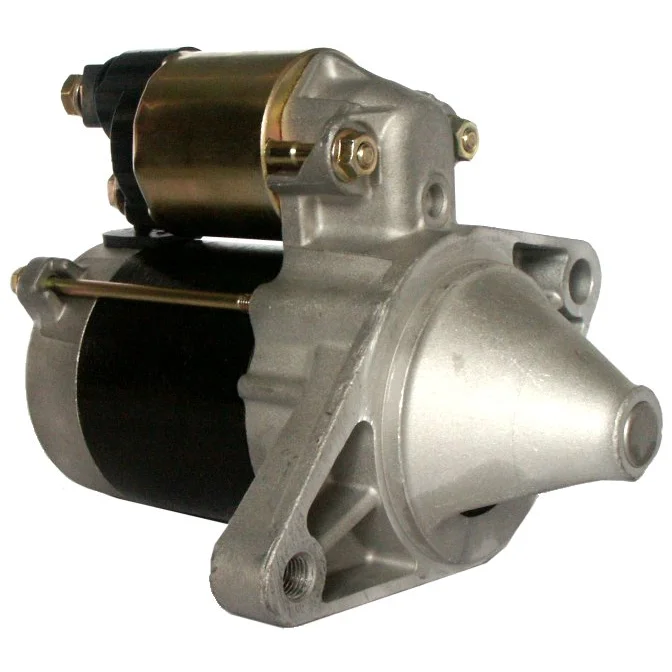

HC-Cargo Starttimoottori

Tekniset tiedot:

jännite: 12, kW: 0,7, nro./hampaat: 8, pyörintä: Tiukasti myötäpäivään

Kuvaus

Jännite: 12
Kilowatti: 0.7
Asennuskaarteen Ø: 74.00
Käynnistysratas etäisyys: 11.50
Holkki 1 mm: 11.50
Etäisyys/taaksepäin: 135.00
Etäisyys/eteenpäin: 47.50
Rivi/tähdet: 8
B+: M8
Sijainti/50: 40
Terminaali 50: Pisto
Vaihteen tyyppi: DD
Etäisyys mm: 131.50
Kääntö: myötäpäivään
Kokonaispituus mm: 187.00
Käynnistystapa: Teräs
Valmistustiedot: Reman
Vedenpitävä: Ei
Öljysuojattu: Ei
Holkit / asennusreiät: 2 (1)

Määrittely

B+ M8
No./teeth 8
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (1)
Position/50 40
Prod. info Reman
Rotation CW
Dist./back 135.00
Dist./front 47.50
Drive dist. 11.50
Drive type Steel
Gear type DD
kW 0.7
Terminal 50 Plug
Voltage 12
Total length 187.00 mm
Waterproof No
Dist. 131.50 mm
Mount. hole 1 11.50 mm
  • OEM

    F032113313, js1299, 28100-0J010, 28100-23020, 228000-8350, 228000-9530
  • Konkurrentreferens

    DRS3864, F042S0H048, J5212110, LRS01452, S6035, STR-H048, 8EA011610-741, 25-2381, 335.075.082, 105520, 201299, 220759, 220759A, 8020561, 11040680, 0986020561
  • NormaliseratArtNr

    drs3864, f032113313, f042s0h048, j5212110, js1299, lrs01452, s6035, strh048, 8ea011610741, 105520, 201299, 220759, 220759a, 252381, 281000j010, 8020561, 11040680, 335075082, 0986020561, 2280008350, 2280009530, 2810023020
  • Passar modeller

    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
  • Kuvaus
    Jännite: 12
    Kilowatti: 0.7
    Asennuskaarteen Ø: 74.00
    Käynnistysratas etäisyys: 11.50
    Holkki 1 mm: 11.50
    Etäisyys/taaksepäin: 135.00
    Etäisyys/eteenpäin: 47.50
    Rivi/tähdet: 8
    B+: M8
    Sijainti/50: 40
    Terminaali 50: Pisto
    Vaihteen tyyppi: DD
    Etäisyys mm: 131.50
    Kääntö: myötäpäivään
    Kokonaispituus mm: 187.00
    Käynnistystapa: Teräs
    Valmistustiedot: Reman
    Vedenpitävä: Ei
    Öljysuojattu: Ei
    Holkit / asennusreiät: 2 (1)
  • Määrittely
    B+ M8
    No./teeth 8
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (1)
    Position/50 40
    Prod. info Reman
    Rotation CW
    Dist./back 135.00
    Dist./front 47.50
    Drive dist. 11.50
    Drive type Steel
    Gear type DD
    kW 0.7
    Terminal 50 Plug
    Voltage 12
    Total length 187.00 mm
    Waterproof No
    Dist. 131.50 mm
    Mount. hole 1 11.50 mm
  • Nämä ajoneuvot sopivat
    • OEM

      F032113313, js1299, 28100-0J010, 28100-23020, 228000-8350, 228000-9530
    • Konkurrentreferens

      DRS3864, F042S0H048, J5212110, LRS01452, S6035, STR-H048, 8EA011610-741, 25-2381, 335.075.082, 105520, 201299, 220759, 220759A, 8020561, 11040680, 0986020561
    • NormaliseratArtNr

      drs3864, f032113313, f042s0h048, j5212110, js1299, lrs01452, s6035, strh048, 8ea011610741, 105520, 201299, 220759, 220759a, 252381, 281000j010, 8020561, 11040680, 335075082, 0986020561, 2280008350, 2280009530, 2810023020
    • Passar modeller

      Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
