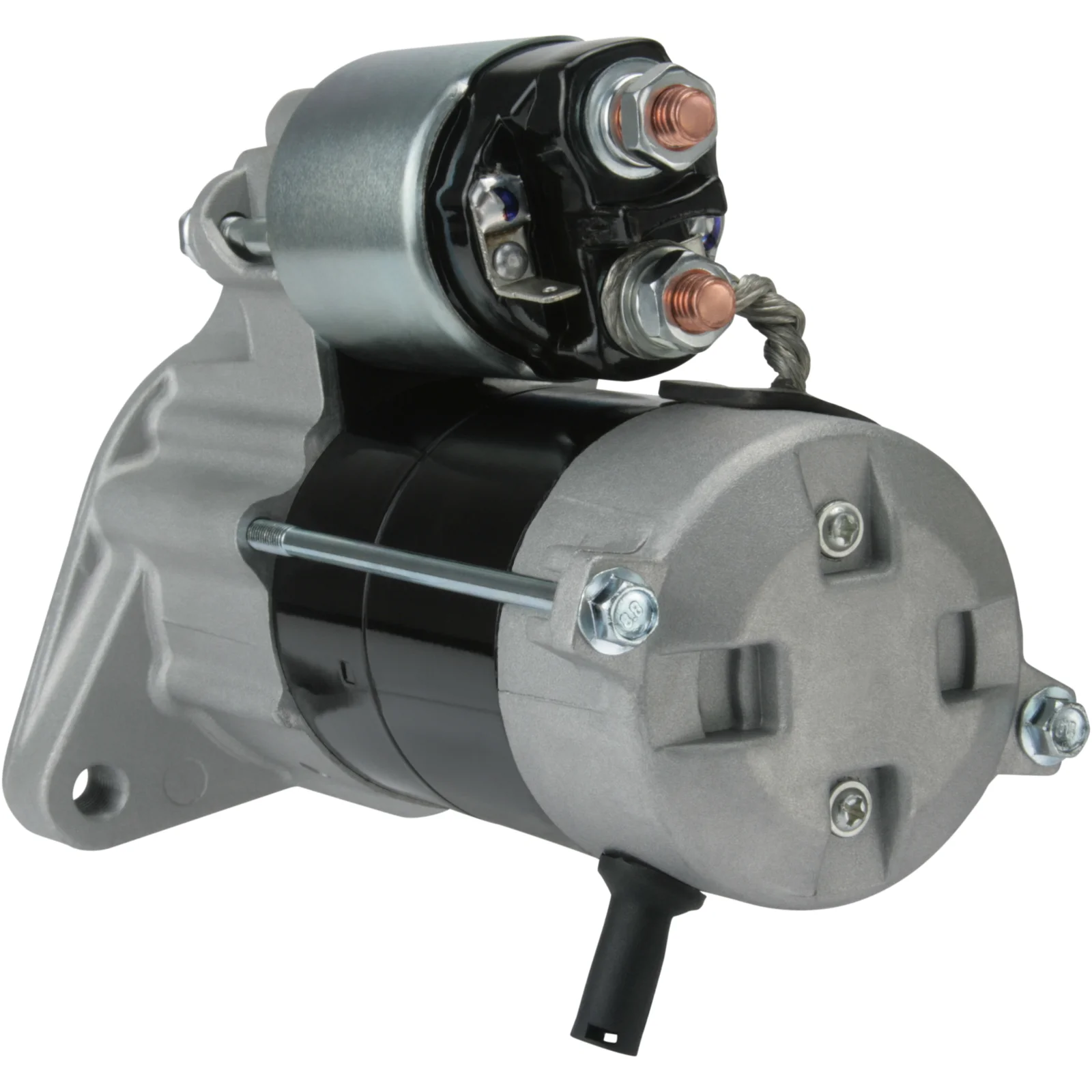

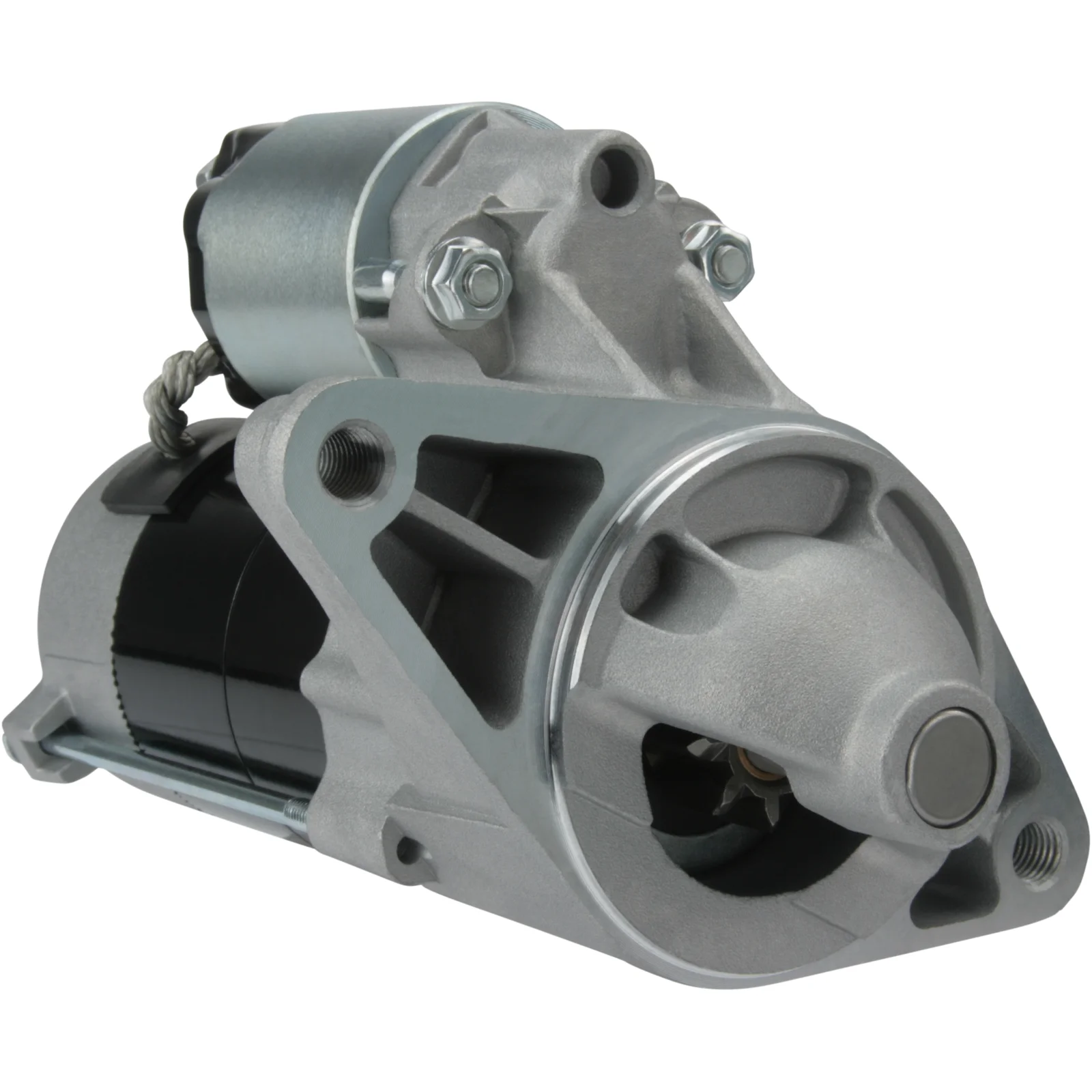

HC-Cargo Starttimoottori
HC-Cargo Starttimoottori
Tuotenro.: F032114851

HC-Cargo Starttimoottori

Tekniset tiedot:

Jännite: 12, kW: 0,8, Nro./hampaat: 8, Kierto: myötäpäivään

Kuvaus

Jännite: 12
kW: 0.8
Kytkentä kiekon : 74.00
Vetoväli: 4.00
Väli/taakse: 164.00
Väli/eteen: 37.00
No./hampaat: 8
B+: M8
Sijainti/50: 40
Terminaali 50: 6.30
Välitystyyppi: GR
Väli mm: 132.00
Kääntö: Myötäpäivään
Kokonaispituus mm: 202.00
Valmistustiedot: BN
No./kytkentäkohdat: 2 (2)

Tiedostot

Määrittely

B+ M8
No./teeth 8
Mount. flange 74.00
No./mount. holes 2 (2)
Position/50 40
Prod. info BN
Rotation CW
Dist./back 164.00
Dist./front 37.00
Drive dist. 4.00
Gear type GR
kW 0.8
Terminal 50 6.30
Voltage 12
Total length 202.00 mm
Dist. 132.00 mm

  • OEM
    cs1523, F032114851, 1986S01086, 28100-87548, 28100-87551, 28100-87551-000, 228000-5710

  • Konkurrentreferens
    CST40241, DRS0219, drs3213, J5216029, LRS02285, S6163, 25-3456, 190.583.092, 317.030.082, 3234, 33285N, 107150, 220209, 220209A, 11040737, 0986029200

  • NormaliseratArtNr
    cs1523, cst40241, drs0219, drs3213, f032114851, j5216029, lrs02285, s6163, 1986s01086, 3234, 33285n, 107150, 220209, 220209a, 253456, 11040737, 190583092, 317030082, 0986029200, 2280005710, 2810087548, 2810087551, 2810087551000

  • Passar modeller
    Daihatsu Model: Hijet Mk 2 Minibus Model series: Hijet Mk 2 Minibus Size of motor: 1.3 Brand of engine: HCE Type description: S85 Body: Bus From date: 01-08-1998 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Hijet Model series: Hijet Model type: 4WD Size of motor: 1.3 Brand of engine: HCE Body: Pick Up From date: 01-10-2001 To date: 01-06-2004 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Hijet Model series: Hijet Size of motor: 1.3 Brand of engine: HCE Body: Pick Up From date: 01-06-1998 Fuel: Gasoline Approved: Yes
    Daihatsu Model: Hijet Model series: Hijet Type of engine: i 16V Size of motor: 1.3 Brand of engine: HCE Type description: S85 Body: Van From date: 01-05-1998 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
    Piaggio Model: Porter Model series: Porter Model type: 4x4 Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Platform / Chassis From date: 01-06-1998 Fuel: Gasoline Approved: Yes
    Piaggio Model: Porter Model series: Porter Model type: 4x4 Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Van From date: 01-06-1998 Fuel: Gasoline Approved: Yes
    Piaggio Model: Porter Model series: Porter Model type: LPG Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Platform / Chassis From date: 01-06-1998 Fuel: Bi-Fuel Approved: Yes
    Piaggio Model: Porter Model series: Porter Model type: LPG Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Van From date: 01-06-1998 Fuel: Bi-Fuel Approved: Yes
    Piaggio Model: Porter Model series: Porter Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Platform / Chassis From date: 01-06-1998 Fuel: Gasoline Approved: Yes
    Piaggio Model: Porter Model series: Porter Type of engine: i 16V Size of motor: 1.3 Brand of engine: HCEE Body: Van From date: 01-05-1998 Fuel: Gasoline Approved: Yes
    1 / 2
  • Kuvaus
    Jännite: 12
    kW: 0.8
    Kytkentä kiekon : 74.00
    Vetoväli: 4.00
    Väli/taakse: 164.00
    Väli/eteen: 37.00
    No./hampaat: 8
    B+: M8
    Sijainti/50: 40
    Terminaali 50: 6.30
    Välitystyyppi: GR
    Väli mm: 132.00
    Kääntö: Myötäpäivään
    Kokonaispituus mm: 202.00
    Valmistustiedot: BN
    No./kytkentäkohdat: 2 (2)

    Tiedostot

  • Määrittely
    B+ M8
    No./teeth 8
    Mount. flange 74.00
    No./mount. holes 2 (2)
    Position/50 40
    Prod. info BN
    Rotation CW
    Dist./back 164.00
    Dist./front 37.00
    Drive dist. 4.00
    Gear type GR
    kW 0.8
    Terminal 50 6.30
    Voltage 12
    Total length 202.00 mm
    Dist. 132.00 mm
  • Nämä ajoneuvot sopivat

    • OEM
      cs1523, F032114851, 1986S01086, 28100-87548, 28100-87551, 28100-87551-000, 228000-5710

    • Konkurrentreferens
      CST40241, DRS0219, drs3213, J5216029, LRS02285, S6163, 25-3456, 190.583.092, 317.030.082, 3234, 33285N, 107150, 220209, 220209A, 11040737, 0986029200

    • NormaliseratArtNr
      cs1523, cst40241, drs0219, drs3213, f032114851, j5216029, lrs02285, s6163, 1986s01086, 3234, 33285n, 107150, 220209, 220209a, 253456, 11040737, 190583092, 317030082, 0986029200, 2280005710, 2810087548, 2810087551, 2810087551000

    • Passar modeller
      Daihatsu Model: Hijet Mk 2 Minibus Model series: Hijet Mk 2 Minibus Size of motor: 1.3 Brand of engine: HCE Type description: S85 Body: Bus From date: 01-08-1998 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Hijet Model series: Hijet Model type: 4WD Size of motor: 1.3 Brand of engine: HCE Body: Pick Up From date: 01-10-2001 To date: 01-06-2004 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Hijet Model series: Hijet Size of motor: 1.3 Brand of engine: HCE Body: Pick Up From date: 01-06-1998 Fuel: Gasoline Approved: Yes
      Daihatsu Model: Hijet Model series: Hijet Type of engine: i 16V Size of motor: 1.3 Brand of engine: HCE Type description: S85 Body: Van From date: 01-05-1998 To date: 01-10-2005 Fuel: Gasoline Approved: Yes
      Piaggio Model: Porter Model series: Porter Model type: 4x4 Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Platform / Chassis From date: 01-06-1998 Fuel: Gasoline Approved: Yes
      Piaggio Model: Porter Model series: Porter Model type: 4x4 Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Van From date: 01-06-1998 Fuel: Gasoline Approved: Yes
      Piaggio Model: Porter Model series: Porter Model type: LPG Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Platform / Chassis From date: 01-06-1998 Fuel: Bi-Fuel Approved: Yes
      Piaggio Model: Porter Model series: Porter Model type: LPG Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Van From date: 01-06-1998 Fuel: Bi-Fuel Approved: Yes
      Piaggio Model: Porter Model series: Porter Type of engine: 16V Size of motor: 1.3 Brand of engine: HCEL Body: Platform / Chassis From date: 01-06-1998 Fuel: Gasoline Approved: Yes
      Piaggio Model: Porter Model series: Porter Type of engine: i 16V Size of motor: 1.3 Brand of engine: HCEE Body: Van From date: 01-05-1998 Fuel: Gasoline Approved: Yes
