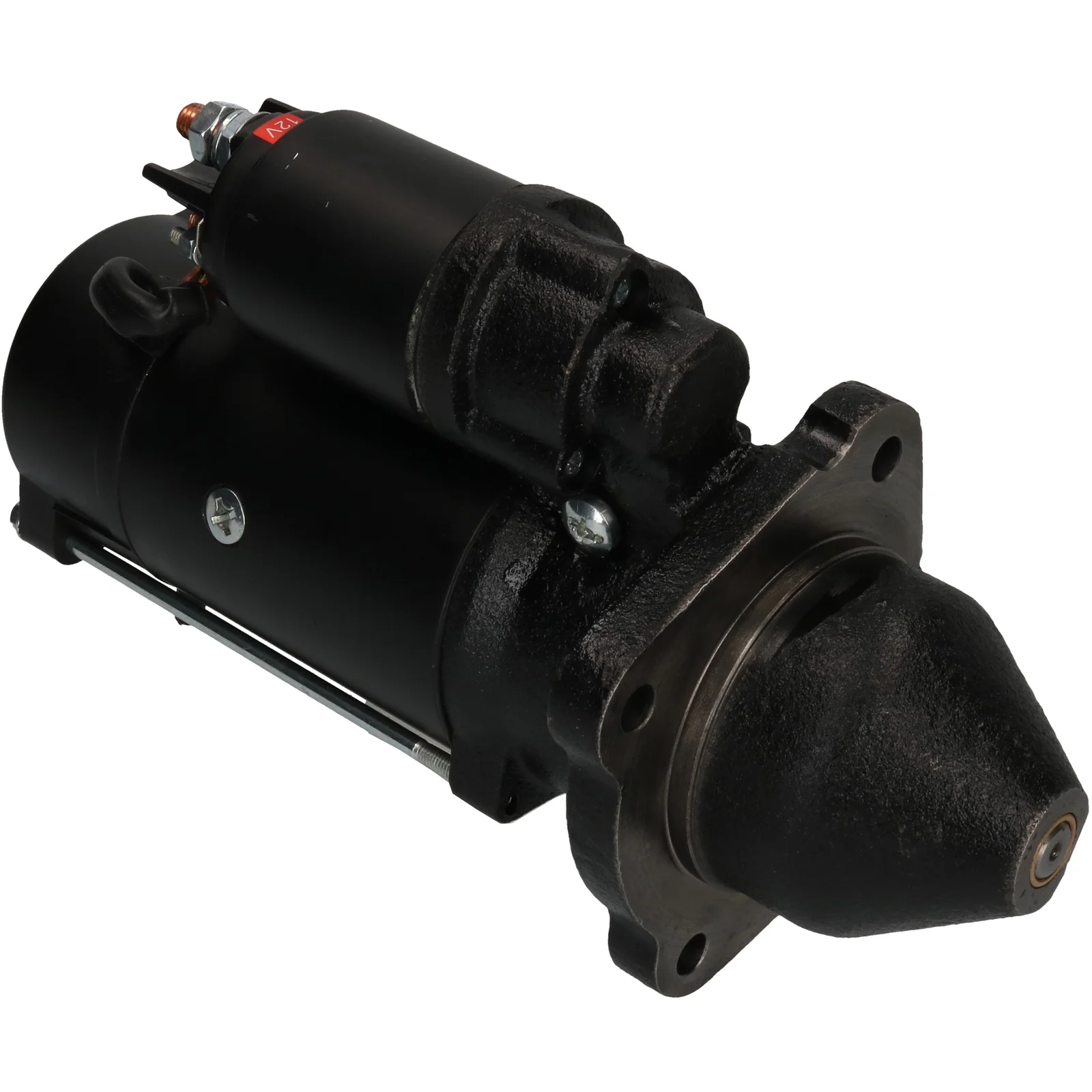

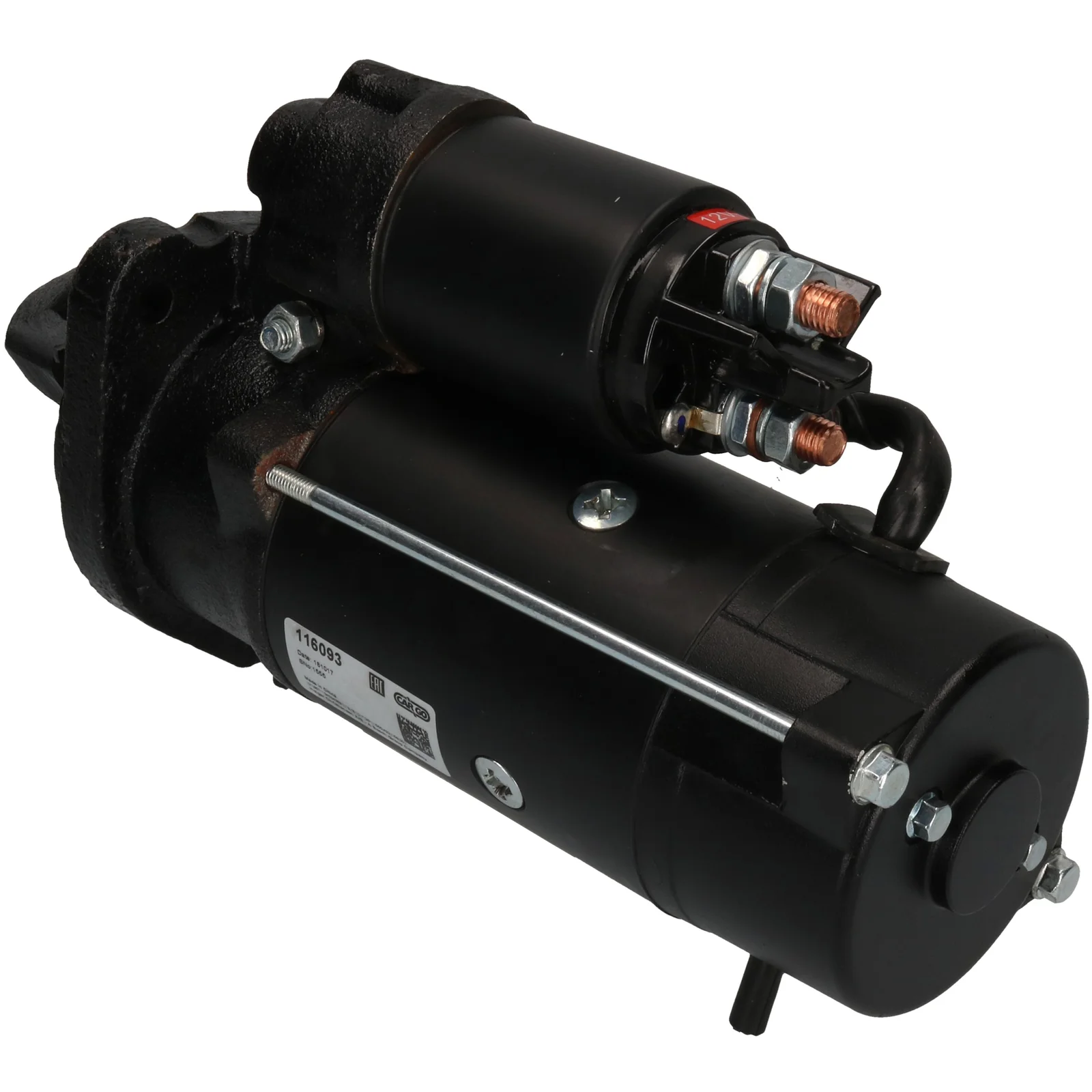

HC-Cargo Starttimoottori
HC-Cargo Starttimoottori
Tuotenro.: F032116093

HC-Cargo Starttimoottori

Tekniset tiedot:

Volyymi: 12, kW: 4.0, No./hampaat: 9, Kääntö: myötäpäivään

Kuvaus

Jännite: 12
kW: 4.0
Kytkentäholkki: 89.00
Veturin etäisyys: 28.00
Kytkentäkuopan 3 mm: 11.00
Kytkentäkuopan 2 mm: 11.00
Kytkentäkuopan 1 mm: 11.00
Etäisyys / takaosa: 248.00
Etäisyys / etuosa: 73.00
Nro / hampaat: 9
B+: M10
Sijoitus / B+: 60
Sijoitus / 50: 20
Terminaali 50: M5
Vaihtoehtoinen tyyppi: GR
Etäisyys 2: 90.00
Etäisyys 3: 90.00
Etäisyys mm: 127.00
Kääntö: myötäpäivään
Kokonaispituus mm: 321.00
Nro / kytkentäholkit: 3 (0)

Tiedostot

Määrittely

B+ M10
No./teeth 9
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 20
Position/B+ 60
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 248.00
Dist./front 73.00
Drive dist. 28.00
Gear type GR
kW 4.0
Terminal 50 M5
Voltage 12
Total length 321.00 mm
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZF4194, AZF4197, AZF4309, azf4343, F032116093, 11.131.620, 11.131.754, 11.131.769, 11.132.256, 1269844, 5263797, 05712909, 05719269, 5719269, 5411656410

  • Konkurrentreferens
    DRS0934, DRS0934N, IS1254, LRS02515, MS65, S9236, S9236(LETRIKA), 220787, 220787A

  • NormaliseratArtNr
    azf4194, azf4197, azf4309, azf4343, drs0934, drs0934n, f032116093, is1254, lrs02515, ms65, s9236, s9236letrika, 220787, 220787a, 1269844, 5263797, 05712909, 05719269, 5719269, 11131620, 11131754, 11131769, 11132256, 5411656410

  • Passar modeller
    Bomag Model: BW 211 D-4 & BW 211 PD-4 Model series: BW 211 D-4 & BW 211 PD-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 211 D-40 & BW 211 PD-40 Model series: BW 211 D-40 & BW 211 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 211 SERIES Model series: BW 211 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 212 D-40 & BW 212 PD-40 Model series: BW 212 D-40 & BW 212 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 D-4, BW 213 DH-4 & BW 213 PDH-4 Model series: BW 213 D-4, BW 213 DH-4 & BW 213 PDH-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 D-40 & BW 213 PD-40 Model series: BW 213 D-40 & BW 213 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 DH-4 BVC & BW 213 DI-4 BVC Model series: BW 213 DH-4 BVC & BW 213 DI-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 DH-4 BVC (VIBRATORY PLATES) Model series: BW 213 DH-4 BVC (VIBRATORY PLATES) Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 DH-4 BVC Model series: BW 213 DH-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 DI-4 BVC Model series: BW 213 DI-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 213 SERIES Model series: BW 213 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 214 & BW 216 SERIES Model series: BW 214 & BW 216 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 214 DH-4 & BW 214 PDH-4 Model series: BW 214 DH-4 & BW 214 PDH-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW 216 D-4 & BW 216 PD-4 Model series: BW 216 D-4 & BW 216 PD-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW211-40 SERIES Model series: BW211-40 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: BW213D-40 Model series: BW213D-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: C840D SERIES Model series: C840D SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: C850D SERIES Model series: C850D SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Bomag Model: Various Models Model series: Various Models From date: 01-01-1975 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: Agri Model series: Agri 605 From date: 01-01-1997 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: Various Models Model series: Various Models Approved: Yes
    Hyundai Model: HR110C-9 Model series: HR110C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Hyundai Model: HR120C-9 Model series: HR120C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Hyundai Model: HR140C-9 Model series: HR140C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
    Same Model: Various Models Model series: Various Models Approved: Yes
    1 / 5
  • Kuvaus
    Jännite: 12
    kW: 4.0
    Kytkentäholkki: 89.00
    Veturin etäisyys: 28.00
    Kytkentäkuopan 3 mm: 11.00
    Kytkentäkuopan 2 mm: 11.00
    Kytkentäkuopan 1 mm: 11.00
    Etäisyys / takaosa: 248.00
    Etäisyys / etuosa: 73.00
    Nro / hampaat: 9
    B+: M10
    Sijoitus / B+: 60
    Sijoitus / 50: 20
    Terminaali 50: M5
    Vaihtoehtoinen tyyppi: GR
    Etäisyys 2: 90.00
    Etäisyys 3: 90.00
    Etäisyys mm: 127.00
    Kääntö: myötäpäivään
    Kokonaispituus mm: 321.00
    Nro / kytkentäholkit: 3 (0)

    Tiedostot

  • Määrittely
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 20
    Position/B+ 60
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 248.00
    Dist./front 73.00
    Drive dist. 28.00
    Gear type GR
    kW 4.0
    Terminal 50 M5
    Voltage 12
    Total length 321.00 mm
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Nämä ajoneuvot sopivat

    • OEM
      AZF4194, AZF4197, AZF4309, azf4343, F032116093, 11.131.620, 11.131.754, 11.131.769, 11.132.256, 1269844, 5263797, 05712909, 05719269, 5719269, 5411656410

    • Konkurrentreferens
      DRS0934, DRS0934N, IS1254, LRS02515, MS65, S9236, S9236(LETRIKA), 220787, 220787A

    • NormaliseratArtNr
      azf4194, azf4197, azf4309, azf4343, drs0934, drs0934n, f032116093, is1254, lrs02515, ms65, s9236, s9236letrika, 220787, 220787a, 1269844, 5263797, 05712909, 05719269, 5719269, 11131620, 11131754, 11131769, 11132256, 5411656410

    • Passar modeller
      Bomag Model: BW 211 D-4 & BW 211 PD-4 Model series: BW 211 D-4 & BW 211 PD-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 211 D-40 & BW 211 PD-40 Model series: BW 211 D-40 & BW 211 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 211 SERIES Model series: BW 211 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 212 D-40 & BW 212 PD-40 Model series: BW 212 D-40 & BW 212 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 D-4, BW 213 DH-4 & BW 213 PDH-4 Model series: BW 213 D-4, BW 213 DH-4 & BW 213 PDH-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 D-40 & BW 213 PD-40 Model series: BW 213 D-40 & BW 213 PD-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 DH-4 BVC & BW 213 DI-4 BVC Model series: BW 213 DH-4 BVC & BW 213 DI-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 DH-4 BVC (VIBRATORY PLATES) Model series: BW 213 DH-4 BVC (VIBRATORY PLATES) Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 DH-4 BVC Model series: BW 213 DH-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 DI-4 BVC Model series: BW 213 DI-4 BVC Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 213 SERIES Model series: BW 213 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 214 & BW 216 SERIES Model series: BW 214 & BW 216 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 214 DH-4 & BW 214 PDH-4 Model series: BW 214 DH-4 & BW 214 PDH-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW 216 D-4 & BW 216 PD-4 Model series: BW 216 D-4 & BW 216 PD-4 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW211-40 SERIES Model series: BW211-40 SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: BW213D-40 Model series: BW213D-40 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: C840D SERIES Model series: C840D SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: C850D SERIES Model series: C850D SERIES Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Bomag Model: Various Models Model series: Various Models From date: 01-01-1975 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: Agri Model series: Agri 605 From date: 01-01-1997 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: Various Models Model series: Various Models Approved: Yes
      Hyundai Model: HR110C-9 Model series: HR110C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Hyundai Model: HR120C-9 Model series: HR120C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Hyundai Model: HR140C-9 Model series: HR140C-9 Model type: Rollers Brand of engine: TCD 2013 L4 2V Approved: Yes
      Same Model: Various Models Model series: Various Models Approved: Yes
